2002 SD under hood fuse location?

Hercules-550

New member
Joined
Aug 28, 2016
Messages
11
Reaction score
0
Location
Edgewater, FL
I lost all functions for trailer lights. I tested my plugs and got nothing. I was told there is a distribution box with fuses and relays under the hood. I can not find it. Does anyone know where this is? Pic of location would be great. I am lost and need to use my trailer tomorrow for work. Thanks for the help.
I checked the fuses the book listed and they are all good.


Attachments

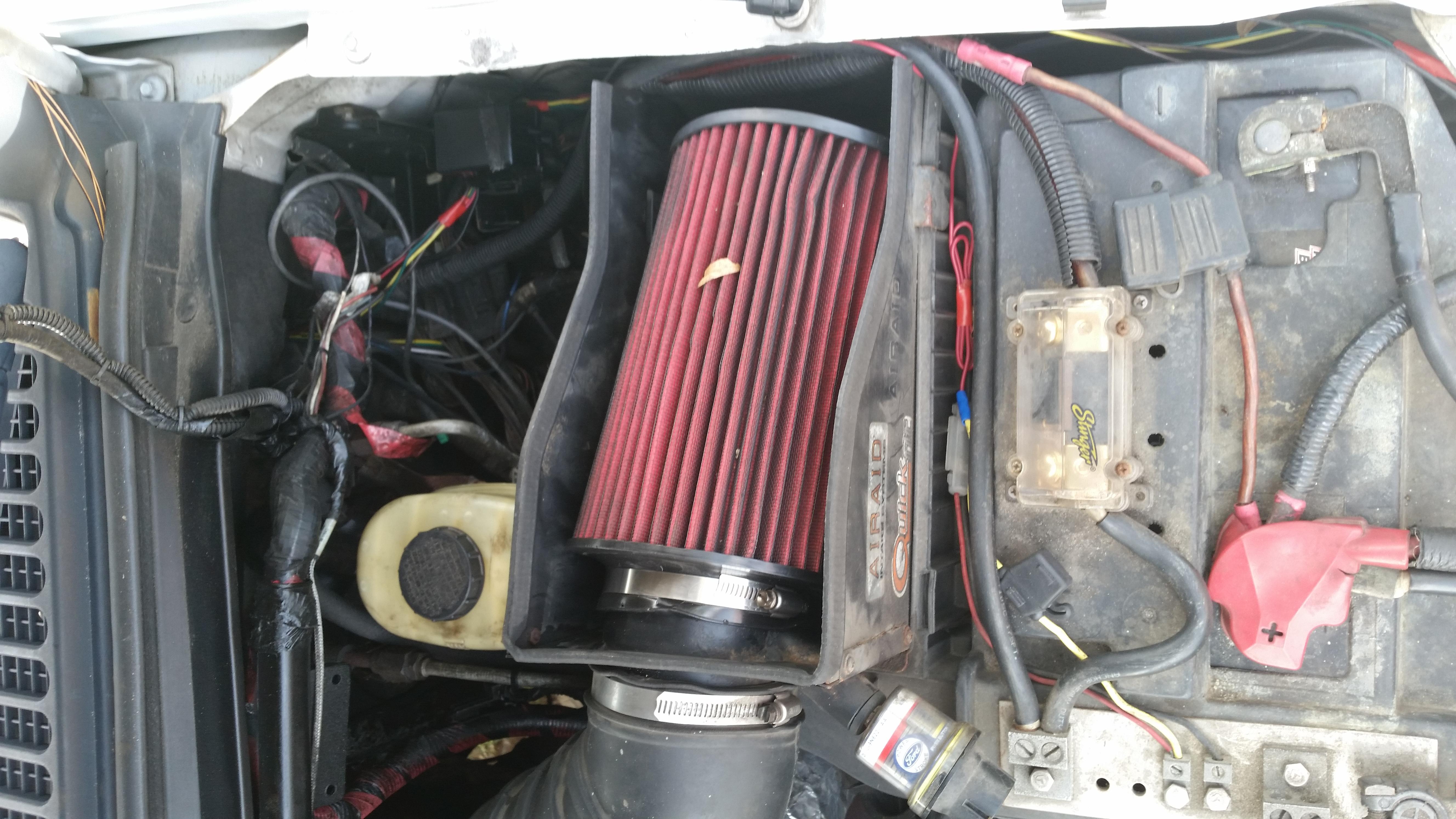

  • 20160918_114541.jpg
    1.3 MB · Views: 27
  • 20160918_114621.jpg
    840.4 KB · Views: 30
Last edited:

ToMang07

Well-known member
Joined
Jan 25, 2012
Messages
6,556
Reaction score
172
Location
Mainah!

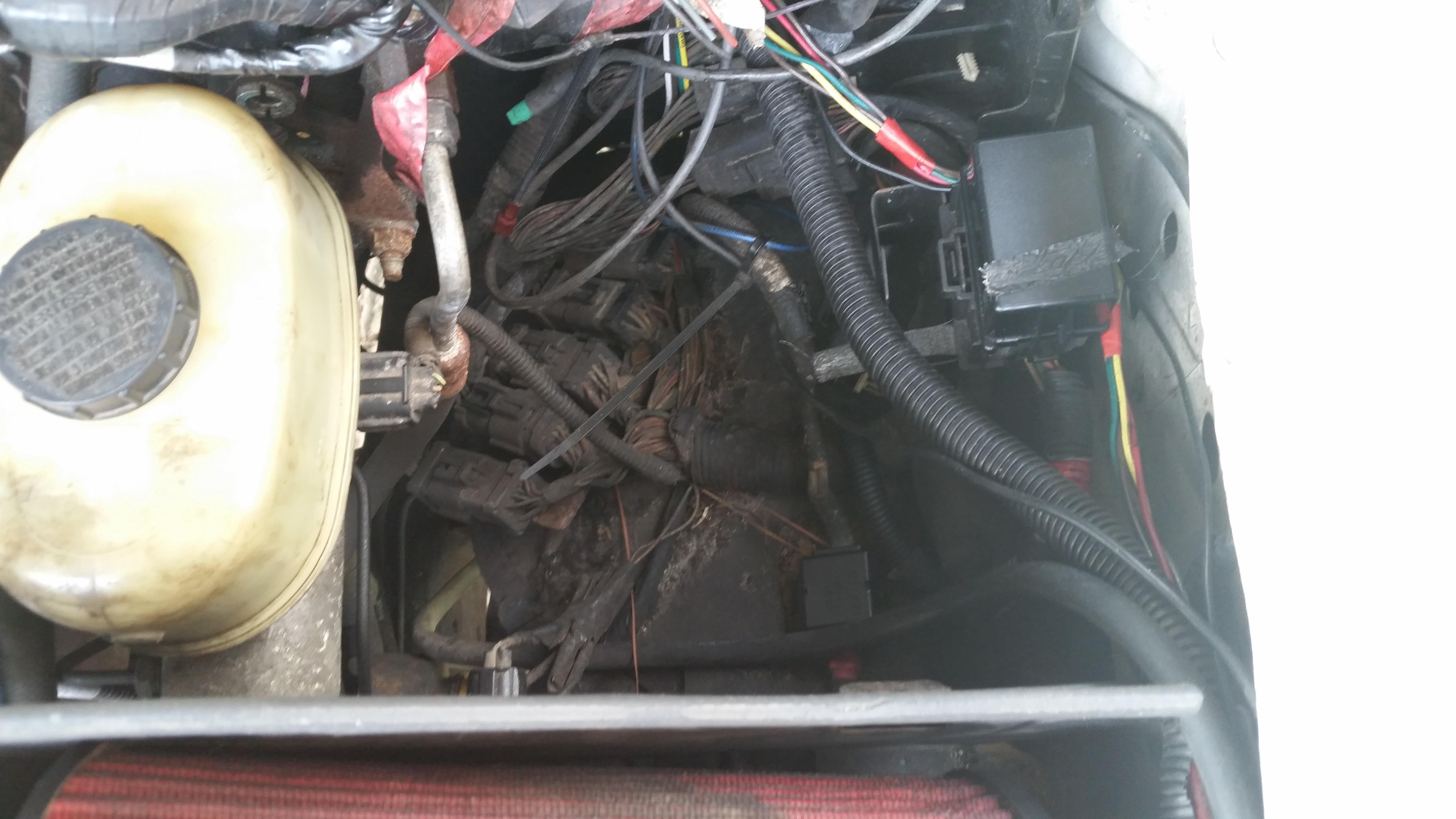

No (stock) fuses under the hood in an 02, 2 relays I know of, besides GPR/AIH, both in the black box in the 2nd pic IIRC. There is a fusible link on the fender as well, but that wouldn't cause your issues.
