Heres a Writeup i made about a year ago. Thought it might help someone.

Started with the coolant flush...

-10 gal distilled water from hyvee ($0.88 gal) = $8.88
- 3 gal of zerex elc-1 concentrate (ordered from Napa @ 19.99 gal x 3) = $59.97
- bottle of vc-9 (got from ford $32.00) = $32.00


grand total = $108
plus $40 in diesel

note- run your heat on high during the whole process. to flush heater core

#1 i drove it for about 5 min to get the t-stat open. pulled the pet**** and drained it (only get 3 gal at a time)

#2 filled it up with hose water. drove it for another 5-10 min. drained it again.

#3 topped it off with 3 gal of distilled. drove it another 5-10. drained it. do it one more time so you have mostly distilled water in the system.

#4 drain it. put your bottle of vc-9 and top with 3 gal of distilled.

#5 drive it! i took the interstate. went half hour out then turned around. 1 hour of drive time.

#6 drain it. leave the pet**** out. put the hose in top of the degas and run the truck for 20 min with water flushing through it.
after that the water coming out should be clean.

#7 repeat #3 to get all distilled back in the system

#8 drain the 3 gal out. and fill with 3 gal of coolant.

done! drive it and top it off with the distilled as needed. NO MORE COOLANT!!


some of the nastiest coolant Ive ever seen came out of that thing. heres some pics.



word of advice. get a buddy to pull the pet**** when the coolant is hot :hehe:


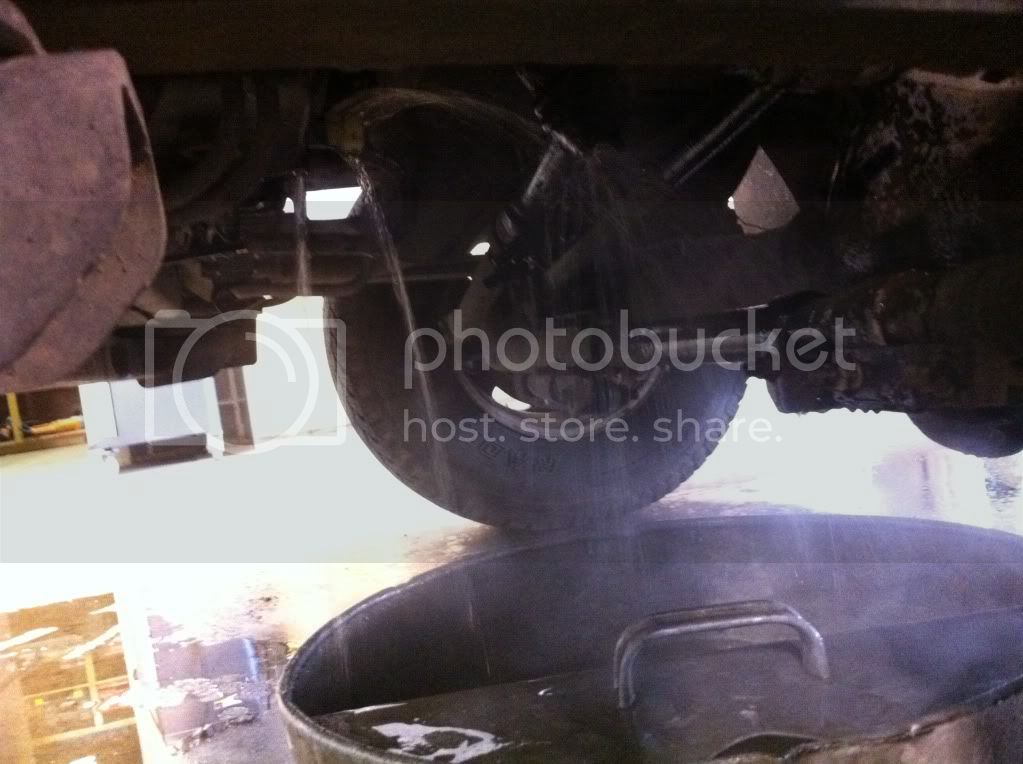

first drain


yummy


another drain


the coolant


serious flush after the vc-9

My EOTvs.ECT temps dropped 5 degrees on the highway after it was all said and done.




Oil coolers not doing to good. this was at 50 degrees outside


Ordered everything from mkm customs, oil cooler,gaskets,egr delete. - Basic Solution(TM) for Ford 6.0L Powerstroke With Sinister EGR Delete Kit, Oil Cooler and Intake Gaskets

Im going to post pictures the whole way.
:dunno: if we need another write up but oh well
Parts should be here tomorrow some time. starting the tear down in the morning.

See how it goes


Heres the cost so far....

Coolant flush-
-10 gal distilled water from hyvee ($0.88 gal) = $8.88
- 3 gal of zerex elc-1 concentrate (ordered from Napa @ 19.99 gal x 3) = $59.97
- bottle of vc-9 (got from ford $32.00) = $32.00


Grand total = $108
Plus $40 in diesel

Oil cooler, egr delete,and all gaskets. (from mkm)
$665.00

Edge cs,pyro,and dash pod
$404.57

Box of shop rags -$8
2 cans of carb cleaner - $10

4 gal of rotella t6 and motorcraft filter (from walmart :doh:)
$107

Total so far..... $1342.57

got her in the garage

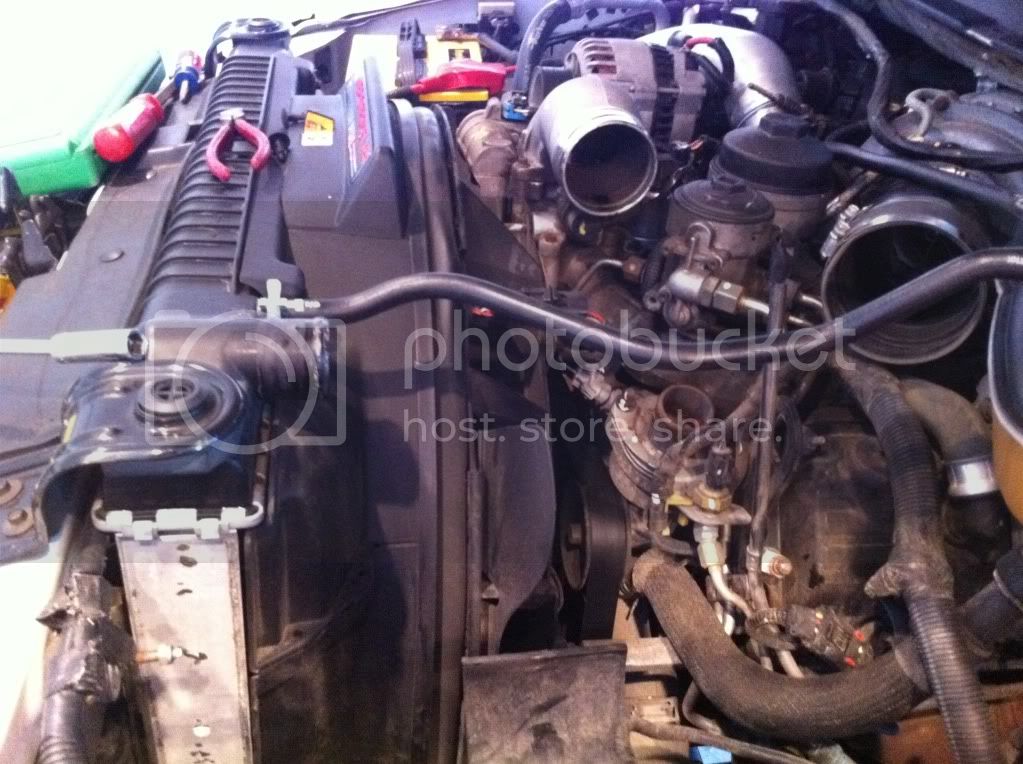

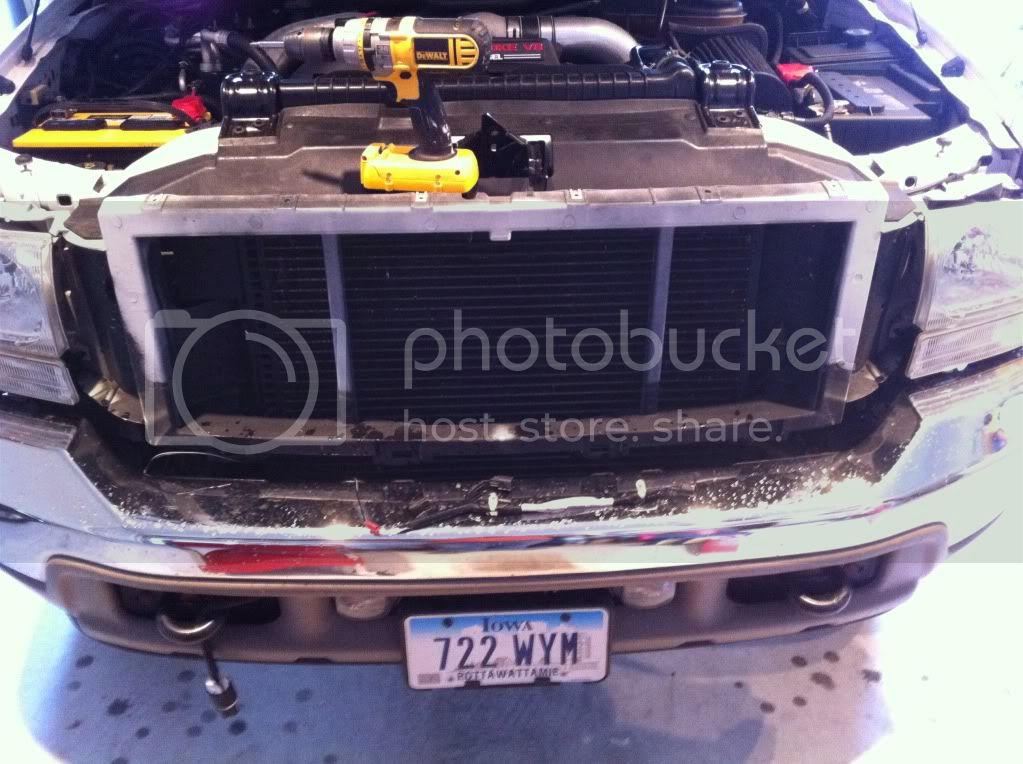

grille off

a couple of buckets will be handy. one for oil and one for coolant

after 15 of rinsing soap out of the damn thing its good to go for coolant.

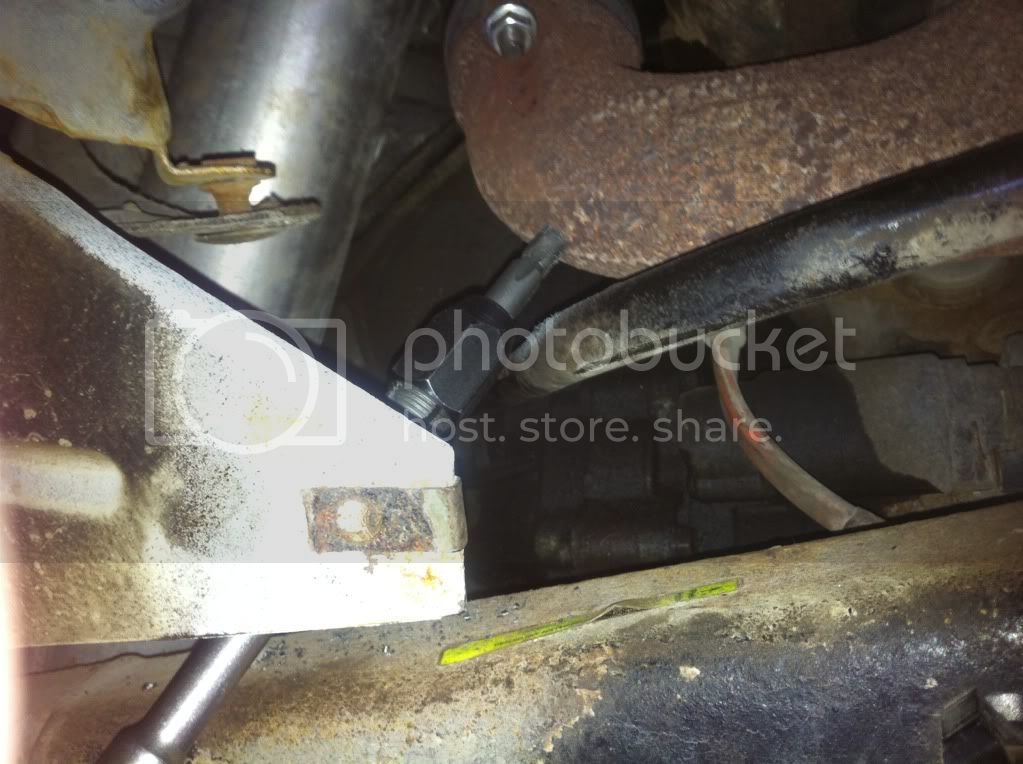

the pet**** is a 3/4" wrench. i put a small piece of hose on it to keep the mess down

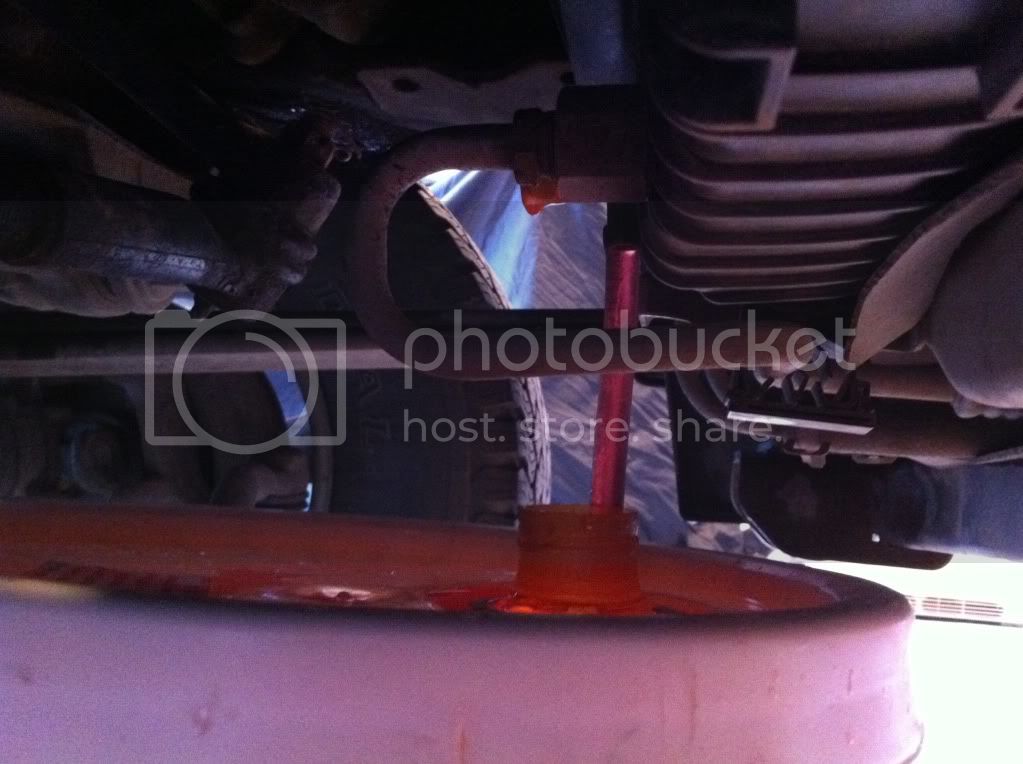

drained the oil

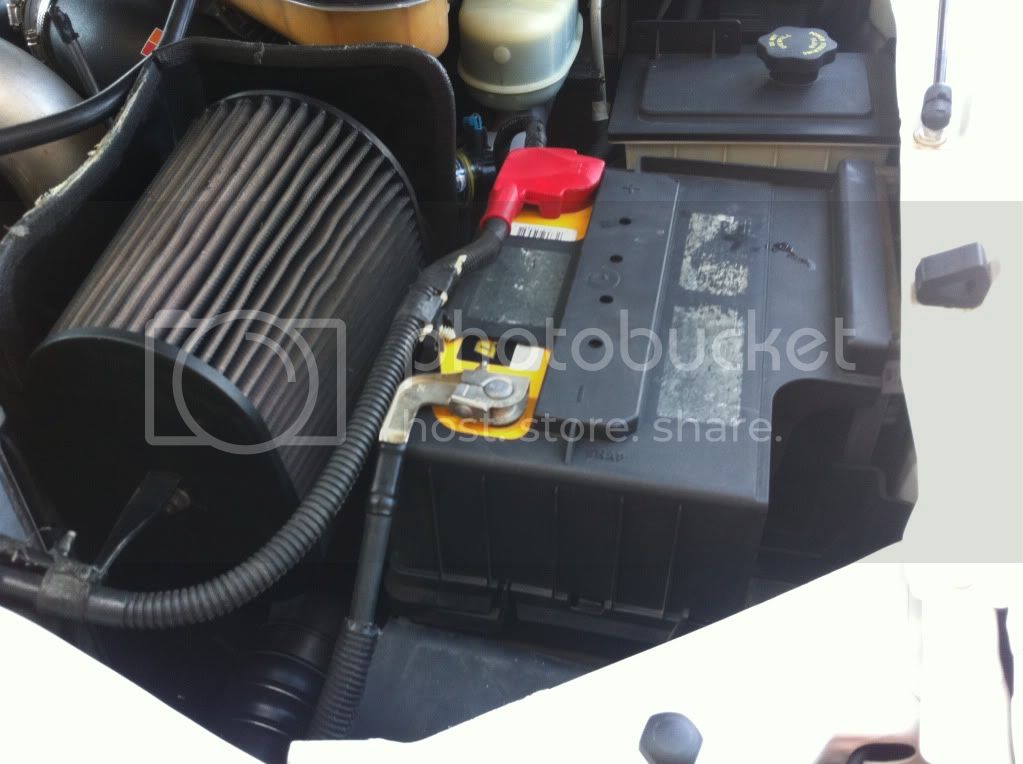

air filter goin away

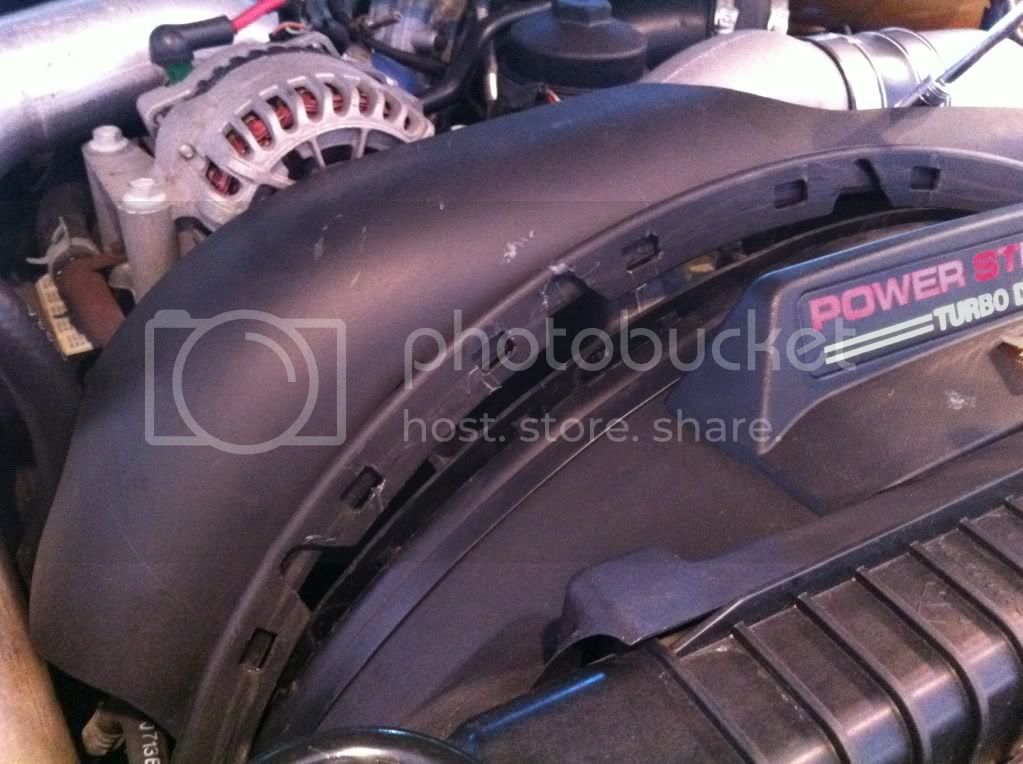

get the shroud out of the way. kind of a pain

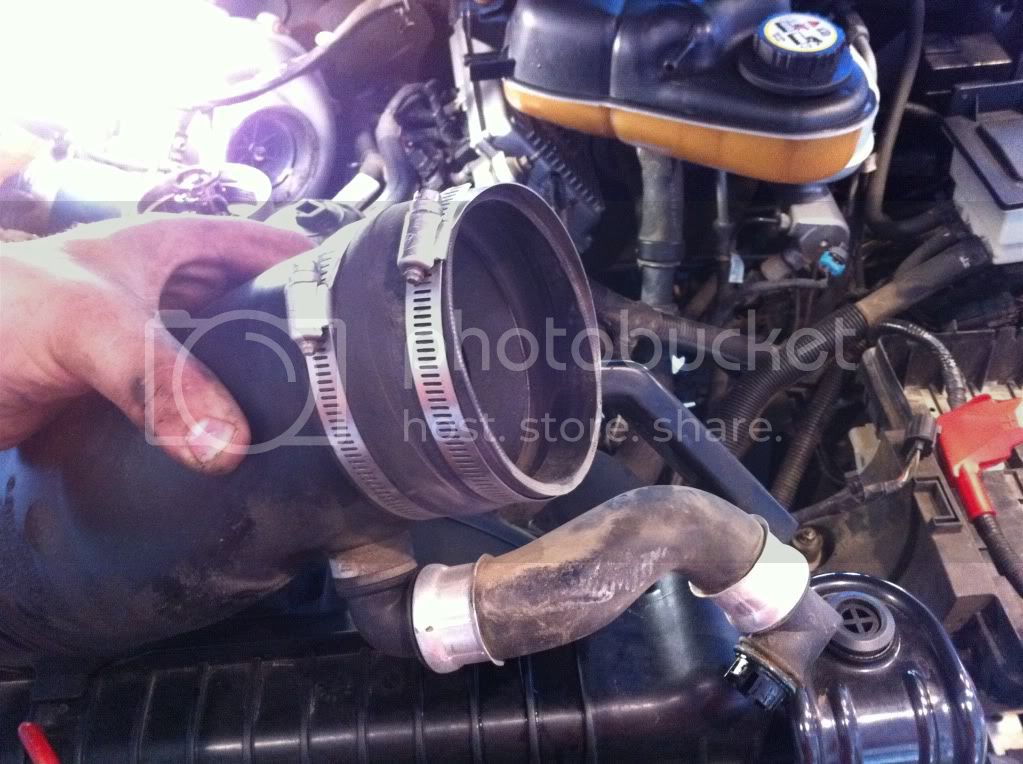

tubes coming off

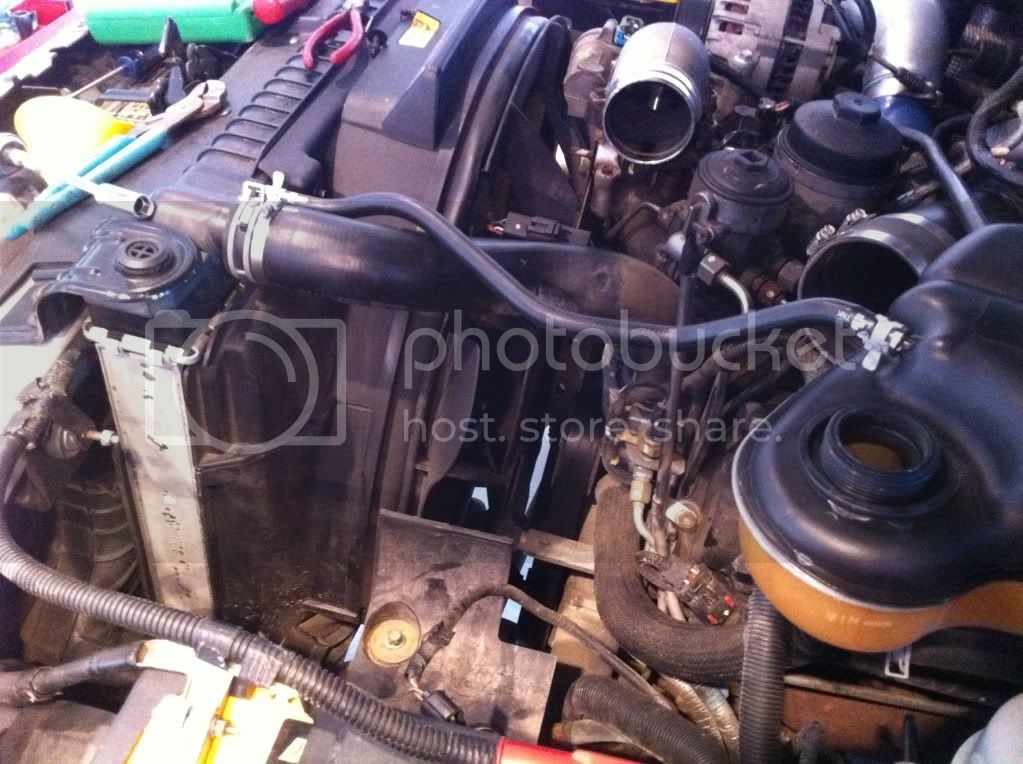

radiator hose off

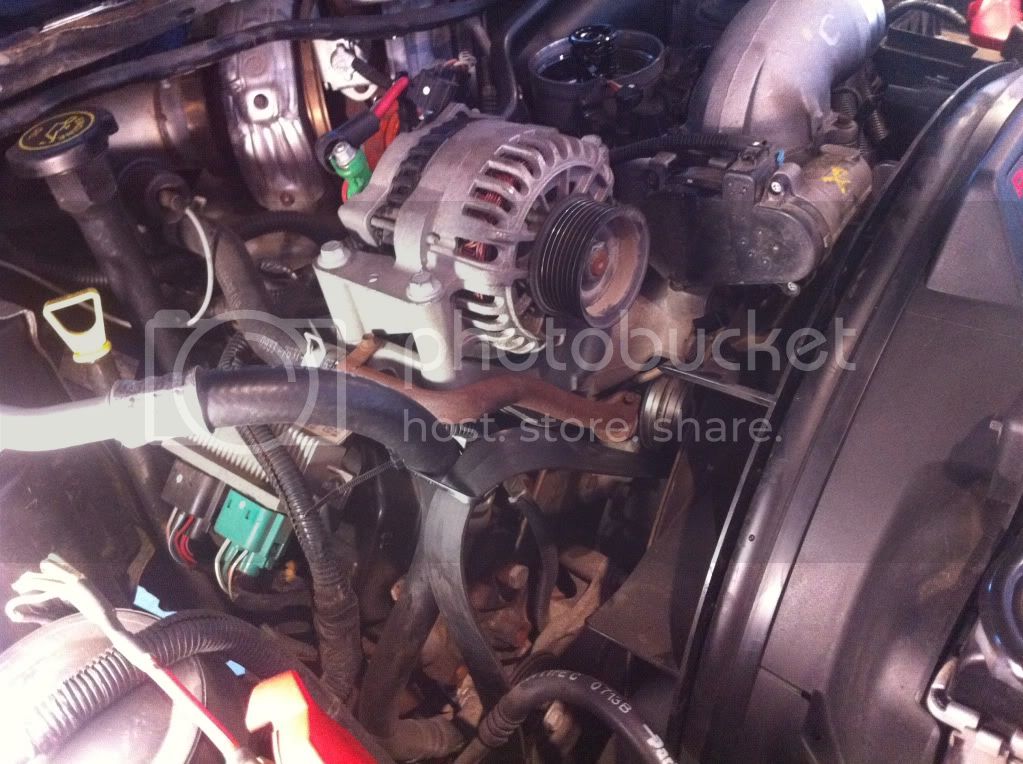

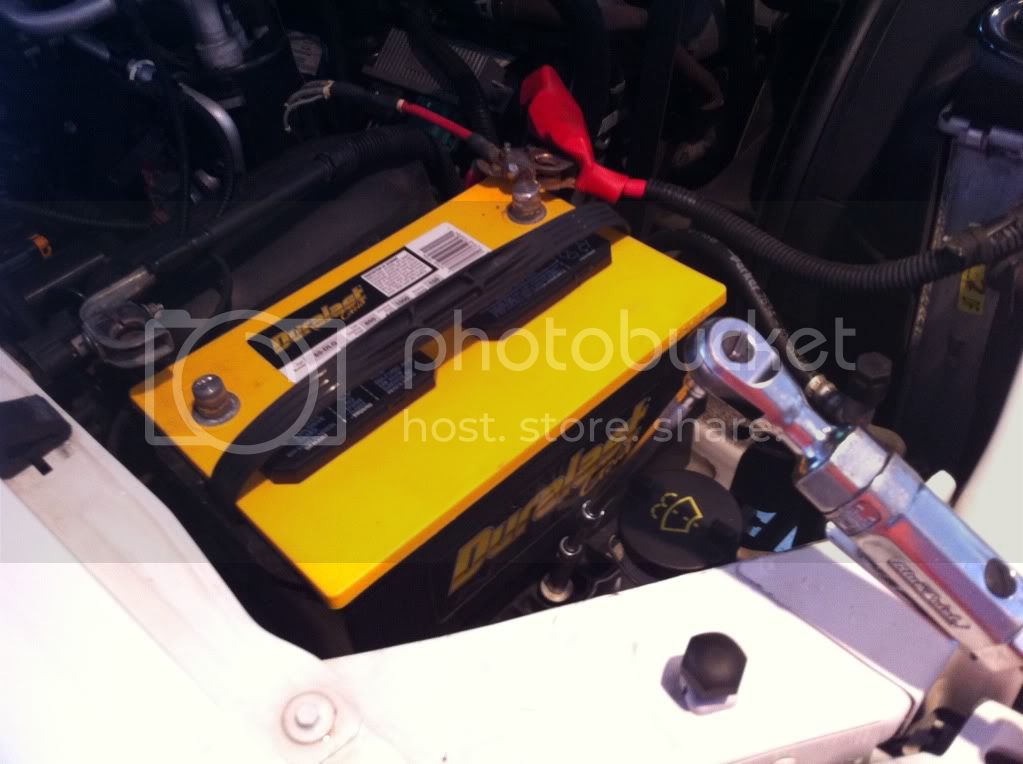

Get both battery's out before disconnecting the alternator

i decided to go heeman on the belt and just pull it off. also zip tie it off so it doesn't come off all of the pulleys.

pull the bots out

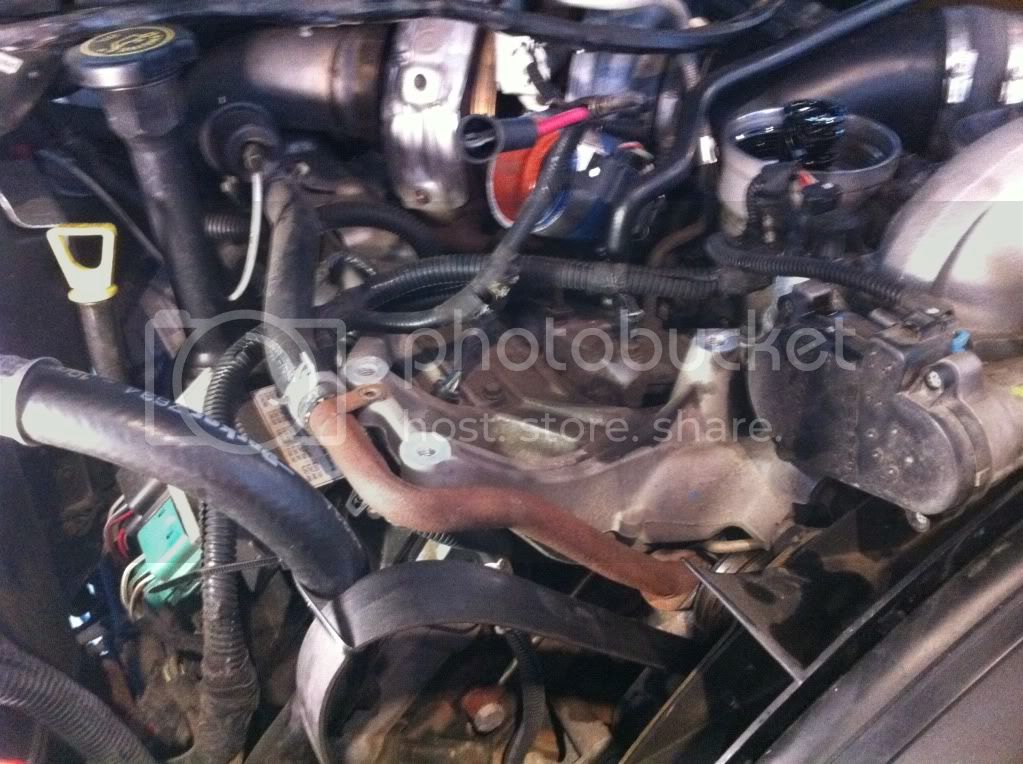

outta there! also took out the bolt out of the feed line for the heater core while i was there.

went and pulled all 3 fuel lines off. make sure you use line wrenches!!!

pulled the rest of the intake off. its bolted to the FICM

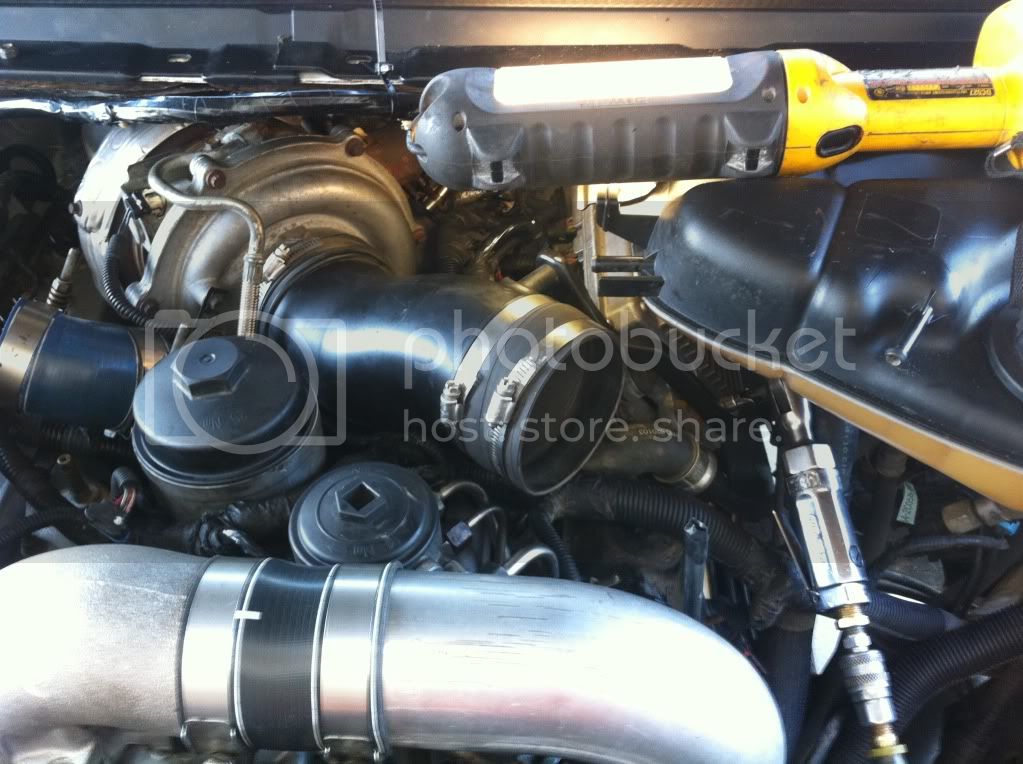

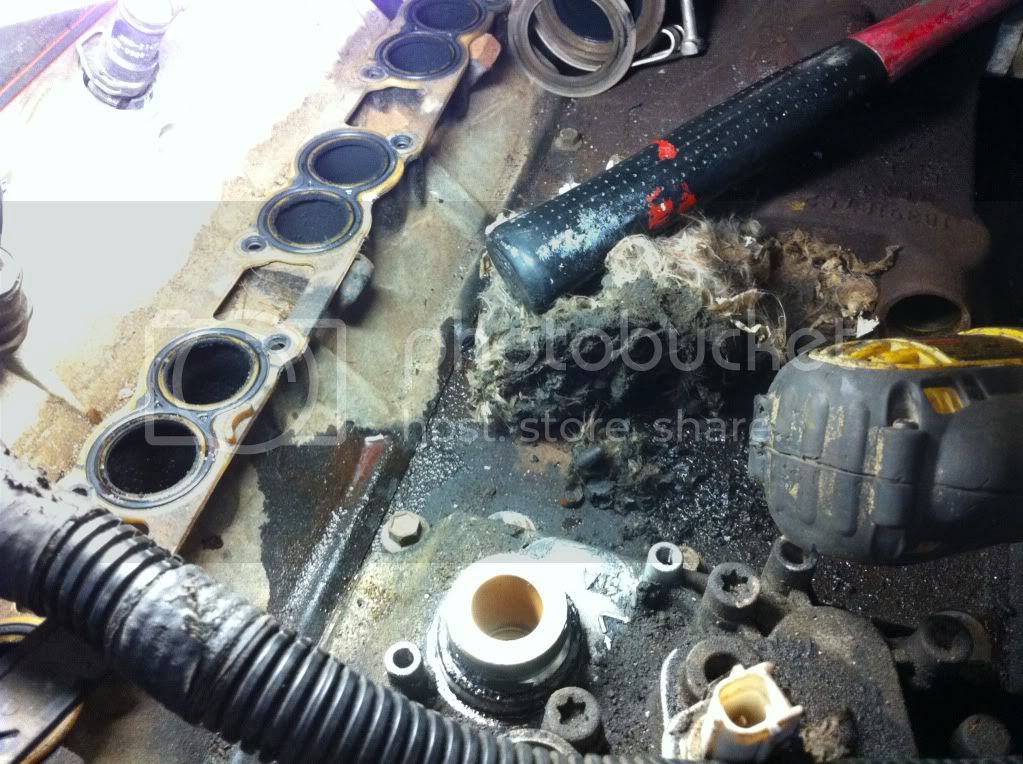

lots of CCV oil on my turbo. Turbo looks great for 50k miles of K&N

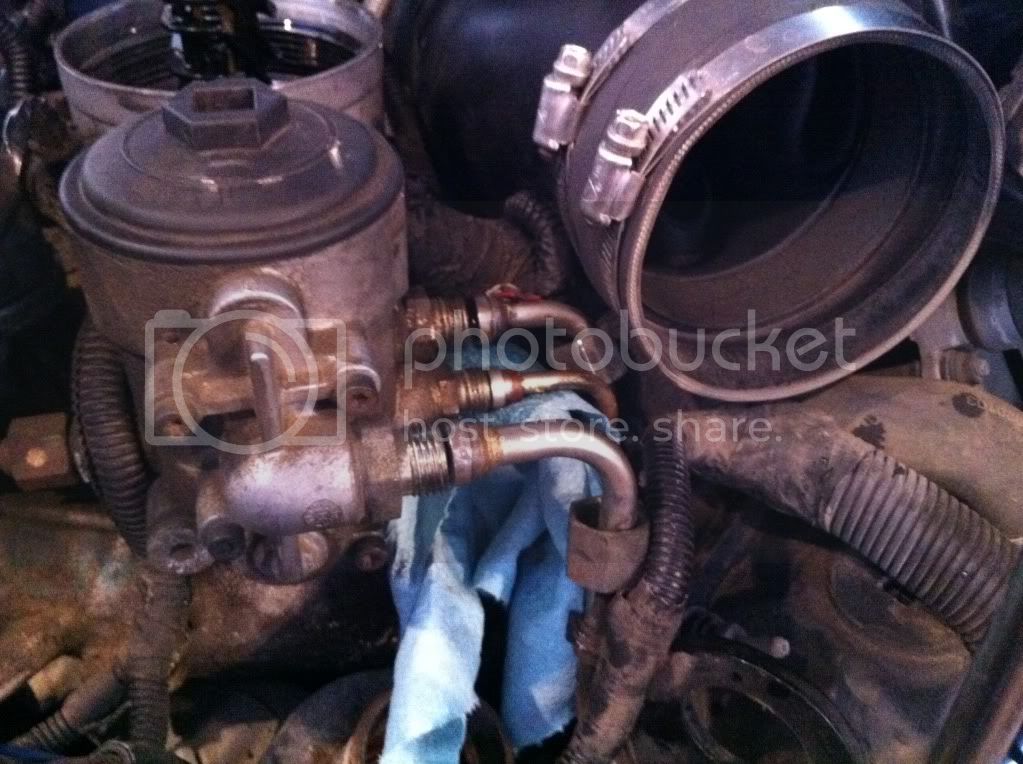

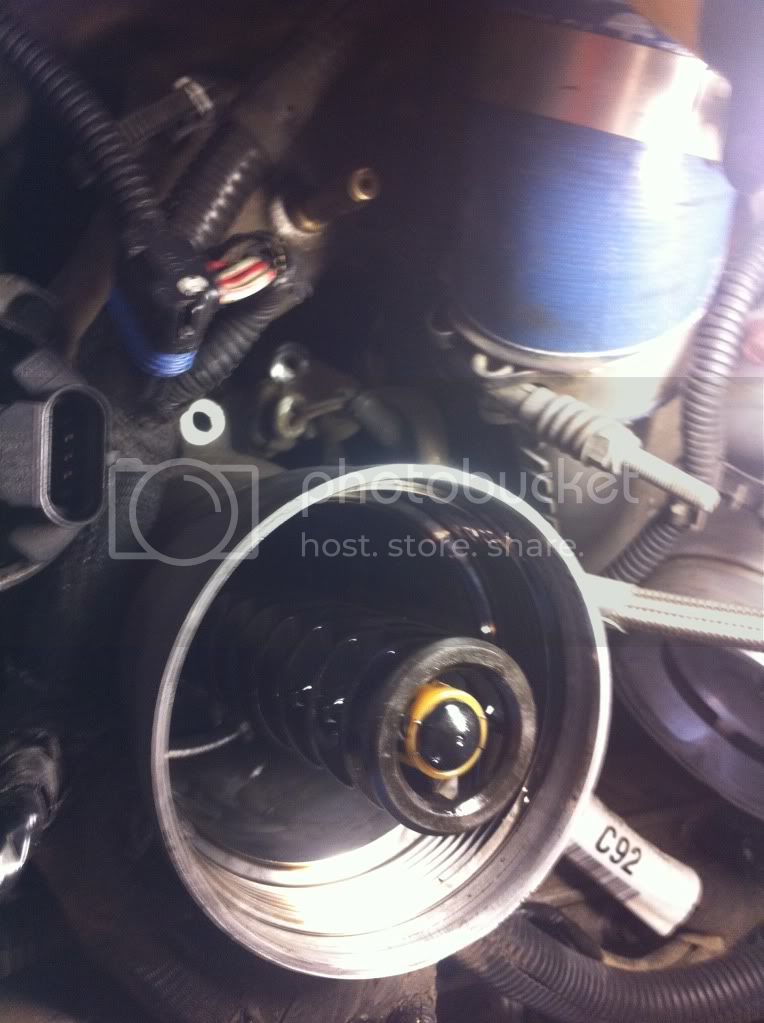

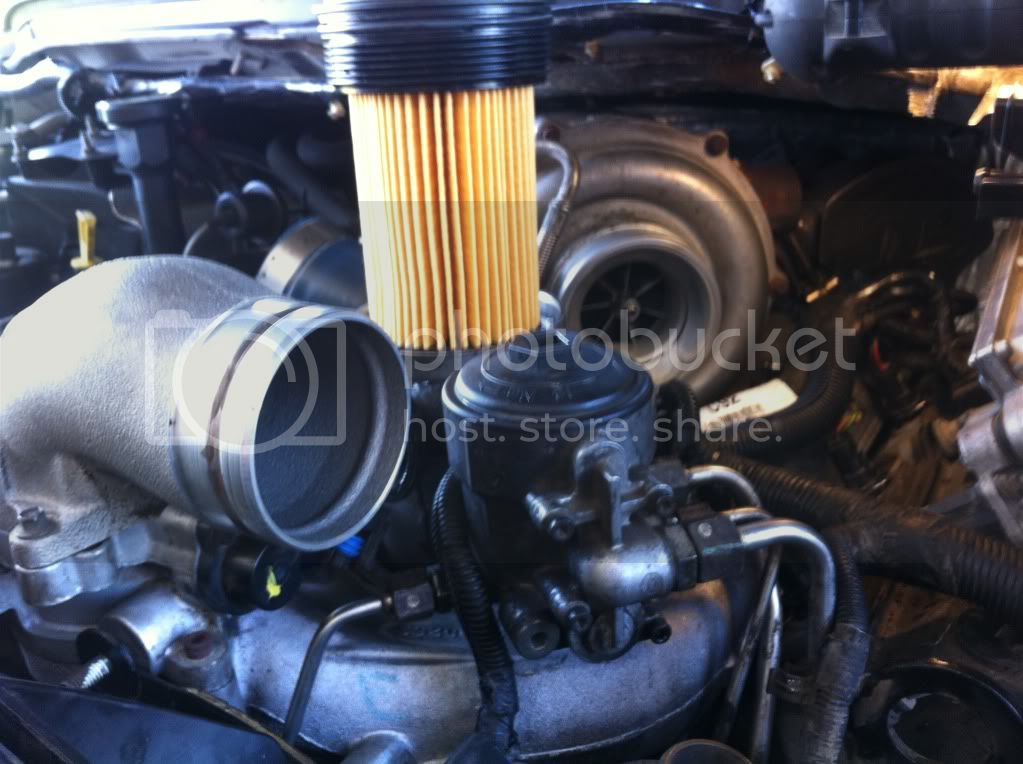

horrible picture but take the 4? bolts out around the base of the oil filter/fuel filter assessable

lift it on out of there

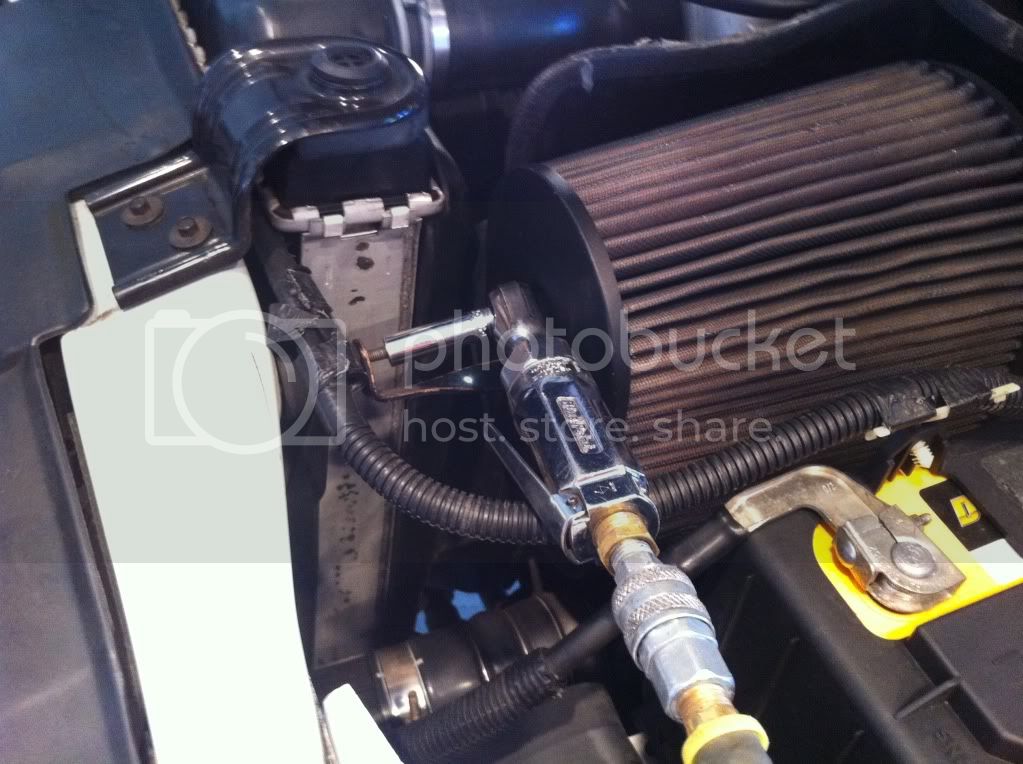

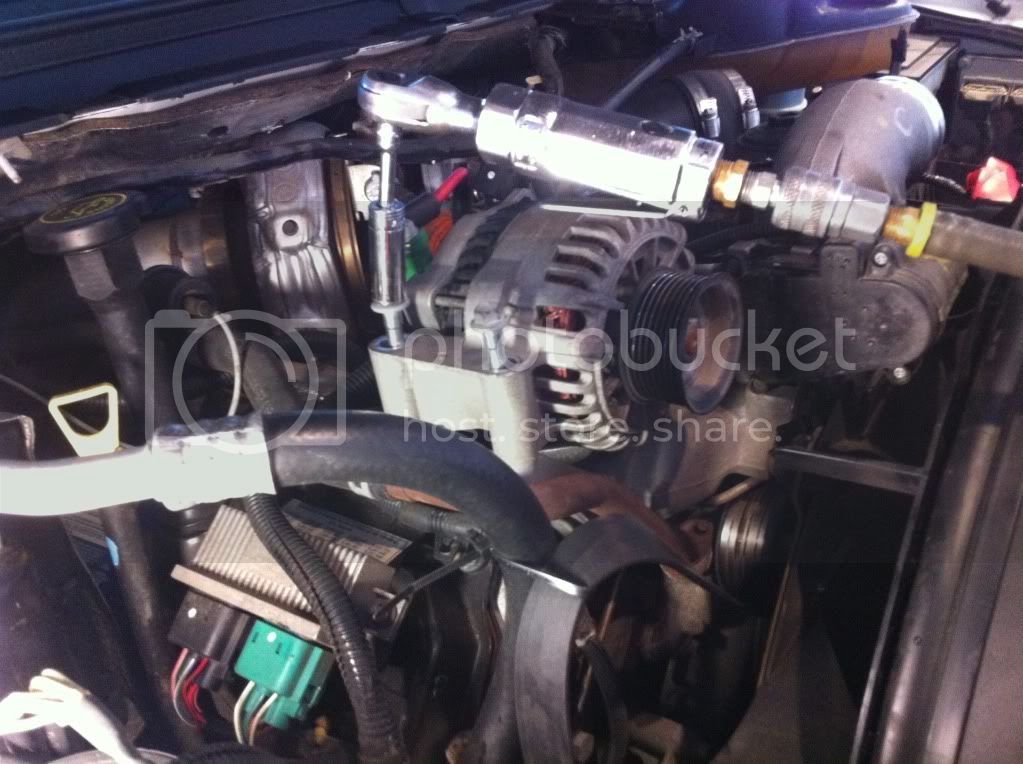

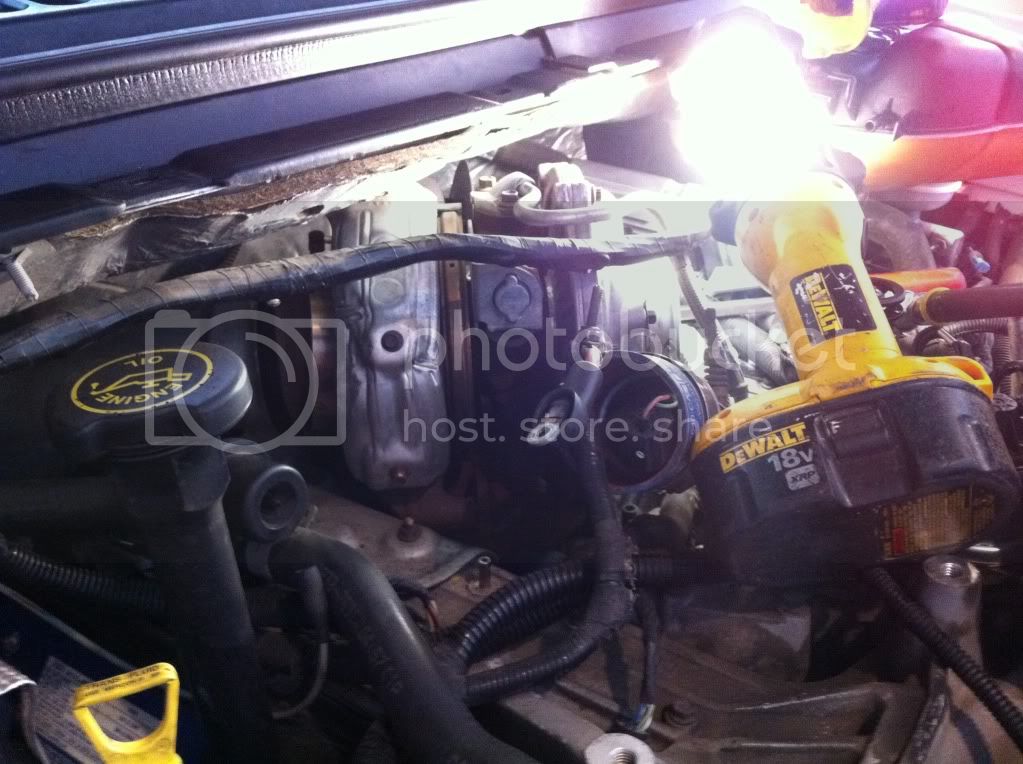

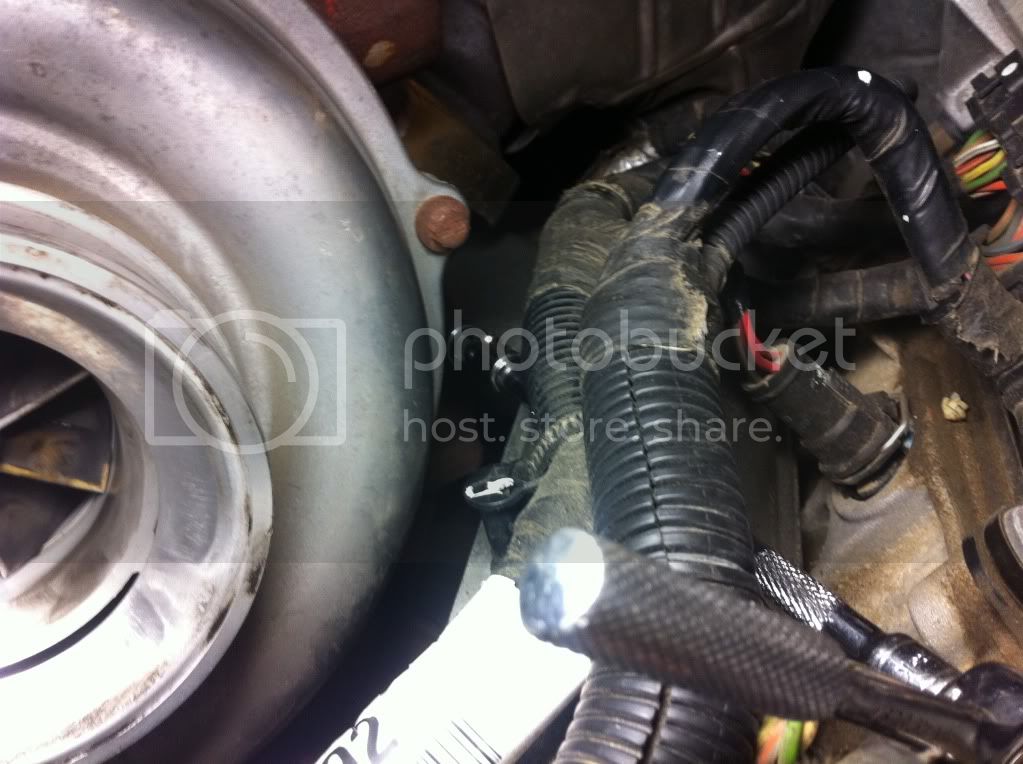

getting the first turbo bolt out. 1/4" ratchet, long extension and a wobble is your friend

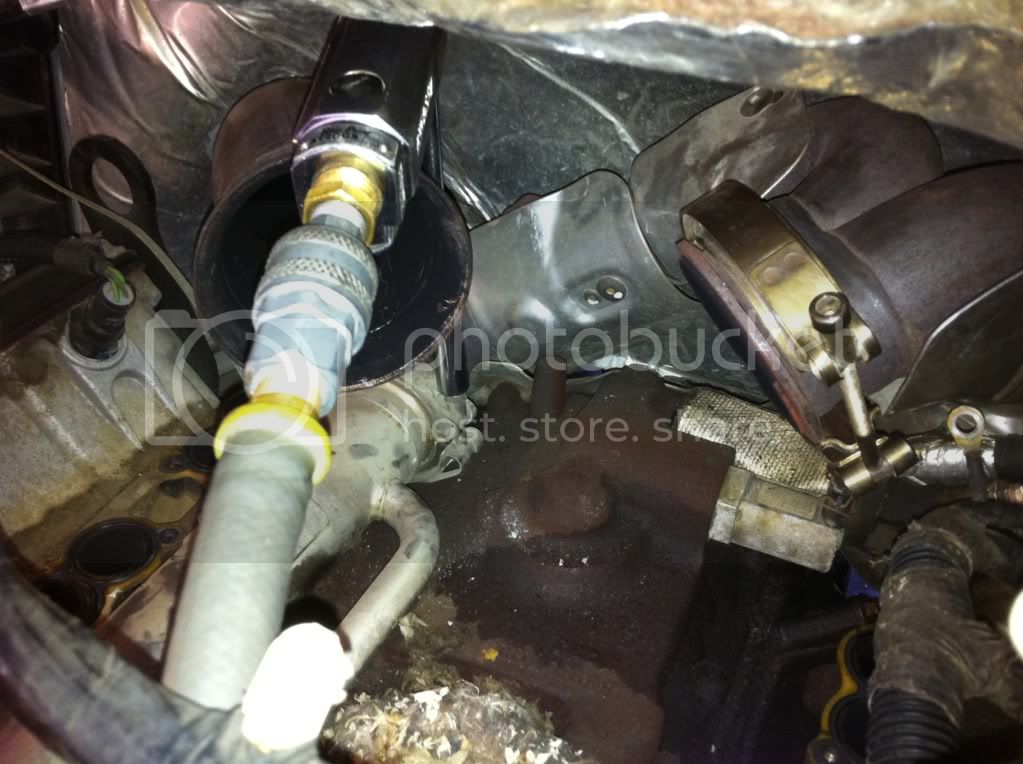

after i got all the bolts out i took off the v-band camp that holds the down-pipe on. a pry-bar might be helpful if its stuck on there.


lots of wiggling and tugging its out of there. remember to lift straight up first.

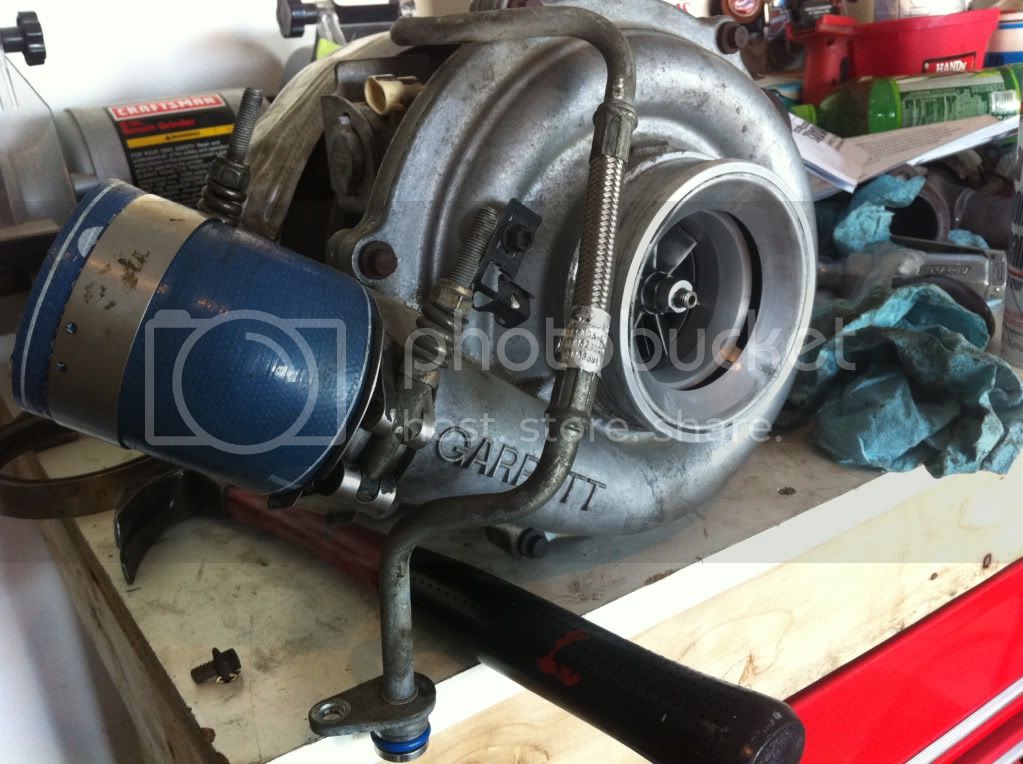

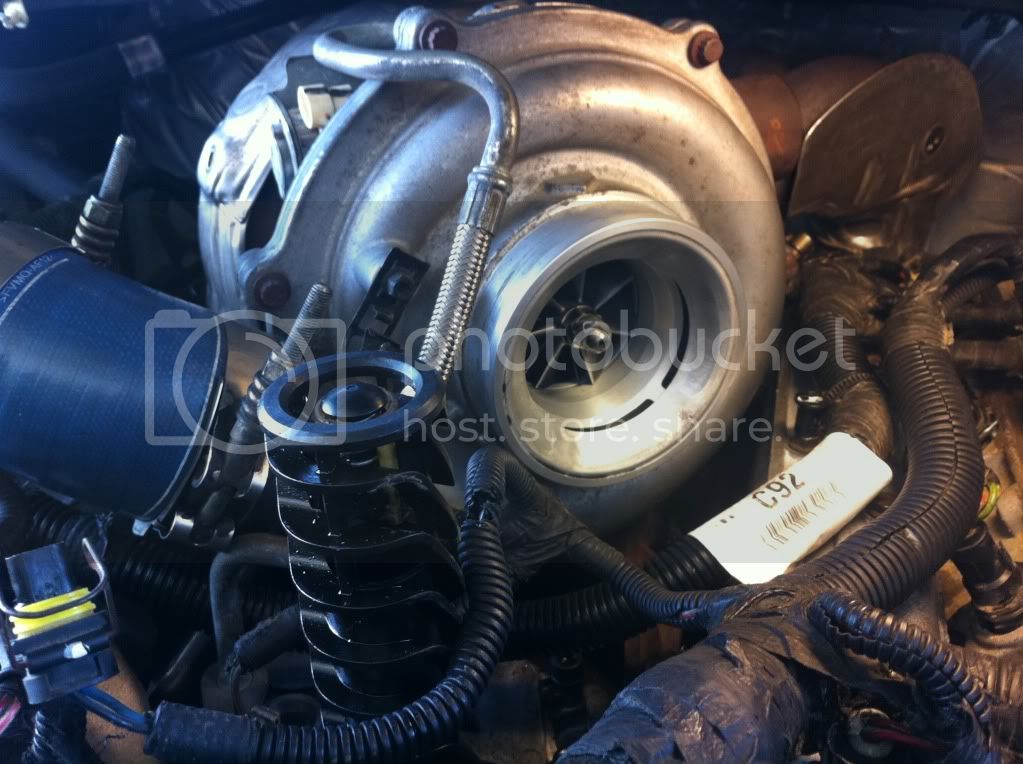

there's the good ol 03 turbo

pic of progress

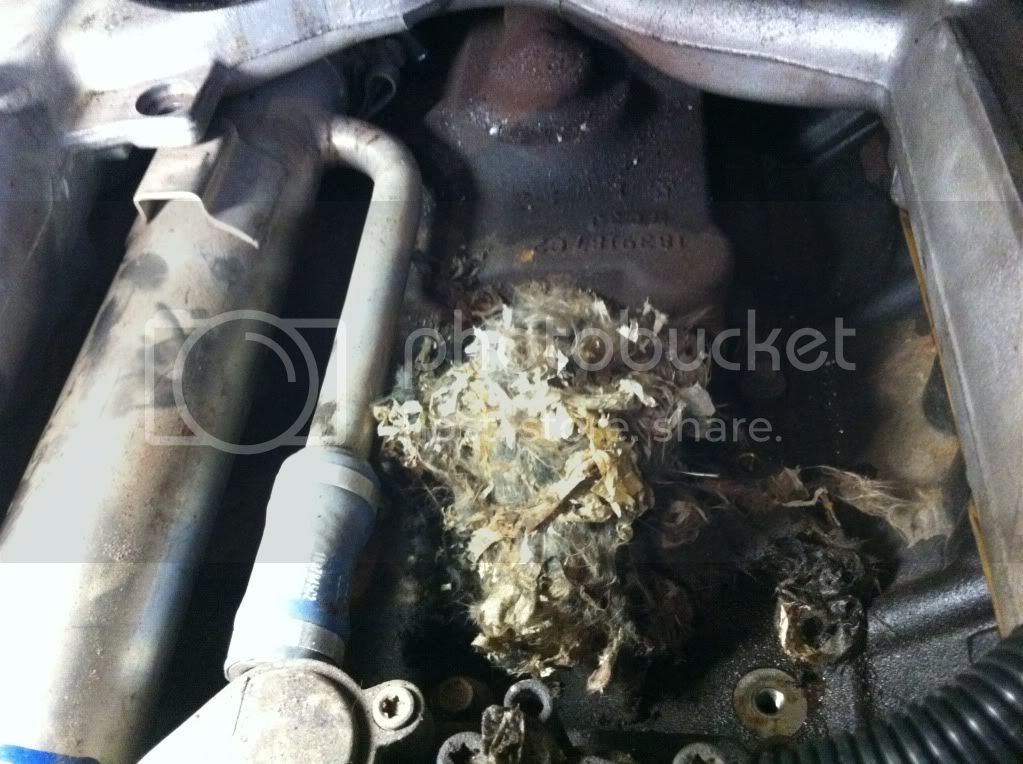

take the turbo pedestal bolts out. looks like i got me a mouse nest

out

took the bolts out that hold the egr cooler to the intake. and all of the intake bolts

now the fun part. working the intake out. take your time. make sure you dont rip off any connecters ect...


2003KingRanch

New member
Joined
Apr 29, 2012
Messages
18
Reaction score
0
Location
Iowa

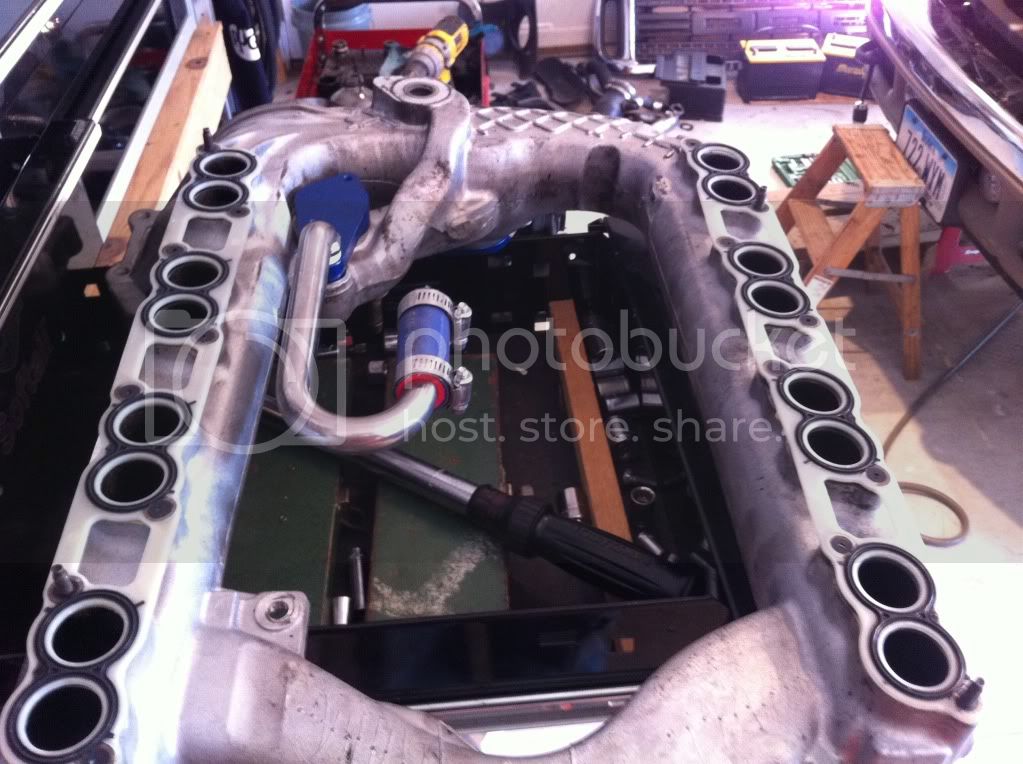

out

taking the egr cooler band clamp off the pass up pipe.

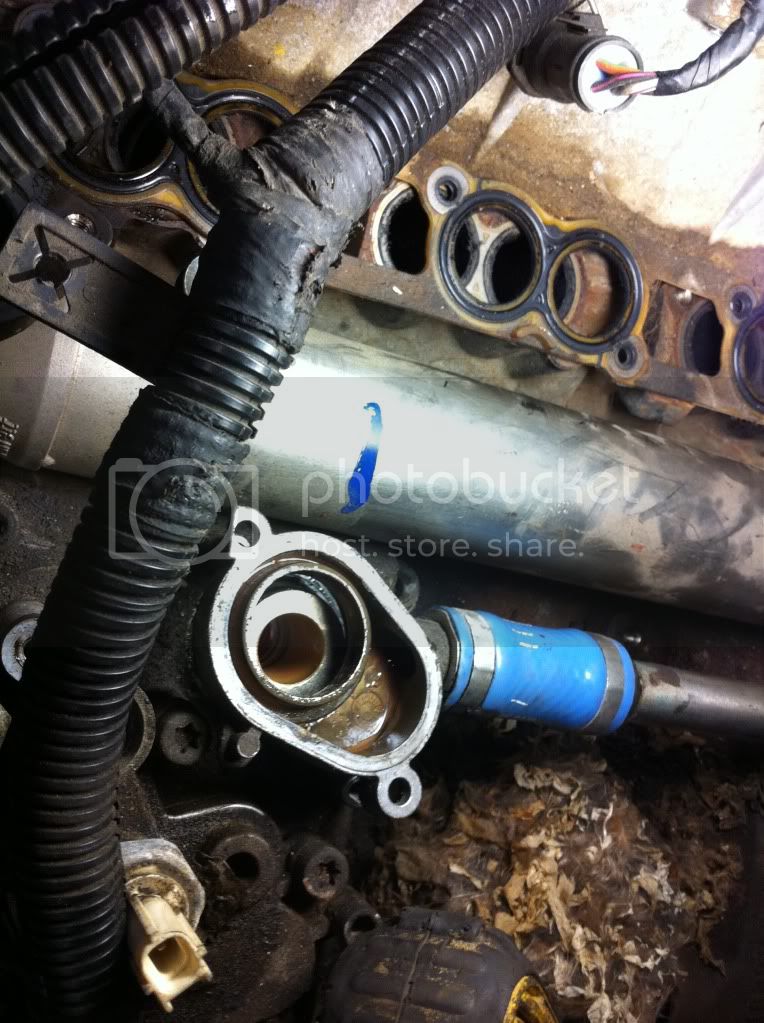

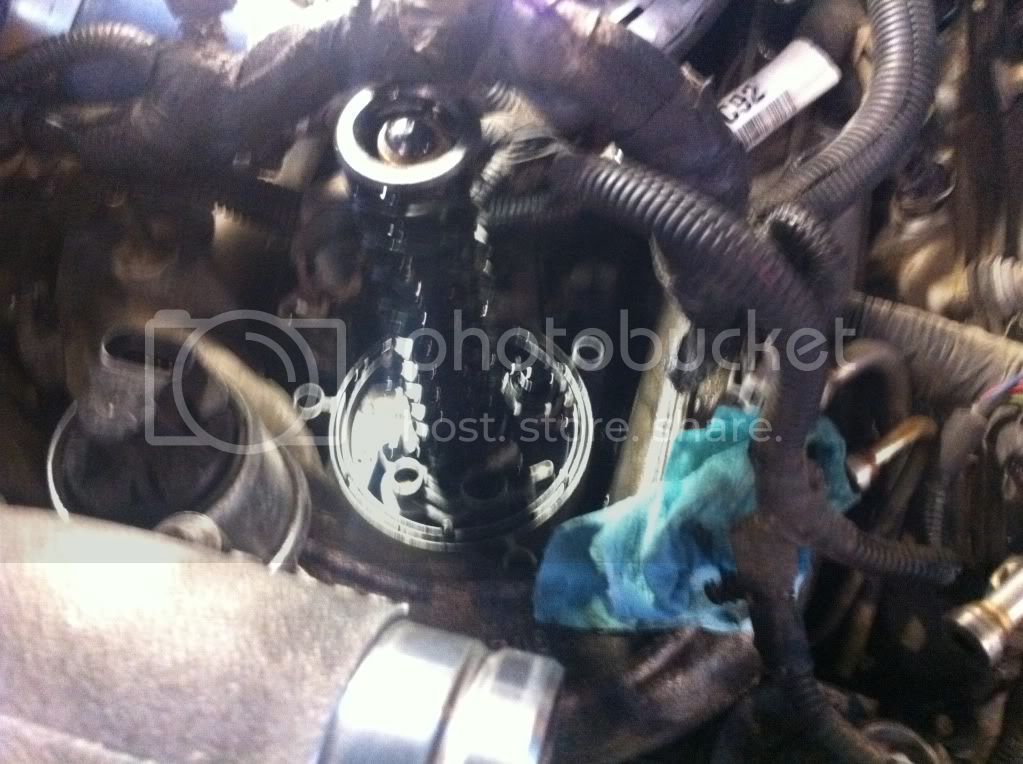

pull the little cover off the top of the oil cooler inlet

pull it up and it will come off

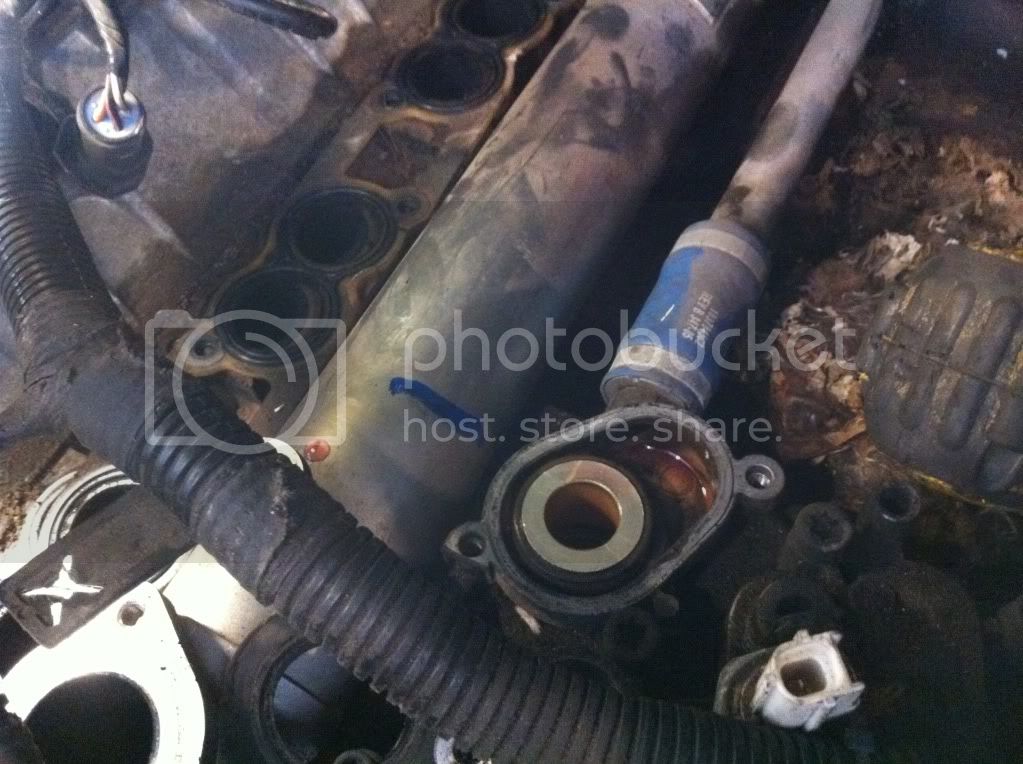

now you can pull the egr cooler out

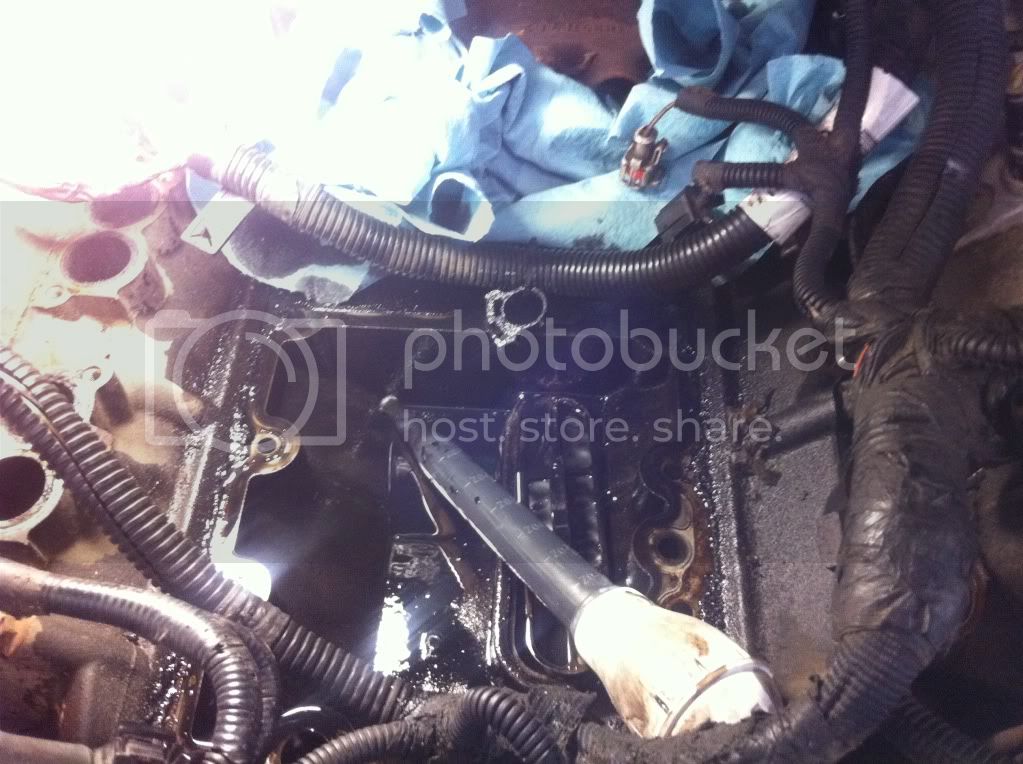

pull all of the bolts around the oil cooler housing. once out i used a turkey baster to get the oil out.

cleaned up a little more

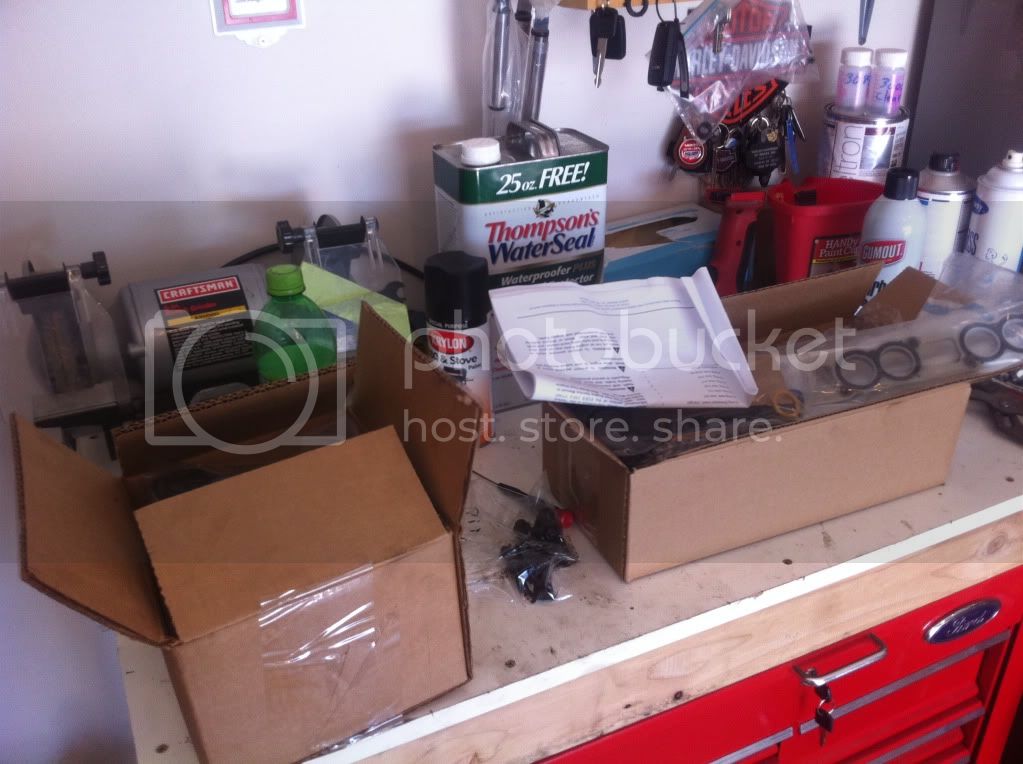

got all my new parts! thanks ups LOL

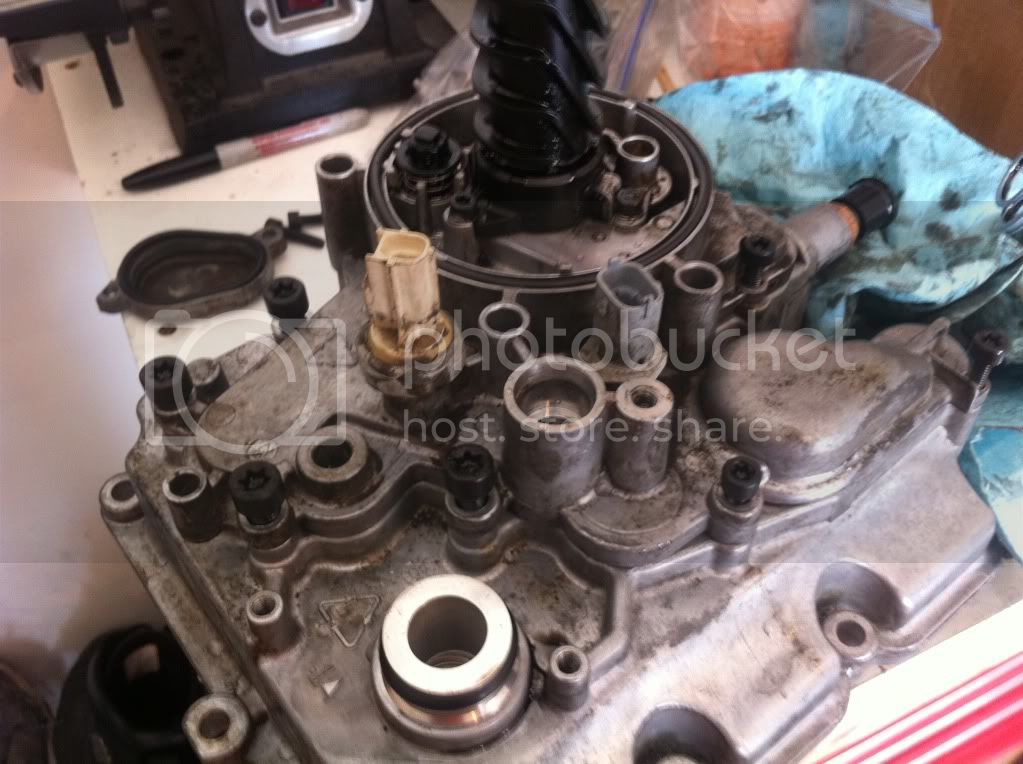

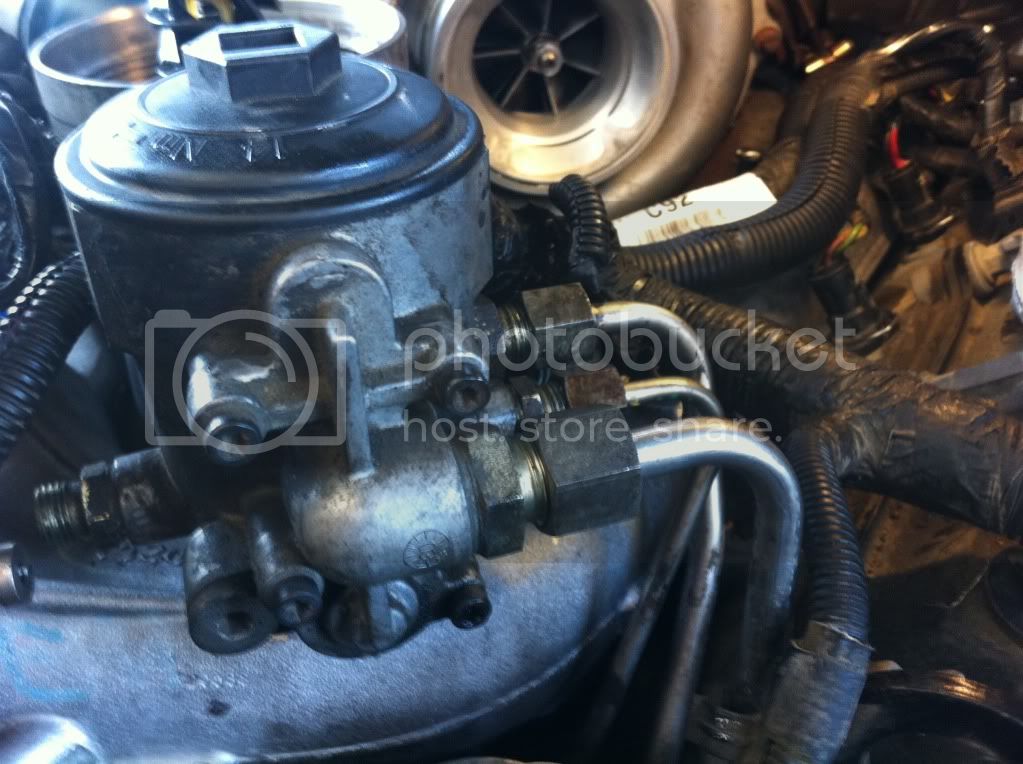

the oil cooler and cover

gotta pull this bolt out. then you can push the oil cooler out.

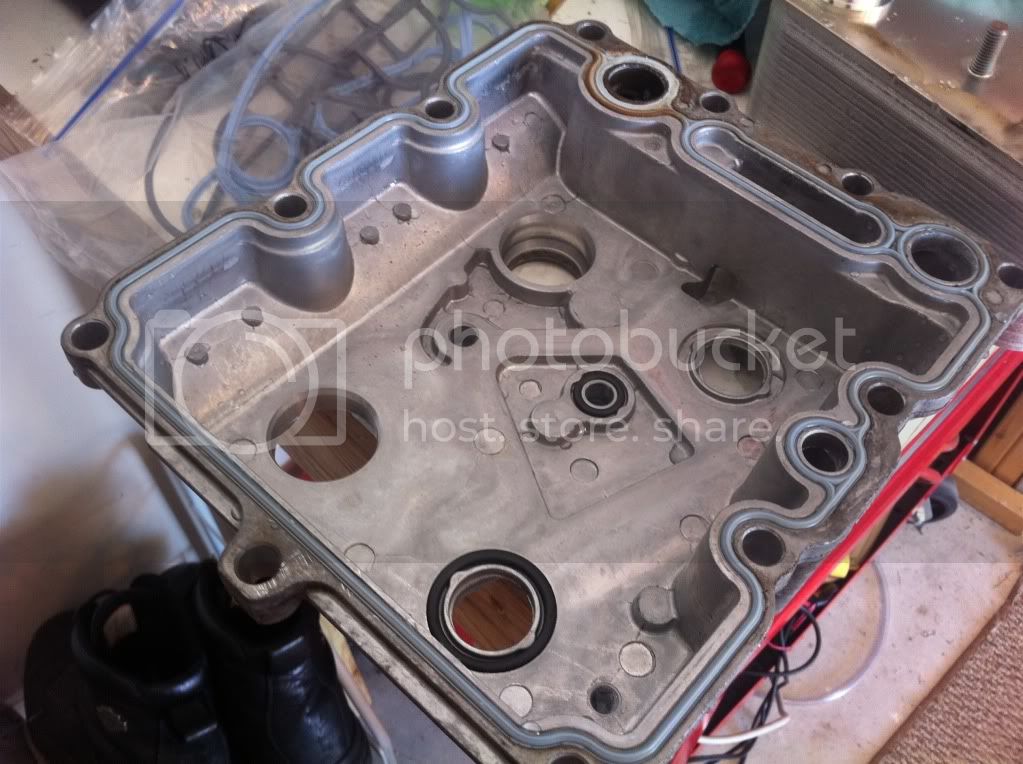

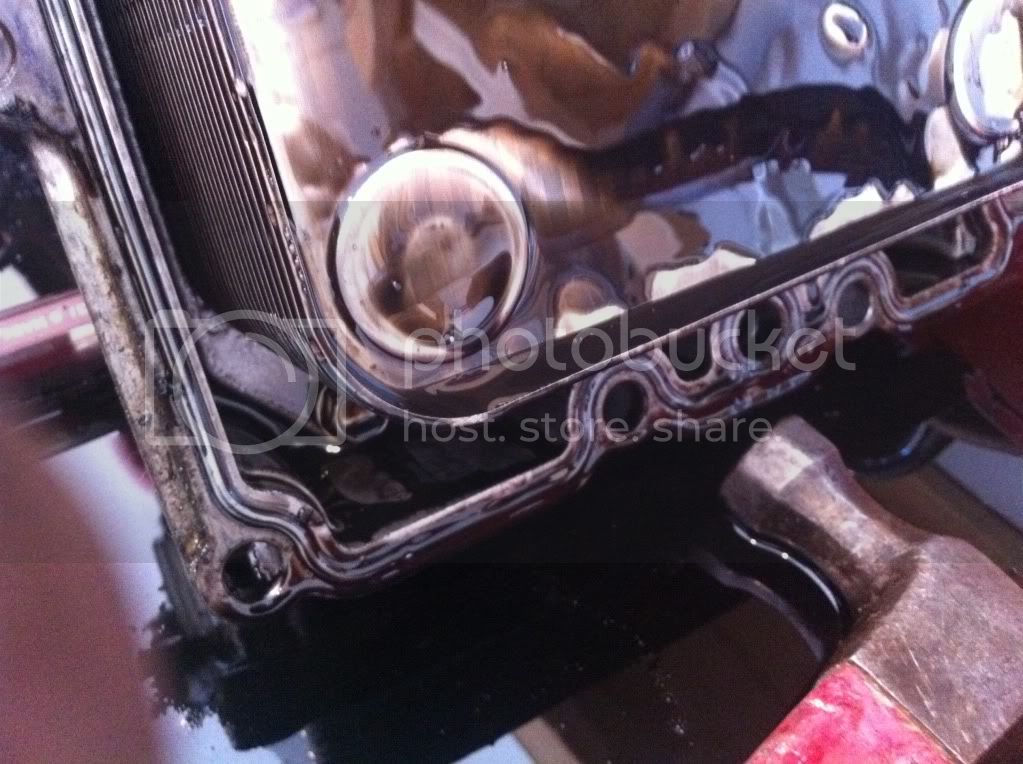

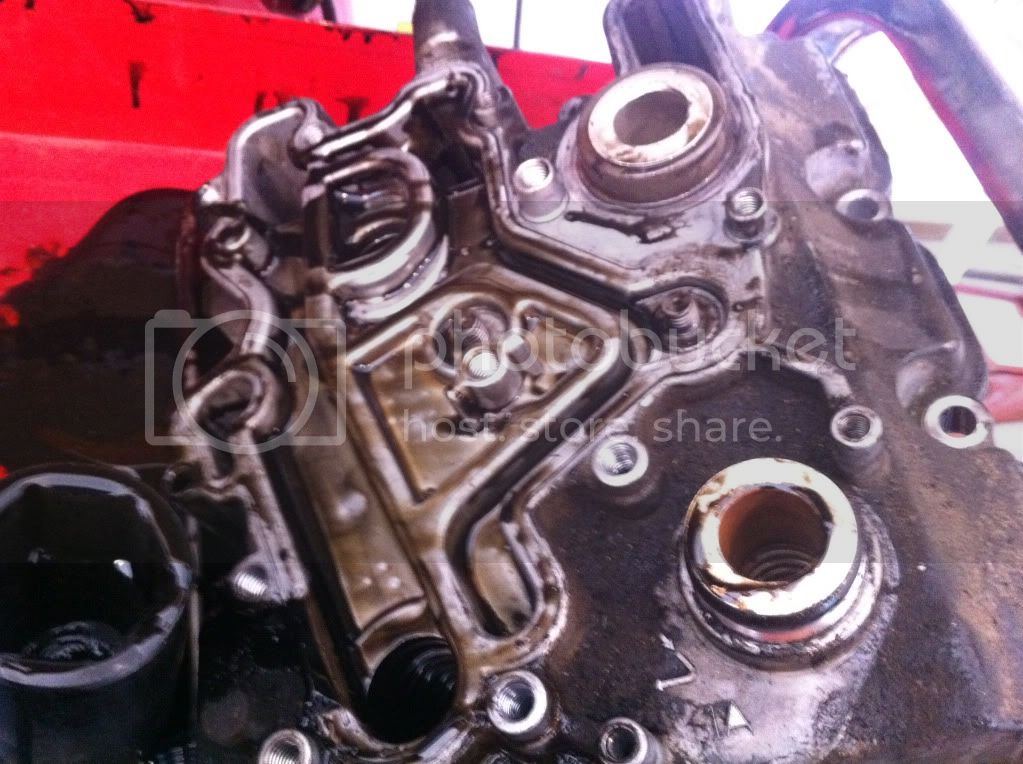

took the hotsy to the cover and installed the new gasket from the kit

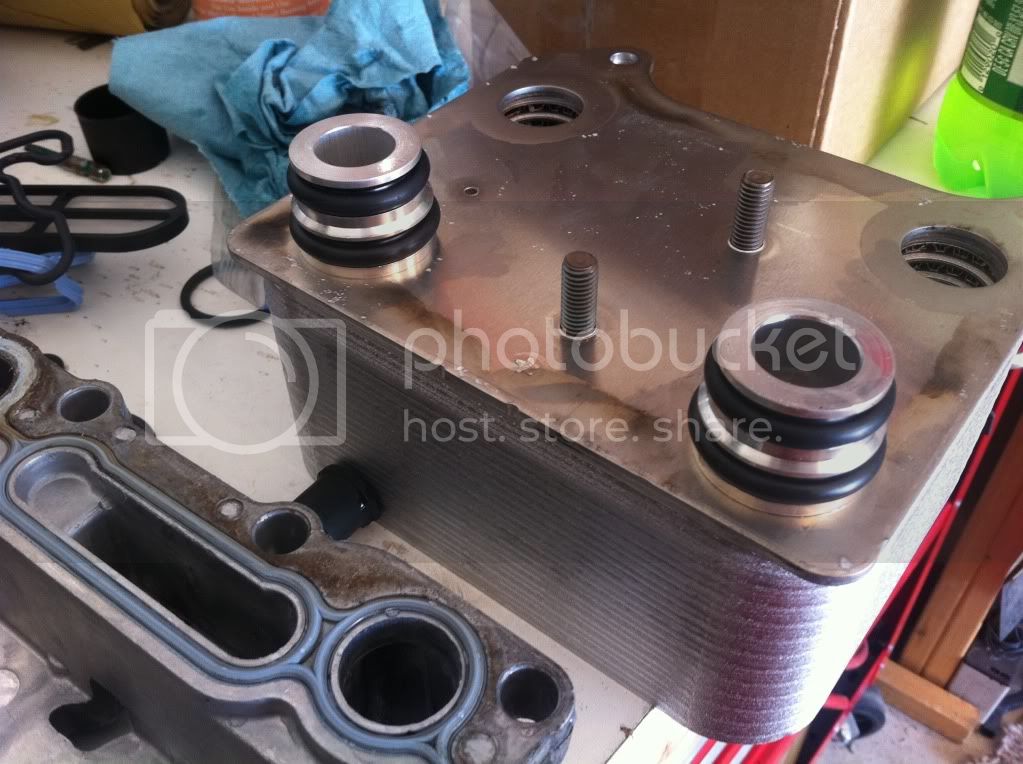

put the new o rings on the new oil cooler

pushed it back in the cover

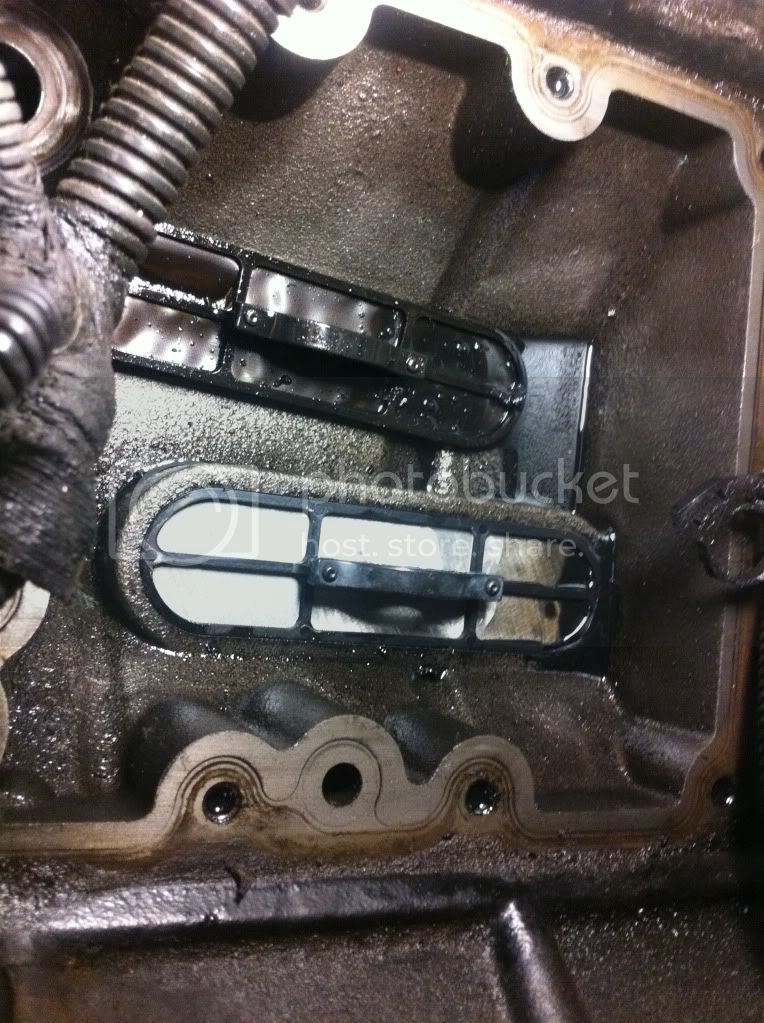

put the new HPOP screen in

took the hotsy to the intake. inside and out

put the oil cooler back in

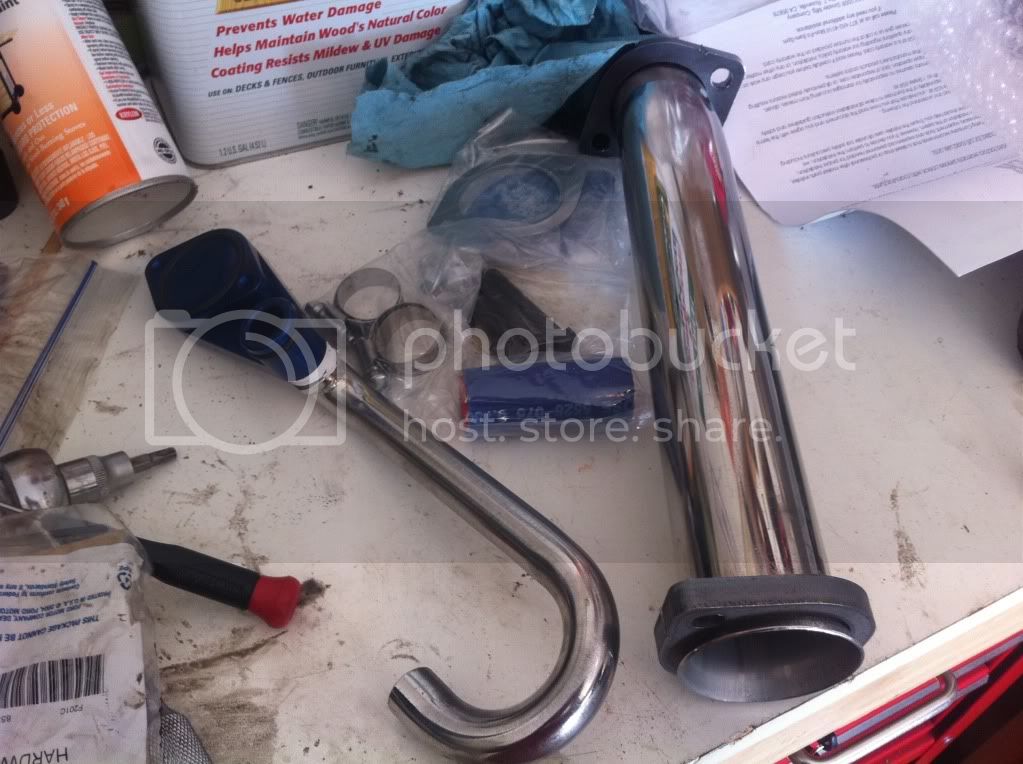

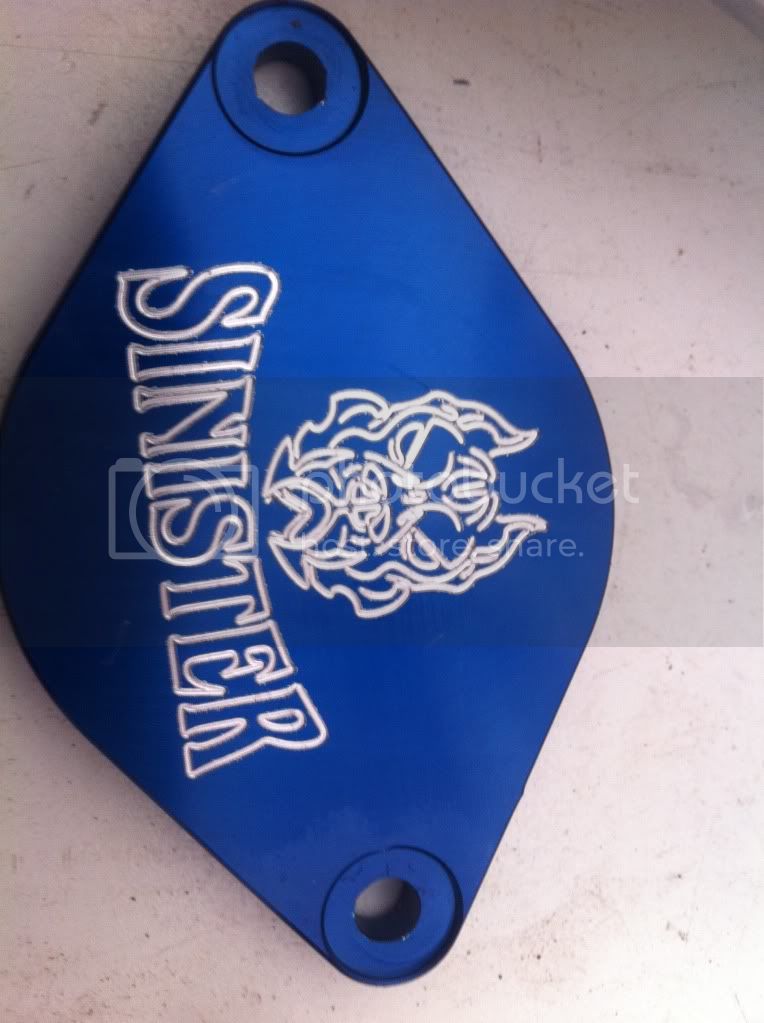

heres the egr delete kit
[/QUOTE]
egr valve plate

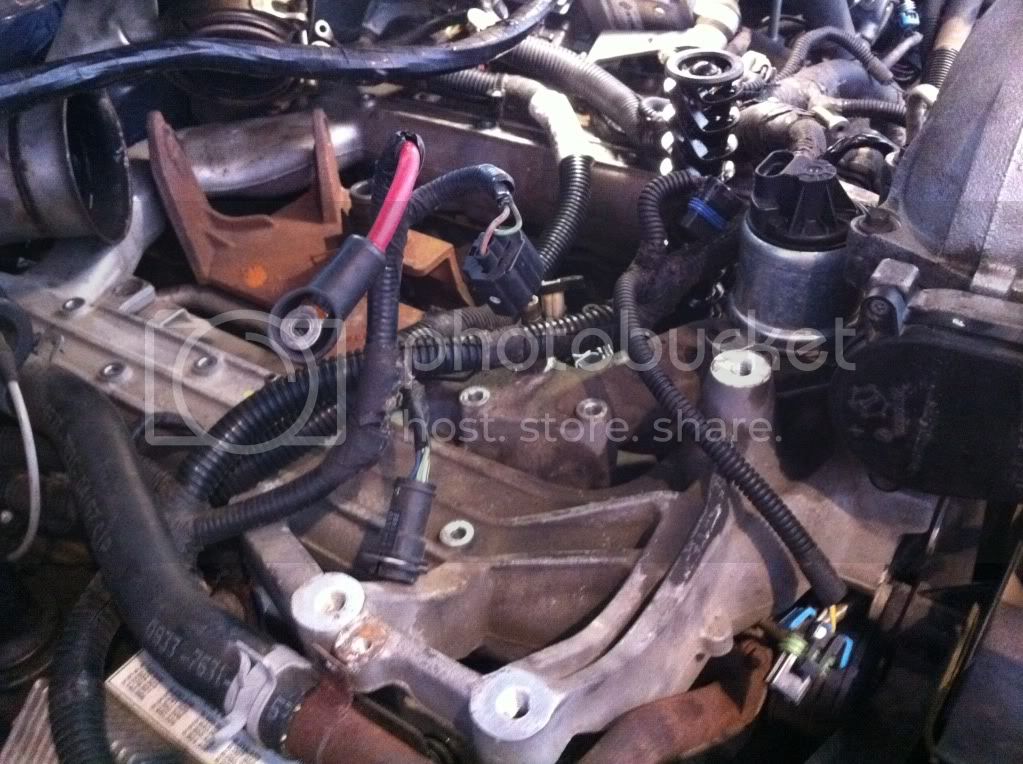

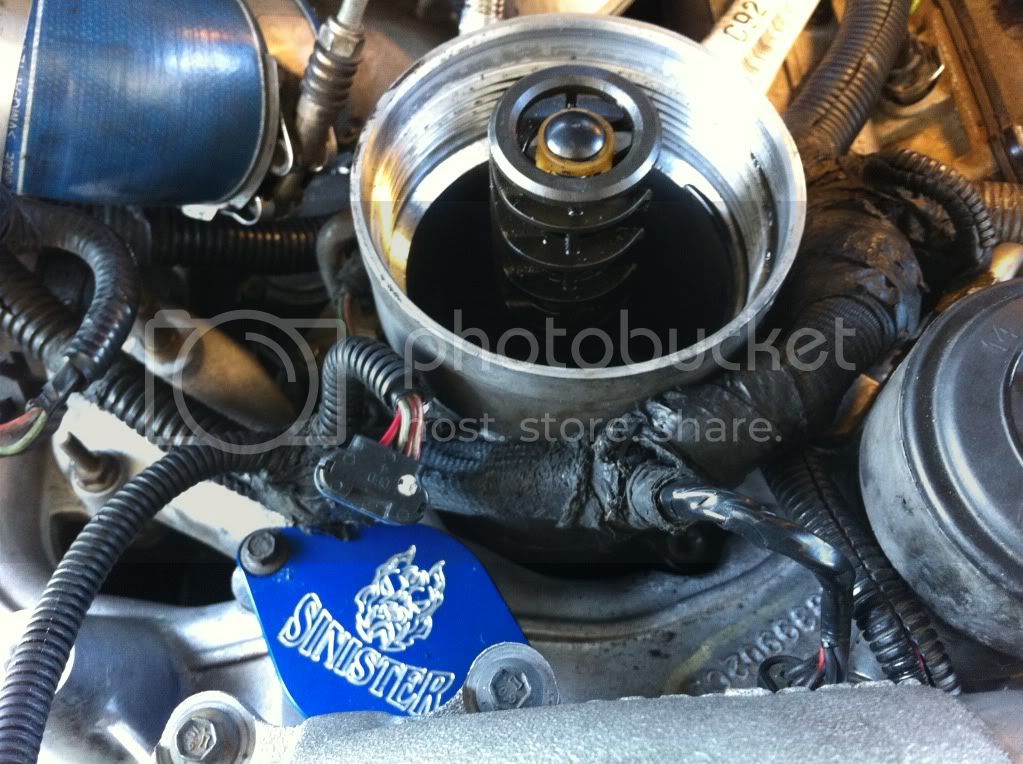

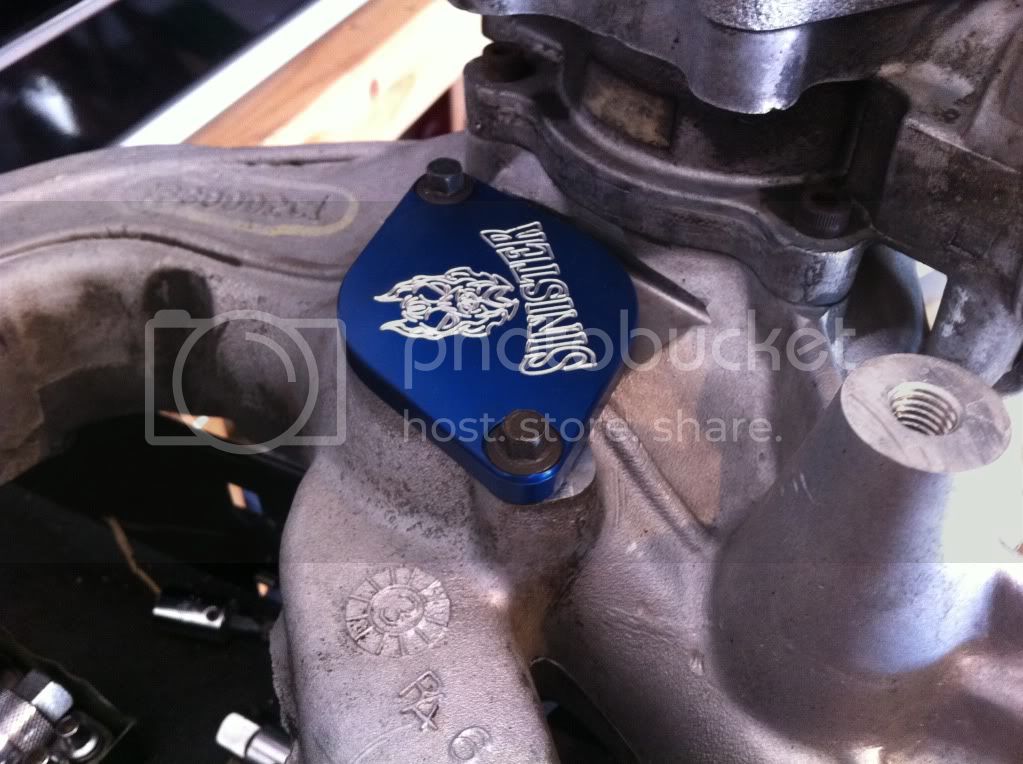

took the valve out and installed plate

flipped over and put the coolant bypass on

all said and done

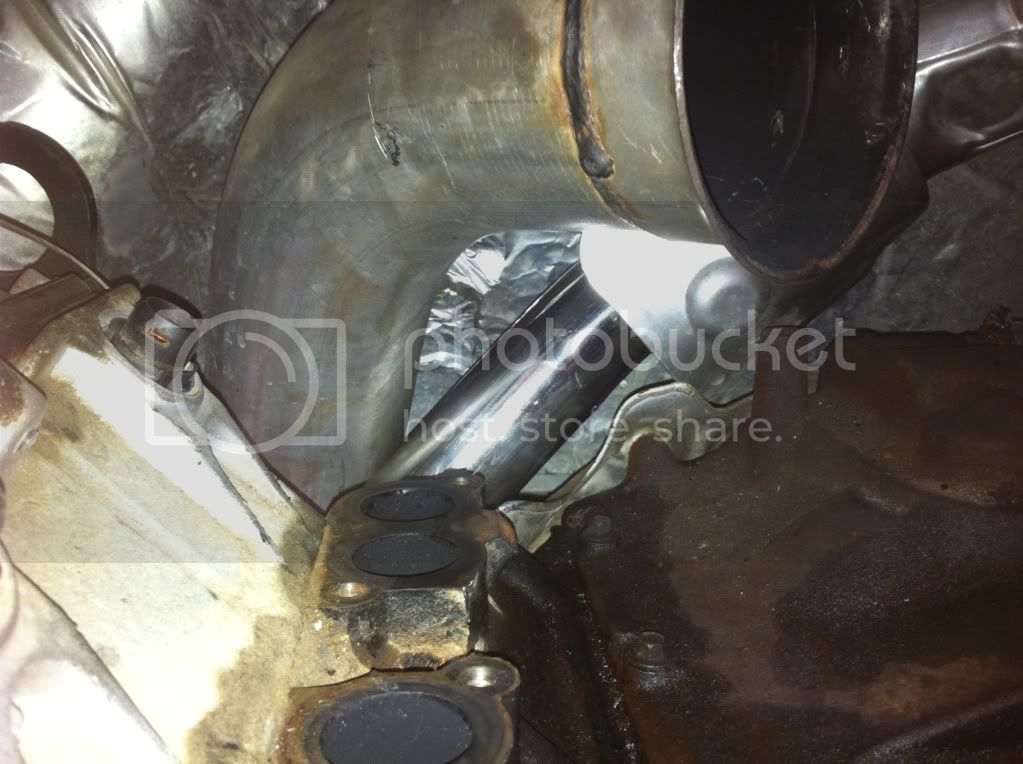

got the new up pipe in. i took out the pass side inner fender. made it a lot easier. major pain in the a$$

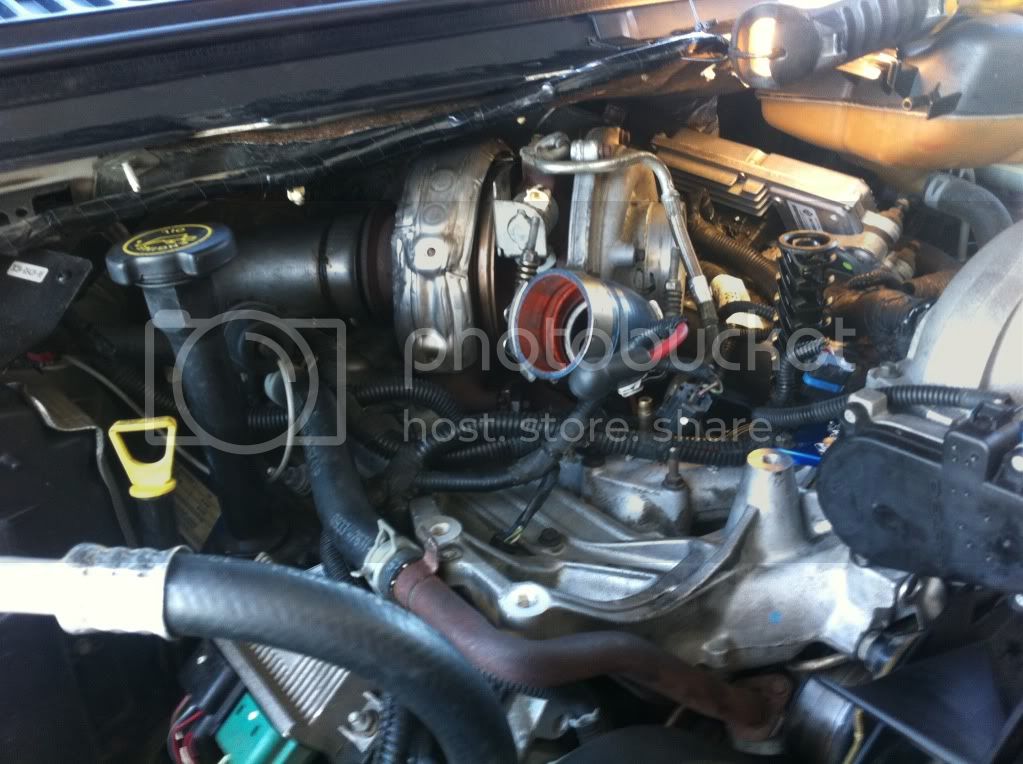

back on

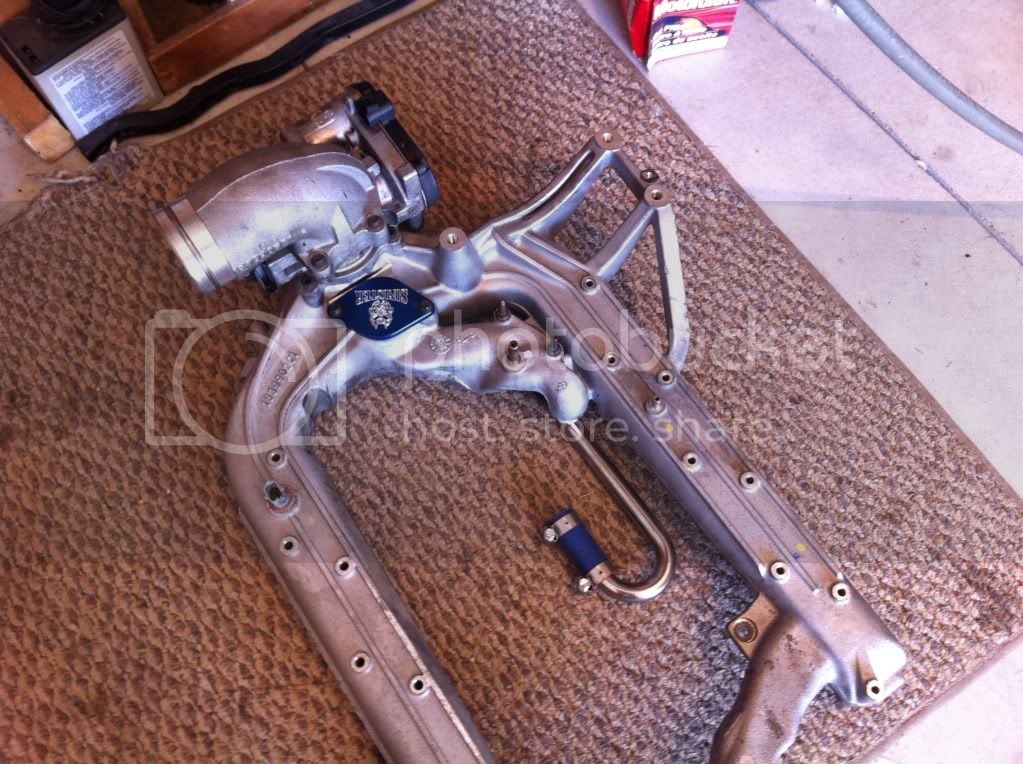

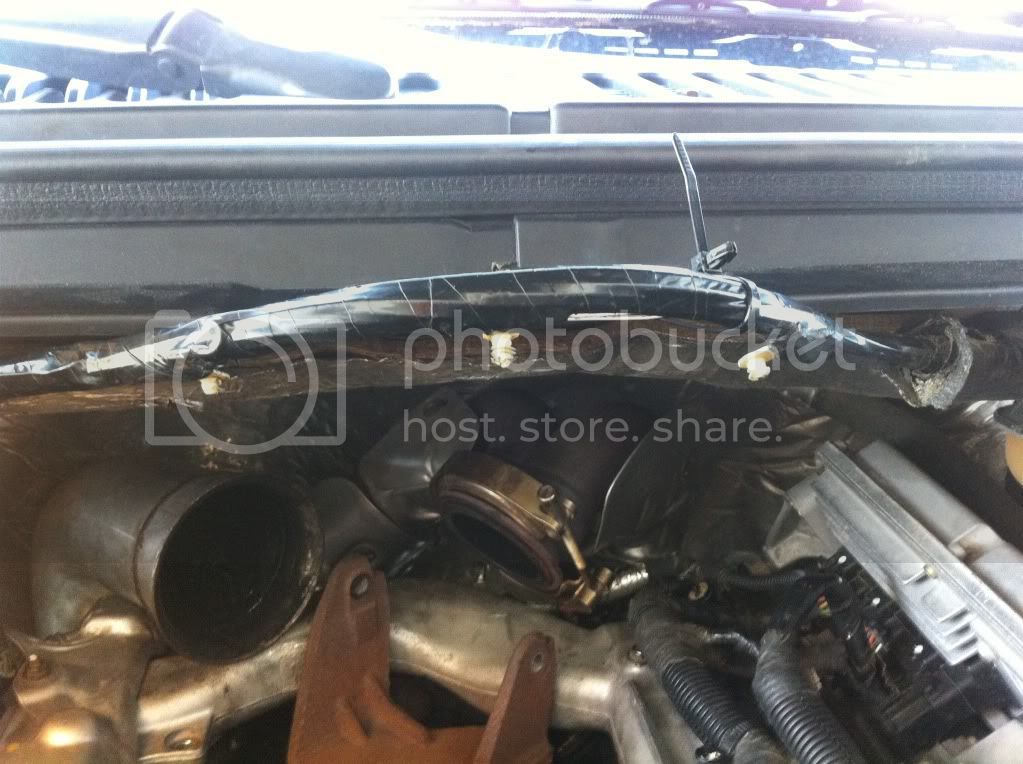

all sorts of wiggling and the intake is back in. and egr delete is hooked up.

make sure you put the clamps on the other way. otherwise this happens

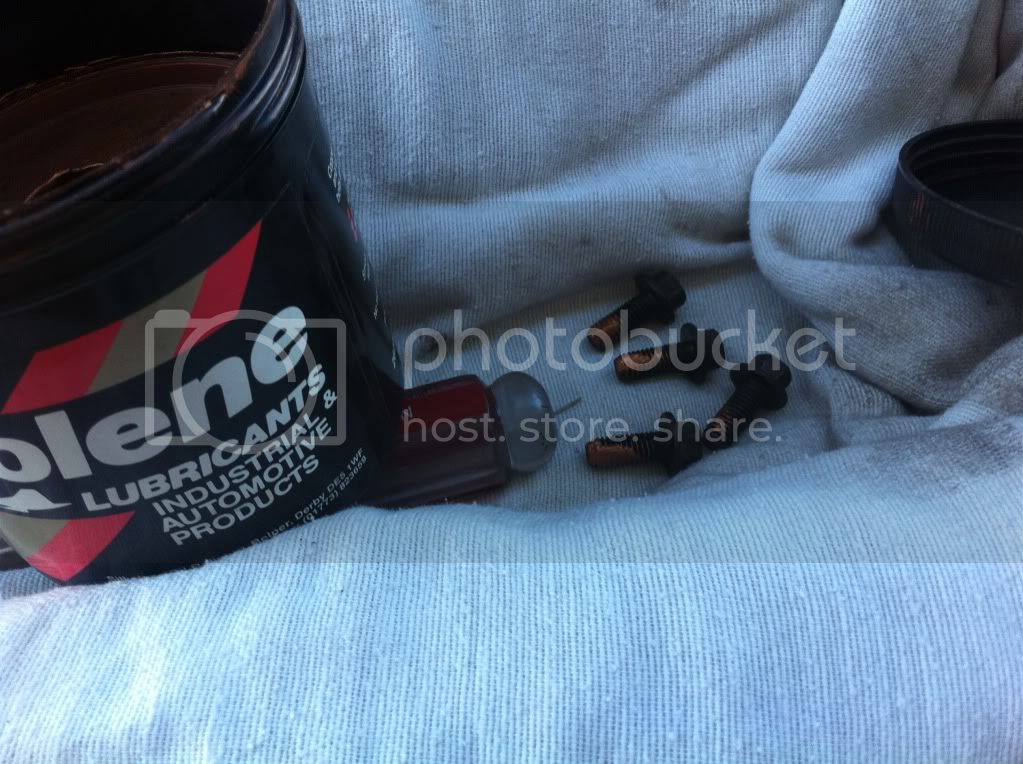

i always put anti seize on the pedestal bolts

in

new o rings on the turbo drain

new o ring on the turbo oil supply line

drain back in

all ready for the turbo to go back in


back in there.

hook up the feed line and put the bolts back in

after all that screwing around your fuel line bolts probably fell. a magnet will get them back

fuel and oil bowls back in. and bolts

fuel lines hooked back up

new filter goin in


2003KingRanch

New member
Joined
Apr 29, 2012
Messages
18
Reaction score
0
Location
Iowa

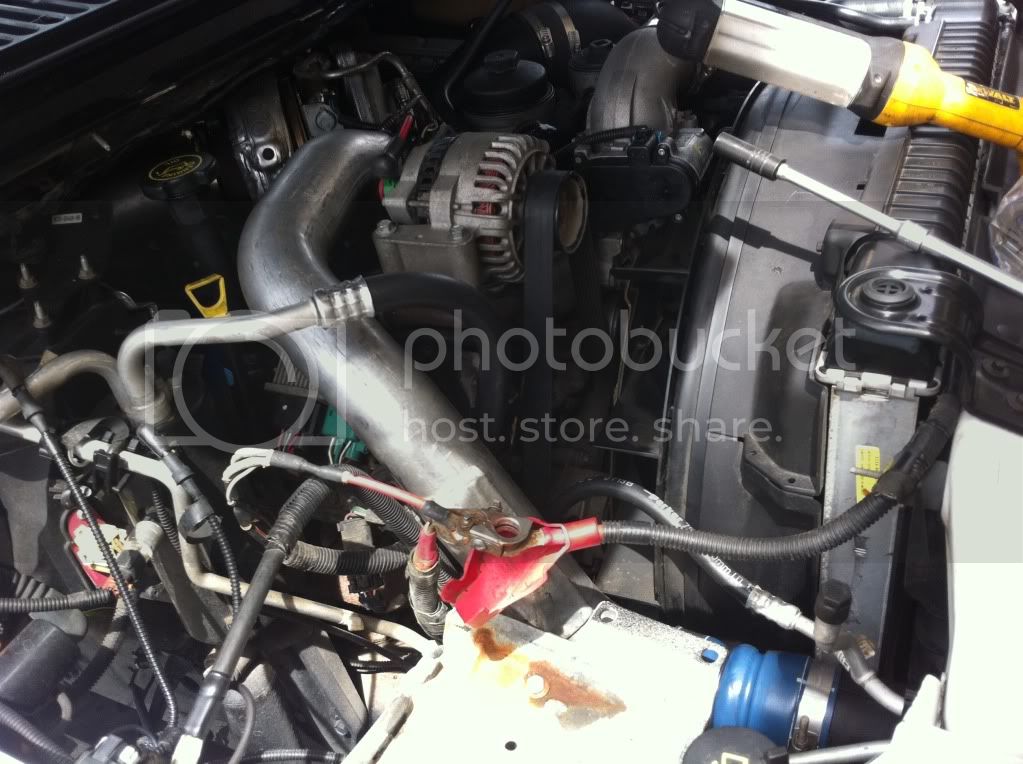

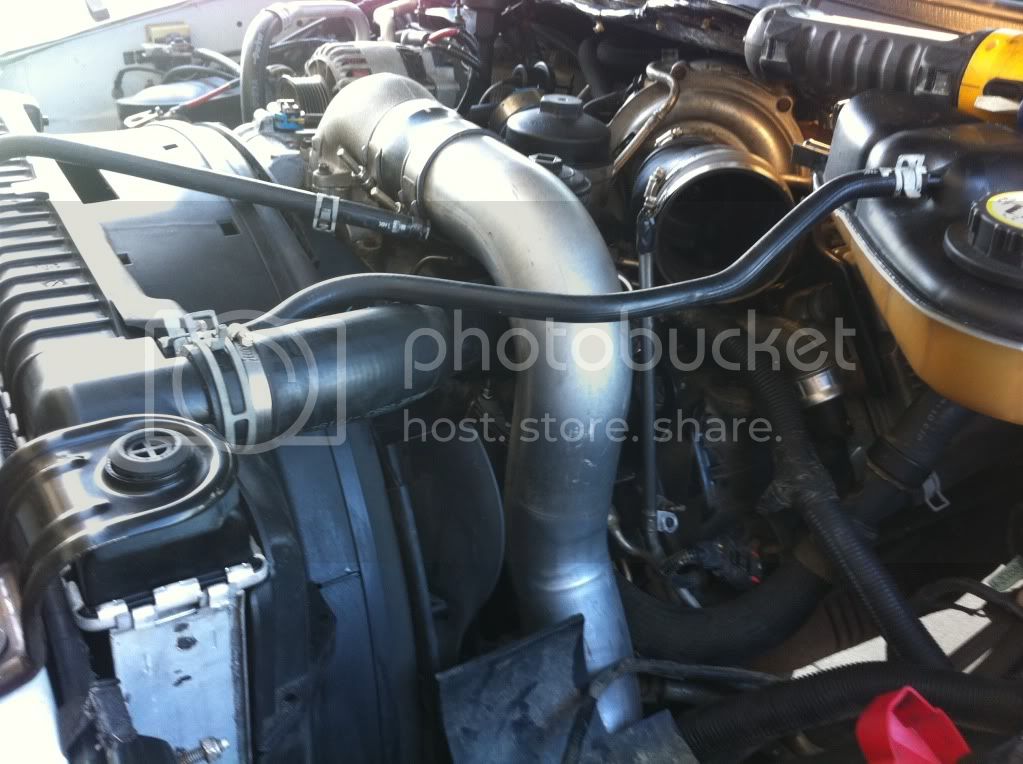

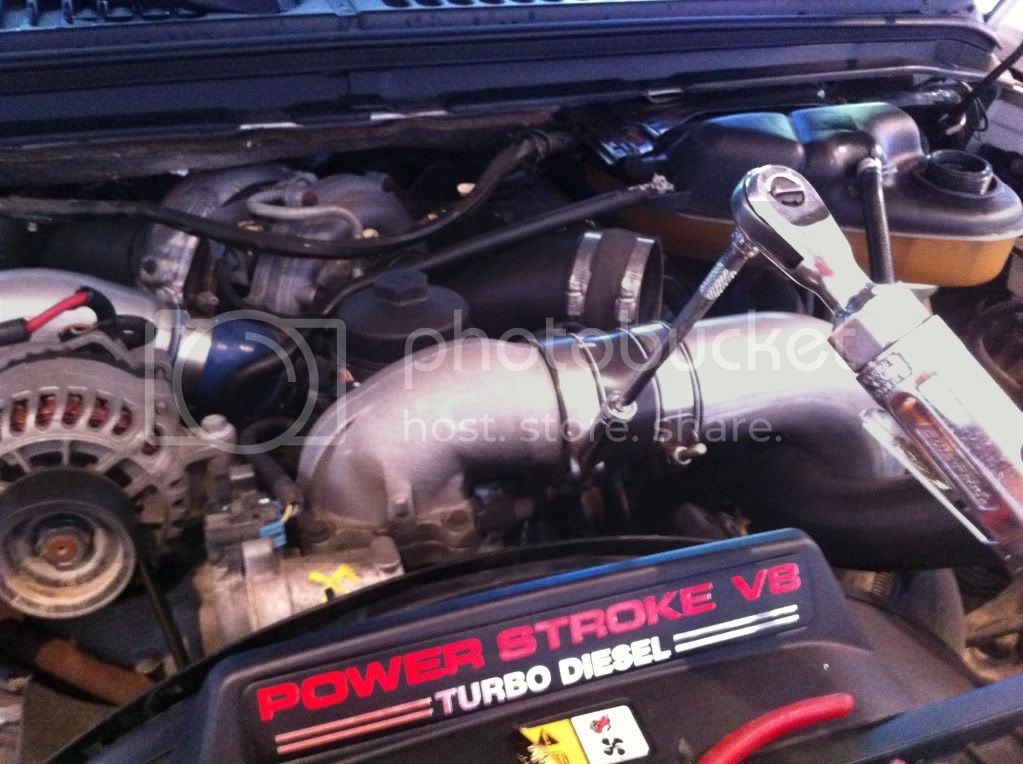

first part of the intake back on and the cold side pipe and the upper rad hose on


more intake and alt
[/QUOTE]
rest of intake and drivers batt

get the belt back on and make sure its on all of the accessory pulleys

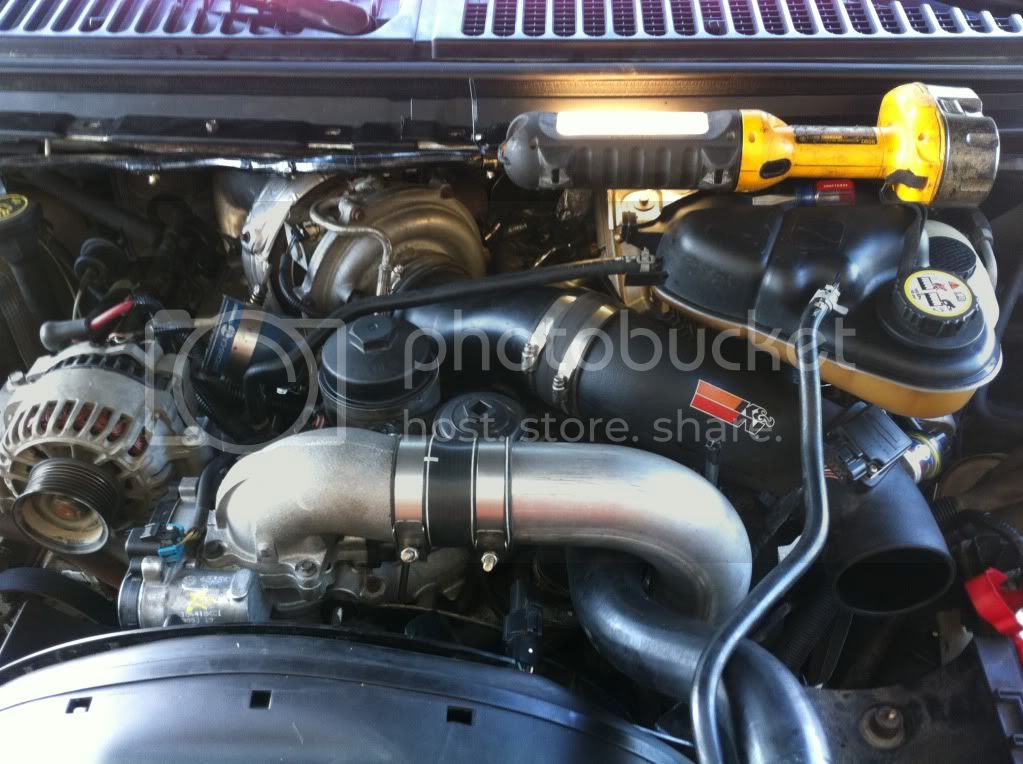

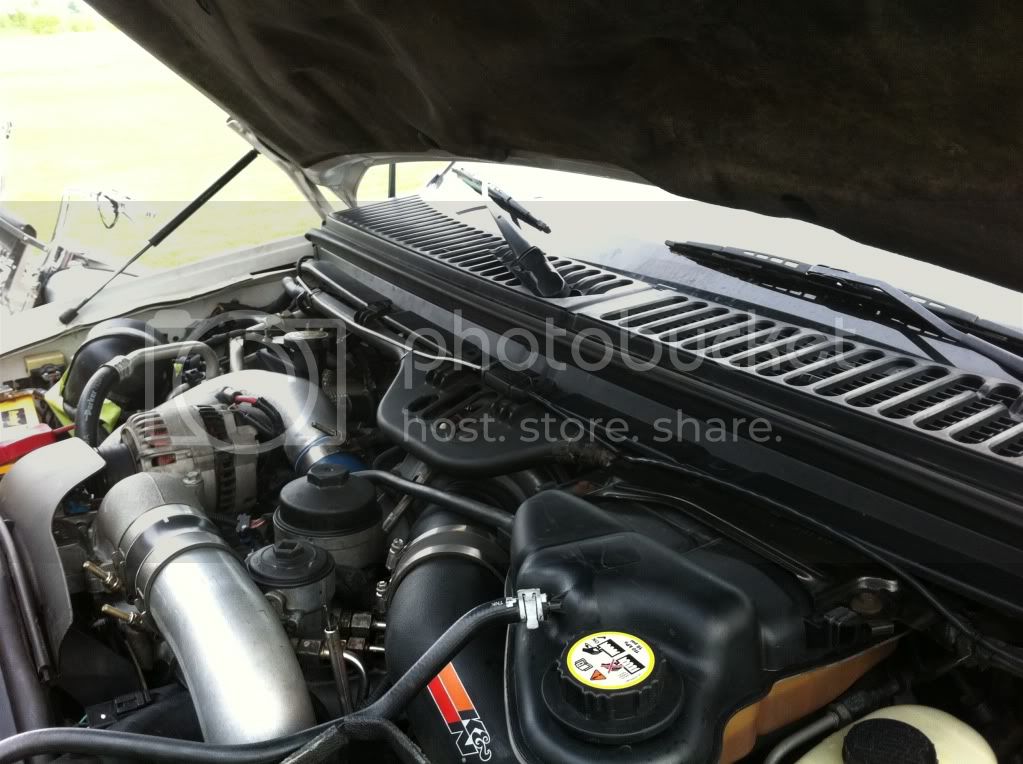

hot side pipe and battery (not shown)

got my insight

tapping for the probe.

ran the pyro

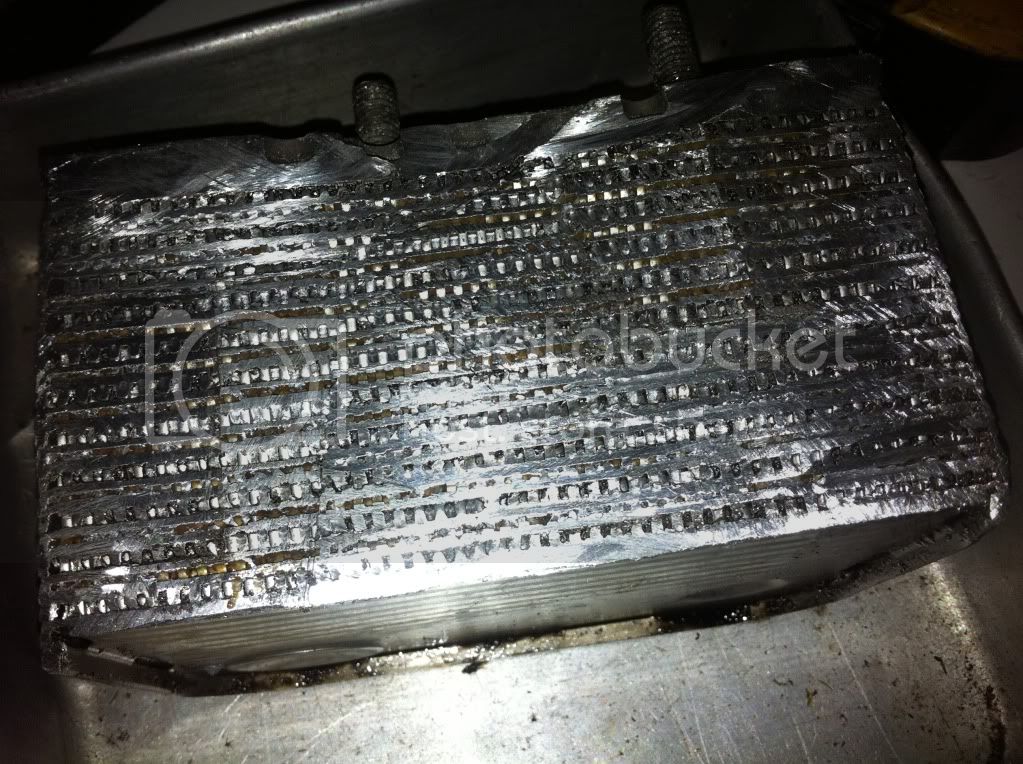

inside the old oil cooler

Now thats what im talkin about

first start after it was done:thumb:

First start after EGR Delete/Oil cooler - YouTube

As for time it took me from 6 am 5/31/11 to 8 pm today. total of.... 25 hours. dont think thats too bad. considering i did it by myself .

Things to note.... use good sockets no Chinese bs. an 1/4" air ratchet is your friend. if you dont have one buy one or borrow one.

Also label anything you think you wont remember. sandwich bags and a sharpie


2003KingRanch

New member
Joined
Apr 29, 2012
Messages
18
Reaction score
0
Location
Iowa
thanks, yes its a sinster kit. super nice kit. much better then some of the cheap eBay kits Ive installed
