7.3 Oil Pressure, Water Team Gauge install Questions HELP!

Bulletproof7.3 · Mar 5, 2013

95 PSD 7.3

Cant figure out where to put the oil pressure sending unit. The threads are quite a bit different than the one on the HPOP.

Hear people talking on other forums about a place on the block side of the Oil filter ? Does anyone have picture or previous thread link ?

And where should I put the Water temp sending unit at?? I have zero clue on this one, all of the ports look way to big or way to small for my sending unit.

Thanks for any help guys!

Addicted4 · Mar 5, 2013

Coolant temp sensor is easy to put on the front cover by the water pump its going to take a adapter

Bulletproof7.3 · Mar 5, 2013

Just go to the parts store and get an adapter for it ?

backwoodsboy · Mar 6, 2013

Just take the pump and temp sensor to a hardware store and find a brass male to female fitting with the proper threads.
Block side of oil filter would most likely be engine oil temperature, as opposed to HPOP pressure. There should be a test port on the top that has the correct thread pitch.

Ron's Power Stroke · Mar 6, 2013

next to the oil filter on the lip where the trans mates to the bell housing you will see a small plug...you can get oil psi there...water you can get from the t stat housing..

backwoodsboy · Mar 6, 2013

Tried to edit my previous post, but was too late.
Is this HPOP gauge you bought mechanical or electric? Electric gauges merely tap into the pig-tail for the ICP sensor.

Ron's Power Stroke · Mar 6, 2013

i think he looking for LOP.if not then down on the block will not give you HPO

backwoodsboy · Mar 6, 2013

Yeah, I'm confused as to whether he's looking for LPO or HPO.
When he started talking about HPOP fitting I just assumed it was HPO.

silverpsd_06 · Mar 6, 2013

No he is talking about the factory oil pressure sending unit on top of the hpop.reservoir. And what port he is referring to is on the drivers side of the block what a gen 3 type hpop uses to delivery extra oil to the reservoir.

Bulletproof7.3 · Mar 6, 2013

Yeah just talking about to factory oil pressure for the dummy gauge In the truck. The gauge is electronic and the sensor that came with the gauge doesn't match the factory threads on top of the hpop . I'm guessing I'm going to have to go to the parts store and get fittings that fit in that spot? Or will the plug down next oil filter work?

Water temp sounds like I just need to go get the fitting as well ?

CSIPSD · Mar 6, 2013

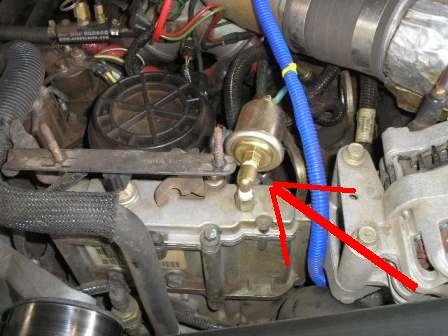

The top of the HPO res has a port, its a #4 O ring boss fitting. You can put your pressure there after getting the adapter.

Or you can install it in the block as mentioned before. That port is a 1/4" NPT and should require nothing but remove plug and install the sender.

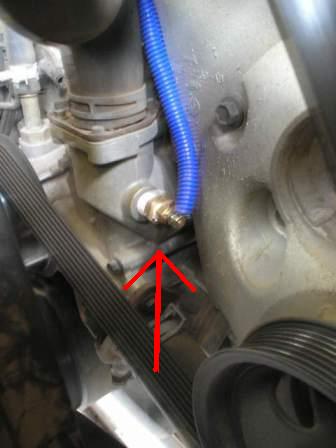

The water temp can go below the T-stat. There is a 3/8" NPT port there. You will need a 3/8" to 1/4" reducing bushing to install the water temp there.

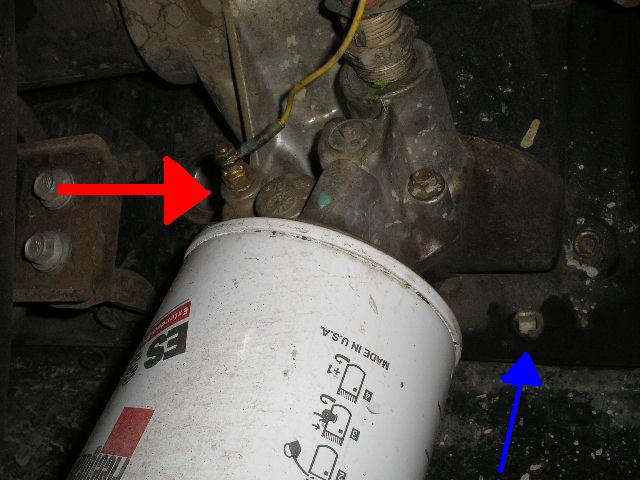

There is also a port on the housing that holds the oil filter, its a 1/4" NPT port that can be used for oil temp or pressure.

Bulletproof7.3 · Mar 6, 2013

Awesome thanks, that will help me out a lot knowing what size to get and what to use.

Bulletproof7.3 · Mar 6, 2013

Found the Oil pressure sending unit that came with my gauges and its 1/8 NPT . So i will need a 1/4 to 1/8 NPT to make this work in any of the ports right?

Bulletproof7.3 · Mar 6, 2013

This is the exact Sending Unit that was provided to me for the oil pressure .

CSIPSD · Mar 6, 2013

Ewww... Must be glowshift...

Correction to what I said earlier... all your sending units are 1/8" NPT...

The oil pressure unit shown is from an old autometer gauge, The Isspro one's use OEM type plugs... 10 times the quality.

Bulletproof7.3 · Mar 6, 2013

Have had great luck with glowshift for the past 5 years. Cant knock em one bit..

CSIPSD · Mar 6, 2013

I've replaced 4 pyros, 6 fuel pressures for quality Isspro gauges...

But none the less, thats your connection points.

Bulletproof7.3 · Mar 6, 2013

Maybe ISSPRO is the issue lol... Just sayin. If I had a ton of money to throw into gauges I would buy the expensive ones. But I dont race and this is just my old truck.

Ill be buying some good gauges for my 06 Dodge when I have the time and money to put into it.

CSIPSD · Mar 6, 2013

Bulletproof7.3 said:
Maybe ISSPRO is the issue lol... Just sayin. If I had a ton of money to throw into gauges I would buy the expensive ones. But I dont race and this is just my old truck.

Ill be buying some good gauges for my 06 Dodge when I have the time and money to put into it.

Huh? I've removed the junk chinese knock off glowshifts for a quality made in the USA Isspro gauge...

The Isspro's are not that much more then the glowshift and are 10 times the gauge.

But none the less... Carry on!

Bulletproof7.3 · Mar 6, 2013

No need to get bent out of shape, just giving you a little heck. I know the quality and prices of the gauges. Thanks for the help, sorry to offend.

Carry on!
