2014 no limit egr delete and more

[08twinturbo]

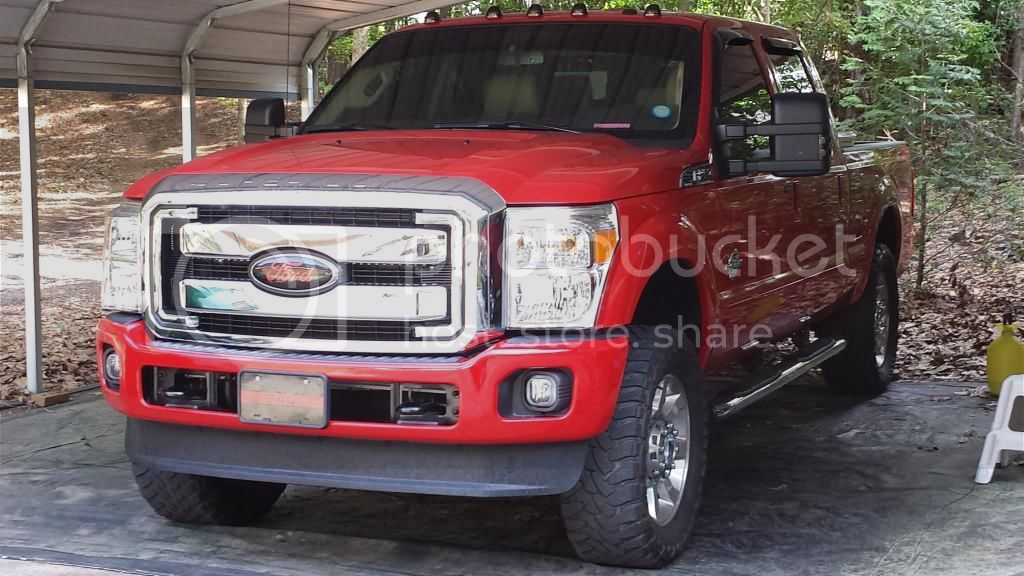

Well I got another project going on. Just figured I'd share some pics. Just started tonight. Jumped on the egr delete. No limit stuff is very good quality. Looks naked with cooler gone. Here Is the truck.



[08twinturbo]

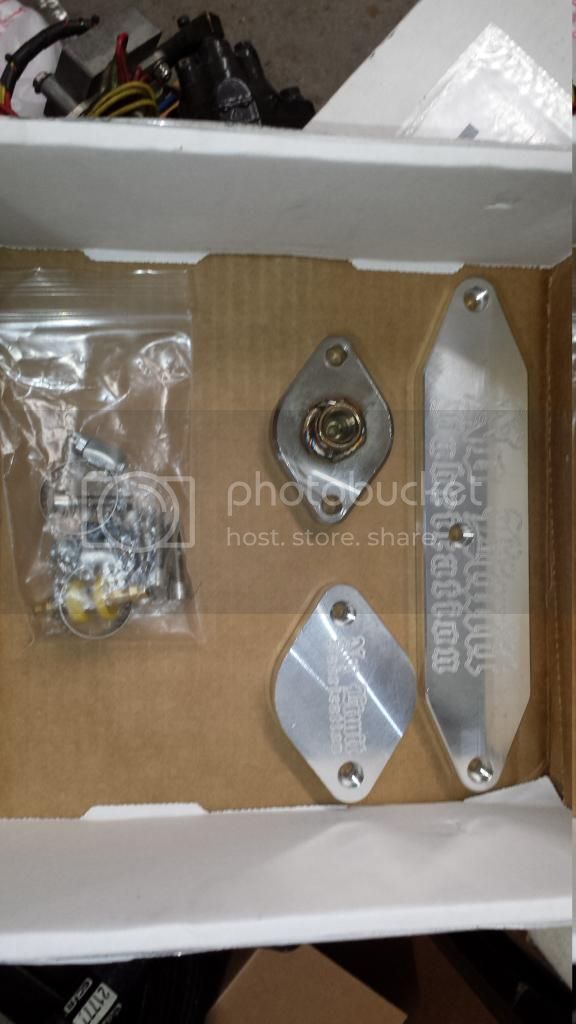

Here is the kit. Blue heater hose does come in kit as well.



[08twinturbo]

Here is a pic with all egr cooler and hardware pulled off.



[08twinturbo]

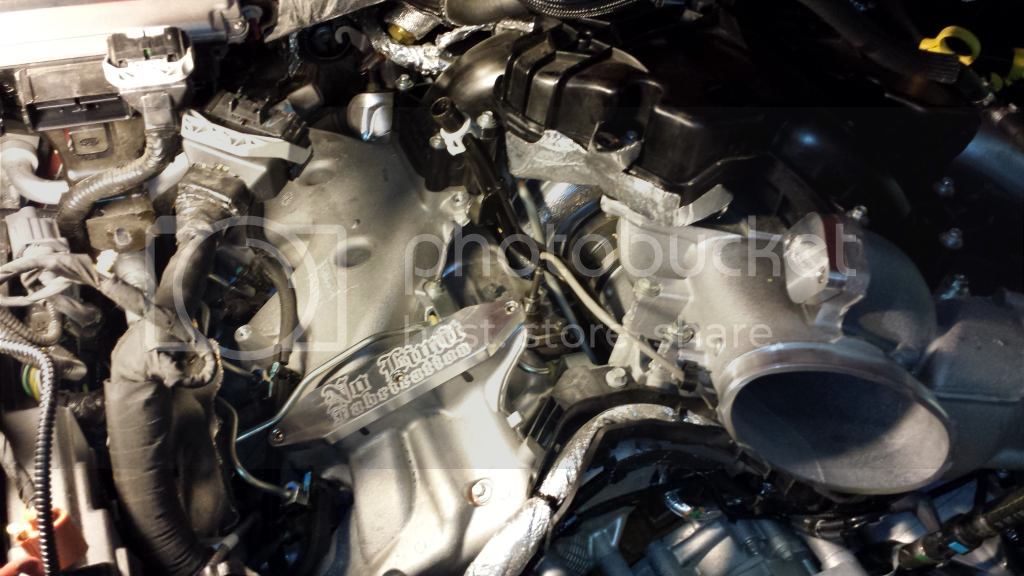

Pics of no limit blockoff plates installed. And sensor reinstalled in new blocker plate.



[08twinturbo]

Another pic.



[08twinturbo]

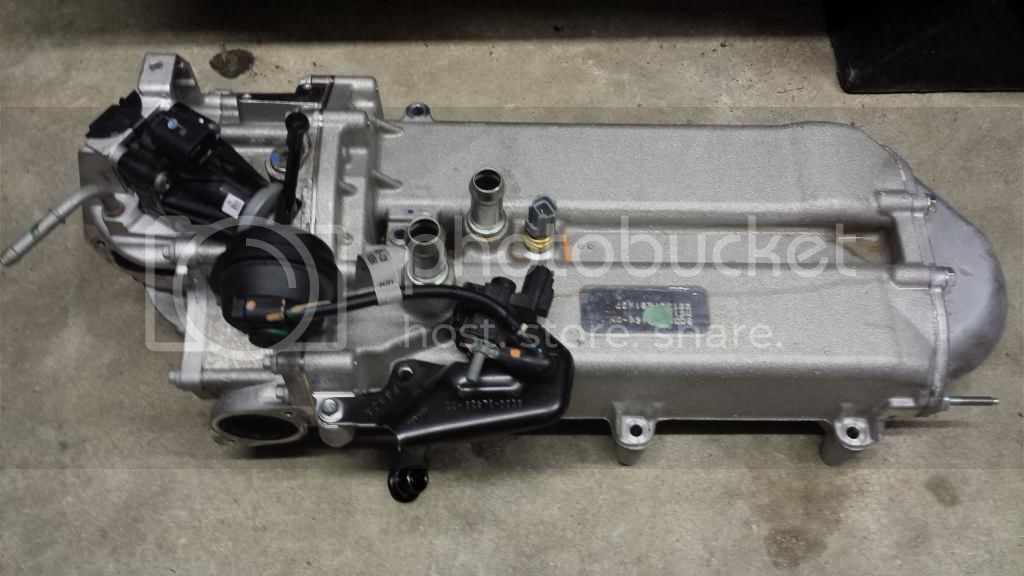

Pic of egr cooler assembly off of truck. More pics to come. Intercooler pipe upgrade. Afe stage 2 Pg7 kit. Flo pro 5" exhaust.



[TRUBBS]

man i really needto talk my dad into getting rid of out h&s rusted out kit and get a no limit



[bigrpowr]

man i really needto talk my dad into getting rid of out h&s rusted out kit and get a no limit

agreed. LOL



[08twinturbo]

Yea it's very good quality. He won't be disappointed.



[webb06]

I've installed 4 of these kits. Quality pieces and look great!



[MorganY]

Good job. You're photos look great. I enjoy seeing a clean workspace.

Sent from my SAMSUNG-SGH-I337 using Tapatalk



[08twinturbo]

Thanks. I will admit when I work on anything I try to keep everything as neat as I can. It was kind of last minute starting on it tonight. I've done a lot of 6.4 stuff and just figured these pics may be interesting for others too. I will take more tommorrow with it complete and the other mods as well.



[LovetheTide]

How long did it take from start to finish? Thats a good looking kit.



[08twinturbo]

Well I won't lie. I probably spent about 6 hours just on egr process alone. I did alot of neatenig along the way. There are alot of ties and holders removed with the stock parts. So I choose to remove factory clips from egr hoses and replace them back where they were needed after delete. I can't stand wires and hoses hanging. By the way takes close to an hour just to drain antifreeze out of both radiators.



[08twinturbo]

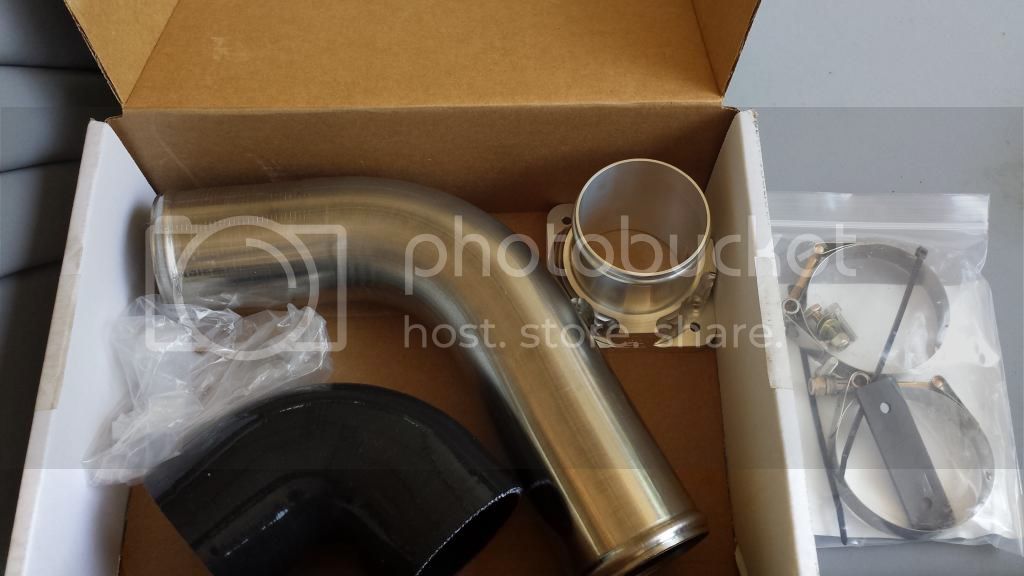

Here is my progess today. H&S motor sports intercooler upgrade kit with butterfly delete.



[08twinturbo]

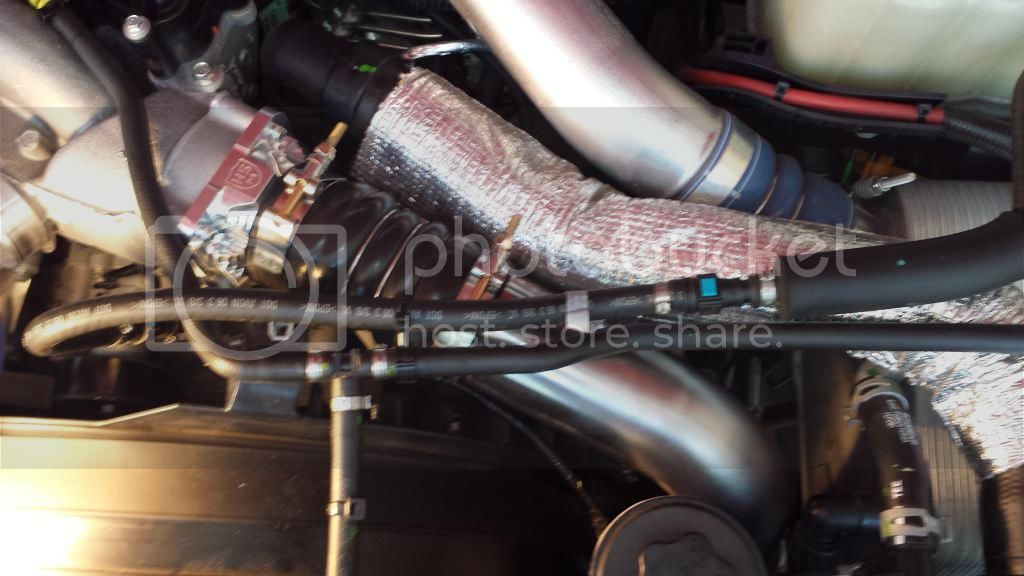

Pic installed.



[08twinturbo]

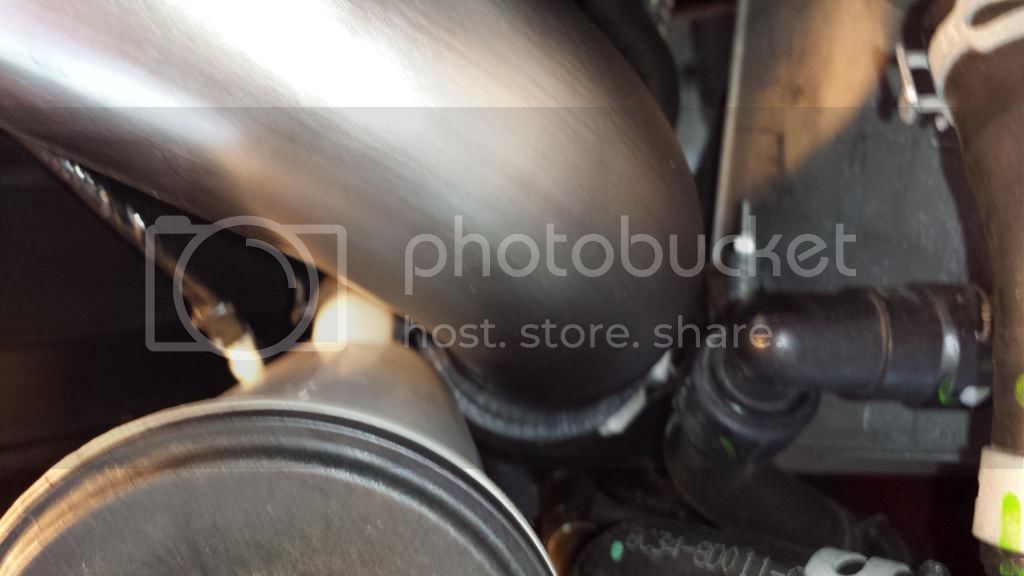

Power steering reservoir relocation bracket was not needed with hose positioned perfectly. No rubbing anywhere. That bracket made the reservoir very flimsy. Radiator shroud helps hold most of the weight in the factory position.



[Raptorgabe]

I would take the stock bolts out and put heavier duty bolts in mine boke after like 15k miles unless u don't plan on putting it back together for warrenty ! I guess just the ones for the plate with the egt probe in it



[08twinturbo]

Now on to the afe stage 2 pg7 cold air.



[08twinturbo]

Overall appearance.
