DIY injector build

N2GN2 · Nov 3, 2015

Where can I find the parts list for upgrading stock injectors for Stage 1-hybrids?

Northwoods2002 · Nov 3, 2015

Call a builder. A company used to put a kit out, but too many people don't know what they are doing so thee company stopped. Be safe, send them in.

N2GN2 · Nov 3, 2015

Yeah, that was Jim @ Rosewood. I'm not going to send them in. I've seen some post before, just trying to track them down. Everyone has to start somewhere

N2GN2 · Nov 3, 2015

Found this http://powerstrokearmy.com/forums/showthread.php?t=21111

MossBack · Nov 3, 2015

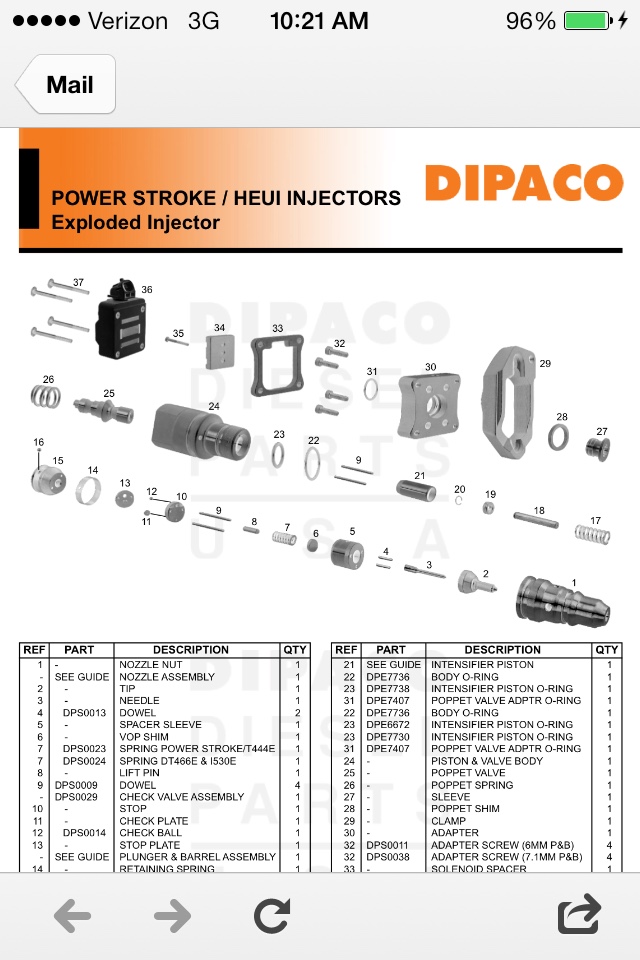

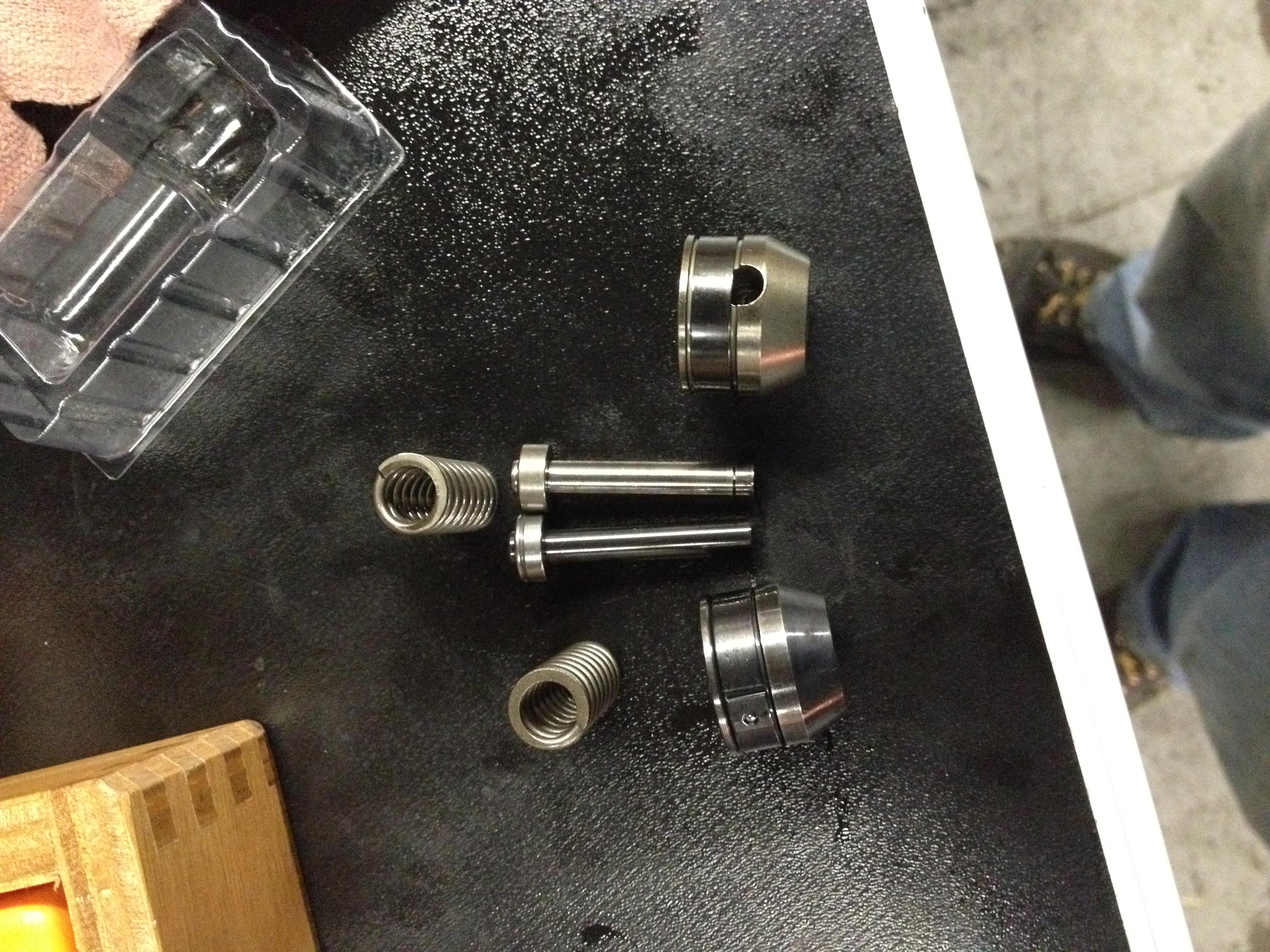

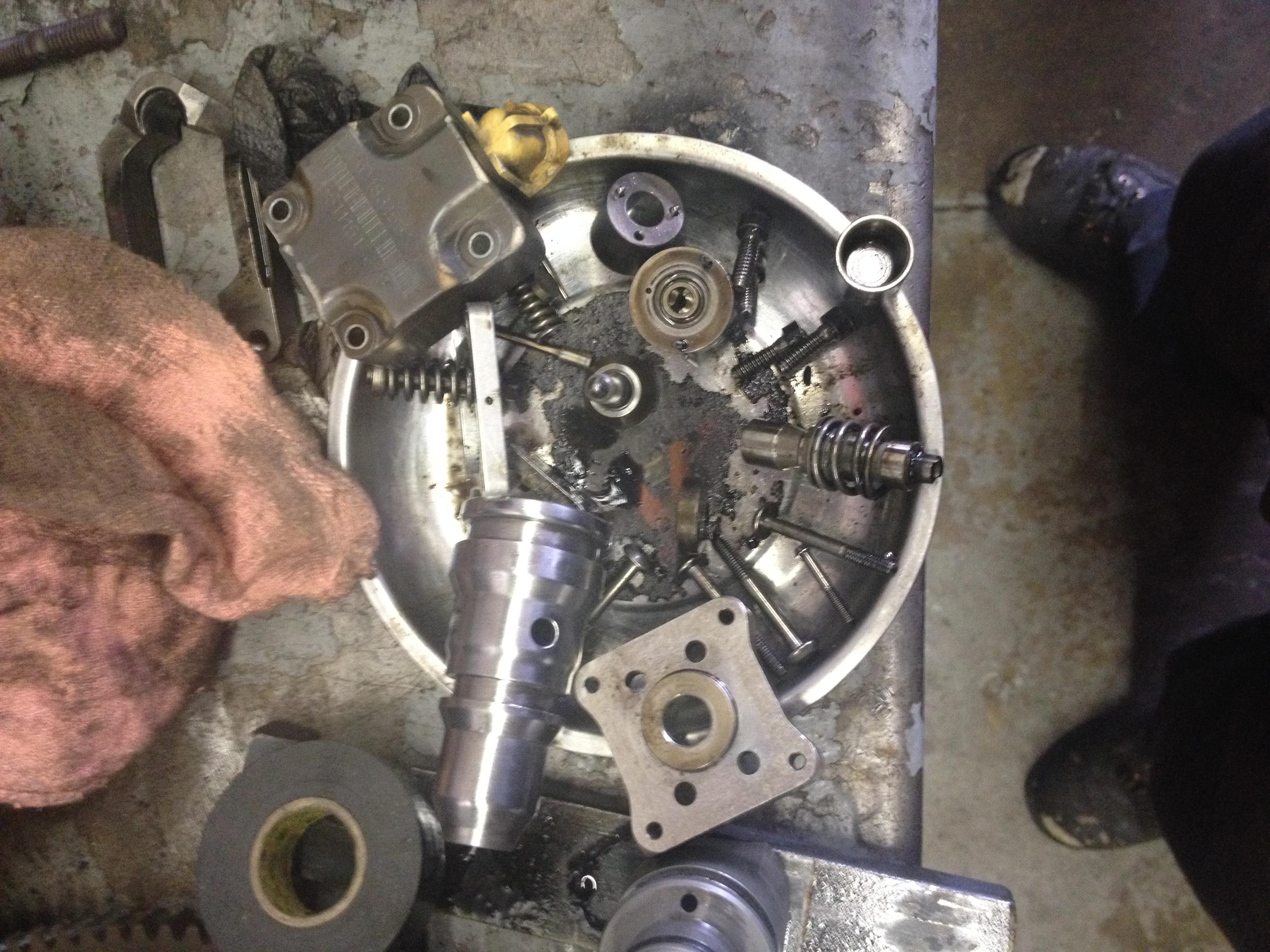

I found a couple photos for you to look at...First photo is a parts explosion. Second is a picture of one disassembled and third is a single and split shot p&B next to each other.

N2GN2 · Nov 3, 2015

Thanks MossBack! I have a Dipaco account. If I put a 7.1mm p&b and a single shot 16mm intensifier piston in my AD's what would it flow? The machining work must go into getting the larger nozzles?

79jasper · Nov 3, 2015

Just hit em with the bench grinder. Lol
https://youtu.be/NXRbY5d9KT0

Sent from my SAMSUNG-SM-G890A using Tapatalk

N2GN2 · Nov 3, 2015

mandkole · Nov 3, 2015

79jasper said:
Just hit em with the bench grinder. Lol
https://youtu.be/NXRbY5d9KT0

Sent from my SAMSUNG-SM-G890A using Tapatalk

if you're gonna put some sh!t together that no one has ever seen, that's the vid to watch...

N2GN2 · Nov 3, 2015

I'm just looking to be self reliant. I won't be the one to reinvent the injector.

FlatbedCowboy · Nov 3, 2015

mandkole said:
if you're gonna put some sh!t together that no one has ever seen, that's the vid to watch...

I still haven't figured out if I should take these people seriously or not......

N2GN2 · Nov 3, 2015

It's a great injector break down video. You probably shouldn't take them too serious. They're just having fun in their garage.

Tim @ P.I.S. · Nov 4, 2015

DIY heui injectors is about the worst thing you could do to your truck. By the time you buy parts and pay to send them to be bench tested you will have as much or more than you can buy a set. And if you think you will skip the flow testing then you need to sell the truck and move along. I have seen a trend come into the 7.3 market in the last year and it's not a good one. Don't take this personally but being cheap and owning a diesel are not two things that lead to a happy ending.

N2GN2 · Nov 4, 2015

No hard feelings, I appreciate the input. I'd love to build a flow bench. The details are the hard part. Thank you.

ja_cain · Nov 4, 2015

Here you go. Lol!

http://www.alibaba.com/product-deta...619934.html?spm=a2700.7724857.29.3.k0IKRS&s=p

superpsd · Nov 4, 2015

There not difficult to pull apart and put back together. All the information on the different injector codes, intensifier pistons and so forth is aroundyiu just have to dig. Why not start simple and buy an AC code injector (single shot 160cc and then nozzle them(stage 2). A few vendors will sell the larger nozzles. I have yet to even install my DIY injectors and I started on them early this year. Just make sure everything goes back as it should and don't be me and instead buy all new parts to have the best shot at a good diy injector. You could also get some BD codes 240cc or somewhere around that and nozzle them. Then you will need big oil to drive them. If I remember correctly a 7.1 B code single shot P&B makes for a 200cc hybrid but do not quote me on that. However I am unsure of what intensifier piston is used from what A code. Further digging could help you out.

Just remember when you build a DIY injector you are liable for poor performing injectors to engine damage than possibly could occur and you will be fixing your own issue at cost to you instead of sending injectors back to a builder to get fixed free of charge.

ja_cain · Nov 4, 2015

http://www.hartridge.com/products/hydraulic-injector-comparator-ha230/

Previous post was more or less a joke. This one actually allows you to see spray pattern and measure fuel flow. I think the other one just measures oil flow, but not sure. I'll call tomorrow just for s&g to see how much they run. I wonder what rig Tim runs?

N2GN2 · Nov 4, 2015

I have the build sheet pretty dialed in from around the forums. What I'm not sure of is calibrating the injectors. I'm guessing replacing the solenoids and adding shims is how you calibrate. I found lots of info on building a flow tester, but the hurdle always comes to driving the injectors with electronics. If we could figure out the output signals from the IDM we'd be well on our way. Thank you all for your contribution.
