FORD CPS issue

strok-n · Jul 27, 2015

Alright guys I am curious if a brand new Ford CPS can be bad right out of the box. I have an Oreilly brand in the truck now and it runs good on it, but I had heard that the ford one is definitely better. So I ordered a new one and put it in and the truck ran for 3 minutes then died. I never could get it to start again. So I pulled the new one out put the old one back in and it runs like a champ. any help I would greatly appreciate it.

Thanks

Arisley · Jul 27, 2015

Yep, any part can be bad out of the box.

ghohouston · Jul 27, 2015

Ive had 2 ford cps's in a row cause issues. Ended up having to use original black sensors

Carolina444 · Jul 27, 2015

Arisley said:
Yep, any part can be bad out of the box.

I've got a original black in it now and a gray in the glove box for a spare but what's the next best thing to the original black? I think I've seen you on some of those old cps threads

strok-n · Jul 28, 2015

thanks guys I will try another one. Just frustrating when you spend 30 bucks on a new sensor that doesn't work.

Ron's Power Stroke · Jul 29, 2015

Carolina444 said:
I've got a original black in it now and a gray in the glove box for a spare but what's the next best thing to the original black? I think I've seen you on some of those old cps threads

the one in your glove box is the next best thing..

SDS97_7.3 · Jul 29, 2015

The IH one is good too, never had an issue with it after I put it in. Same price, or if you know the guys at an IH dealer, you can get it a little cheaper. Was in my 97 for years, never had a single problem after I put that one in

Carolina444 · Jul 29, 2015

Ron's Power Stroke said:
the one in your glove box is the next best thing..

Ok thanks

lincolnlocker · Jul 29, 2015

yep, can be dead right out of the gate. i had a original black brand new that lasted 3hrs.... a ford purple that didnt even start the truck and a grey one last 2 weeks... and yes this was all prior to the cam walk issues i had.

live life full throttle

n54power · Aug 4, 2015

I've had one from kragen and one from napa be bad. I have a IH installed right now. I shimmer it using 2 shims. I've been free of issues for over 16 months.

lincolnlocker · Aug 4, 2015

cool

live life full throttle

ja_cain · Aug 4, 2015

n54power said:
I've had one from kragen and one from napa be bad. I have a IH installed right now. I shimmer it using 2 shims. I've been free of issues for over 16 months.

How did you decide how much to shim it?

lincolnlocker · Aug 4, 2015

ja_cain said:
How did you decide how much to shim it?

propper way is a air gap it and set it a rch less then .020...

i think... crap.. now i gotta go back and look at one of my threads...

live life full throttle

lincolnlocker · Aug 4, 2015

i was right

live life full throttle

Maryland dieselnick · Aug 10, 2015

Hi, I'm new here to this forum but not diesels.
I have been having great successes installing the Napa's Echlin model.

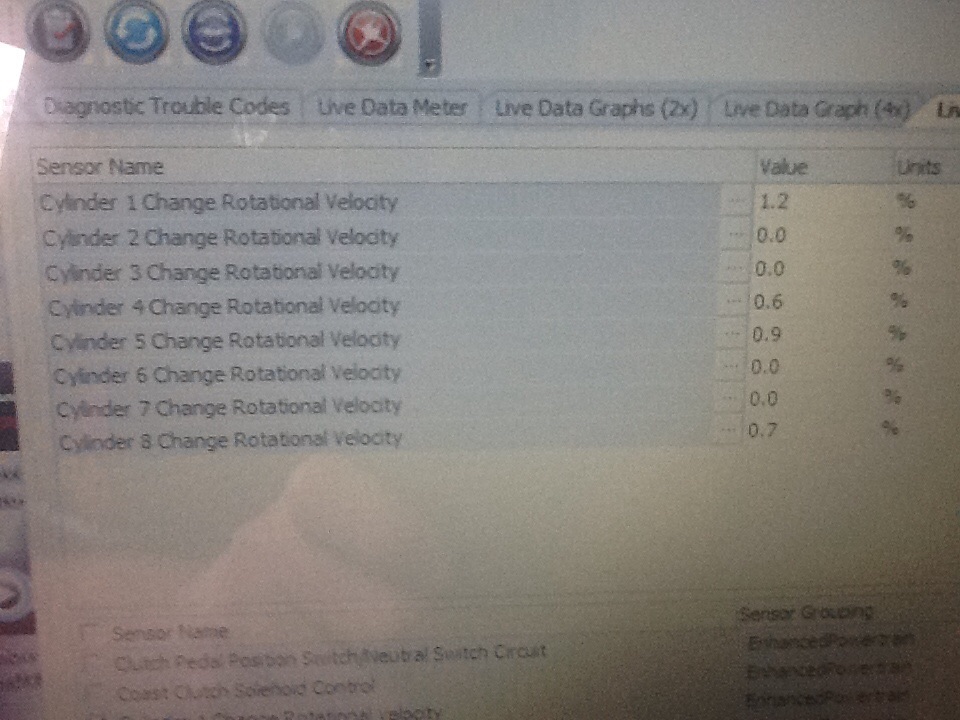

It will pull the perdels down to original black cps numbers or better and thus passing the contribution test.
Wear in the wiper motor causes interference killing the engine when the wipers come on.

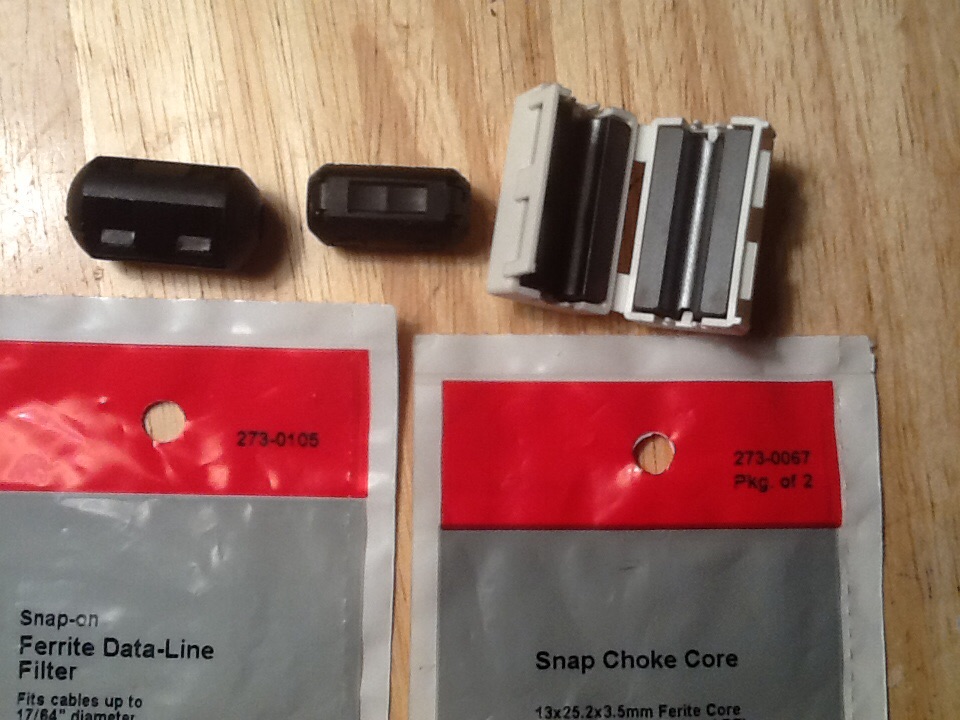

I use ferrite snap on chokes on the wiper motor wires in addition to one on each cps wire.
This cps will smooth it out, increase fuel economy and dramatically quiet the engine.

lincolnlocker · Aug 10, 2015

Maryland dieselnick said:
Hi, I'm new here to this forum but not diesels.

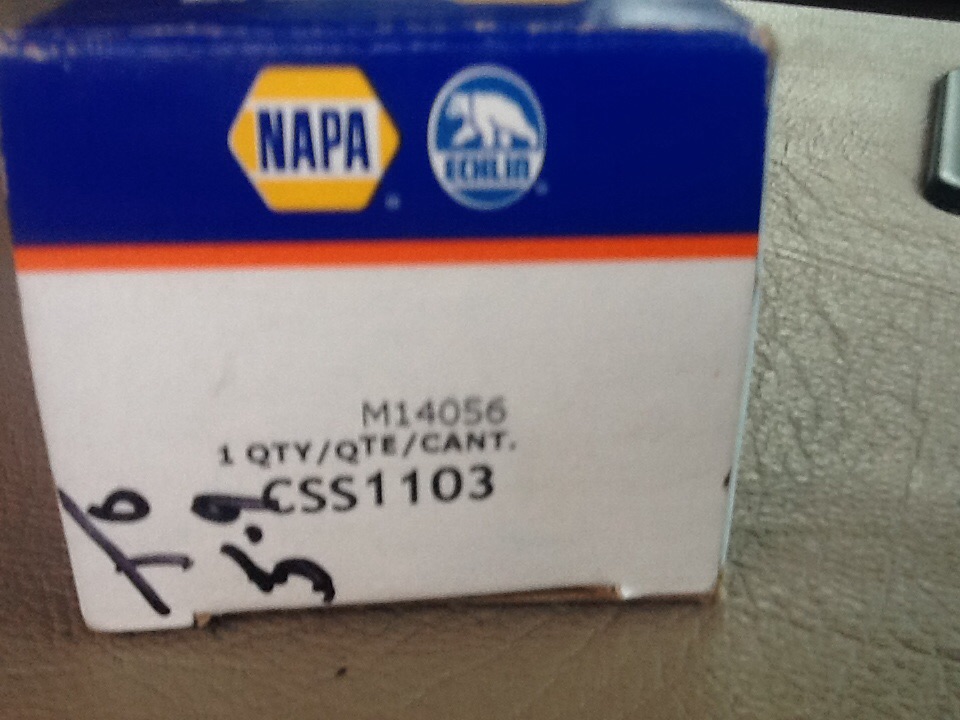

I have been having great successes installing the Napa's Echlin model.
It will pull the perdels down to original black cps numbers or better and thus passing the contribution test.
Wear in the wiper motor causes interference killing the engine when the wipers come on.
I use ferrite snap on chokes on the wiper motor wires in addition to one on each cps wire.
This cps will smooth it out, increase fuel economy and dramatically quiet the engine.

so you still have to use the chokes on the napa model?

live life full throttle

Maryland dieselnick · Aug 10, 2015

Some trucks will be ok with the Echlin with no chokes, but most will stall out at idle when the wipers are intermittent.

Maryland dieselnick · Aug 10, 2015

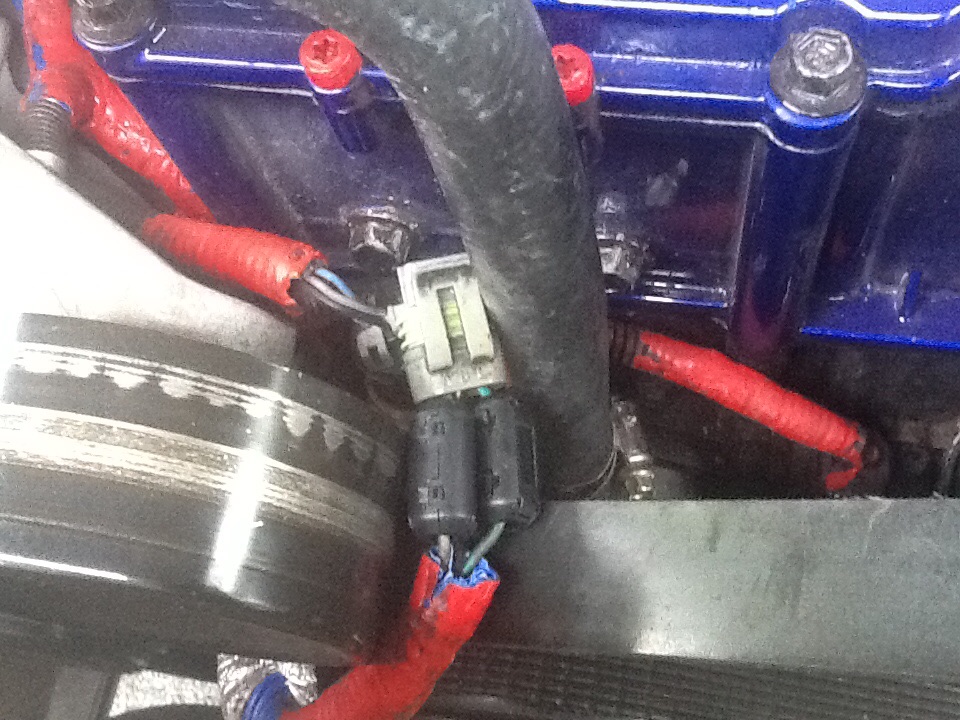

The cps connector

Maryland dieselnick · Aug 10, 2015

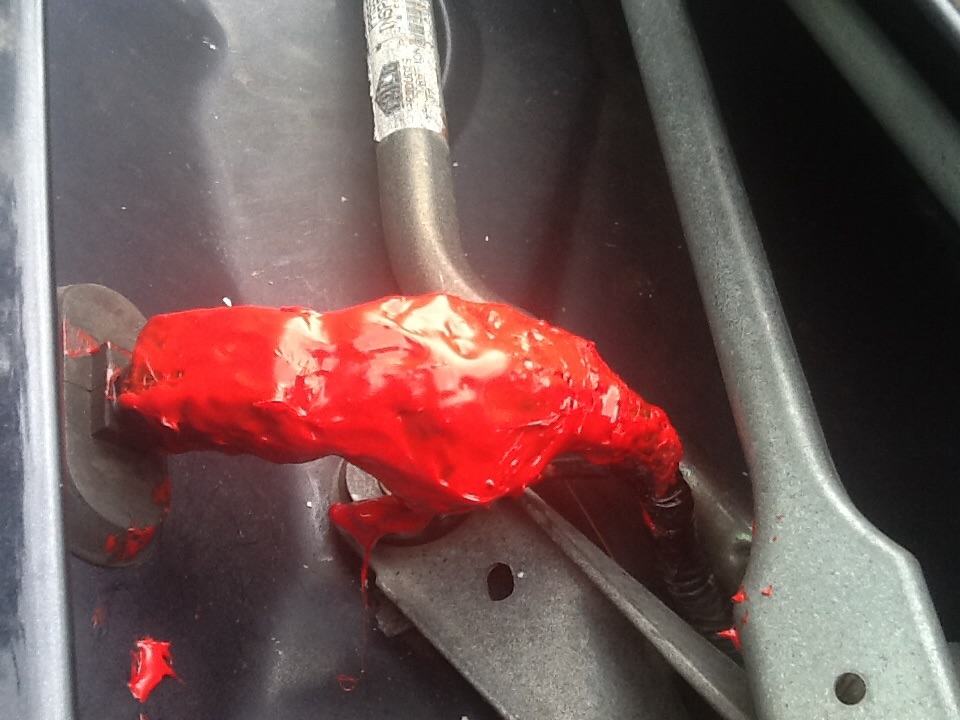

In this picture I chocked each wiper wire and a large one over the whole bundle , taped and liquiplastic.
You can do it where harness comes out of firewall but a lot of trucks have up fitter harness running thru that area making it tight.
