Going to efuel

gnxtc2 · Nov 20, 2016

The relay terminals are numbered

Terminal 30 - +12v from battery (fused)
Terminal 87 - positive terminal on fuel pump
Terminal 85 - fuel heater wire
Terminal 86 - ground

Don't forget to run a ground wire for the fuel pump.

Billy T.
[email protected]

RBernardi · Jan 3, 2017

How should I prime the system? Obviously fill the filters, then leave the return fitting loose on the bottom of my regulator?

gnxtc2 · Jan 3, 2017

Turn the key on. Don't disconnect any hoses. Let if run for a seconds to purge the air and set your fuel pressure.

Billy T.
[email protected]

RBernardi · Jan 3, 2017

gnxtc2 said:
Turn the key on. Don't disconnect any hoses. Let if run for a seconds to purge the air and set your fuel pressure.

Billy T.
[email protected]

sweet that's easy enough thanks for the quick reply

RBernardi · Jan 4, 2017

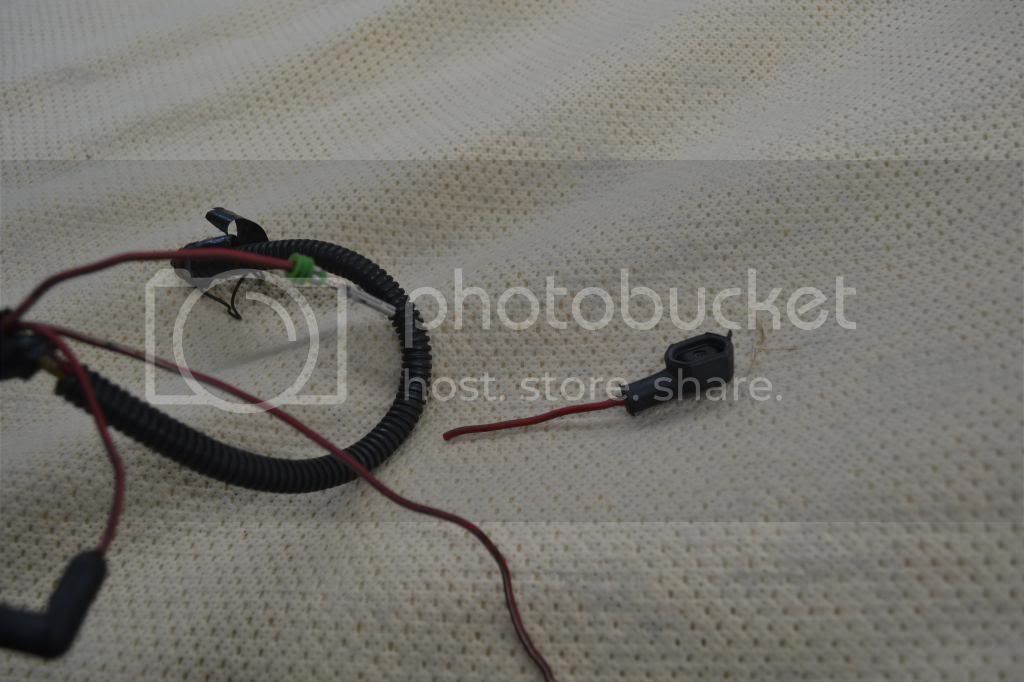

Does this look right? gnxtc2? The fuel heater wire you labeled to terminal 85 threw me off

gnxtc2 · Jan 4, 2017

Yes....it's right. That oil pressure switch is junk and not reliable and fails. I eliminated it and just run the relay. These motors will run with no fuel pressure. There is a thread on this issue I made.

Billy T.
[email protected]

RBernardi · Jan 4, 2017

gnxtc2 said:
Yes....it's right. That oil pressure switch is junk and not reliable and fails. I eliminated it and just run the relay. These motors will run with no fuel pressure. There is a thread on this issue I made.

Billy T.
[email protected]

Ok so you ran your heater wire to #85 and supplied power while running and cranking is that ccorrect?

I'd like the pump to be off if I'm just sitting in the truck listing to music. If I eliminated all the old pressure switch would I have to wire in a toggle switch to turn the pump on?

rusty1161 · Jan 4, 2017

RBernardi said:
Ok so you ran your heater wire to #85 and supplied power while running and cranking is that ccorrect?

I'd like the pump to be off if I'm just sitting in the truck listing to music. If I eliminated all the old pressure switch would I have to wire in a toggle switch to turn the pump on?

I used the same heater wire to trigger my relay and no oil pressure switch.

Just use your accessory position of the ignition switch to listen to the radio. No power goes to the heater wire that way.

Rusty

gnxtc2 · Jan 4, 2017

RBernardi said:
Ok so you ran your heater wire to #85 and supplied power while running and cranking is that ccorrect?

I'd like the pump to be off if I'm just sitting in the truck listing to music. If I eliminated all the old pressure switch would I have to wire in a toggle switch to turn the pump on?

Yes....use accessory on key switch (turn key backwards)

rusty1161 said:
I used the same heater wire to trigger my relay and no oil pressure switch.

Just use your accessory position of the ignition switch to listen to the radio. No power goes to the heater wire that way.

Rusty

^^^^^^This

Billy T.
[email protected]

RBernardi · Jan 4, 2017

Thanks a ton guys! I'm going to pull the switch and just run the heater wire to the relay and plumb a fuel gauge to the cab like gnxtc2 suggested.

Lt.Dan · Jan 5, 2017

I know it might be a little late, but this is how i did mine a while back, using the wiring harness from Bar None.

http://powerstrokearmy.com/forums/showthread.php?t=72660

RBernardi · Jan 10, 2017

Well I got my system all buttoned up. Go to start the truck batteries are dead of course. Put the charger on them.come back in an hour, cranking but won't start. After about 15 minutes of trying it finally started, it ran for about 10-12 seconds that was it. Won't start again just cranks.

I've double checked the harness, all the connections are plugged in tight.
The pump is running good and I set the regulator to 65psi. Do you guys have any ideas?

gnxtc2 · Jan 10, 2017

When you turn the key on, do you have fuel pressure? The 6 wire connector/harness is plugged in by the old fuel bowl? That harness contains the IPR wire. You cut the correct fuel heater wire?

Billy T.
[email protected]

RBernardi · Jan 10, 2017

gnxtc2 said:
When you turn the key on, do you have fuel pressure? The 6 wire connector/harness is plugged in by the old fuel bowl? That harness contains the IPR wire. You cut the correct fuel heater wire?

Billy T.
[email protected]

Yes and yes, I'm going to pull the harness apart and spray the connection. With electrical contact cleaner. The other two wires on the fuel bowl harness I cut the ends off and taped back.

RBernardi · Jan 10, 2017

Well I sprayed all the harness plugs I took apart with contact cleaner, and it fired right up! I put a cheap air hose 3 way in the valley like Billy T did and its dripping so I figured it's cracked because the fittings are tight.
