Need help w/ OEM pigtails and harness'.....!

[dirtboy25]

The 1st pic is the factory pigtail to the turn signal lamp. My question is, did ford change this with the 05-07 headlights?

My stock pigtail doesn't fit properly into the new headlights but it does fit, it's just a bit small and doesn't seal very good.

This is just an example... http://www.theautopartsshop.com/turn-signal-lamp-socket/dor84813.html

Below is a pic of the socket that it plugs into. (turn signal) http://www.theautopartsshop.com/auto+car-usa+parts+year/ford+f_250+turn-signal-lamp-socket+1999.html



[dirtboy25]

Ok... I found out.

Yes ford did change the turn signal harness with the switch to a 1 piece headlight in 05.

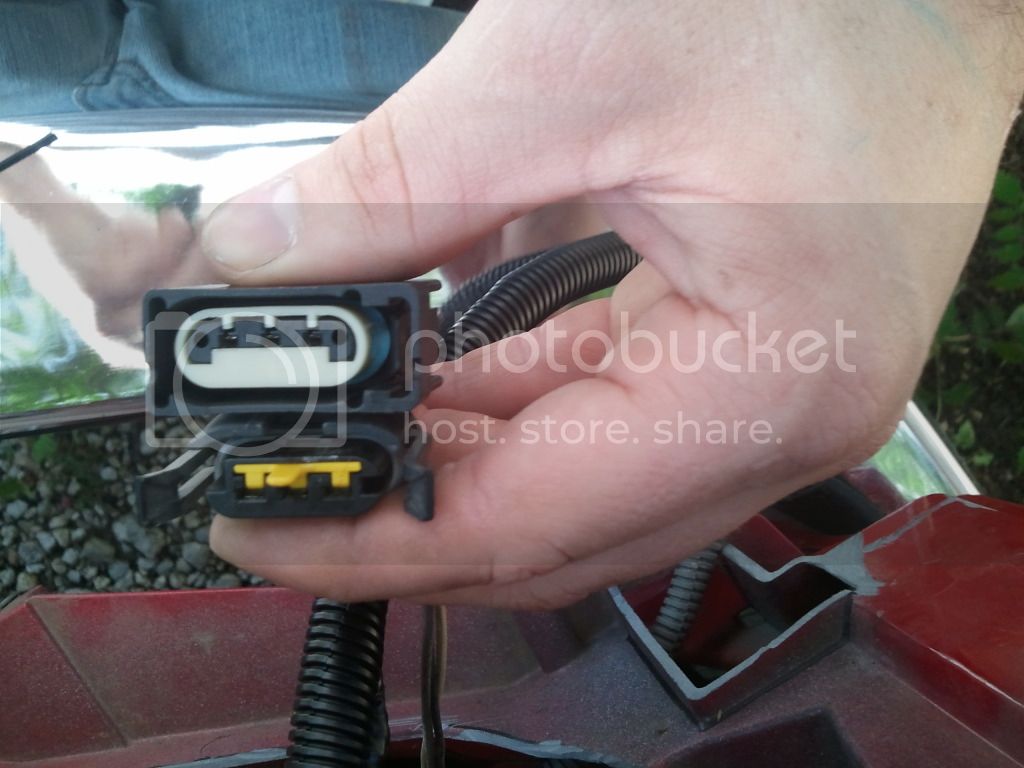

Here in the pic is the difference.

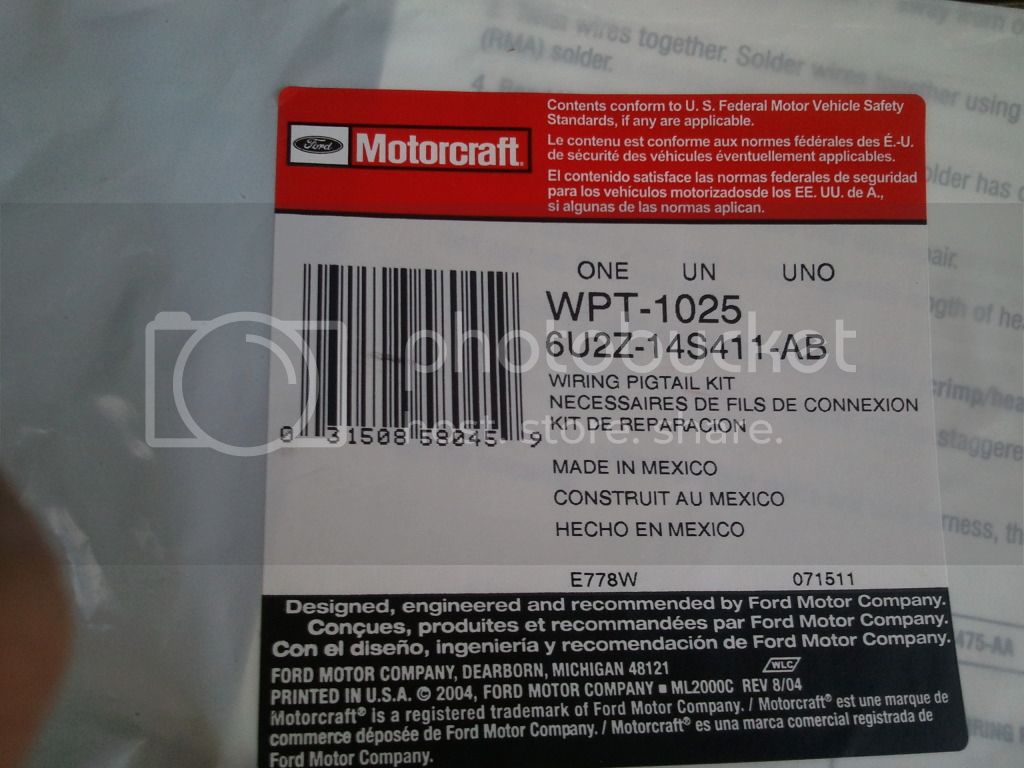

Here is the part# for the people that upgrade to the newer headlights. Some re-use the stock turn signal socket but it wouldn't fit in my headlights so I tracked down the "new style" harness and wired it in so that I could use the sockets supplied with the hedlights.
