PTM grill Pics!!

youngstroker · Mar 1, 2012

PTSUPERD said:

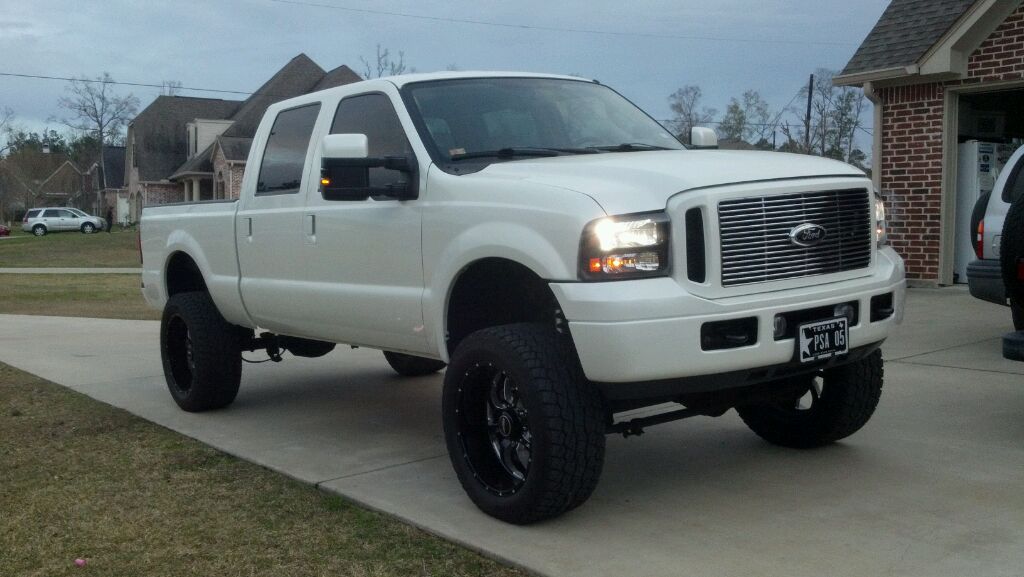

View attachment 4612

thanks, is the center section still chrome and the outer portions black?

juniort444e · Mar 1, 2012

Sirizzotti said:
Is that to me? Outer shell is blue, inner inserts are black.

Yes it was. I thought it was black, but hard to tell. Pretty truck man.

6.0dirtworker · Mar 1, 2012

juniort444e said:
Yes it was. I thought it was black, but hard to tell. Pretty truck man.

Right back at you. Southfl, yeah I decided to change it up.

PTSUPERD · Mar 1, 2012

youngstroker said:
thanks, is the center section still chrome and the outer portions black?

Yes. Think I may plastidip the center with the glossifier.

PTSUPERD · Mar 1, 2012

Sirizzotti said:

Truck looks great.

6.0dirtworker · Mar 1, 2012

PTSUPERD said:
Truck looks great.

thanks man, yours is sex on wheels like always lol

SouthFlstrokin' · Mar 2, 2012

02BigD said:
eBay special.

I think you should paint the inserts black to break up some of that red...

AKHILF · Mar 2, 2012

If you want to make your own grille insert like mine its not to bad just a lot of cutting with a dia grider and I went and bought a bunch of different attachments to round the corners out nice and the drilling all the holes for the bolts is kinda a pain. I'v made 4 of them now one for a 2003 grille 2 2005 grilles and one 2004 duramax. The durmax one turned out nice to I made it a one piece instead of having the upper and lower grille.

TyCorr · Mar 2, 2012

AKHILF said:
If you want to make your own grille insert like mine its not to bad just a lot of cutting with a dia grider and I went and bought a bunch of different attachments to round the corners out nice and the drilling all the holes for the bolts is kinda a pain. I'v made 4 of them now one for a 2003 grille 2 2005 grilles and one 2004 duramax. The durmax one turned out nice to I made it a one piece instead of having the upper and lower grille.

I like how you ran the white. Most people would have gone black. The black looks friggin great too, especially from the front. When you can see the side of the truck the customness is lost on me with the black, especially when its 2tone. So good on ya for that attention to detail. Perfect execution!

smokedout250 · Mar 2, 2012

Well now I have to figure out what grill I want after this thread.... Dang so many choices lol

Sent from my iPhone using Tapatalk

juniort444e · Mar 2, 2012

I am trying to buy an 05 grill from a guy in Virgina. But seems like he wont txt back or answer anything. Its cheap to.

I want to try building on like akhilf. But for right now, im going to paint my chrome piece white and see how much i like it. Then im building on like his.

AKHILF · Mar 2, 2012

To be honest I have atleast 8 hours in each grille maybe more than 10, but also a couple cases of beer. And when it comes to my truck everything has to be just right so that made the cuts and planning the bolts take longer. The mesh was the easy part. The white grill I did out of an xl grill and its a litte floppy but you cant tell once its bolted down, and the black one was started with a xlt chrome grill and I sanded all the chrome down. I like how stiff it is. So a stock ptm grille would be best but not needed if you cant find a good deal on them. Oh and each one of these grilles have If I remember right 128 bolts and are all stainless. I'd sell the white one but I think shipping would be a pretty penny

juniort444e · Mar 3, 2012

If i do mine like yours, or play around with one. I will have a piece cut on the laser cutter and just mark the holes on the grill from that. Should help make my life easier.

Where did you get the mesh from? I want to see about doing something different. Like maybe have stainless cut, with little ford ovals on the whole thing or something else thats really unique but not over board or gody or hickish.

AKHILF · Mar 3, 2012

I work at a place called alaska steel and i'm the guy who runs the laser table and I dont think it would be worth cutting out a piece just to mark hole. It's not to bad measuring. And i'v tried two different mesh's first was a square expanded metal and now I run 1/2-13 raised expanded metal. It's a lot easier to work with and you can get it pcoated or chromed if you want. There are some websites that sell mesh specifically for making your own grilles but since I work where I do it's not worth it. Just call up your local metal distributer.

sasquatch24 · Mar 3, 2012

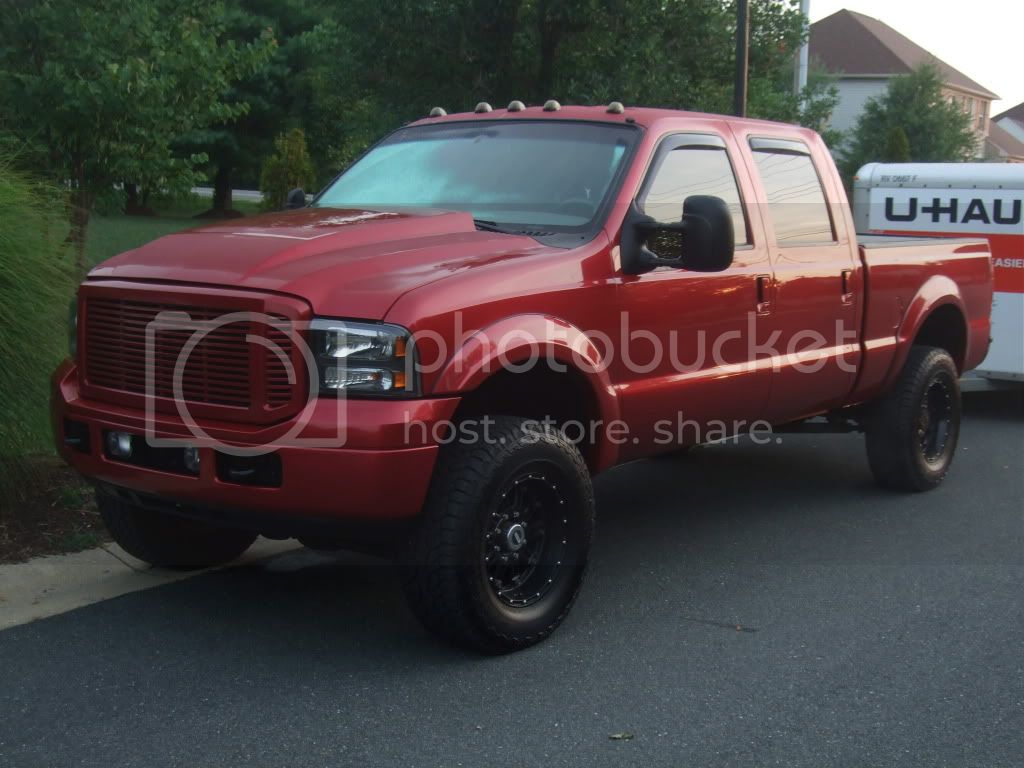

red harley grill

02BigD · Mar 3, 2012

Nice Luke!

Keanoknick · Mar 3, 2012

Looks great Luke!

juniort444e · Mar 4, 2012

AKHILF said:
I work at a place called alaska steel and i'm the guy who runs the laser table and I dont think it would be worth cutting out a piece just to mark hole. It's not to bad measuring. And i'v tried two different mesh's first was a square expanded metal and now I run 1/2-13 raised expanded metal. It's a lot easier to work with and you can get it pcoated or chromed if you want. There are some websites that sell mesh specifically for making your own grilles but since I work where I do it's not worth it. Just call up your local metal distributer.

What i ment by making something with holes and measure off of it, was that "that" piece with holes would actually be part of the grill. Im not sure if you seen the one someone made on the nation, but he used a very thing piece of stainless and bolted it to the outter part of the grill and the mesh was welded to that. I thought it looked good, but not sure if that is the route i end up going.
