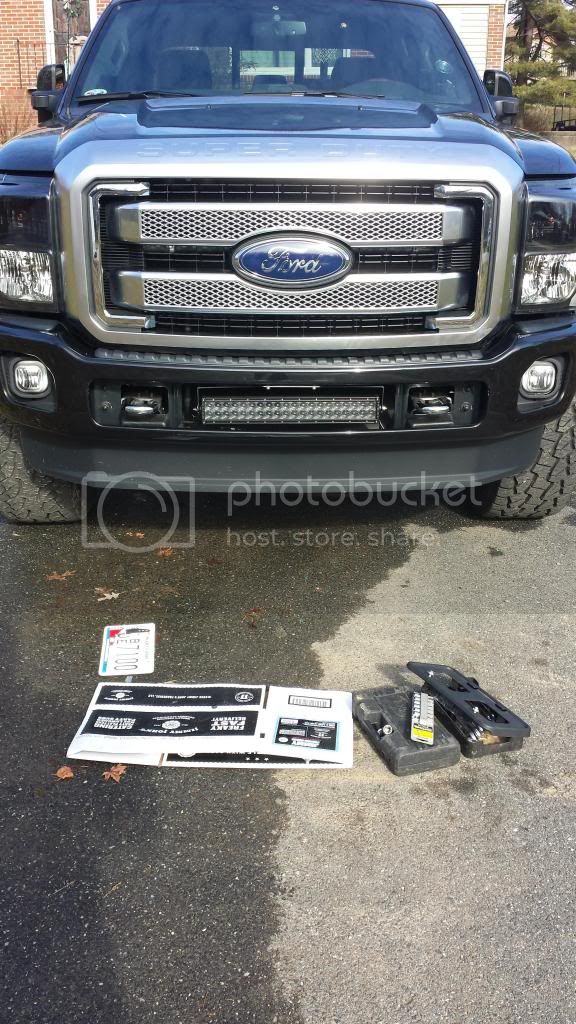

Rigid Lightbar Installed

[spongebob915]

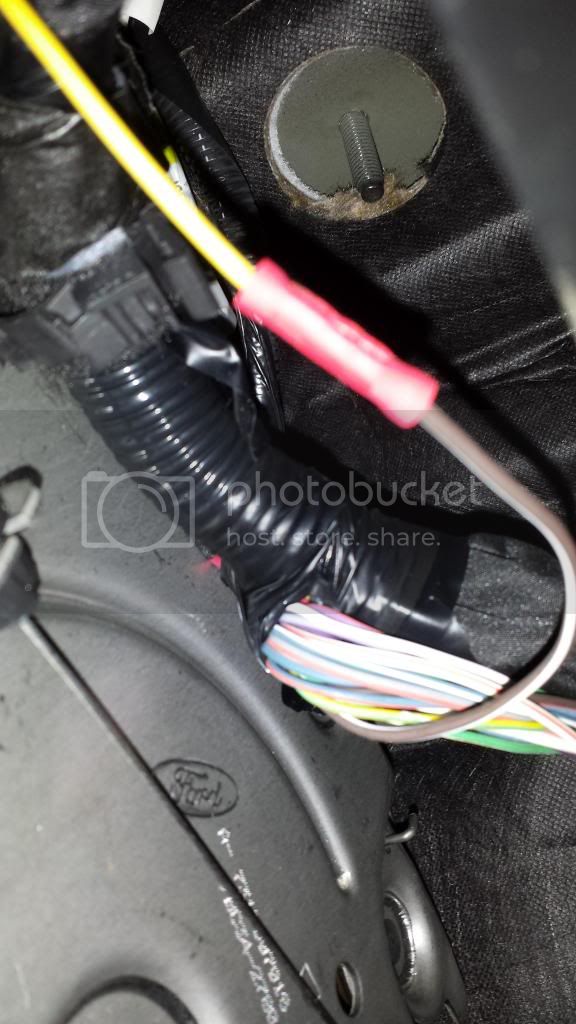

Yellow wire comes from Aux. switches The brown wire is the factory wire they run to engine bay

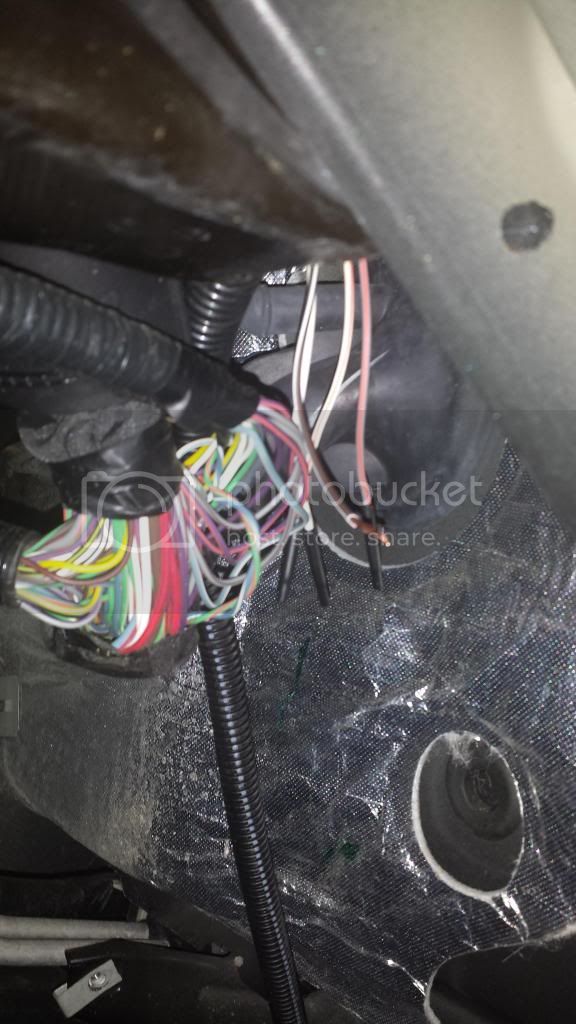

Here is the brown wire from under dash. Had to remove wheel liner to find. Just tied the one blue wire from the rigid relay to this wire



[ncollins64]

Looks sweet on there. What size bar is that? I think I like that better than the one that removes the tow hooks.



[spongebob915]

Looks sweet on there. What size bar is that? I think I like that better than the one that removes the tow hooks.

Rigid 20" E2 Hyperspot



[ncollins64]

Is it a big difference at night?



[spongebob915]

Is it a big difference at night?

It is very bright you can see like 1/2 mile down the road bright. It has a tight beam.



[Powerstroked162]

I dig it. Well done my friend!



[josh@thedieselcartel]

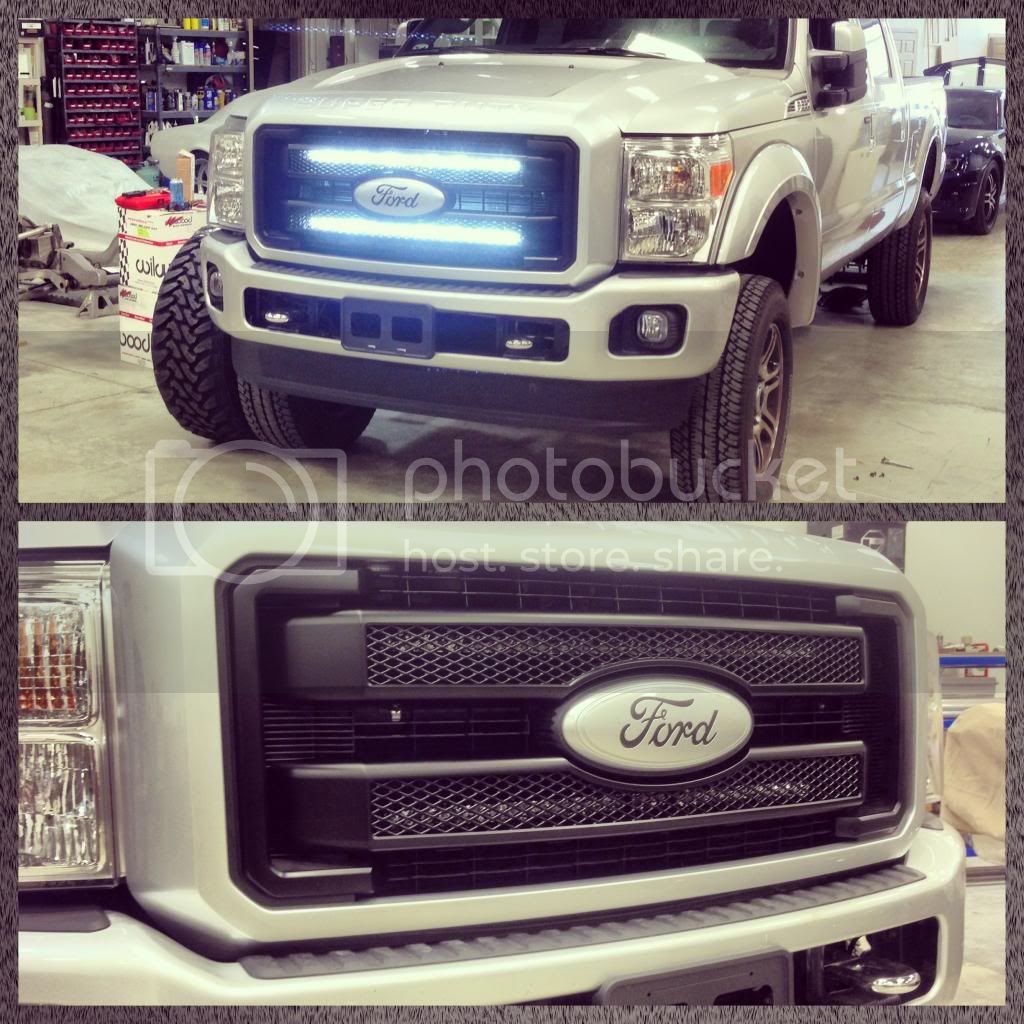

We need to get you two 30" SR light bars for behind that grille!



[TXGLASSMAN]

We need to get you two 30" SR light bars for behind that grille!

that grill in all black like that looks sweet, and hides the lights nicely, no one would know they was there untill you turned em on lol



[LukeDuke]

30" behind grill mount

How did you mount the 2 30" light bars behind the Platinum grill? Do you have any pics of the mounting?



[BIG JUICE]

wish to see also



[truckman1974]

Rigid 20" E2 Hyperspot

I think I'm kind of liking that more than the one that removes the tow hooks too. Are there other style mounting brackets that you know of besides the one you chose? I've been considering an LED light bar but like the 40"...I'd just have to remove the tow hooks and I really hate to do that. I thought about trying to modify the valance so that a 40" would tuck flush under the front bumper (anything that needed to be trimmed from the valance would just have to be minimally trimmed). It's a thought still in process.

Guess I'm waiting to see if I can catch a smoking deal on a 40" as well.....those things (all of them) are crazy expensive!



[GaMike]

Like to see 30" mounted behind grill pics also.



[josh@thedieselcartel]

How did you mount the 2 30" light bars behind the Platinum grill? Do you have any pics of the mounting?

I had to make a couple little brackets and then thru bolted them thru the plastic inner structure of the grille. I don't have any pictures unfortunately



[CMCx2012]

that grill in all black like that looks sweet, and hides the lights nicely, no one would know they was there untill you turned em on lol

I agree! I just had my entire grille scuffed down and painted Tuxedo Black, and no picture can never do justice.

Interesting idea for those dual lights bars...



[Mikeyfitz]

I've debated doing that to center of my grille. Is that Plasti dipped? I wanna PTM it tuxedo black



[josh@thedieselcartel]

No its painted black with a matte clear.



[Jassman]

No its painted black with a matte clear.

Looks real good..awesome idea hiding the 30" light bars..



[jwanck11]

My 20" bar arrived in the mail today!

Regarding wiring, the OP was a little unclear. I want to tie the bar into upfitter #1. Anyone know what wires I am tapping into ?



[CMCx2012]

I've debated doing that to center of my grille. Is that Plasti dipped? I wanna PTM it tuxedo black

I did mine PTM Tux Black!!!



[Mikeyfitz]

My 20" bar arrived in the mail today!

Regarding wiring, the OP was a little unclear. I want to tie the bar into upfitter #1. Anyone know what wires I am tapping into ?

It's a yellow wire underneath the steering wheel. But easiest way to explain is watch this YouTube video : http://youtu.be/oUEs34ot5sA

I did mine PTM Tux Black!!!

Damn that looks really good! Do it yourself?
