River City Diesel valve spring and push rod install.

6.0Powerjoke · Dec 4, 2012

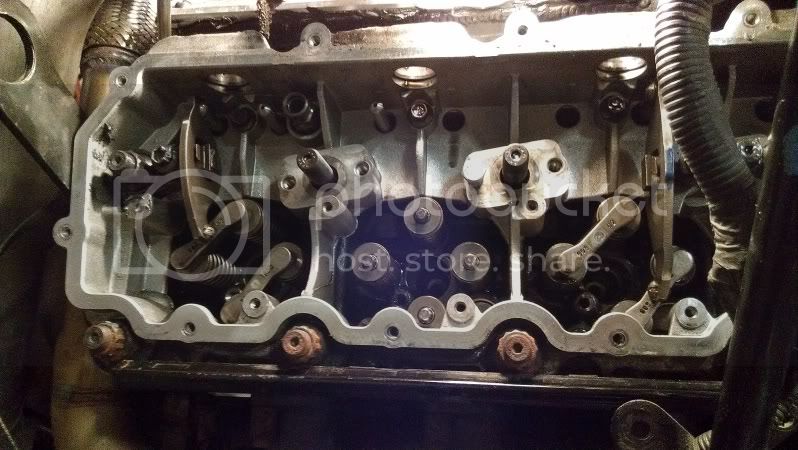

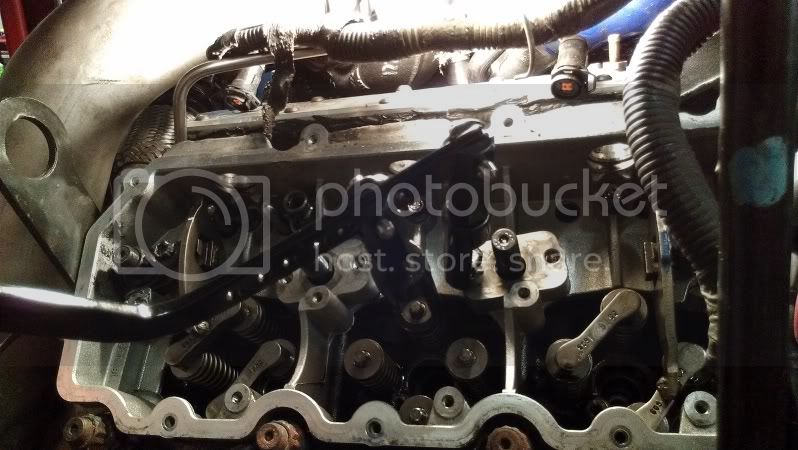

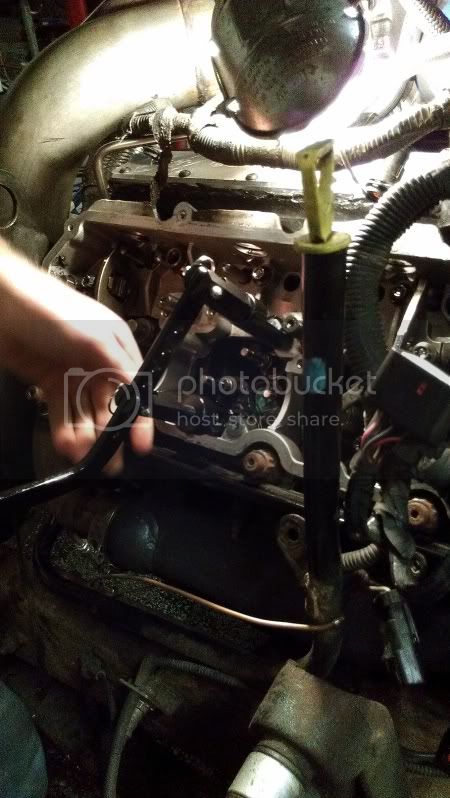

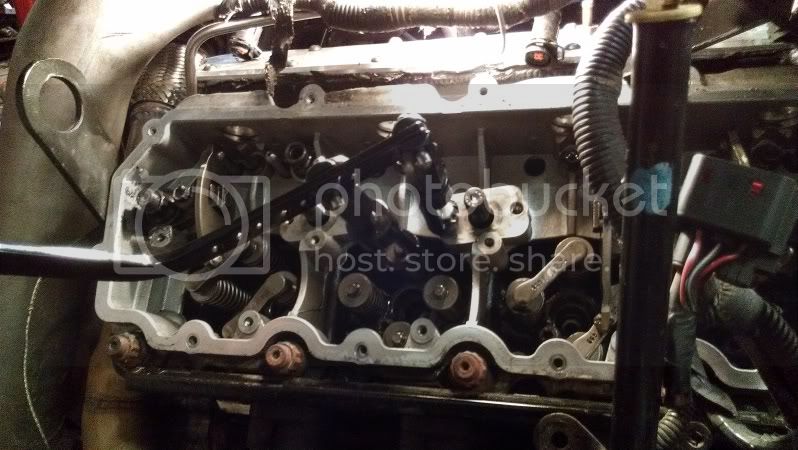

We've got the body in the air on my truck yet again for another round of mods. VS and PR were tackled today. Bought a new spring compressor tool kit and it made the job so much easier.
Took a few pictures and figured I would share.
I really need to do a complete build thread but that will be at a later date.

Any questions, feel free to ask. :toast:

Conner doing work!

6.0Powerjoke · Dec 4, 2012

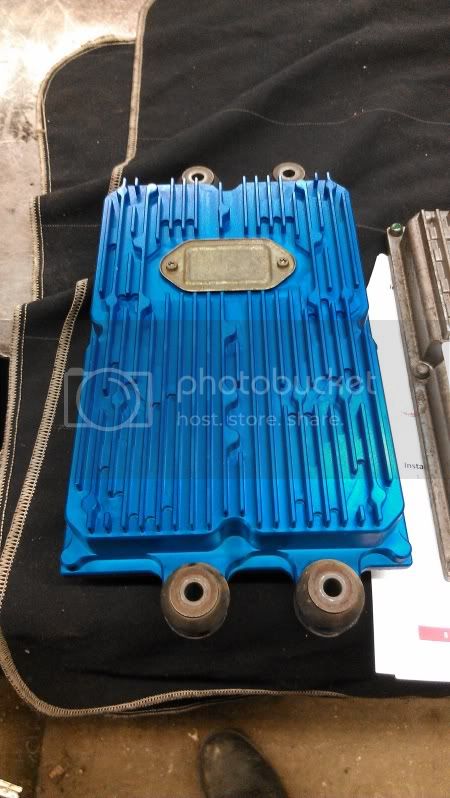

Also got this beauty today:

poorboy1964 · Dec 4, 2012

Nice I'm jealous,, maybe a dumb question from a rookie but do you worry about relieving the clamp force of the center head studs? did you just do a couple at a time?

4.0l sahara · Dec 4, 2012

Just two at a time. Lube them back up with arp lube and torque back down.

Extended Power · Dec 4, 2012

What is the spring seating pressure of the RCD springs?
What is the spring pressure at full lift?

one2nine · Dec 4, 2012

What spring tool did you use? I was looking at the swamps tool at the moment as I don't plan on pulling the heads.

4.0l sahara · Dec 5, 2012

Extended Power said:
What is the spring seating pressure of the RCD springs?
What is the spring pressure at full lift?

I couldn't tell you. they come in a white box and don't list seat pressure on there site. I can say they were noticeably stiffer than the stock springs.

4.0l sahara · Dec 5, 2012

one2nine said:
What spring tool did you use? I was looking at the swamps tool at the moment as I don't plan on pulling the heads.

For a 6.4 I would buy the swamps tool.

6.0Powerjoke · Dec 5, 2012

one2nine said:
What spring tool did you use? I was looking at the swamps tool at the moment as I don't plan on pulling the heads.

This is the tool we used. It was the only thing the local tool supplier had and it ended up working great.
http://www.fcpeuro.com/products/bmw-audi-vw-volvo-valve-spring-compressor-kit-cta-2112

alwil · Dec 5, 2012

When is it recomended to replace valve springs?

05wh250 · Dec 5, 2012

alwil said:
When is it recomended to replace valve springs?

i was told when i did mine its recommended when you get over 65psi backpressure.

as for the the seat pressure the machine shop that did mine tested an old one and a new one and the old one was about 70lbs and the new one was around 120lbs, not sure how accurate this is maybe river city will chime in.

HOOV3R · Dec 5, 2012

Specs from my receipt

faster6.0 · Dec 6, 2012

Breaking Habits · Dec 6, 2012

Tyler, thanks for posting the specs up!

From now on all customers will get a notation on the side with what is listed on the invoice.

Have about 100+ sets in stock
