Whats needed to go non vgt?

ford rules · May 5, 2014

Looking into going non vgt and trying to price out a larger vgt or a non vgt setup.

I know I will need upipes, mod the downpipe, feed and return lines, hot pipe boot, and the intake. Am I missing anything here?

Also what vendors make T4 divided upipes? I think CED RCD and MPD do correct? Anyone else im missing?

What would be a good place to source a 66/73/91? Should I look into billet wheels?

I plan on 205/75 or 100 injectors and id like to try MPD's 7 hole nozzels. Horsepower im looking for around 650 any help is appreciated!!

bretferd · May 6, 2014

I would talk to Matt at CED. He has personally ran abunch of different non vgts and knows how each one acts with different injectors. And from his pictures he does great work. He can get you everything you need for the non vgt.

Mdub707 · May 6, 2014

I bought a setup from Matt @ CED. I went with the 62FMW, but he has 66 setups too. I'm sure he can get you a billet wheel if needed. What about the 64.5FMW? I bet it flows close to the cast wheel 66 and will spool quicker.

His up-pipes come with the turbo mount built in, the oil feed and oil drain setup. My stock down pipe, stock intake and stock CAC boot will all bolt up just fine.

Craig@MFI · May 6, 2014

Give us a call we could set you up with a package deal for towing, street, or racing

Sent from my SAMSUNG-SM-N900A using Tapatalk

ford rules · May 6, 2014

Thanks for the response guys, I'll try and call Matt and MPD this week and go from there.
I was also thinking of building my own uppipes anyone have a recommendation where to buy the flex joints, I thought I read guys liked the vibrant brand joints?

strokin6L · May 6, 2014

Depends on who's non vgt you go with...not all need new y-pipes. Some use the factory style pipe by using an adapter flange like the Industrial Injection turbo kits....I ran their 62/70. Other than that...you'll need oil feed, oil drain and pedestal. But some don't use a pedestal either. Some kits are made so that the y-pipe is incorporated/made to act as a pedestal. Depends if you want a t3 or t4 setup. There's different ways to go about it. Best places to look into is MPD, RCD or CED

Pizza pig · May 6, 2014

ford rules said:
Thanks for the response guys, I'll try and call Matt and MPD this week and go from there.
I was also thinking of building my own uppipes anyone have a recommendation where to buy the flex joints, I thought I read guys liked the vibrant brand joints?

We specialize in this but have no problem fueling the customers fire with the DIY parts to make these from scratch right down to the stainless 2 bolt flanges. Don't be that guy to re-use your factory flanges either! :thumbsup:

swinky · May 6, 2014

I didn't have to mod my down pipe or intake. Up pipes, feed, drain and hot side boot was it. That being said my s&b with a brand new filter cuts boost by 3psi and raises egts noticeably when the filter is on vs off.

Do you guys make an intake Greg?

Sent from my HTC One using Tapatalk

Mdub707 · May 6, 2014

MPD sells no-limit products and they make one, though I didn't see it on their site. Matt @ CED also builds/sells 4" and 5" intakes.

ford rules · May 6, 2014

swinky said:
I didn't have to mod my down pipe or intake. Up pipes, feed, drain and hot side boot was it. That being said my s&b with a brand new filter cuts boost by 3psi and raises egts noticeably when the filter is on vs off.

Do you guys make an intake Greg?

Sent from my HTC One using Tapatalk

Whos upipes are you running?

ford rules · May 6, 2014

Greg@MFI said:
We specialize in this but have no problem fueling the customers fire with the DIY parts to make these from scratch right down to the stainless 2 bolt flanges. Don't be that guy to re-use your factory flanges either! :thumbsup:

Ill be in touch this week hopefully Greg!!

swinky · May 7, 2014

ford rules said:
Whos upipes are you running?

Cutting edge T4 divided. I got them used and am happy with them.

Sent from my HTC One using Tapatalk

Tyler@Street Diesel Performance · May 8, 2014

my vote deff goes out to the new RCD kit the weight of the charger has a real pedestal for the weight to go to instead of the up pipes, drain and feed lines are top notch as well!!, and they also included a new DP and IC pipe to make everything properly fit and work

Mdub707 · May 8, 2014

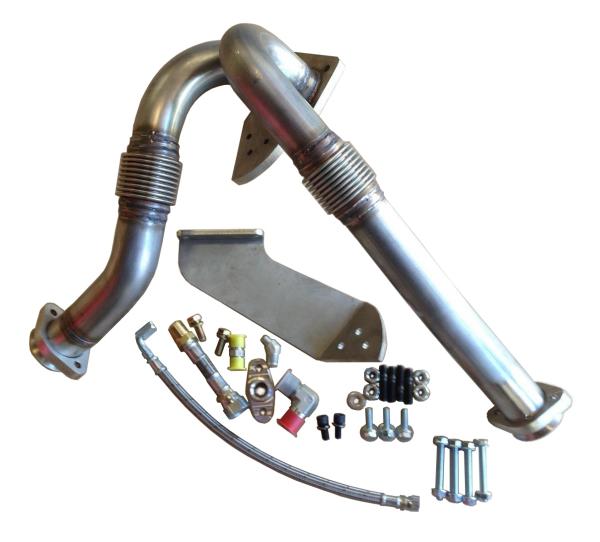

I really like the looks of the Irate mount too for anyone concerned with mounts. It looks beefy as hell. CED's is similar looking though and serves the function.

ford rules · May 8, 2014

I like the look of that irate kit!! I jest need to get some time to call everyone!! Thanks for all the help guys!

What do you guys think as far as my HP goals are with the 66?
I'm looking for around 6-650 on fuel.

Mdub707 · May 8, 2014

I think that is very do-able. You should look at some of the newer FMW setups too, the 64.5 FMW supposedly spools quick and still flows about the same as the cast wheel 66, just FYI. The 67.7 will probably spool like the 66 from what I'm reading and flow a lot more.

swinky · May 8, 2014

66 will get you there.

Sent from my HTC One using Tapatalk

Pizza pig · May 8, 2014

our 67FMW with 70 turbine out performs box 66's anyday of the week, our test truck runs very well with it.

ford rules · May 8, 2014

Can you pm me some prices on uppipes and turbos Greg?

2wd-fire · May 9, 2014

ford rules said:
I like the look of that irate kit!! I jest need to get some time to call everyone!! Thanks for all the help guys!

What do you guys think as far as my HP goals are with the 66?
I'm looking for around 6-650 on fuel.

My old truck made track confirmed 590rwh 205/100 and 66 my tranny was going so I think it had more

Sent from my iPhone using Tapatalk
