Did i loose a Turbo?

[jdeeg4276]

Just driving and lost all power! Now no turbo boost. No whistle at all. DAM!
High egts as well

Sent from my DROID RAZR HD using Tapatalk 2



[FallenAuthority]

Either that or your VGT solenoid took a dump



[Coxey Diesel]

It looks tight to me..

Seriously, check and make sure the VGT solenoid didn't come un plugged. Mine broke at the little connector and I had to rubber band it.



[jdeeg4276]

Vgt read OK? Not sure on what the values should be at idle.

Sent from my DROID RAZR HD using Tapatalk 2



[FallenAuthority]

The PCM has no way of monitoring actualy VGT position, that % is just the duty cycle that the PCM is commanding the VGT to be at, it doesnt know if it is actually operating at that duty cycle.



[jdeeg4276]

OK. So what is the for sure way of testing the vgt sensor? And would the vgt sensor cause a no boost issue?

Sent from my DROID RAZR HD using Tapatalk 2



[FallenAuthority]

If your VGT solenoid wasnt getting power from the PCM it would default to fully open, which would end you up with little/no boost. Physically check the connection at the VGT solenoid and make sure it hasnt come unplugged



[jdeeg4276]

Its plugged in.

Sent from my DROID RAZR HD using Tapatalk 2



[jdeeg4276]

I recently installed a IPR remote oil cooler kit and was towing a car today and I then lost all power. I had bully dog on full power.

Sent from my DROID RAZR HD using Tapatalk 2



[jdeeg4276]

So turbo spins freely and spools up very little. No boost on gauge. When I unplug the vgt sensor it stops. I'm guessing its the turbo.

Sent from my DROID RAZR HD using Tapatalk 2



[FallenAuthority]

If your turbo was screwed it would smoke or make a lot of noise. Pull your Vgt solenoid and check the end of it. I've seen them wear a groove in the end of the Vgt solenoid and cause boost issues



[jdeeg4276]

Turbo veins? Maybe cleaning them.

Sent from my DROID RAZR HD using Tapatalk 2



[FallenAuthority]

That is a good possibility that they are sticking. But pulling the VGT solenoid is a 5 minute job just to check and make sure the solenoid isnt stuck or the tip isnt worn



[jdeeg4276]

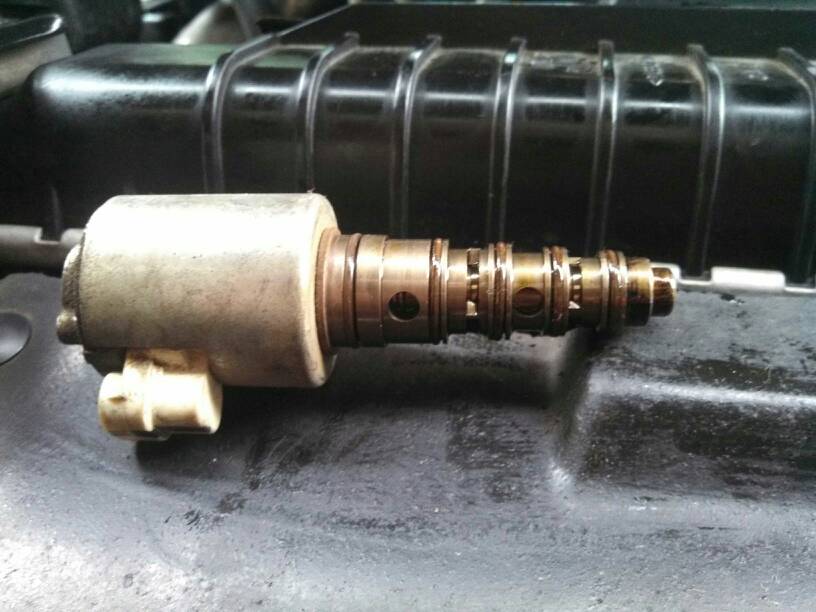

Well pulled the vgt. Tip was kinda stuck then I pushed in and now it moves freely. Here is a pic. I'm gonna buy a new one

and would like to know which is a better brand or just buy a new ford one.
The tip

Sent from my DROID RAZR HD using Tapatalk 2



[jdeeg4276]

Installed new vgt nothing. Well I'm pulling the turbo now. I'll let ya know what happens.

Could the braided line for the oil feed be bad causing a restriction and not allowing fluid in to top of turbo?

Sent from my DROID RAZR HD using Tapatalk 2



[imelmo]

I'm guessing this is a stupid question since no one else asked, but did you check all your boot conmections and the intercooler?

.



[ghohouston]

I'm guessing this is a stupid question since no one else asked, but did you check all your boot conmections and the intercooler?

.

And the map sensor hose and plug



[ghohouston]

What are you thinking youre going to tell with the turbo off the truck that you couldnt with it installed???



[jdeeg4276]

Thinking the veins are stuck open. No boost on the gauge and high exhaust temps while driving. I don't really know at this point.
All boots are good map sensor is pluged in/also the vacuum line to map sensor.
Thanks for help tho.

Sent from my DROID RAZR HD using Tapatalk 2



[Big Angry Hillbilly]

You just did an oil cooler but your oil temp is 21 degrees hotter than your water temperature?
