Custom Turbo Setups and Pictures

Powersmoker · May 25, 2011

S480 with hypermax t4I mount kit


YouTube Video

Newest Setup: s480 with Murff Racing t4 Mount Kit. Still needs powder coating


stackedstroker · May 25, 2011

s475

SDstroker · May 25, 2011

rpm-inc said:
Won't help most with placement, but maybe give a better idea of how the whole system works.

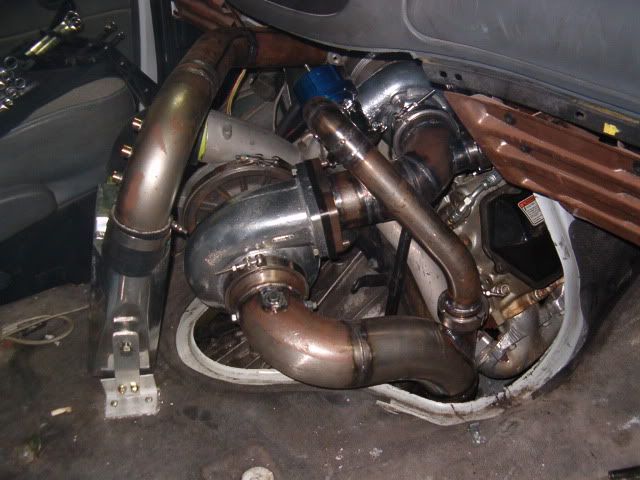

This is the sweetest van ever!

smoker00 · May 25, 2011

Powersmoker said:
S480 with hypermax t4I mount kit

YouTube Video

Newest Setup: s480 with Murff Racing t4 Mount Kit. Still needs powder coating

That inducer on you new S4 LOOKS SICK Bryan How ya likeing it..

Derek@Vision Diesel · May 26, 2011

Powersmoker said:
S480 with hypermax t4I mount kit

YouTube Video

Newest Setup: s480 with Murff Racing t4 Mount Kit. Still needs powder coating

You went from an S480 to an S480? All you did was switch from T4i to T4? Whats the advantage there

Hotrodtractor · May 26, 2011

Strokeorcroak said:
You went from an S480 to an S480? All you did was switch from T4i to T4? Whats the advantage there

It opens up more options on the turbine side of the charger as well as turbine housing options. To mount an S400 based turbo on a T4i an exhaust housing has to be machined to fit the turbine wheel - I'm not sure what turbine wheels they can accomodate, but I am pretty sure that turbine A/R is somewhat limited, and I don't believe that you can use the largest turbine wheel available for an S400 turbo.

Bottom line is there is so much more to a turbo than just the compressor side.

kyle43335 · May 26, 2011

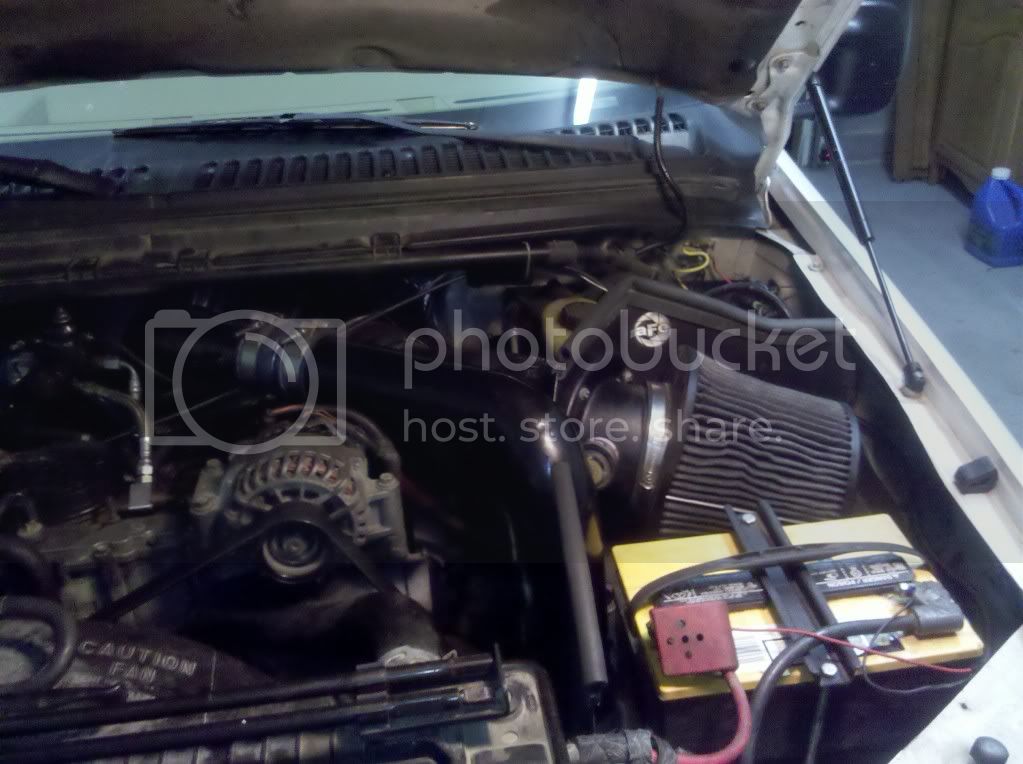

click the picture my compound setup is there. lots of pics. went through the piping a few times. (3) i think it came out well.

Derek@Vision Diesel · May 26, 2011

Hotrodtractor said:
It opens up more options on the turbine side of the charger as well as turbine housing options. To mount an S400 based turbo on a T4i an exhaust housing has to be machined to fit the turbine wheel - I'm not sure what turbine wheels they can accomodate, but I am pretty sure that turbine A/R is somewhat limited, and I don't believe that you can use the largest turbine wheel available for an S400 turbo.

Bottom line is there is so much more to a turbo than just the compressor side.

Thanks! Slowly learning on the whole turbo side of things here... That makes more sense though, T4 is more accommodating than T4i

young7.3 · May 26, 2011

looks good kyle.Have you dynoed it?

kyle43335 · May 26, 2011

young7.3 said:
looks good kyle.Have you dynoed it?

no not yet. still trying to finish it yet. lots of work in the shop,and lots of pipe issues under my own hood,has severly slowed this build down. but the piping is pretty much done now. things should move alot faster now.

Gotti2k7 · May 26, 2011

hotstik said:

Thats to pretty to even be in a truck.

Tree Trimmer · May 26, 2011

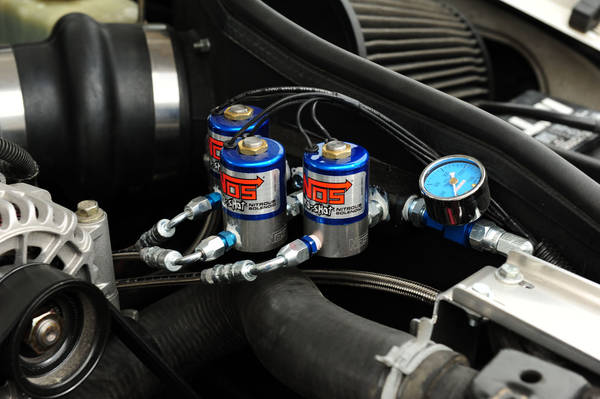

looks like a/w, nitrous, water, procharger, and a chit ton of chrome.

Tree Trimmer · May 26, 2011

JD3020 said:
I wish i could fab up stuff halfway decent. I have a entire spare motor sitting in the shop, a TIG welder, a stick welder, and a buddy that is a manager at Fastenal. I'm just itching to make myself a turbo set-up, but i know that with my skill it wouldn't fit in the truck and would look like a pile of dog **** compared to everybody elses.LOL

you could always to the cutting, tacking together, mock up, and then just take it to a shop and have it finish welded.

UPINSMOKE · May 26, 2011

Tree Trimmer said:
looks like a/w, nitrous, water, procharger, and a chit ton of chrome.

Also a turbo in the back...

JD3020 · May 26, 2011

Tree Trimmer said:
you could always to the cutting, tacking together, mock up, and then just take it to a shop and have it finish welded.

I have all my welding taken care of, one of my buddies would TIG everything for me. So thats the least of my worries. But its the part about laying everything out, getting it to fit right, and making it all fit in the truck. I'm wanting to be an engineer though, so i'm working figuring it all out. But i gotta find a turbo before i do anything.

oke:

Powerstroked162 · May 26, 2011

Hypermax mount, WOP KASB, WOP plumbing

Homesteader · May 27, 2011

Wow guys that some good pics and info there. I getting ready to do my build and right now I'm trying to nail down a turbo and kit for my set up. Goal is 600 hopefully onstock bottom. Any ideas? I have been looking at a few turbo's gtx4294r,Kasb,custom s400.

Thanks
