Fall/winter project

Extended Power · Jun 6, 2016

Left the original 450/4v2 & 1000/1v2 in the cab, behind the rear seat, on the amprack.
Added a box, and three more JL amps. (Two more 450/4v2's, and another 1000/1v2)
Also bought a pair of JL audio zr800-CW's to replace the L6se's in the front doors. (Still to be installed.)
Had to use my second Mosconi 6to8 for the additional channels/separation/tuning.
I have the two additional 450's running in mono. (300x1, & 150x1)
The third, original 450, is still in stereo, running the rear speakers, and front tweeters. (150x2 & 75x2)

Extended Power · Sep 29, 2016

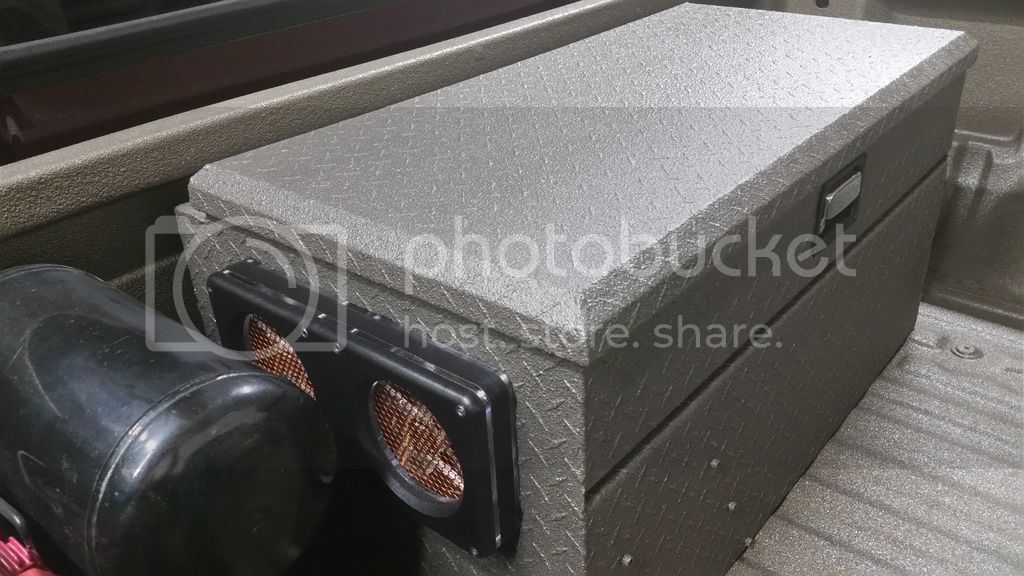

Added some cooling fans to the box. Two are inside the box, behind the amps, pulling air under them, and pushing the hot air up to the other two fans which push the hot air out of the box.

Fresh air inlet screens.

Some color...

Extended Power · Sep 29, 2016

Front sub box test fitting.

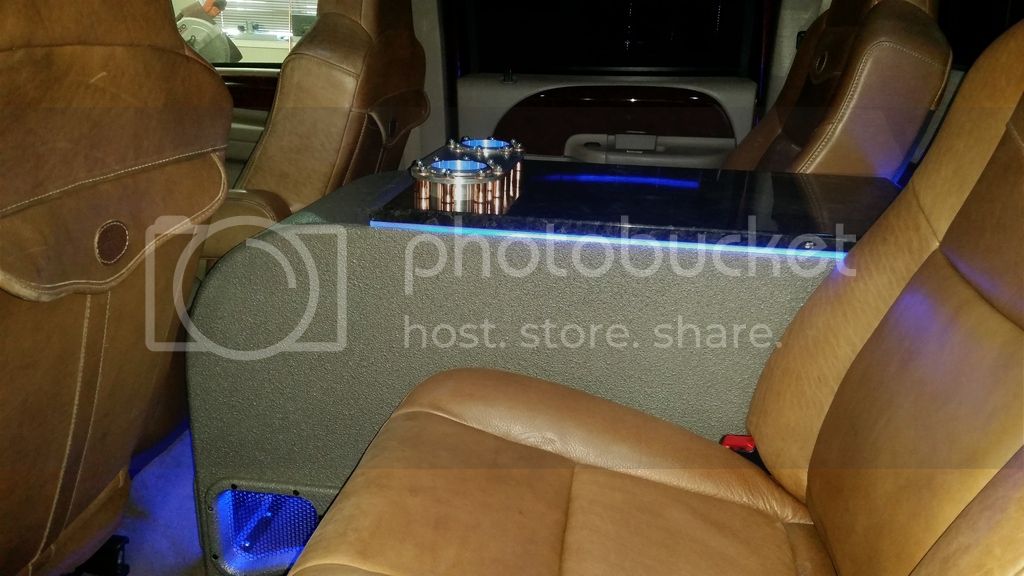

It will have the same granite top, and blue LED lighting, as well as the same cup holder set up as the back sub box.

Rear box for reference...

Extended Power · Feb 13, 2017

Front box almost done.

Trim piece for the little panel has to go on. (Panel face sits down another 1/2")
LEDs have to be added to the front panel as well.

97stoker350 · Feb 14, 2017

can you get some close ups and details on the cup holder setup? also what leds do you use?

Extended Power · Feb 25, 2017

Got a little more time to work on the panels today.
Decided to use the emblems I removed from the outside of the doors a few years ago...made some lexan backs for them, and will be lit up with LED's from behind.
Here is the drivers door panel finally hung firm enough that I can finally start to fill the gaps.

So I guess now I need to apply the poly resin to the backs of the panels where the filler will be used, so it will adhere to the wood of the panels.
Then I have to fill and sand everything.
Then spray the matching box liner stuff on...
Then put the LED's , grills, and lexan in, and stick them together.
No way I can get it all done before I go in for my hand surgery on the 28th...but, shouldn't have to many sleepless nights wondering how I'm going to finish them.

Vader's Fury · Feb 25, 2017

I really like that. I have similar plans for my Excursion. I plan to router Excursion in them though and backlight it to make the letters glow.

How are you attaching the wood to the panel? I was thinking of a couple of counter sunk fasteners with nuts behind the panel. That way I can still remove them all as one piece.

Extended Power · Feb 25, 2017

The Rona store has these steel inserts that screw into the wood, and you use 1/4" bolts with fender washers on them.
Slicker than whale sh!t on an iceberg.

Vader's Fury · Feb 25, 2017

Nice. I will have to look into something like that. Save from having to puddy and sand over all the holes.

Extended Power · Jun 2, 2017

Here is the passenger side door panel completed.
I'll get better pictures when it's outside...less brightness on the blue LEDs.

Extended Power · Jun 2, 2017

What the system layout is now.

scparrish · Jun 2, 2017

Those kick panels turned out really nice.

Extended Power · Jun 4, 2017

scparrish said:
Those kick panels turned out really nice.

Thank you.

They took long enough.
I bought a set of spare door panels just to practice on for everything...then mounted them on the KR panels, and cut the holes for them.
I hate cutting holes in my truck.

scparrish · Jun 5, 2017

Extended Power said:
Thank you.

They took long enough.
I bought a set of spare door panels just to practice on for everything...then mounted them on the KR panels, and cut the holes for them.
I hate cutting holes in my truck.

It's never wracking.
I was thinking about trying something similar with my spare set of door panels. Looks like those took some time to make, unless you used a cnc.

Extended Power · Jul 18, 2017

scparrish said:
It's never wracking.
I was thinking about trying something similar with my spare set of door panels. Looks like those took some time to make, unless you used a cnc.

No CNC here, all done with a normal router and using a template, which I made as well.
I learned a lot by doing this, and I'm sure I will look for more ways to improve the setup as I go.
Right now, I'm just happy to be driving the truck on the streets again.

scparrish · Jul 25, 2017

You wouldn't happen to have a file for that template that you would be willing to share would you?

Extended Power · Jul 31, 2017

What I mean by template, is what I made out of 1/4" mdf. I started with just drawing out the pattern, and then made it as close to perfect as I could. Then I used two sided tape, and used the 1/4" piece as a template, just stuck it on the 3/4" mdf, and used the router to transfer the shapes.
Getting the mesh, LED's, and lexan all set up was a bit of a ****show, but I got it figured out.
