Ficm reloaction harness

[shmoozer]

I’ve not ever seen the atmosphere on that side before. I like it


Sent from my iPhone using Tapatalk



[co04cobra]

Atmo is in the center. HP on the left side. I didnt design the kit. Customer provided the 2 turbos and part of the piping.

We got to redesign everything else around it from there.



[shmoozer]

Well would you look at that. Not seen that before either. Gotta love getting someone else’s half finished project


Sent from my iPhone using Tapatalk



[co04cobra]

Getting closer.....still needs some little things to clean it up more, but good idea.



[co04cobra]



[03_PSD]

I think it looks pretty good. Seems like a more logical place to put it then factory did.



[jrex2506]

Looks good. I have always wondered why the ficm was mounted on the motor. So in order to move it you have to use an E series harness?

Sent from my SM-S727VL using Tapatalk



[shmoozer]

That or you can cut and extend your factory harness.
I’m actually in the beginning/planning stages of building a plug and play setup.


Sent from my iPhone using Tapatalk



[scparrish]

Have you found a source for the ficm plug ends yet?



[shmoozer]

I can get the harness plug ends from I think it’s FICMrepair.com. They can also be found on EBay. What I’m having a hard time finding is a broken FICM.


Sent from my iPhone using Tapatalk



[scparrish]

Those are the connectors I was wondering about. I knew you could get replacement ends pretty easily but wasn't sure about the FICM side.



[shmoozer]

I’m going to have to get creative on that one. But I’ve got an idea


Sent from my iPhone using Tapatalk



[co04cobra]

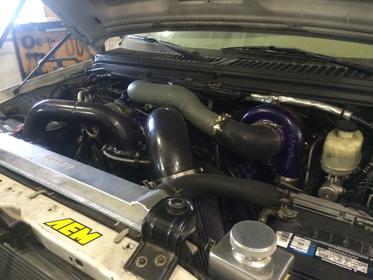

I have to paint the one pipe yet but overall this is what it will be.

Ficm looks pretty good tucked behind the battery.



[shmoozer]

I really like the entire thing


Sent from my iPhone using Tapatalk
