Propain injected stacks (flame thrower stacks) need info

[BWCbuilt]

when you get it done you can be warm again though....



[cowboy_dan]

My buddy is a mechanical engineer im gonna see if he will rig me something up

Mechanical Engineers can do pretty much anything. :demon:



[genuineford]

Mechanical Engineers can do pretty much anything. :demon:

Some of them can!



[young7.3]

Mechanical Engineers can do pretty much anything. :demon:

Yes sirrr



[Clem1226]

triple nickle FTW

no need for coils with this setup, all parts available at Radio Shack...(at least they used to be).



[Hotrodtractor]

triple nickle FTW

no need for coils with this setup, all parts available at Radio Shack...(at least they used to be).

The good ole' 555 chip solves yet another problem.



[SSpeeDEMONSS]

that will put out 20kV?

Garrett



[schroederness]

Anyone have a weak glowplug relay that can be used instead of a turn signal relay? Even a weak one would be enough.



[schroederness]

The issue I see with the 555 chip setup above is that you can't just flip a switch and have it keep firing the spark plug.



[Hotrodtractor]

The issue I see with the 555 chip setup above is that you can't just flip a switch and have it keep firing the spark plug.

No - but you can use a second 555 chip to generate a PWM signal to trigger that circuit.



[cowboy_dan]

No - but you can use a second 555 chip to generate a PWM signal to trigger that circuit.

Or the 2nd 555 in the same IC (556).



[Hotrodtractor]

Or the 2nd 555 in the same IC (556).

Whoa! - lets not get too crazy now! LOL



[cowboy_dan]

Whoa! - lets not get too crazy now! LOL

So no 558?

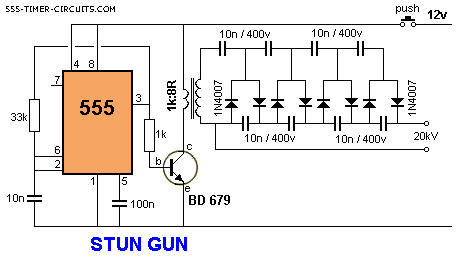

I still think the easiest way to get the spark plug to, uhm, well, spark, is to use a single 555 timer, a transistor, a capacitor, and 5 resistors, like this:

As is shown & explained a little bit here: http://www.capturedlightning.org/hot-streamer/kv2/kv2/hv/icoil/index.htm

I know for a fact that those hurt.
Prolonged exposure may cause loss of bladder control. Don't ask.



[Hotrodtractor]

So no 558?



I still think the easiest way to get the spark plug to, uhm, well, spark, is to use a single 555 timer, a transistor, a capacitor, and 5 resistors, like this:

As is shown & explained a little bit here: http://www.capturedlightning.org/hot-streamer/kv2/kv2/hv/icoil/index.htm

I know for a fact that those hurt.
Prolonged exposure may cause loss of bladder control. Don't ask.

No 558 - sorry. LOL

I'm right there with ya with the circuit you posted and I eluded to way back 50 some posts ago.



[Mike For Mayor]

i have no clue wtf is going on.. this line goes to that circle then that line goes to the square.. so confused..



[cowboy_dan]

i have no clue wtf is going on.. this line goes to that circle then that line goes to the square.. so confused..

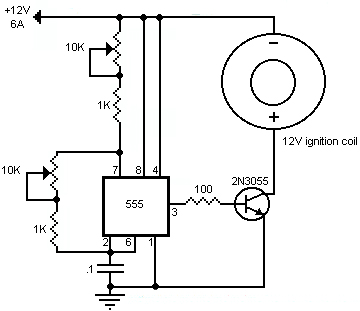

The 555 is a little chip.
The squiggly lines are resistors.
The one set of parallel lines is a capacitor.
The circle with three lines going to it is a transistor.
The big circle with a + and a - symbol is an ignition coil.
The set of parallel lines in decreasing size is ground (negative).
The numbers next to eachof the parts is the value (size) of that part. So 100k is a 100,000 Ohm variable resistor (the arrow pointing to the squiggly line tells us it is a variable resistor), and 100 means it is a 10 Ohm resistor.
The number next to the transistor is the generic part number.
The numbers next to the outline of the 555 are the pin numbers.
The capacitor is a 0.1, which usually means units of uF (micro Farad). So this capacitor is a 0.000001 Farad. But not to worry, it's normal in electronic circuits for them to be that small. RadioShack sells them.

That whole circuit (except the ignition coil) will fit on a small circuit board from RadioShack. I've built a couple exactly like it, and the work very well.



[AKHILF]

man its complicated just to get some flames out of stacks! Electronics go right over my head besides car audio and even some of that does. Good luck man.
