Swagger Build thread

rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

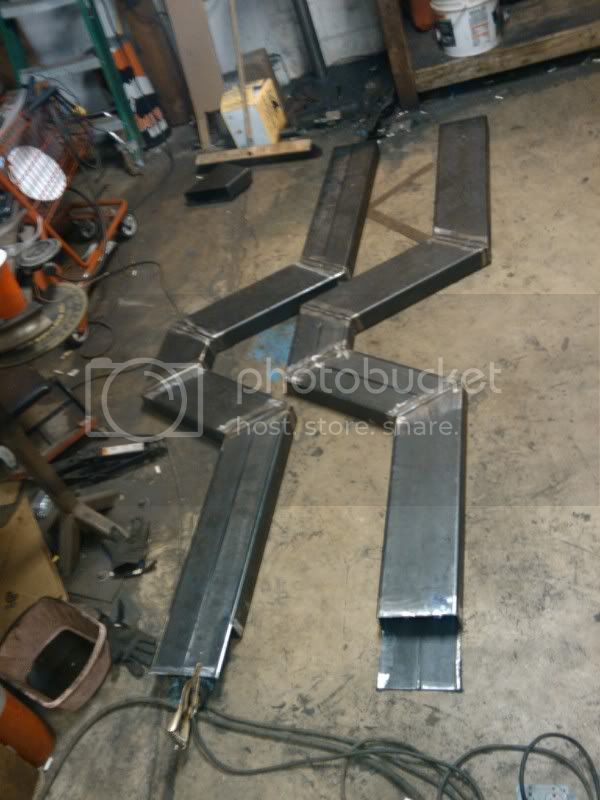

frame rails on the shop floor



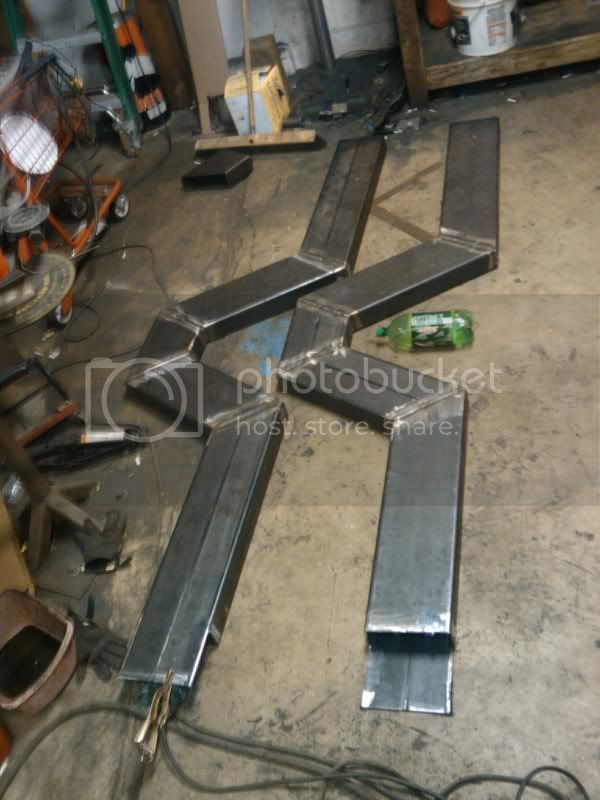

thats a 2 lt dew bottle ... think i went big enough??

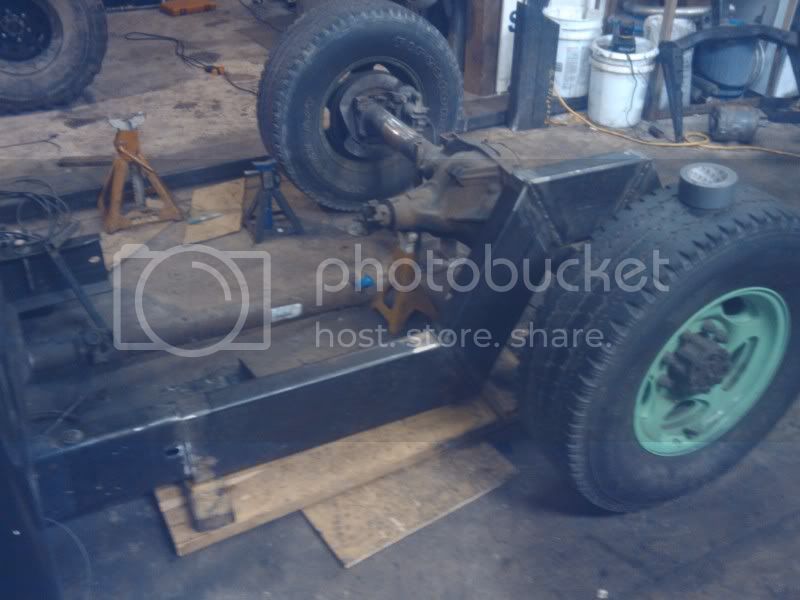

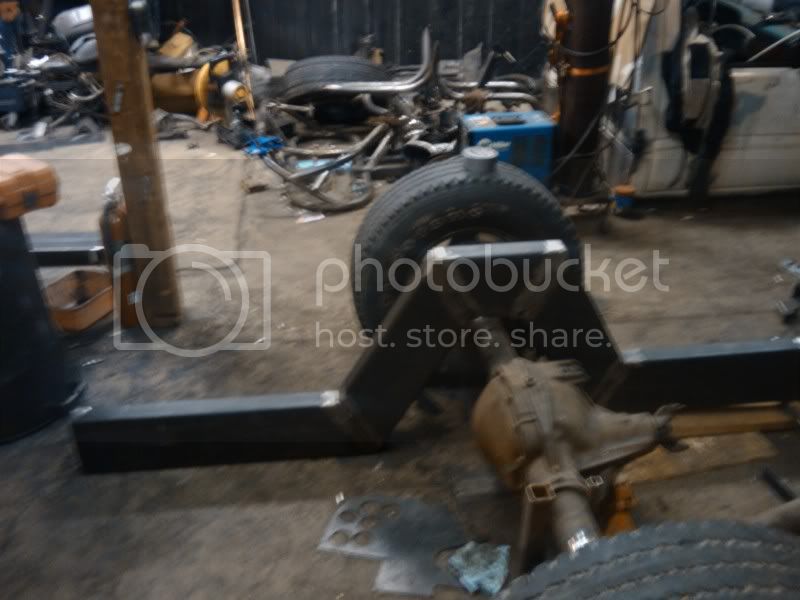

driver's side rail mocked up







rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

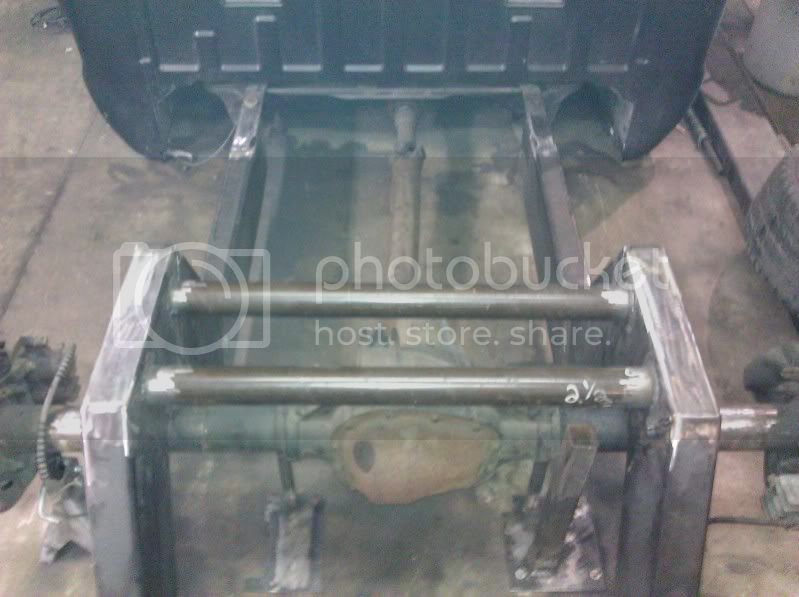

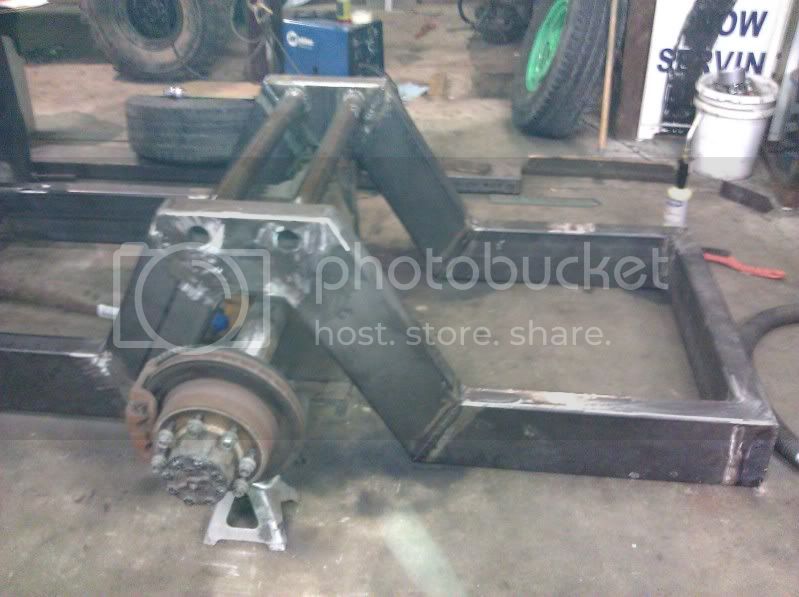

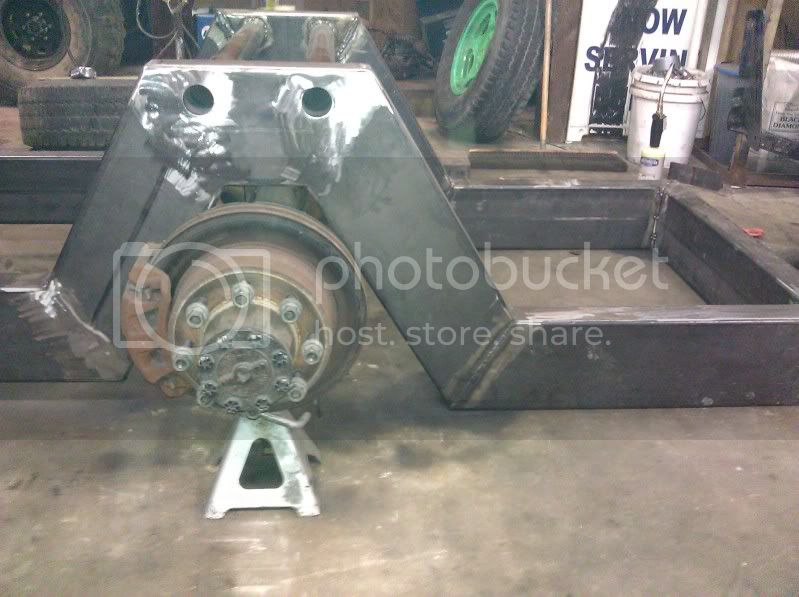

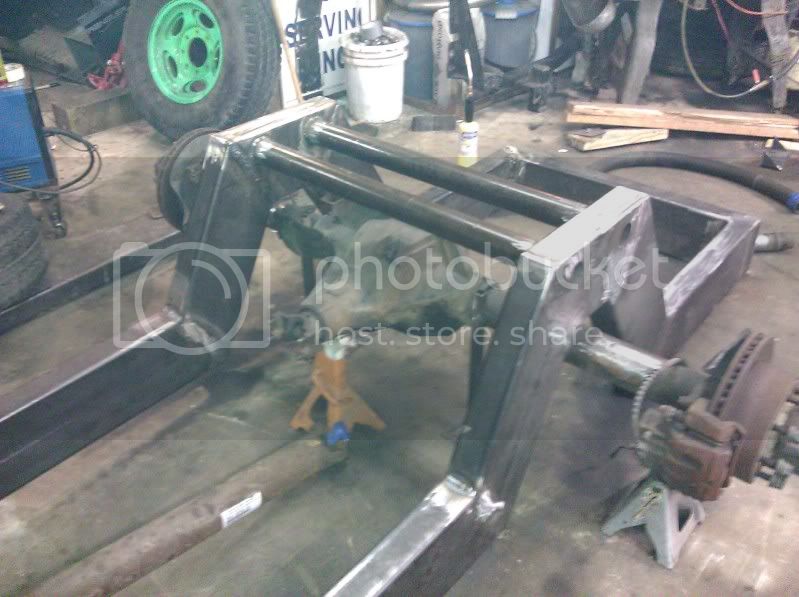

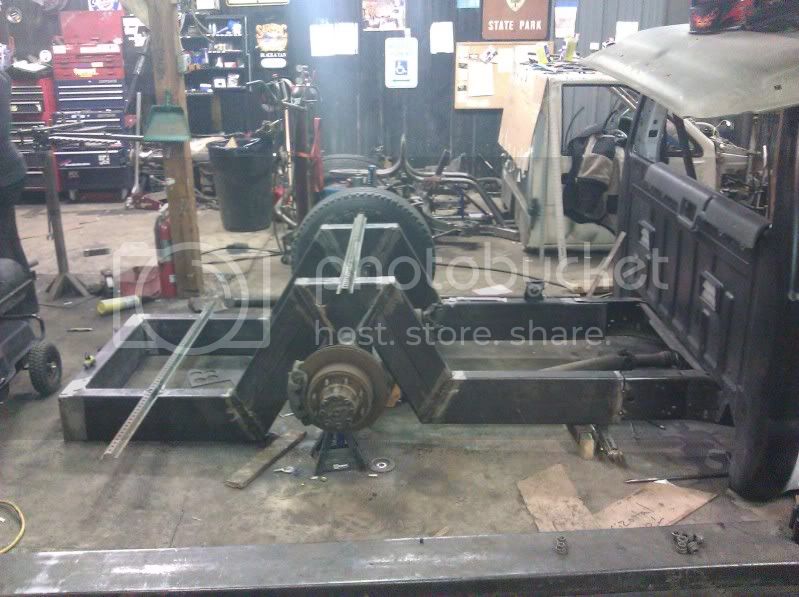

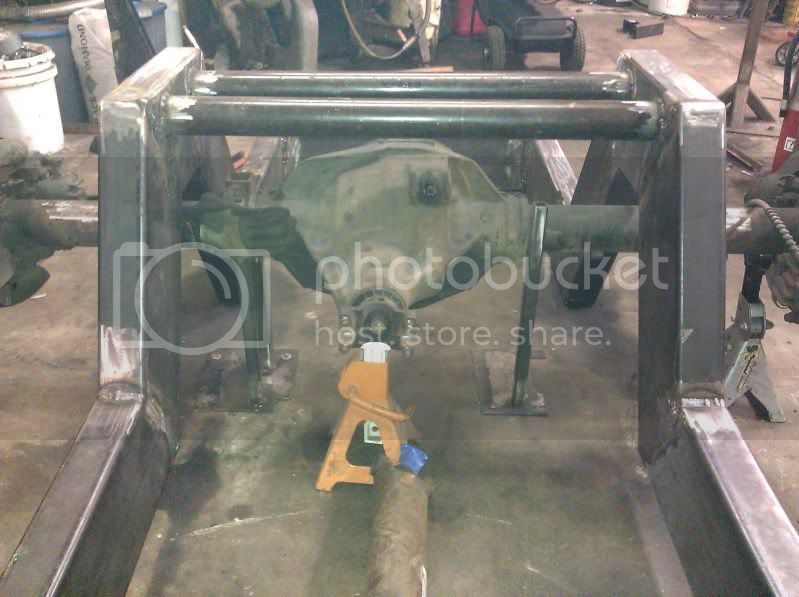

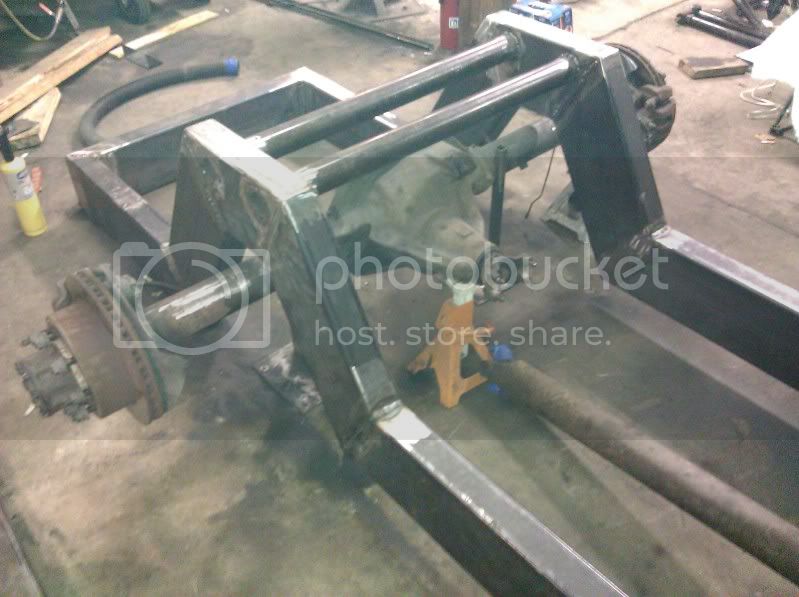

back half just about finished ... still needs some finish welding and plates yet

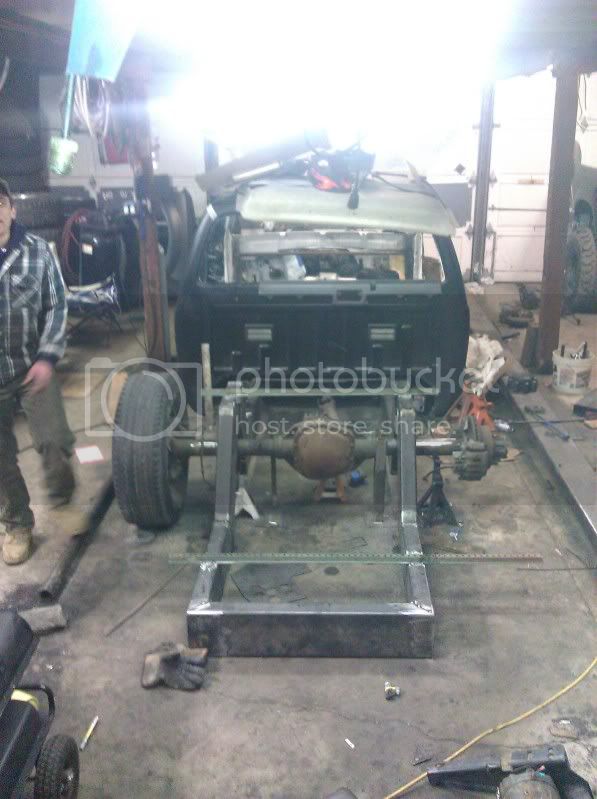

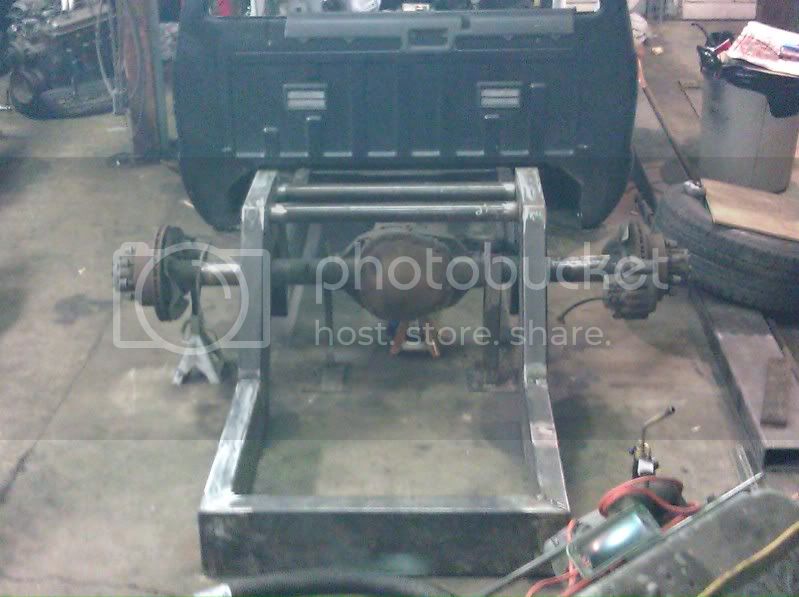

from the rear:

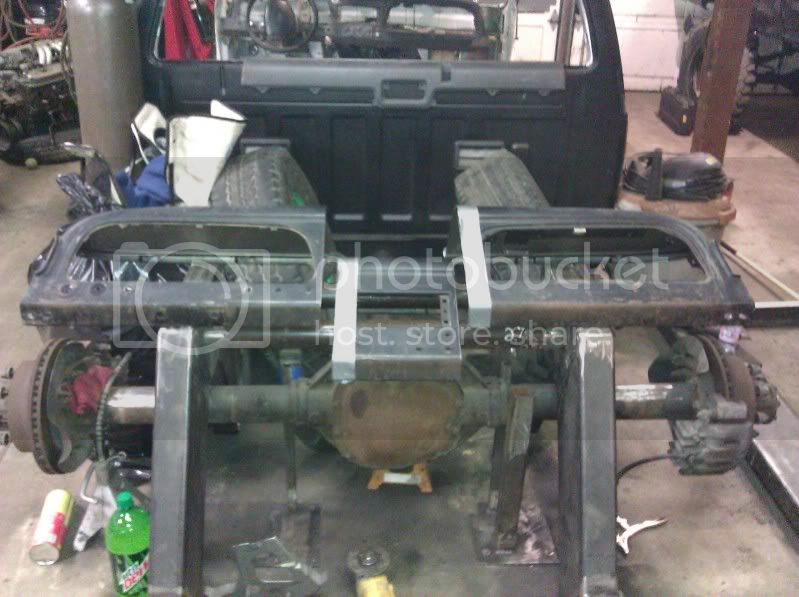

from the back window:

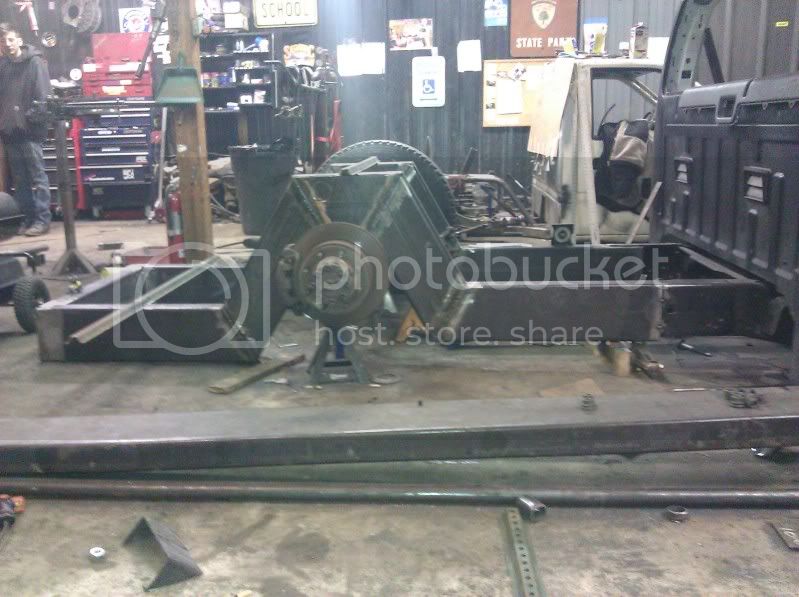

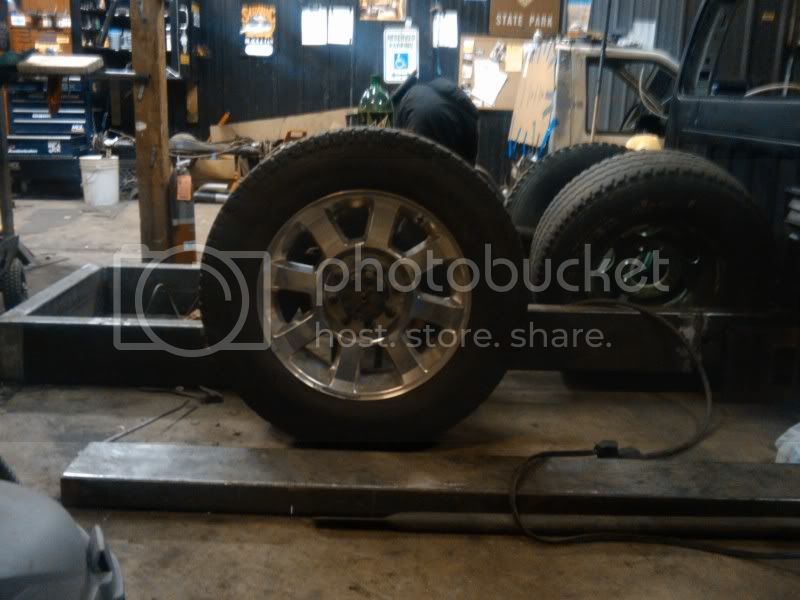

side view:





angle shots:





rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

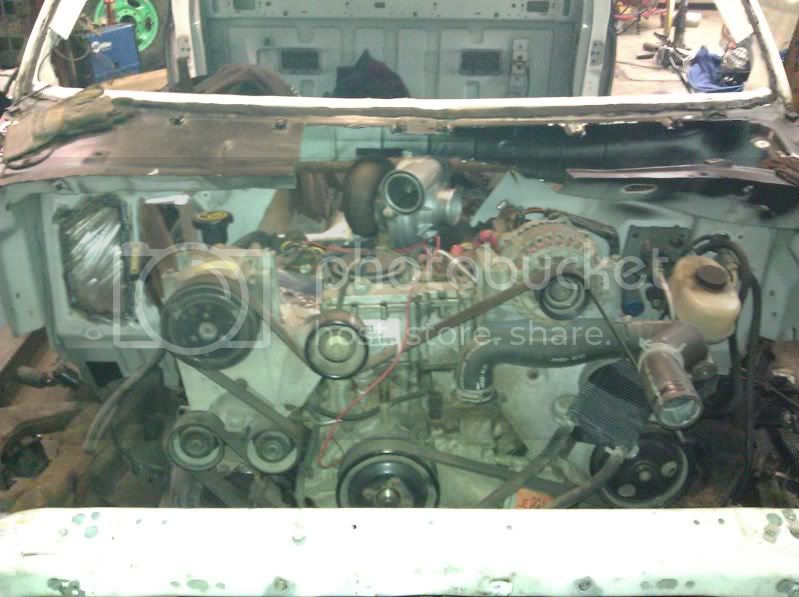

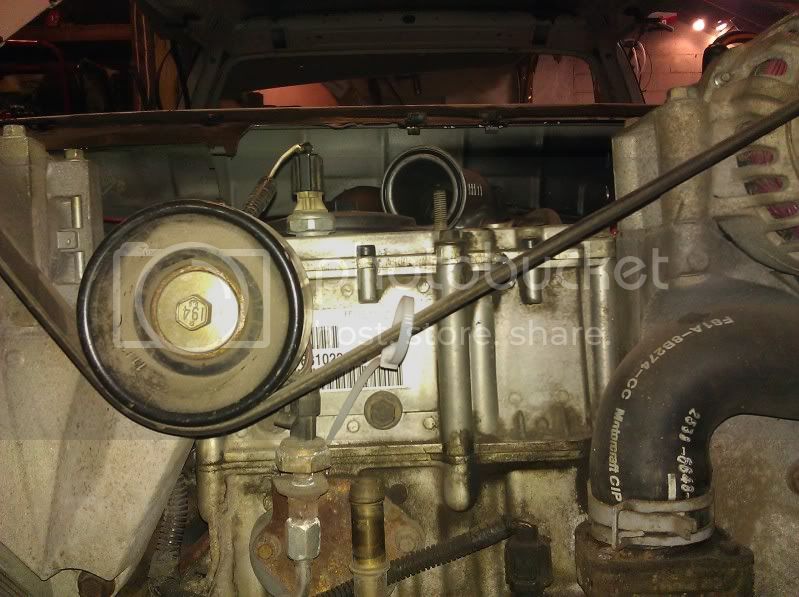

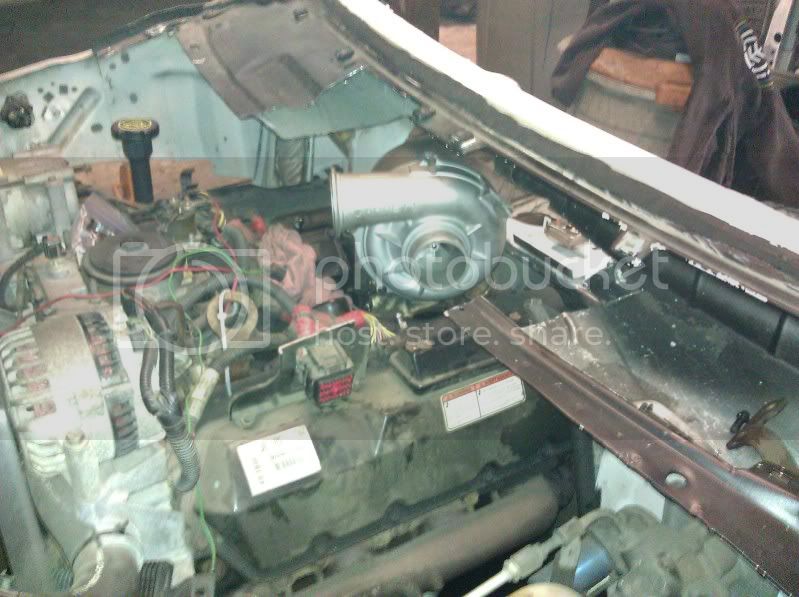

cut the turbo in the truck and all trimmed up around it

from inside the cab:





front the front of the truck:







rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ
Jason and I got 2 dashboards out of Internatinal Loadstar trucks yesterday
the Loadstar trucks have a dash that is about 10" narrower than the Super duty so i bout two so i can section and stretch

dash cut into sections

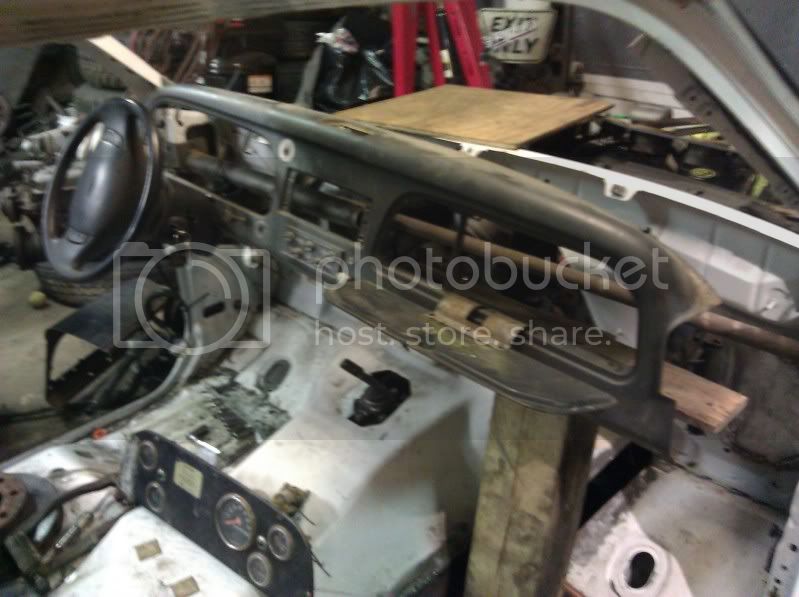

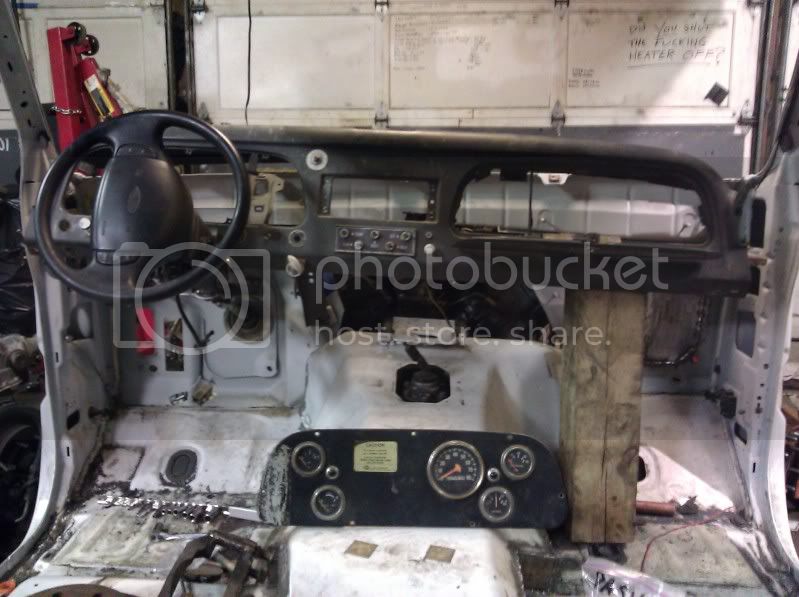

second dash being used to mock up







sorry i had moved the pics without realizing it


rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

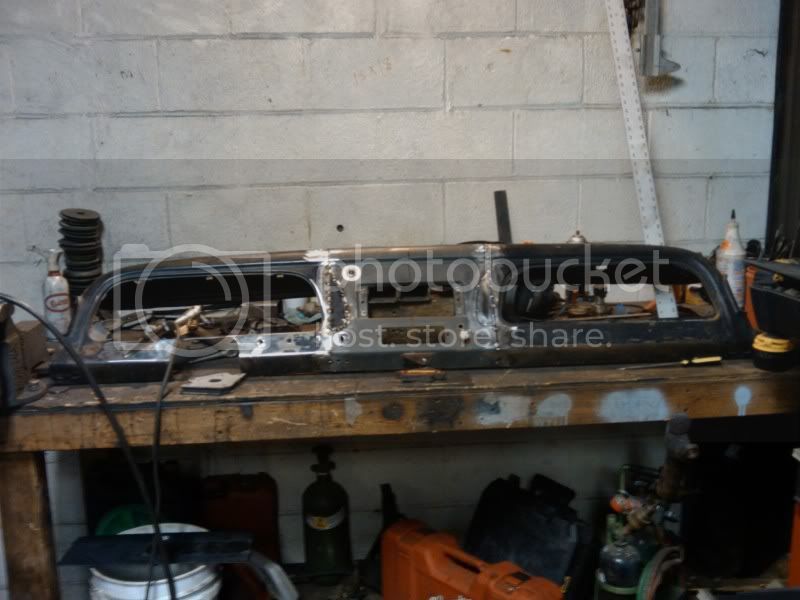

dash welded together on the bench

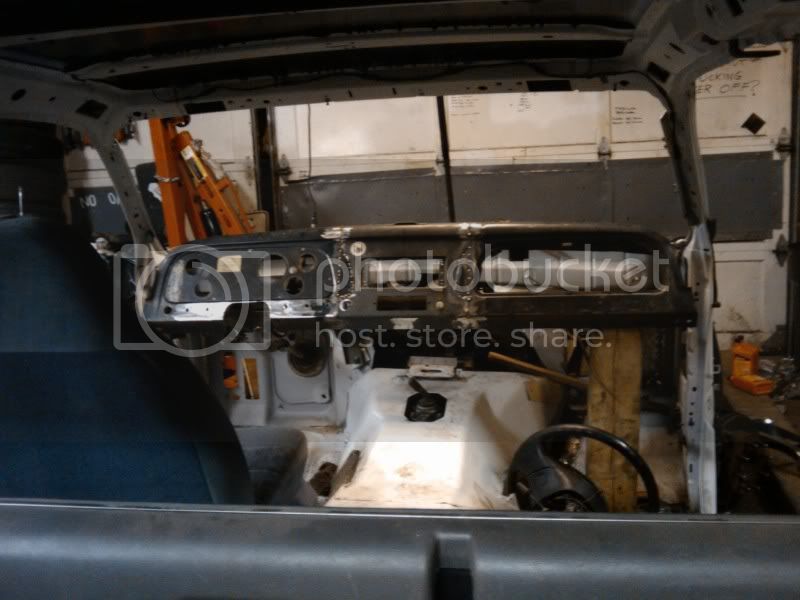

from the back window

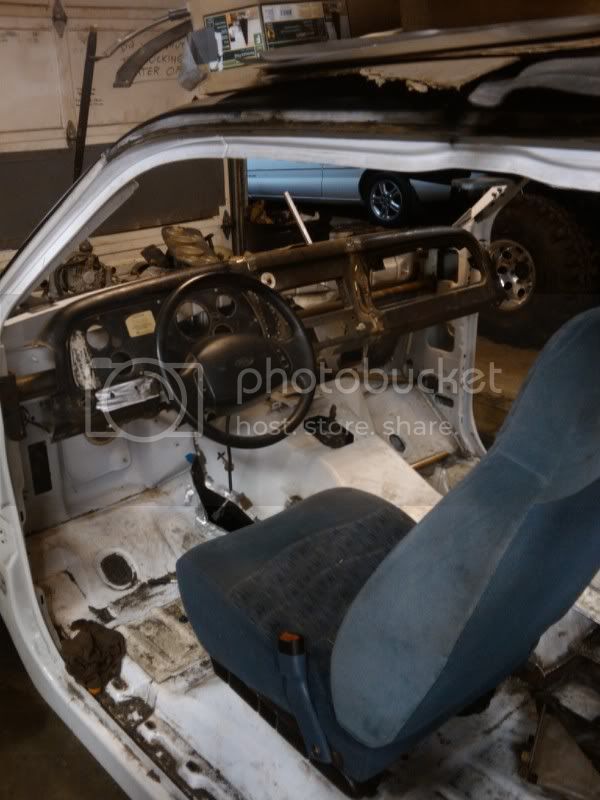

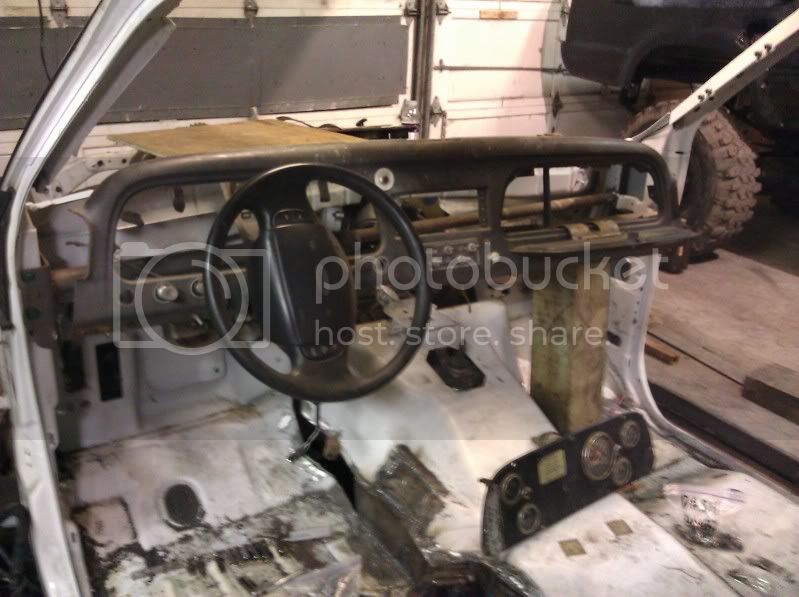

with steering wheel installed



with steering wheel up close



rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

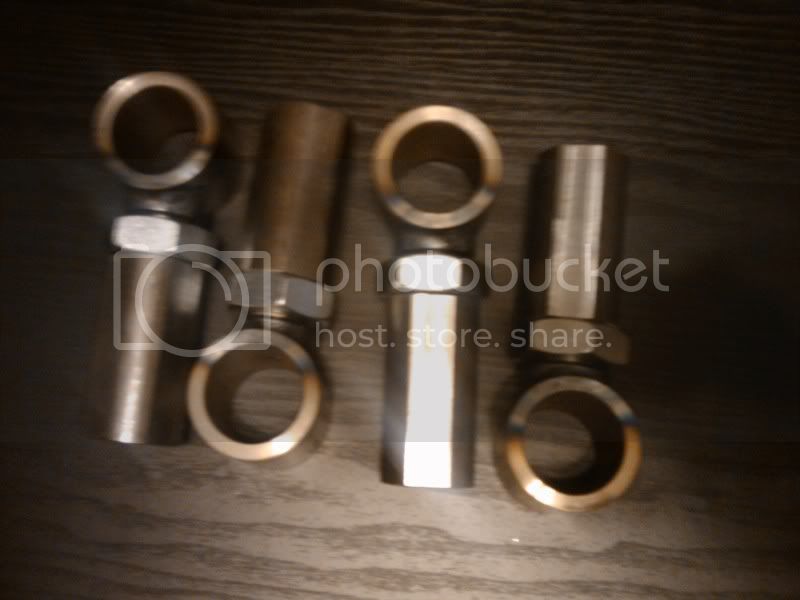

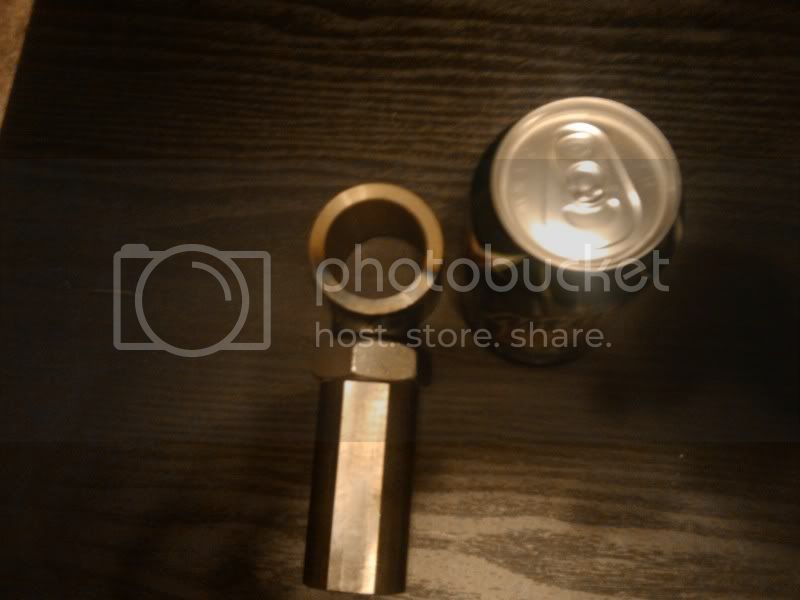

Suicide doors 1 1/8" link ends with weld in bungs for 2" x 2" 1/4 wall

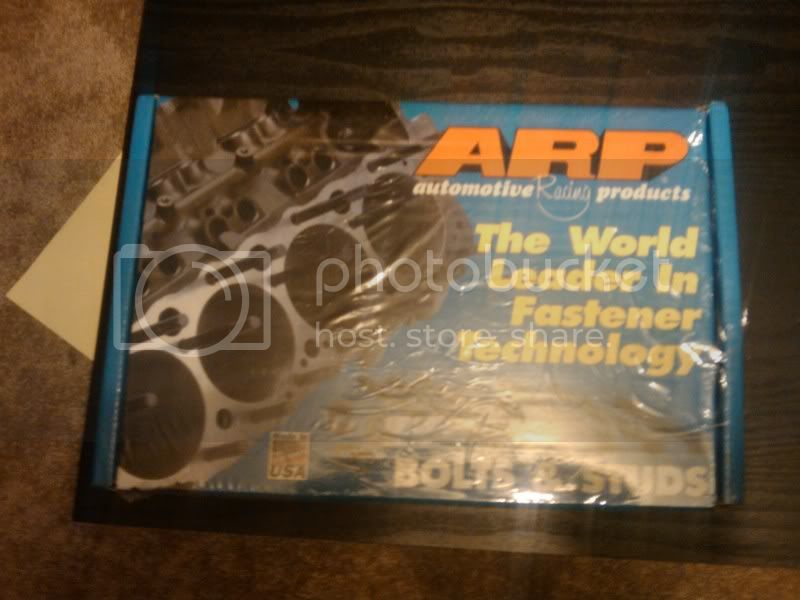

And a set of head studs from Clay



rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

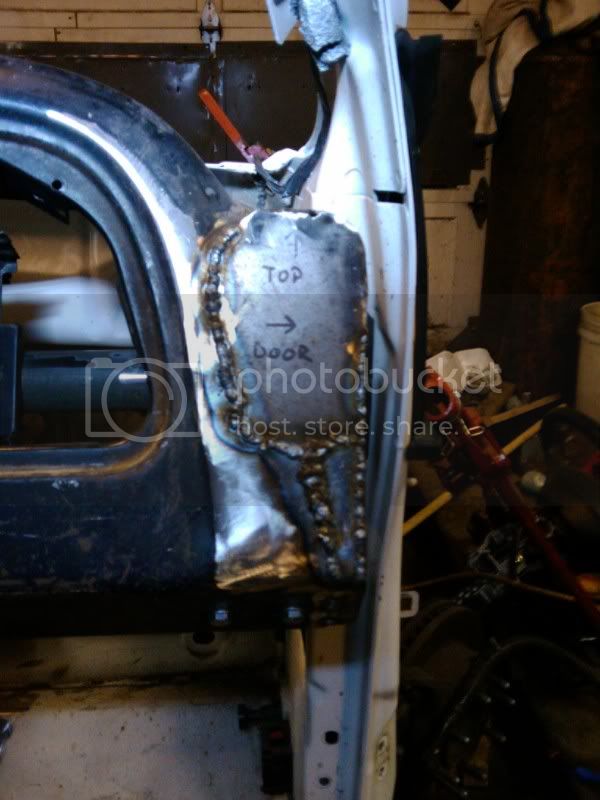

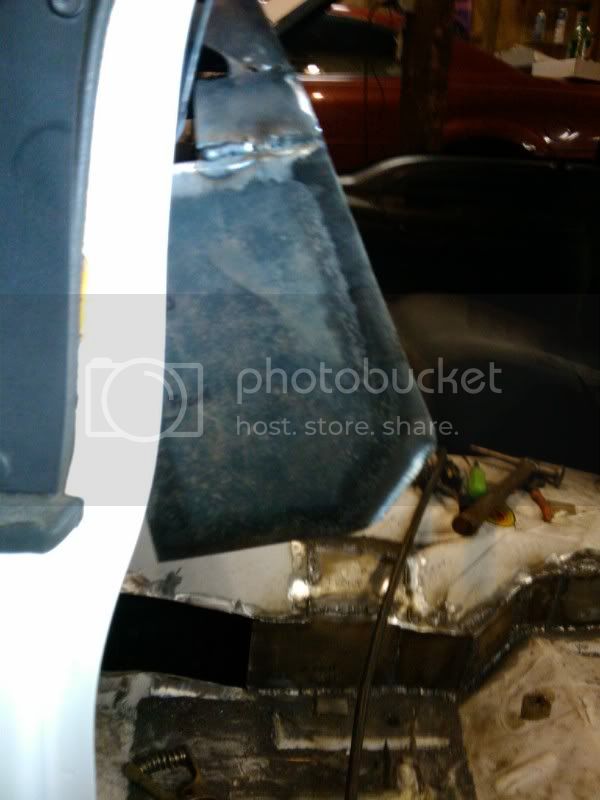

got the passengers side of the dash welded up to meet the door panel

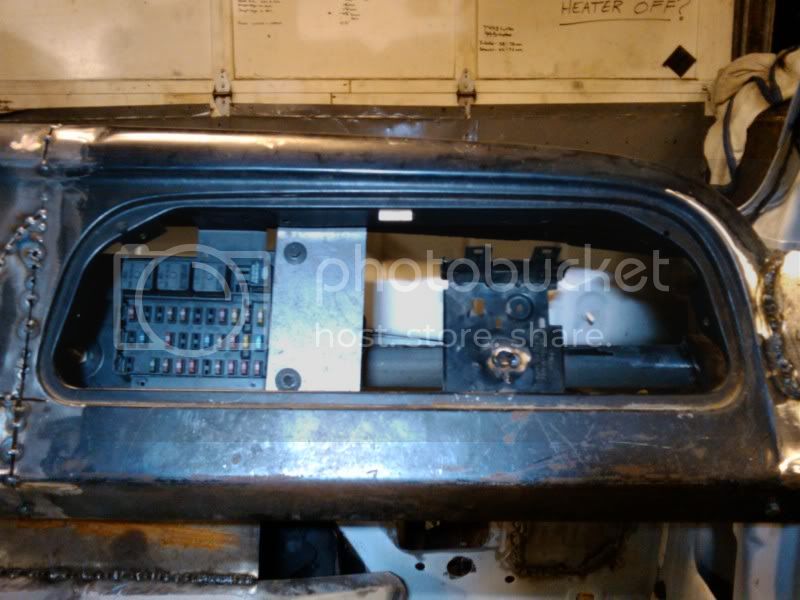

modded the factory under hood fuse panel bracket to fit in the glove box

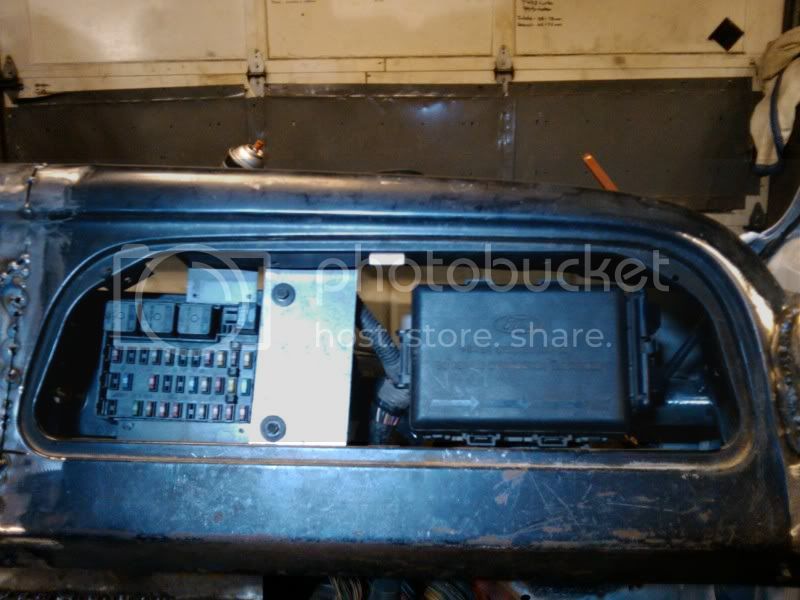

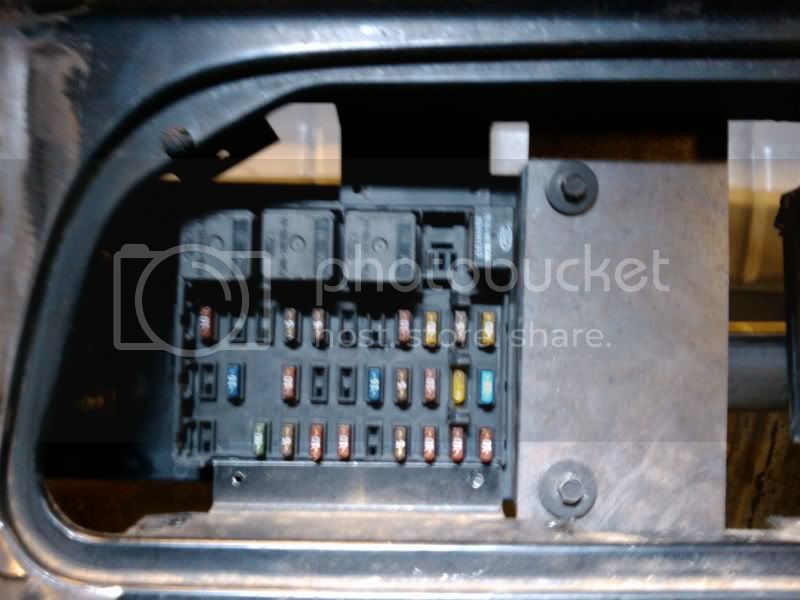

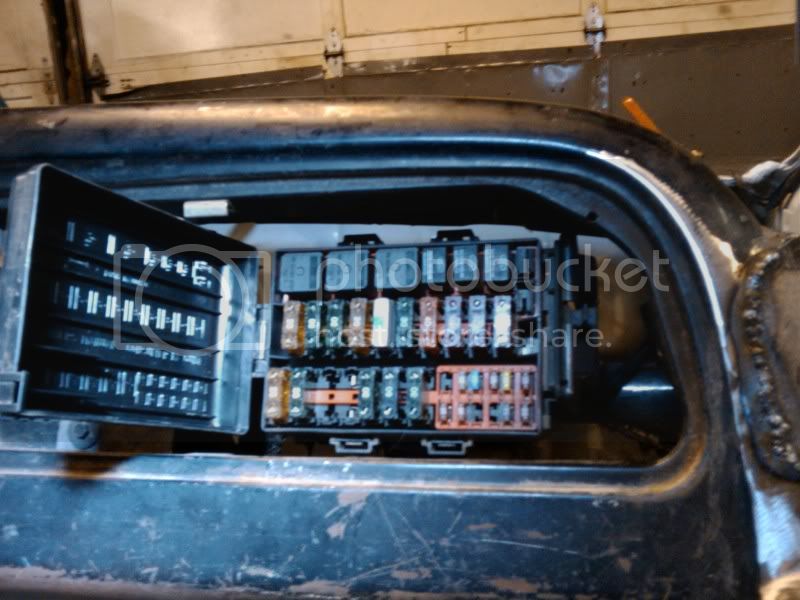

both fuse panels installed in the dash

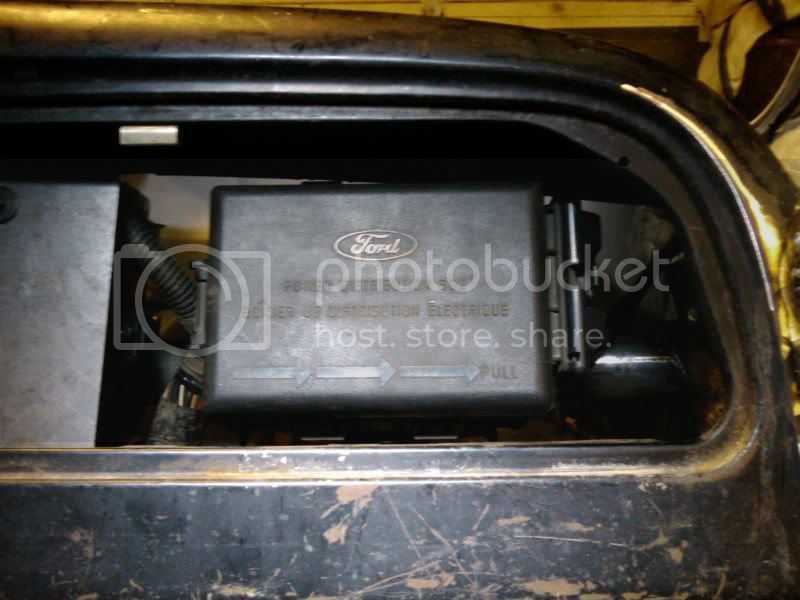

close ups of under hood panel





rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

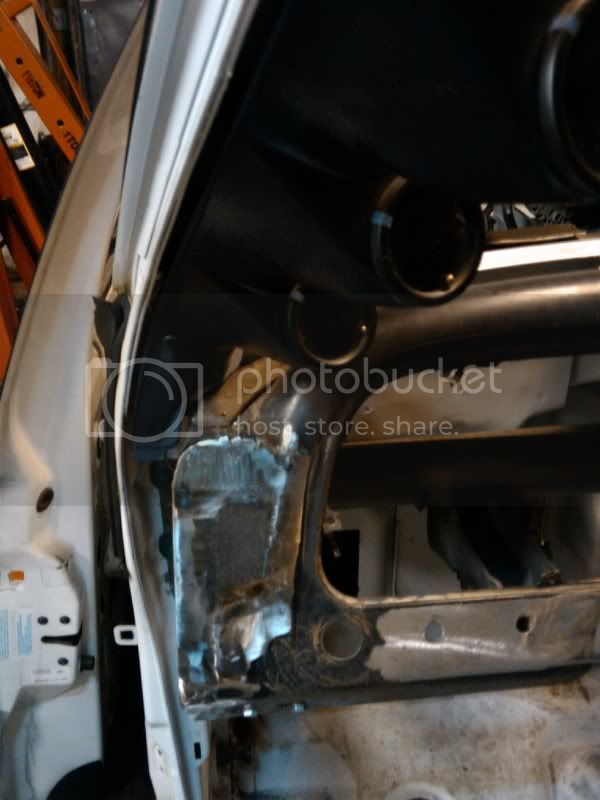

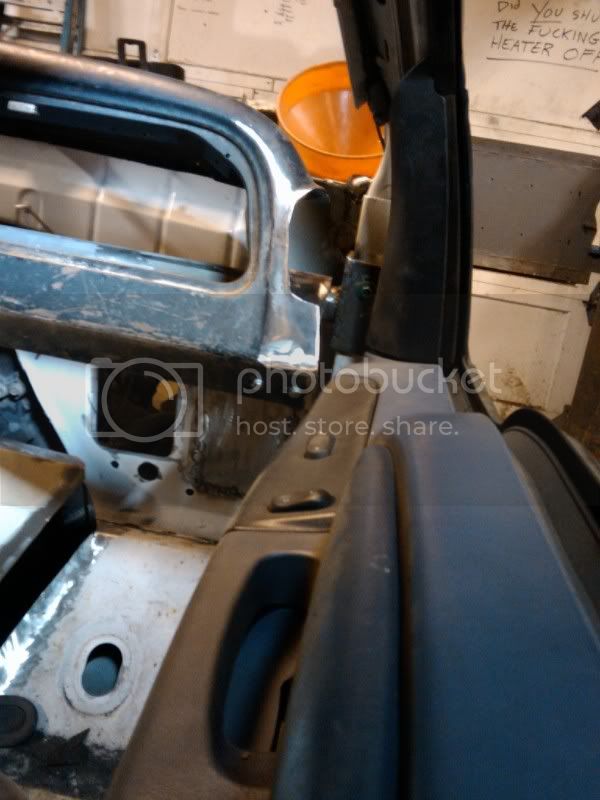

the open void on the passenger's side



same void with door hung and panels on

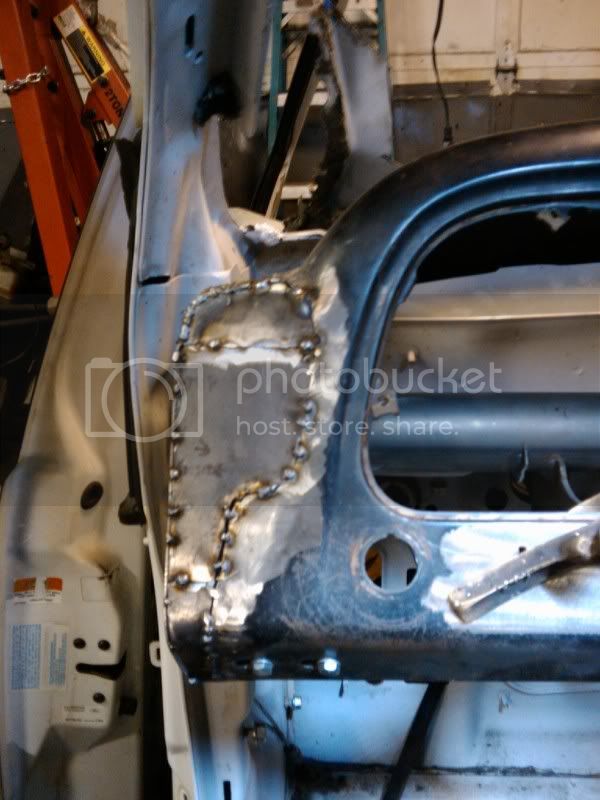

driver's side tacked in





welds all ground smooth





rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

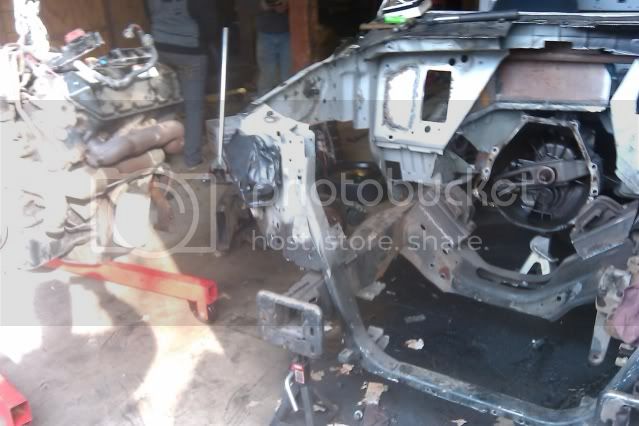

Jason and i got the accessories off the front of the engine and got it pulled
only 6 bolts remain untouched on the truck (other than drive train internals)





rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

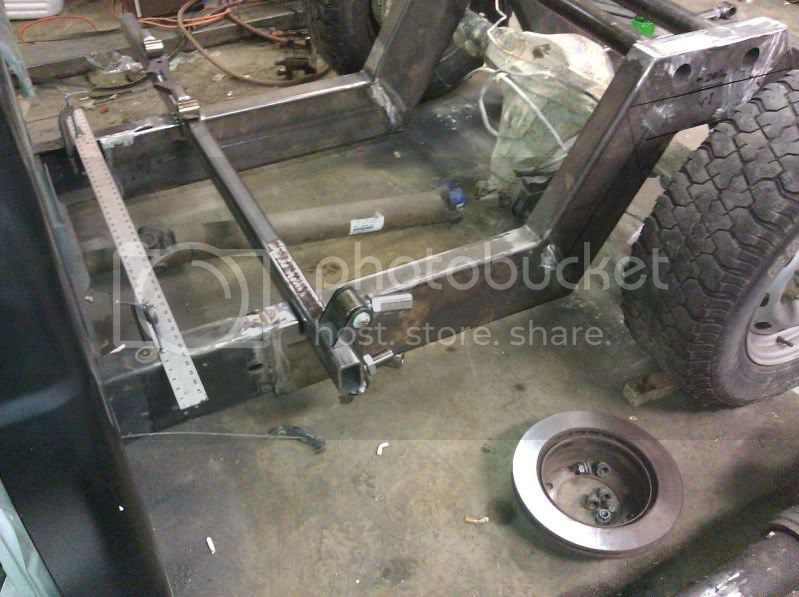

front drivers side



the bar going across will be turned into a crossmember with driveshaft hoop



one side will be adjustable the other will be solid





any opinions on the set up
should i make the link bars the same length or have the lower bar longer ive heard both
minitrucker friend told me equal and a friend with a home built full 4 linked and bagged f250 (10" lift) said the one bar should be shorter to keep it from squatting


rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ

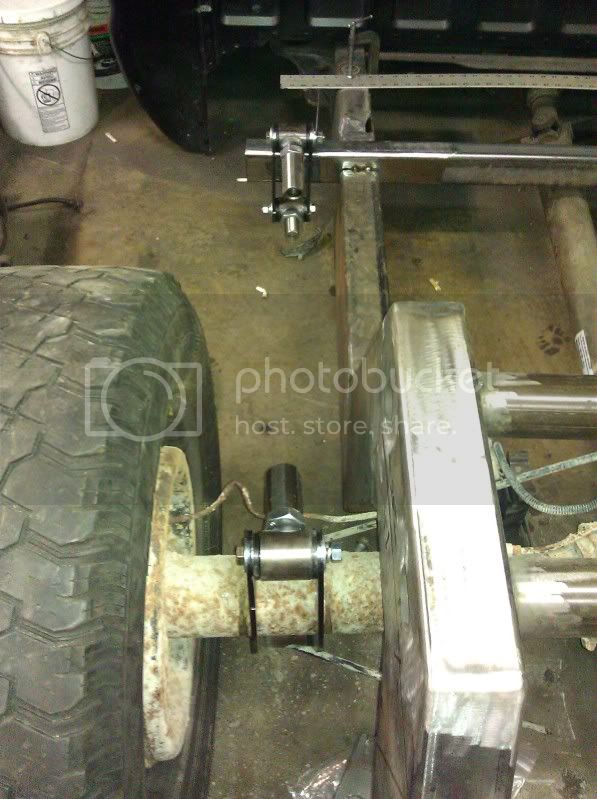

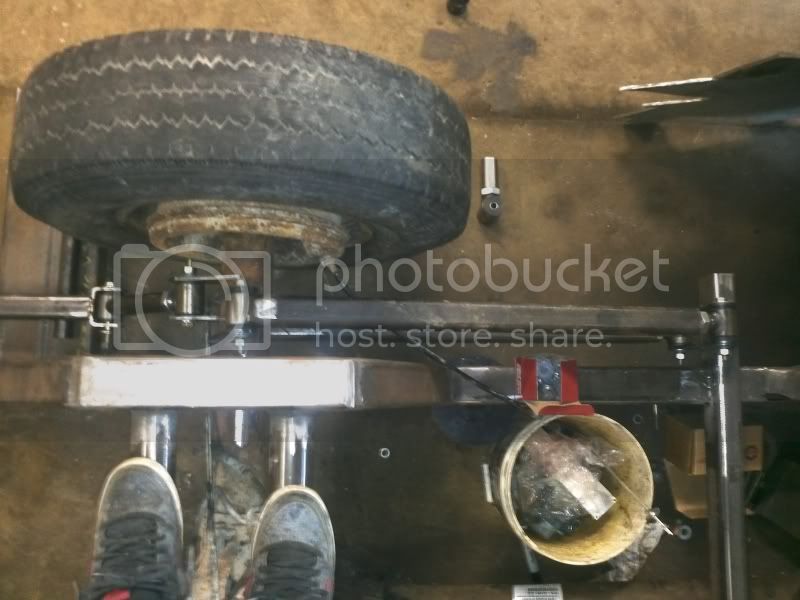

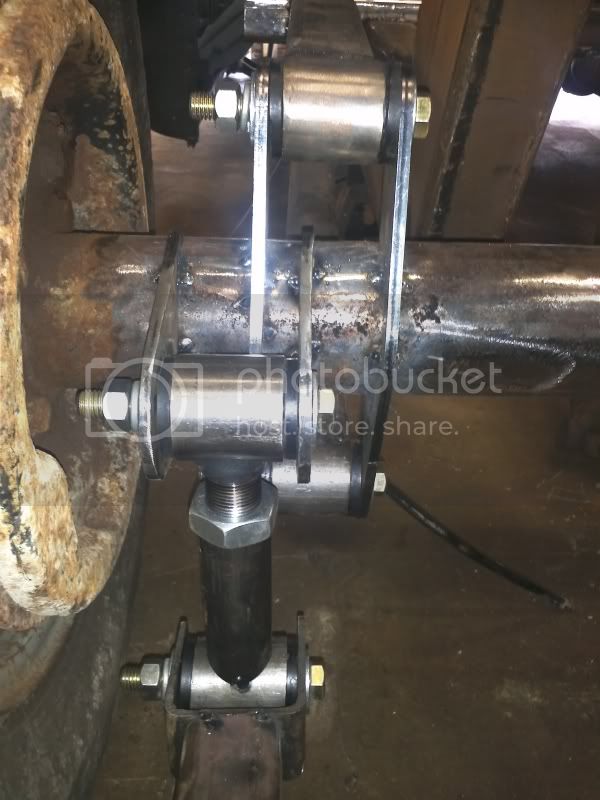

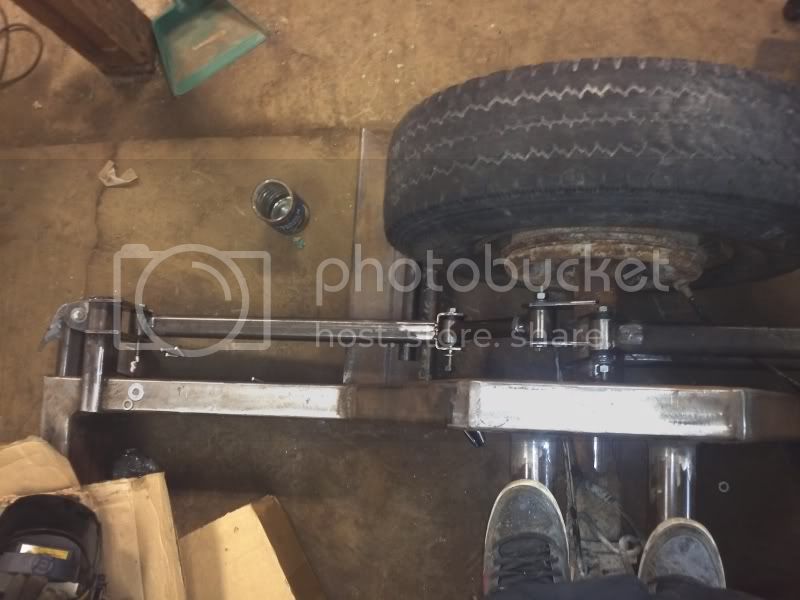

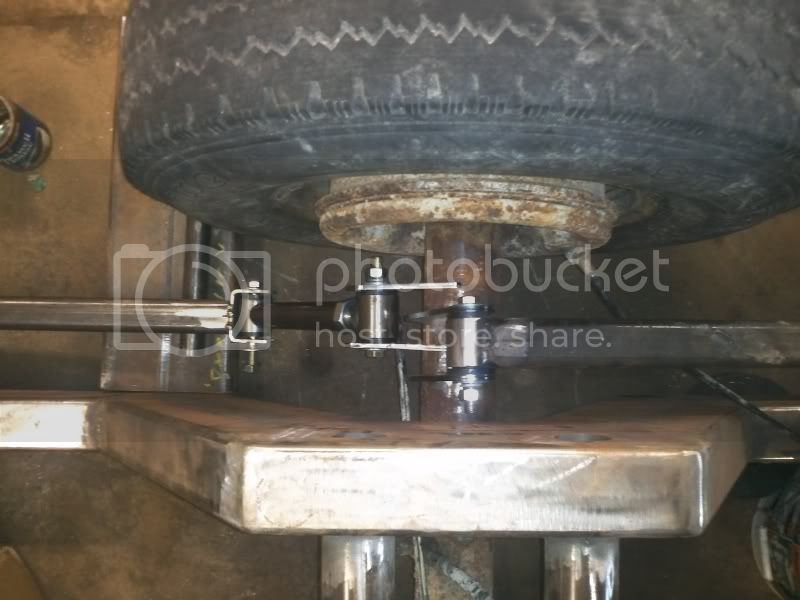

mocked up the 6 link but i think the dog bone is too long so ill have to lengthen the lift bar and shorten the dogbone



also note nothing is welded in so it looks very crooked

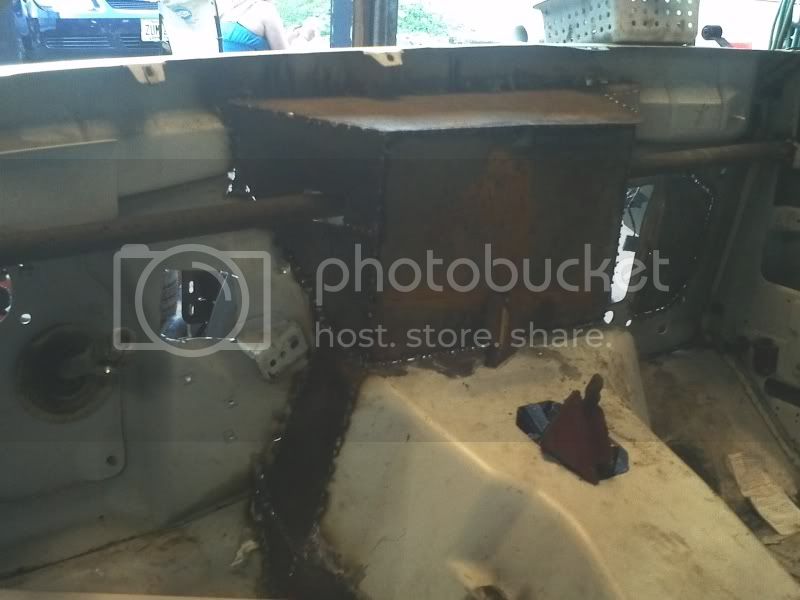

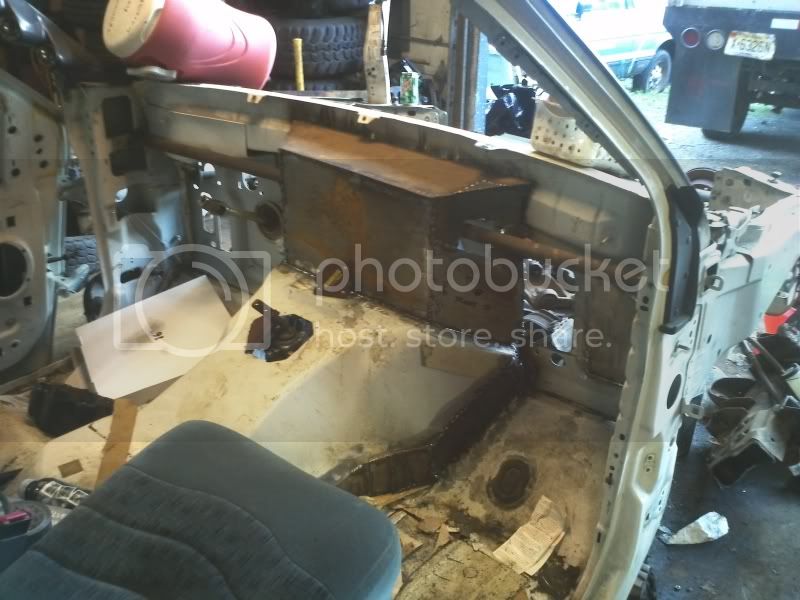

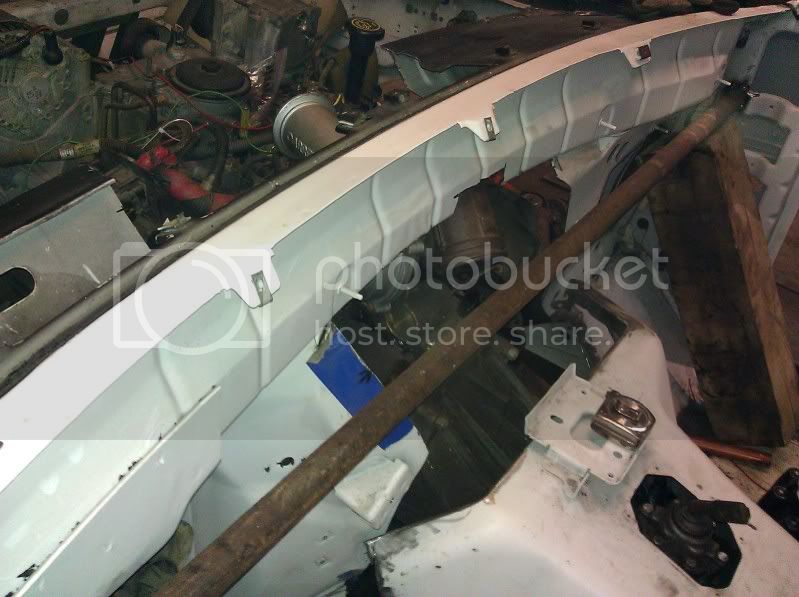

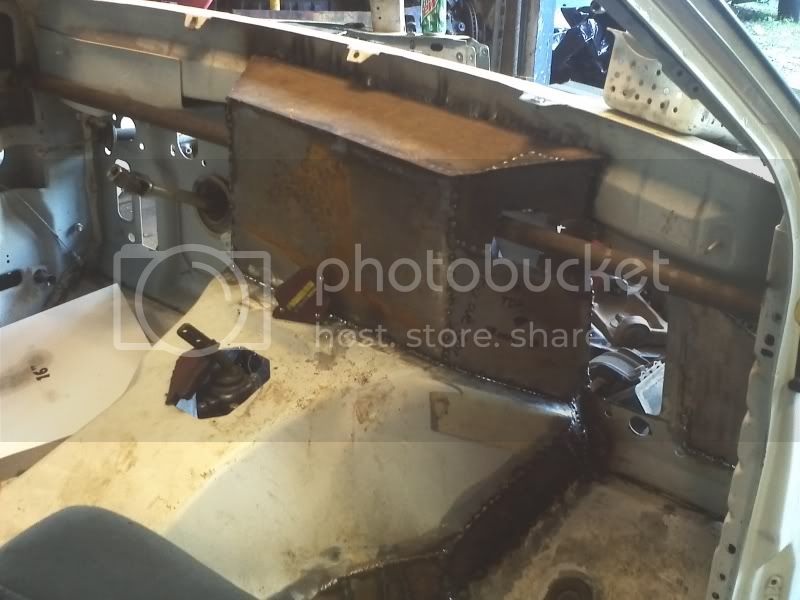

pics of the trans tunnel finished and the firewall rebuild to make room for the turbo







rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ
as of Sat night we got everything tacked into place and all bars are tacked up





we would have finished the passengers side but i misplaced a axle tab

so today we went into clean up mode

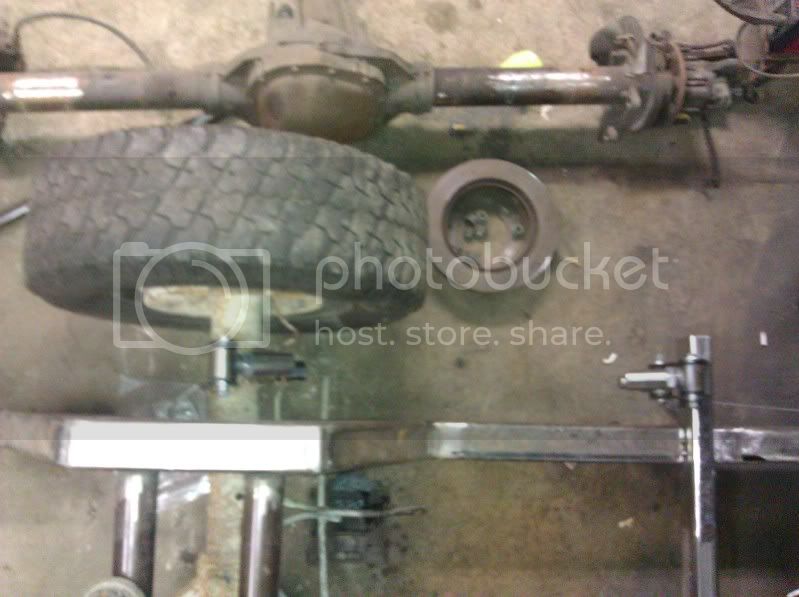

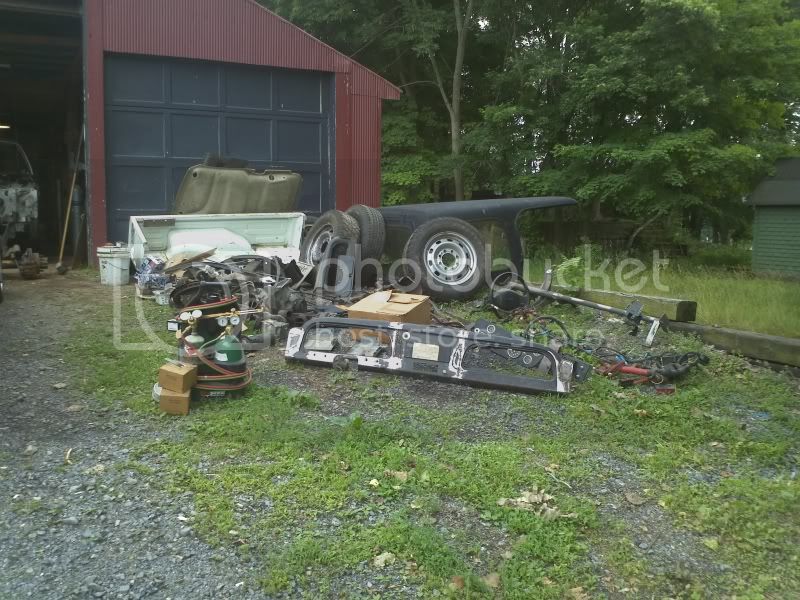

alot more parts on the ground then it looks but that is a f250 in pieces on the ground in front of my shop (minus what is upstairs)



good news is we found the tab


Cobra 19 & 54

New member
Joined
May 18, 2011
Messages
964
Reaction score
0
Location
Scottsdale, AZ
You could have body dropped the cab at the same time and not done much extra. The floor could have been left whole (more or less) without all the trans cutting. But the idea of your project is bitchin!!!


rat49f6

Active member
Joined
May 18, 2011
Messages
1,259
Reaction score
0
Location
Vernon,NJ
You could have body dropped the cab at the same time and not done much extra. The floor could have been left whole (more or less) without all the trans cutting. But the idea of your project is bitchin!!!

u mean stock floor body dropped???
because the truck is traditional bodydropped from the factory
