Dave said he's cool with me posting those maps here as long as they are used in the correct context.

I feel kind of bad for not waiting a little bit longer for him to get back with me.

Hopefully he can provide some more great insight to this thread.

In the mean time, I'll try to dig up some more visual aids to help the newbies.

Sent from my SCH-I545 using Tapatalk


mandkole

Active member
Joined
Jan 14, 2012
Messages
2,303
Reaction score
2
Location
Northwest
what does a typical cold start map look like? PW vs. temp vs. ICP

Mine puffs real good when oil temp is below 40. PW often starts at 2ms and stays at 1.8 for quite awhile. Today after sitting in a shop near freezing the last two weeks, it started hard and was closer to 2.3ms for the first min or 2. When warm it sits at 1.3 out of gear and 1.5 in gear. Is delivered PW a result of other parameters or is it the calibration command?


mandkole

Active member
Joined
Jan 14, 2012
Messages
2,303
Reaction score
2
Location
Northwest
is the high level of cold start PW commanded or a result of load? what in the calibration is contributing to what im seeing?


ja_cain

Active member
Joined
Aug 10, 2013
Messages
4,597
Reaction score
2

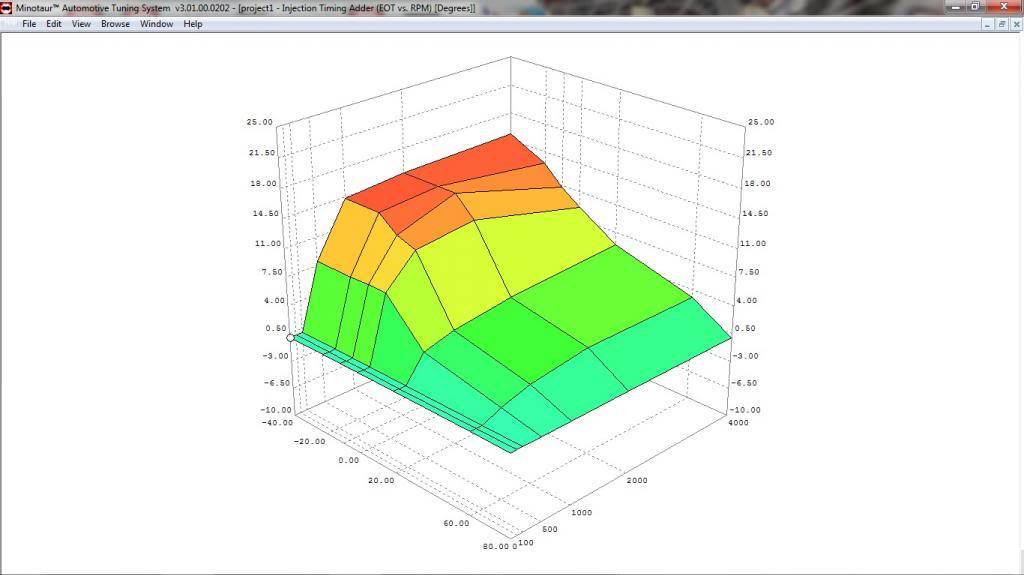

What are there adders and modifiers then? Take eot measurements and asjust timing based on that?

There is an EOT vs. Timing adder


Attachments

  • timingadder_zpsa445de5c.jpg
    48.8 KB · Views: 118

superpsd

Active member
Joined
Jun 10, 2014
Messages
1,928
Reaction score
3
Location
Missouri
I only have VDABO def files.

Fuel limit / RPM vs EOT
Fuel PW multiplier / EOT vs ICP
SOI multiplier / EOT vs RPM
Cranking MFD vs EOT
Idle speed RPM vs EOT
ICP offset vs EOT
Fuel density vs EOT

Last edited:

cleatus12r

Member
Joined
Nov 20, 2014
Messages
163
Reaction score
3
Location
Reed Point, MT
Exactly....there is no "cold start map".

Everything is based on one set of mapping and then fudged from there with adders and multipliers. Fun times.

This is why just giving away things makes no sense after spending so much time figuring it out.

Last edited:

ja_cain

Active member
Joined
Aug 10, 2013
Messages
4,597
Reaction score
2
Anything in that list that relates to eot, is essentially temperature compensation (cold temp, warm temp, whatever).

Sent from my SCH-I545 using Tapatalk


mandkole

Active member
Joined
Jan 14, 2012
Messages
2,303
Reaction score
2
Location
Northwest
I only have VDABO def files.

Fuel limit / RPM vs EOT
Fuel PW multiplier / EOT vs ICP
SOI multiplier / EOT vs RPM
Cranking MFD vs EOT
Idle speed RPM vs EOT
ICP offset vs EOT
Fuel density vs EOT

Thank you--in this case, there is a fuel multiplier. That's kinda what I expected to see, but my question was dragging out too many secrets earlier to be answered then... :doh:

Did you get minotaur?

Exactly....there is no "cold start map".
sorry for not stating it correctly, thanks for the help..


superpsd

Active member
Joined
Jun 10, 2014
Messages
1,928
Reaction score
3
Location
Missouri
Yeah I've had Minotaur for a bit. I am still running stock sticks but even with stock sticks I was able to massage canned tunes to resolve some issues. I like Minotaur so far. with Hydra it takes as little as a few minutes from making a quick adjustment, saving the calibration and loading the hydra.

Last edited:

mandkole

Active member
Joined
Jan 14, 2012
Messages
2,303
Reaction score
2
Location
Northwest
Cool-- what have you been tweaking with?

The last time this truck was tuned was at a time when it wasn't real cold. Its always had cold smoke issues and thought that it could be dialed out if time was spent on it when it was cold.

Another area of investigation that I have to do is that I could have sworn that the OBD oil temp was 30-40 deg higher than the air temp or trans temp. Sender issue perhaps? Based on the map you showed, appears that will greatly affect the adders. I drive the truck so little that I don't spend a lot of time looking at it.


TyCorr

New member
Joined
Jun 23, 2011
Messages
15,461
Reaction score
0
Exactly....there is no "cold start map".

Everything is based on one set of mapping and then fudged from there with adders and multipliers. Fun times.

This is why just giving away things makes no sense after spending so much time figuring it out.

Dude, we get it. Thats like the final step in a file is fixing idle resolution or a haze issue. Or leaving it altogether.

If you dont tune anymore, why do you care? Bill sells minotaur. Dont you think if he gave a rats patoot he wouldnt have done that?


TyCorr

New member
Joined
Jun 23, 2011
Messages
15,461
Reaction score
0
Cool-- what have you been tweaking with?

The last time this truck was tuned was at a time when it wasn't real cold. Its always had cold smoke issues and thought that it could be dialed out if time was spent on it when it was cold.

Another area of investigation that I have to do is that I could have sworn that the OBD oil temp was 30-40 deg higher than the air temp or trans temp. Sender issue perhaps? Based on the map you showed, appears that will greatly affect the adders. I drive the truck so little that I don't spend a lot of time looking at it.

Is your truck mint? Your ccsb? It seems like you had some pictures up at one point. But i get you confused with another member sometimes. Sorry for that?

Mine is starting to get rusty again. Its been painted twice already. It rotted out in 4 years the first time but I plowed snow until 07. Which is why it was painted again in 07, after it started to rust, again. Smashed the bed loadin a boulder and wrecked the tailgate...
