Wheel/Tire Tech Thread

[Daryl@TDP]

Just bought a 04.5 6.0. Truck has a 4" lift on it. Would it be possible to run a set of moto metal 962 in a 20x12 with a nitto 420 in a 305/50 20?

Sent from my SCH-I605 using Tapatalk 2

That set up would fit at stock height with no lift.



[bigrpowr]

Pretty sure it's -44 on the 20x12s.

thanks buddy. the ones im looking at are -51 so shouldnt be much different.



[powerstrokin15]

thanks buddy. the ones im looking at are -51 so shouldnt be much different.

yup -44


Sent reeming out the newly rebuilt Clifford



[BlueOx]

Ok got a question fellas.

Currently I'm running 37x13.50x20 Toyo MTs on a 20x9 wheel with a -12 offset. I have a 4in lift on the truck and had to trim the front bumper bracket and a little bit of the factory fender flare to clear them. I just bought a set of 20x10 rims with a -25 offset. Do y'all think I'll have any problems running the 37s on the 20x10s? Here's a pic of the truck I'm talking about just in case y'all were wondering.

And a quick pic of the new wheels I'm wanting to run

Sent from the wild blue yonder....



[BlueOx]

Bumping this up. I'll be picking them up today from the polisher and I'm gonna try and get them mounted tomorrow.


Sent from the wild blue yonder....



[powerstrokin15]

I would say it may rub your flare some if anywhere


Sent reeming out the newly rebuilt Clifford



[BlueOx]

I would say it may rub your flare some if anywhere


Sent reeming out the newly rebuilt Clifford

I hope not lol. I guess I'll just have to wait and see


Sent from the wild blue yonder....



[powerstrokin15]

I would imagine it will clear. maybe some minor adjustments.


Sent reeming out the newly rebuilt Clifford



[stroker2]

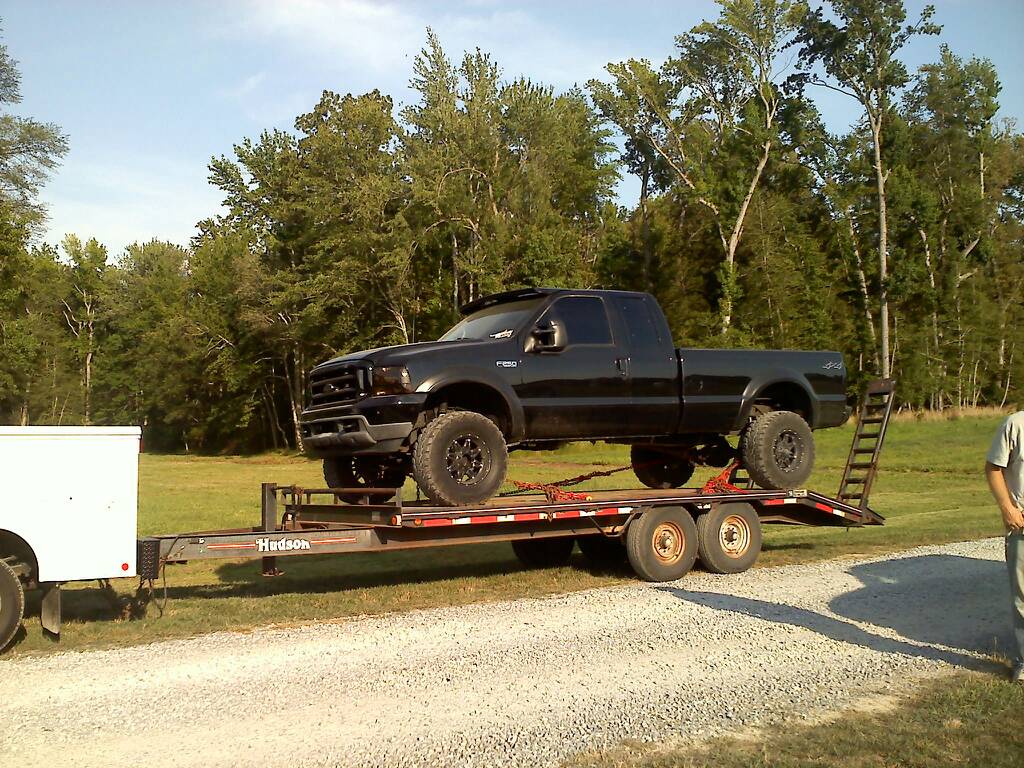

Here is my 06 with a leveler and a 1 ton block with Dale Earnhardt signature series 18x9 with i believe a +18 offset. I was told they were a 0 offset when i bought them but i didnt think they stuck out enough to be a 0. If someone knows, please confirm this. I also have 35" Dick Cepek FCII's mounted on them



[BlueOx]

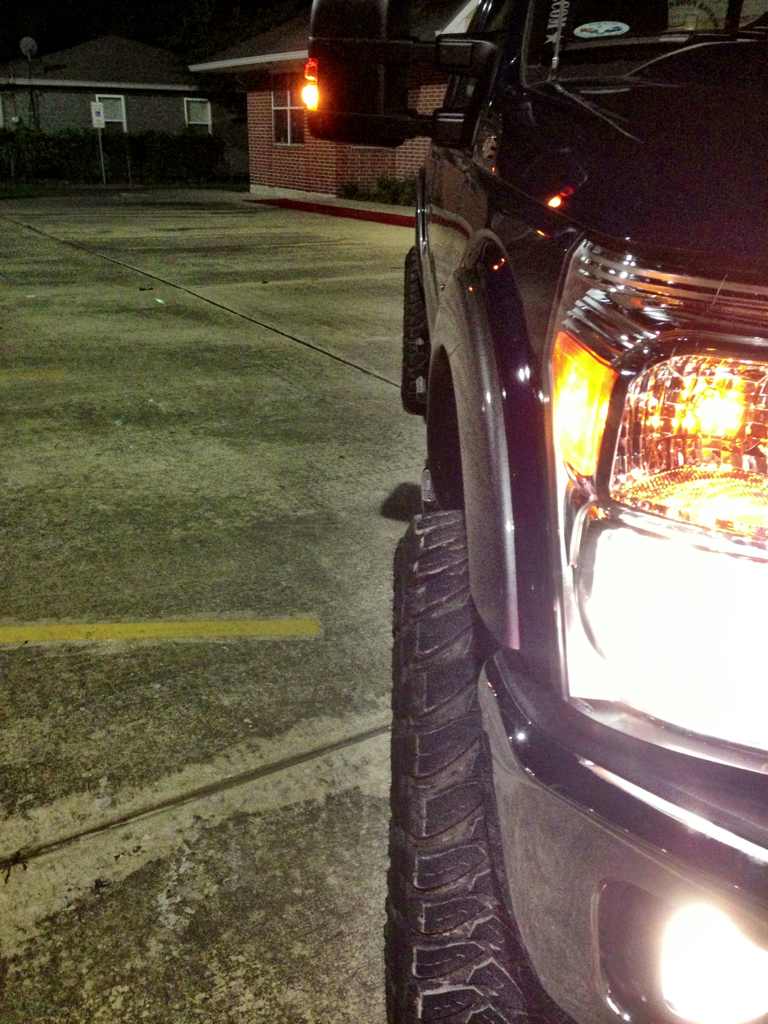

Well here's the Ox as she sits now.

2012 F250 CCSB, 4in Zone radius arm lift, 20x10 Centerline Scout polished rims with -25 offset, and 37x13.50x20 Toyo MTs. Front bumper bracket was removed and I did minor trimming to the factory fender flare to alleviate any rubbing. I can turn full lock both ways without any rubbing. It does however rub if I hit a bump hard while turning sharp or backing up at full lock but it's all rubbing on the inner plastic liner.

Sent from the wild blue yonder....



[Crownsville Stroker 7.3]

17x9 fuel hostages 35x12.5. And 2" spacers in the last 3 pictures

Sent from on the commode with Tapatalk 2



[slowcoupe]

Glad to see this thread continued on. Have a question about offset and tire size. I'm wanting to run 22's on my 08. However after having other trucks with a wide stance and getting rock chips I'm wanting to stay somewhat tucked. The 22 that do not have -44 offsets are mostly 9.5" width with +12 offset. Will I be able to run this with a 37/13.5/22 toyo? I've looked for pictures of this size rim and did turn up much. Besides trucks with shorter all terrains and street tires.



[STROKEDOUT]

New setup.
20X10's Maverick's -24 offset w/ 305/55 Toyo A/T. 2.5 inch lift front and rear. Does have slight inner fender rubbing at full lock.

Old setup was 20x9 Rock Stars w/ 35x12.5 Procomps A/T. 6 inch lift.

Sent from my ADR6400L



[stroker2]

New setup.
20X10's Maverick's -24 offset w/ 305/55 Toyo A/T. 2.5 inch lift front and rear. Does have slight inner fender rubbing at full lock.

Old setup was 20x9 Rock Stars w/ 35x12.5 Procomps A/T. 6 inch lift.

Sent from my ADR6400L

oke: nice truck. I own its sibling



[STROKEDOUT]

Thanks, bud! :thumbup:



[powerstrokin15]

a buddy of mine is gonna try and throw 37/13.50s on a 07 with 20x12s and 6" of lift. I think he can make it work with some trimming. anyone else agree


Sent while charging my POS iPhone 5 battery



[BlueOx]

a buddy of mine is gonna try and throw 37/13.50s on a 07 with 20x12s and 6" of lift. I think he can make it work with some trimming. anyone else agree


Sent while charging my POS iPhone 5 battery

I bet it would work with some minor trimming! And I'm sure it'll look sick too


Sent from the wild blue yonder....



[WydOpen]

a buddy of mine is gonna try and throw 37/13.50s on a 07 with 20x12s and 6" of lift. I think he can make it work with some trimming. anyone else agree


Sent while charging my POS iPhone 5 battery

Very minor rubbing with my '10. I don't know what the fender well clearance difference is between the 05-07 and 08-10.

My 2010 with 6" lift, 22x11's, and 37x13.50-22 Toyos...



[AKHILF]

It will be pretty close I'm pretty sure it will work. He most likely will just have to pull the inner fender back. -44 offest right?



[WydOpen]

It will be pretty close I'm pretty sure it will work. He most likely will just have to pull the inner fender back. -44 offest right?

Correct.
