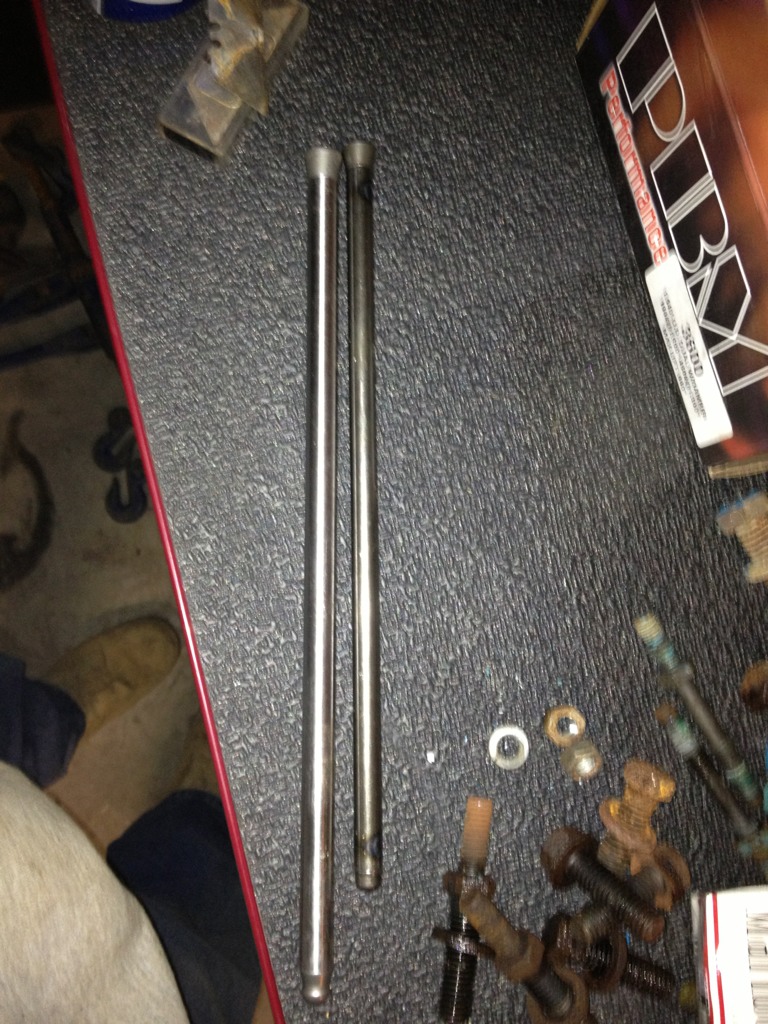

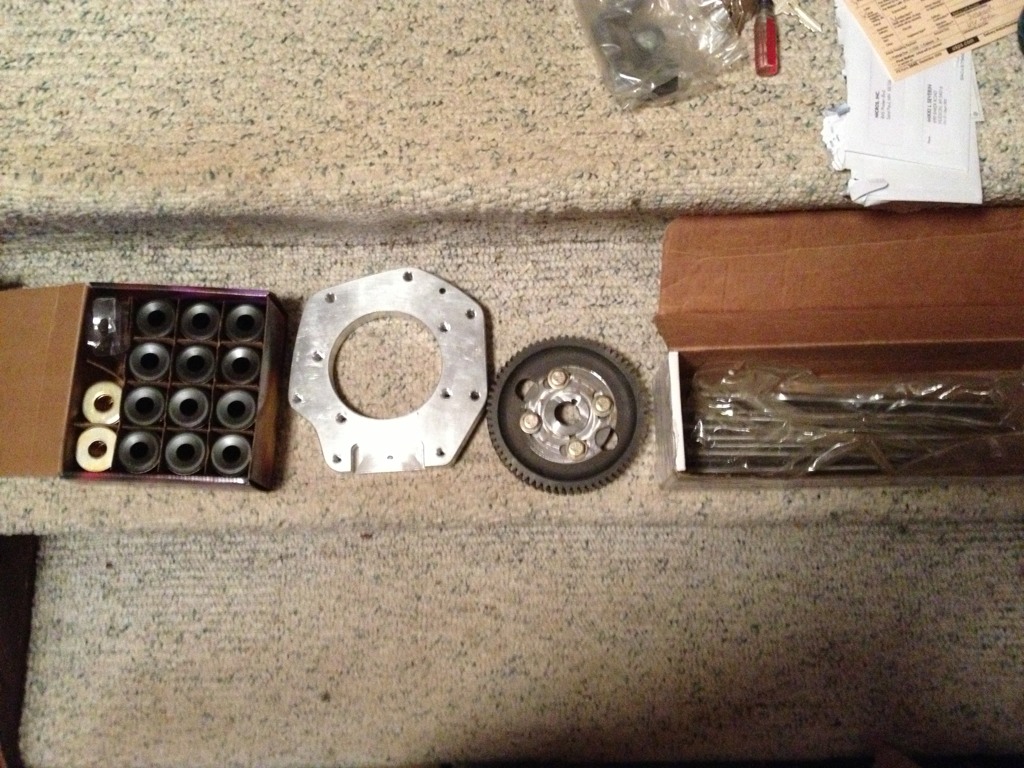

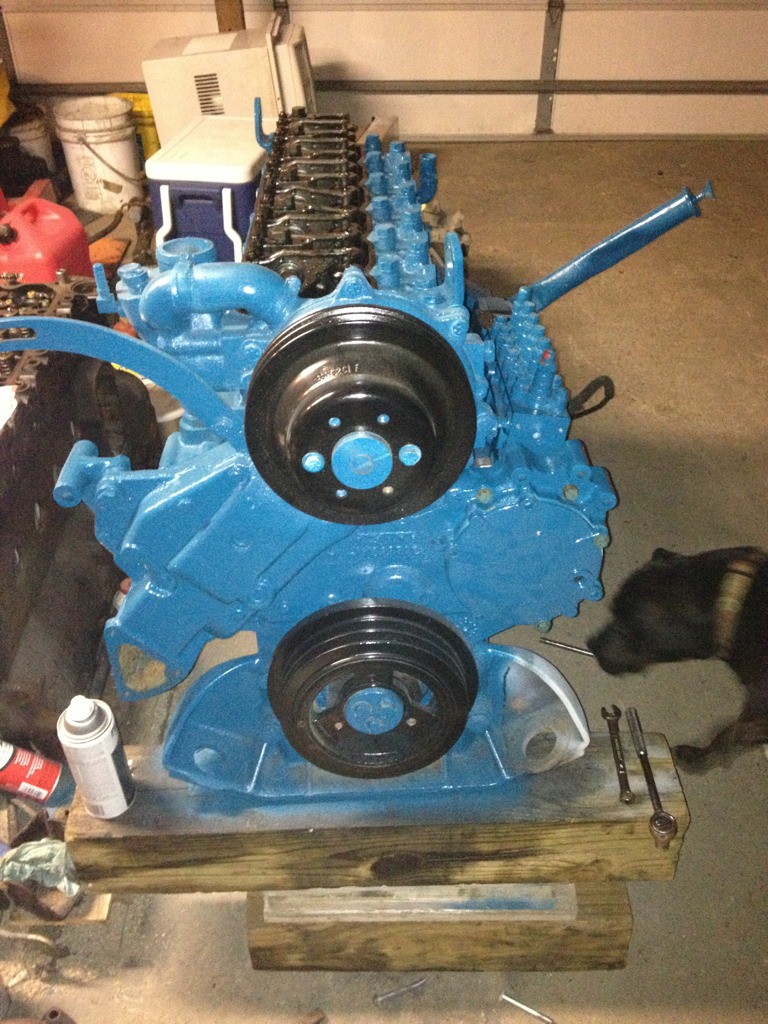

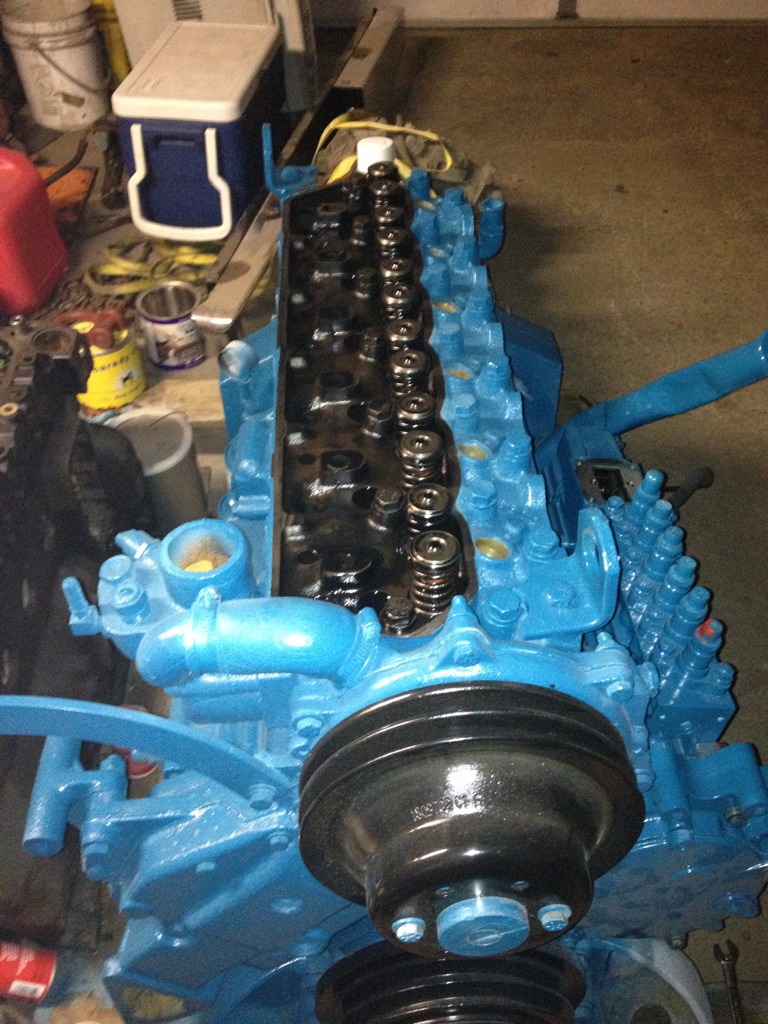

Parts came in so installed the pump! Pushrods are 1.25 too long so I gotta send em back! Luckily the guy I ordered em through left em in the original box so I'm gonna send em straight back to the manufacturer "manton" and have em shortened!







swamp_ratt

New member
Joined
May 18, 2011
Messages
1,506
Reaction score
0
Location
hudson, wi
It should be running on my shop floor in a few weeks as long as I can get my pushrods done in respectable time and get my lift pump and regulator


Rockaholic

New member
Joined
Oct 2, 2012
Messages
7
Reaction score
0
really coming along. I am talking to the guys at carson stauffer diesel about building me the motor with adapter plates and everything i will need to bolt it right to a 4r100. I will relay everthing you did and keep in close contact. I want this build in my 67 f100 so bad. my truck looks raunchy but to see this truck pull up and be a diesel pushing out over 1500tq at the wheels would be INSANE and it would be one nasty ricer eater!


swamp_ratt

New member
Joined
May 18, 2011
Messages
1,506
Reaction score
0
Location
hudson, wi

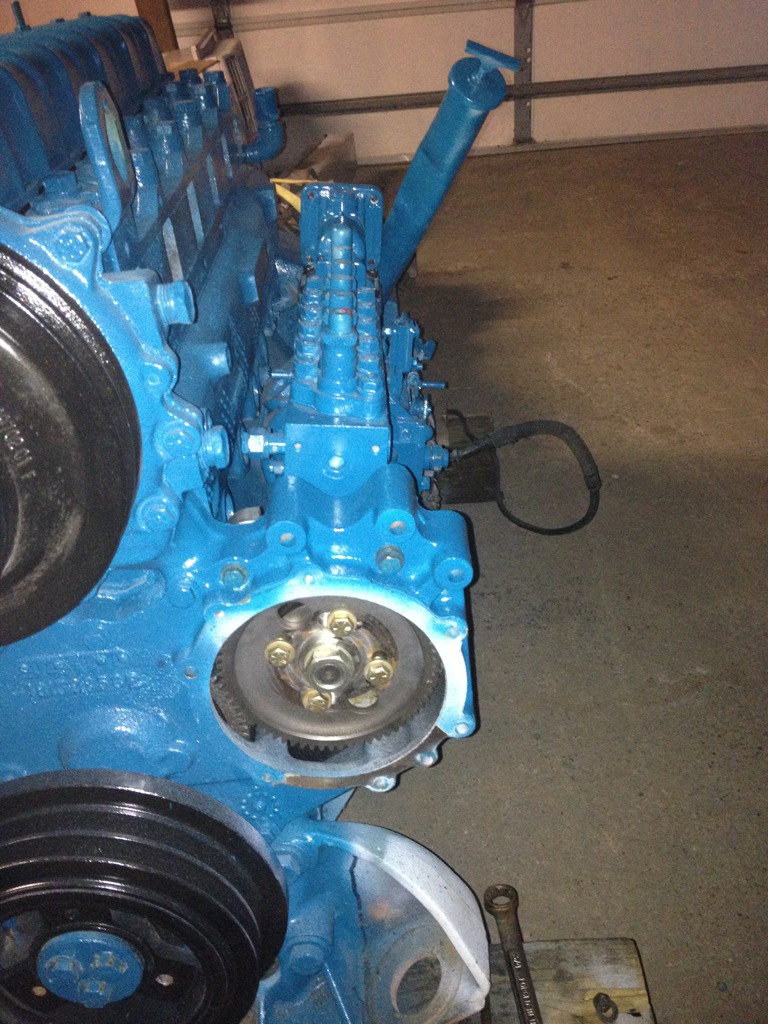

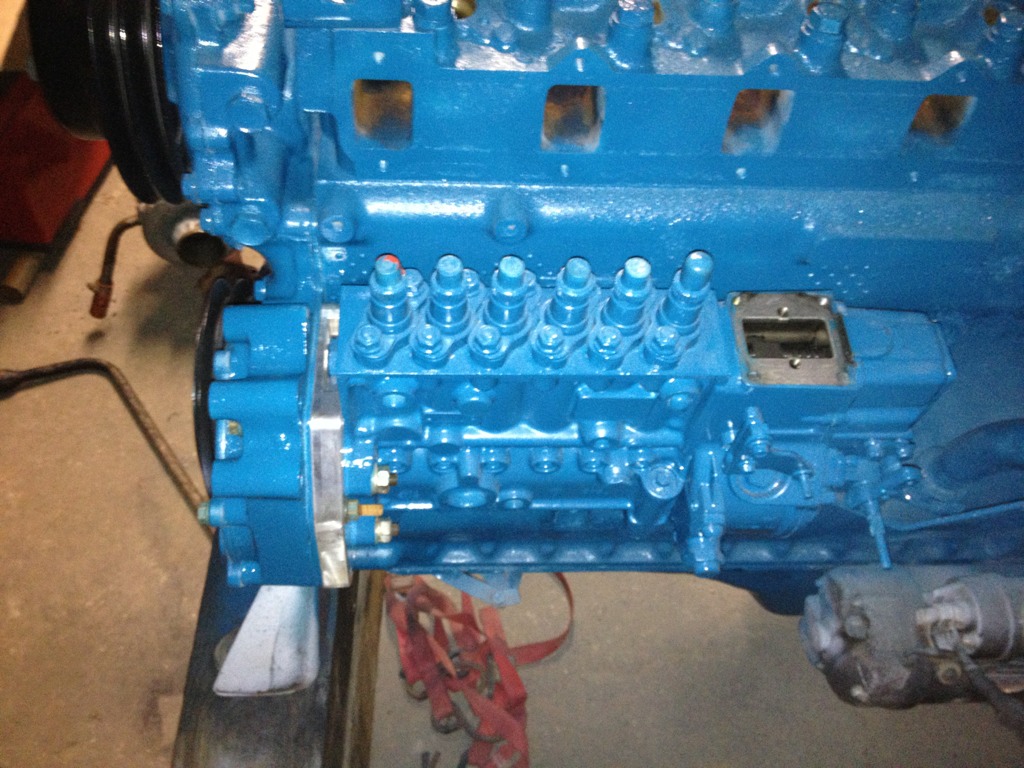

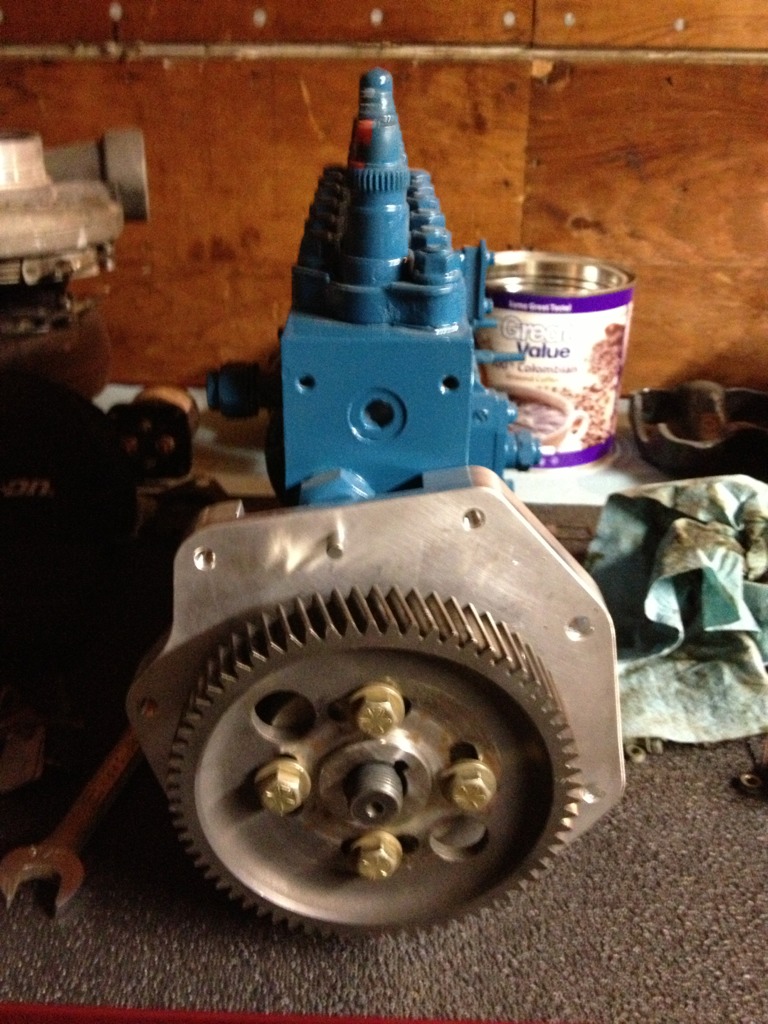

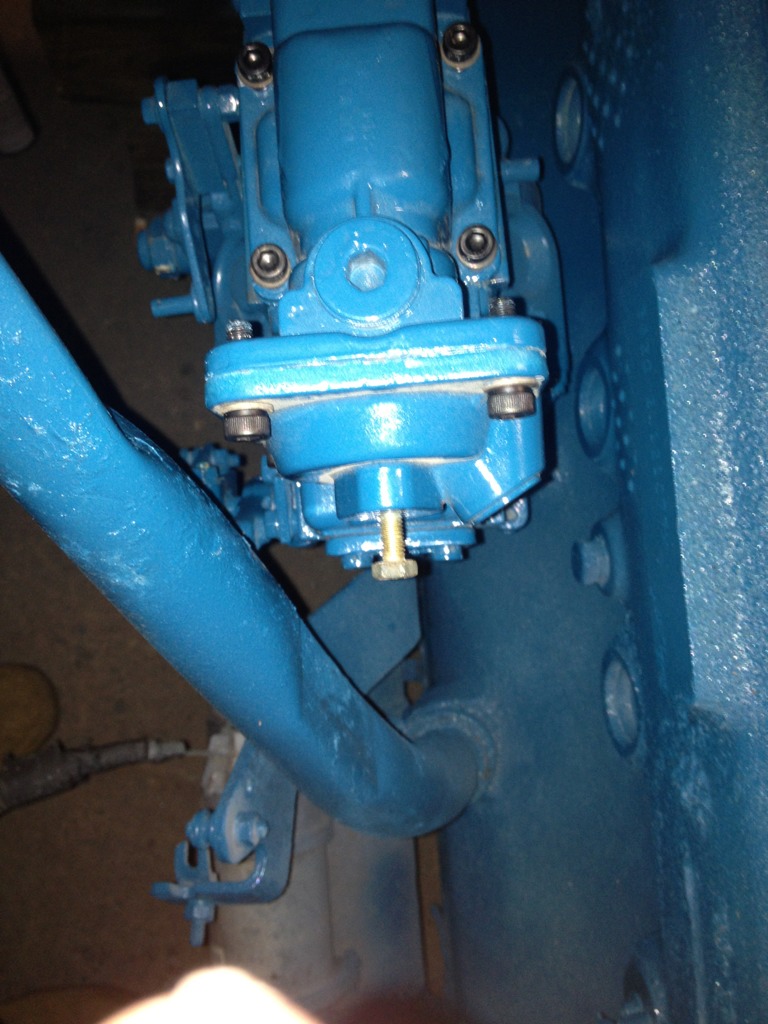

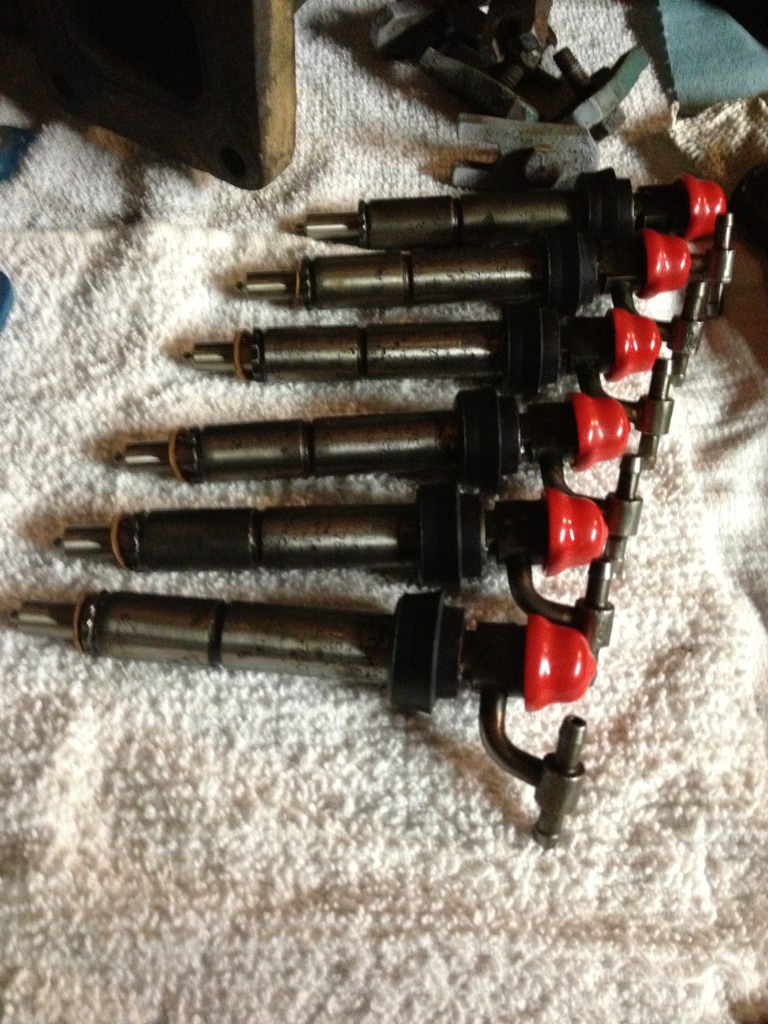

Well, stock fuel lines don't fit with the p7100, so have to either a; tweak em to fit, or b; have new ones made! But here's a couple more pics. Pump shaft nut, key and lock washer came in so I mounted the gear!


P7100 live tuning


Rockaholic

New member
Joined
Oct 2, 2012
Messages
7
Reaction score
0
Very nice, as you know my situation i am now looking to get my build on the way as well. I will keep in close contact. Looking at building a great truck with your guidance. Although mine is going to go in a 1967 f100 :)


davo727

New member
Joined
Dec 10, 2012
Messages
6
Reaction score
0
Your engine build is relevant to my interests. :^

Nice work so far, I registered here to view it.


swamp_ratt

New member
Joined
May 18, 2011
Messages
1,506
Reaction score
0
Location
hudson, wi

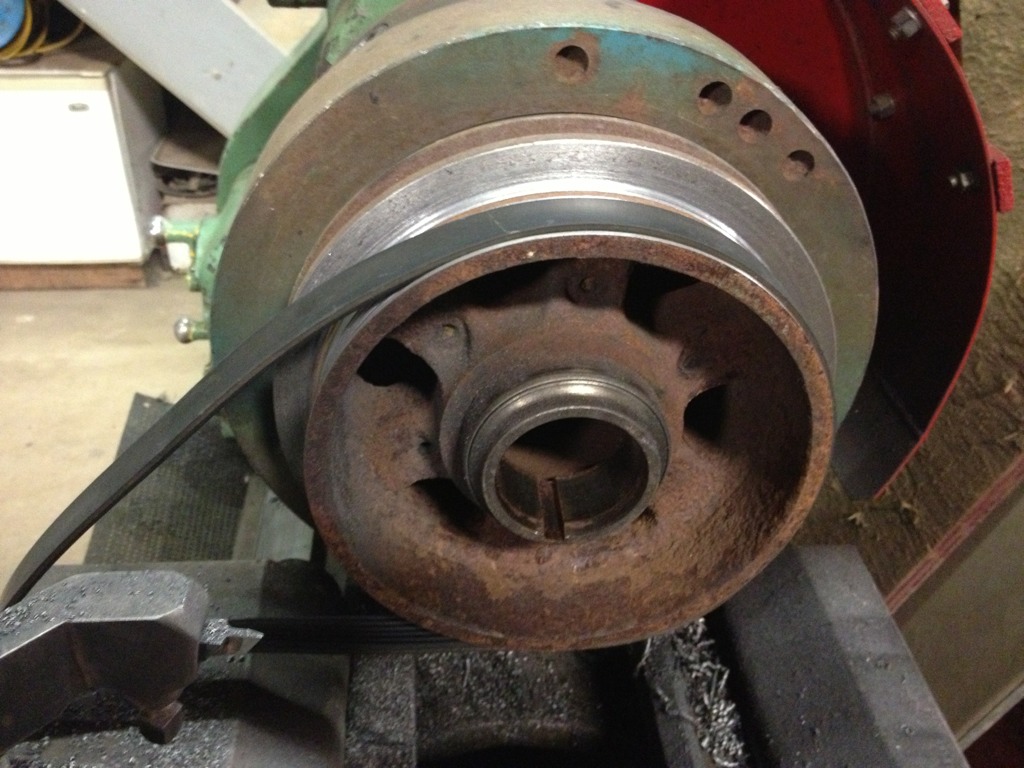

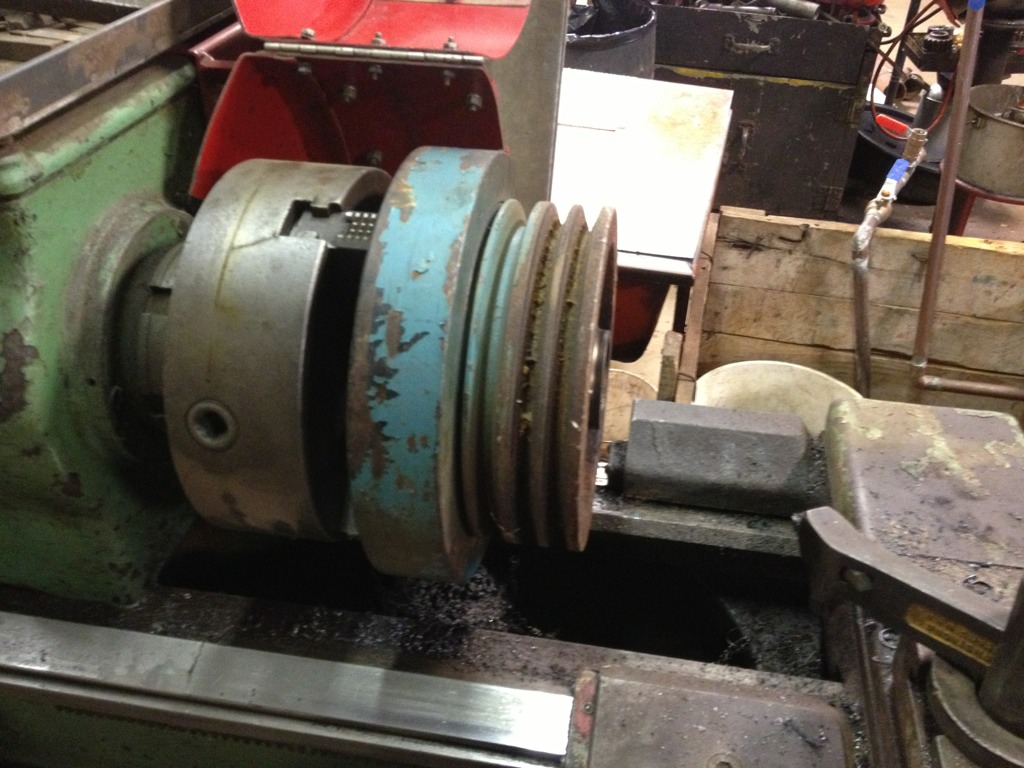

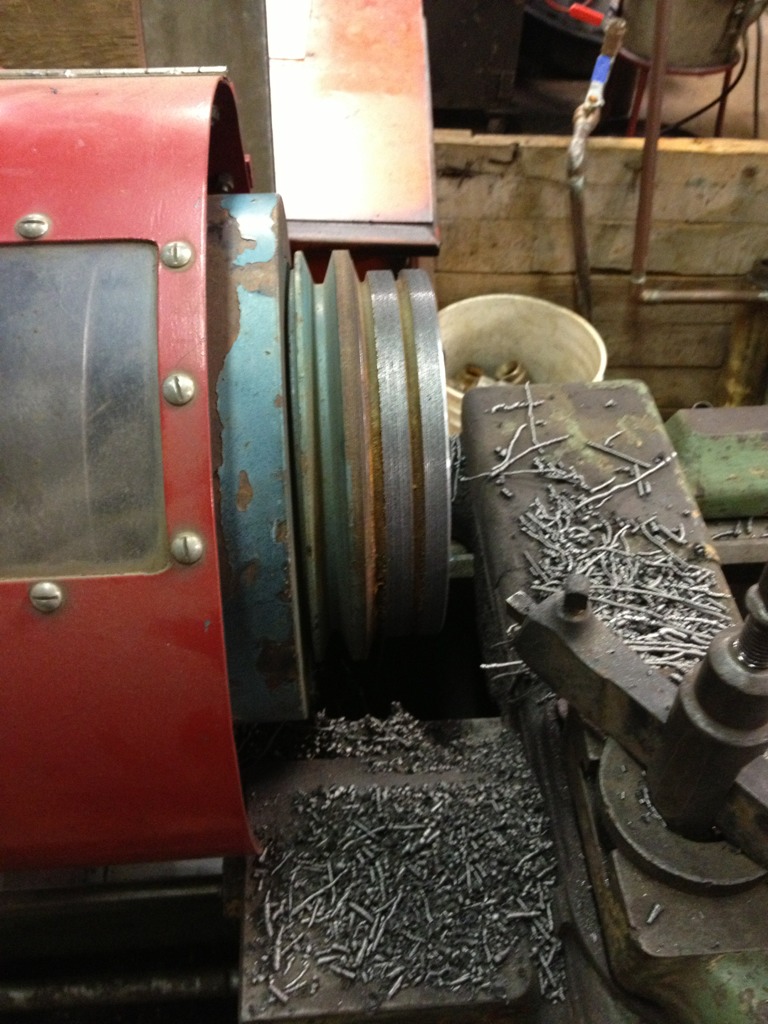

Started spinning my old balancer as a test dummy last night for a serpentine conversion!





Will be cutting the ribbing and cleaning it up tonight!


swamp_ratt

New member
Joined
May 18, 2011
Messages
1,506
Reaction score
0
Location
hudson, wi

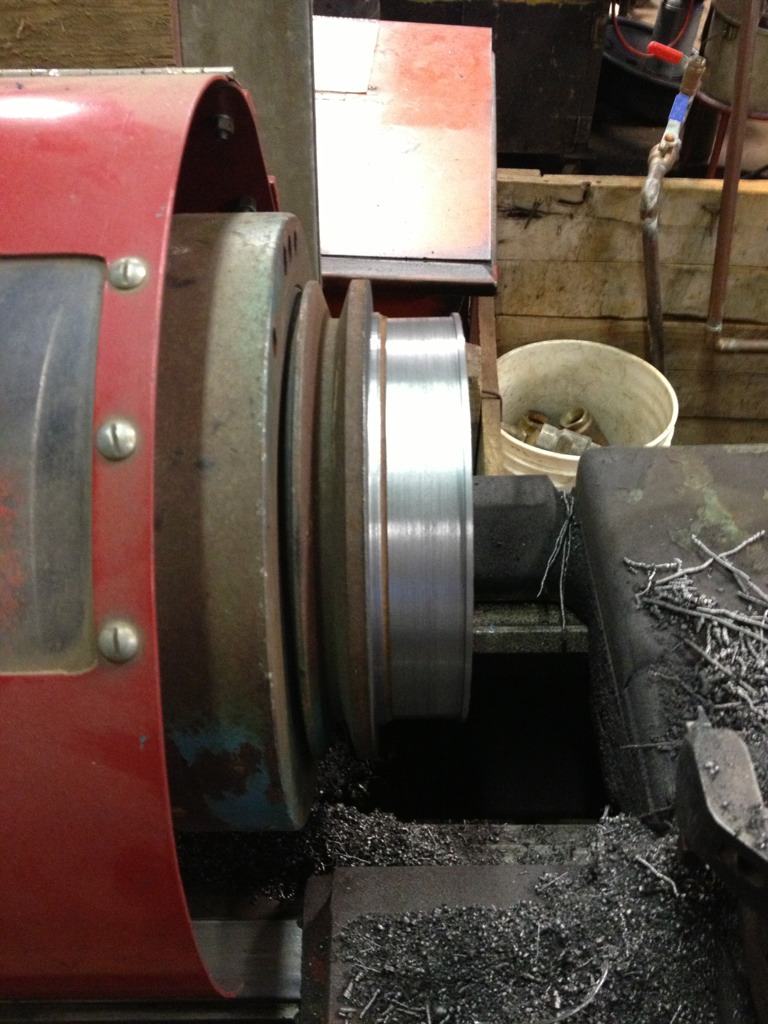

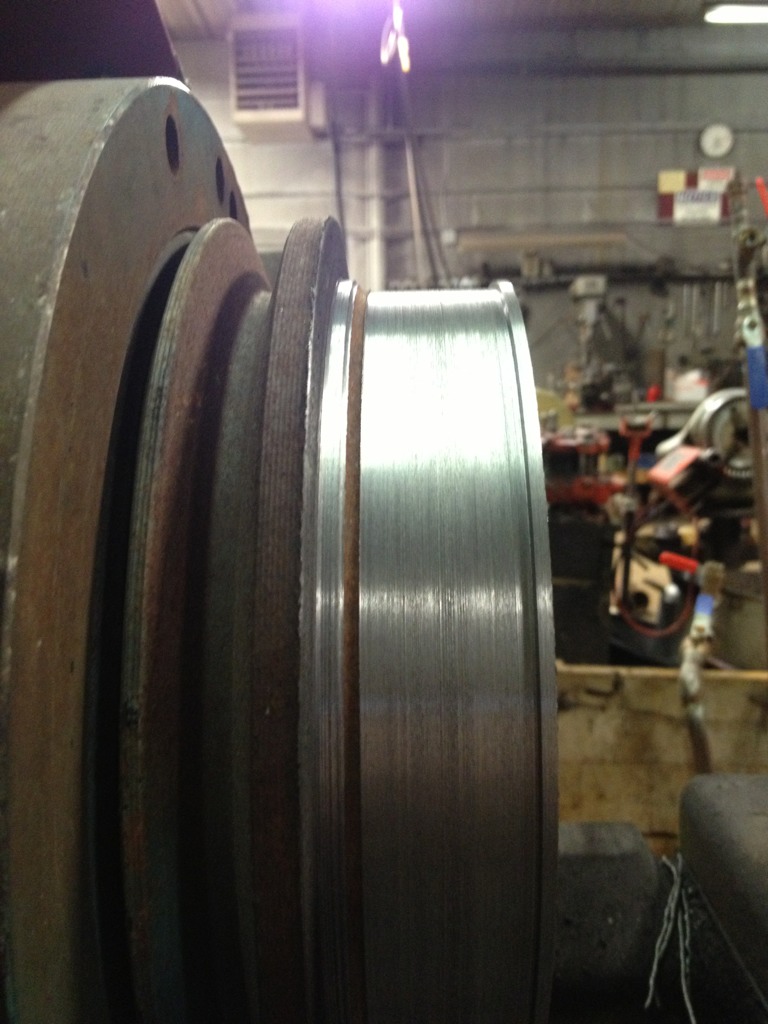

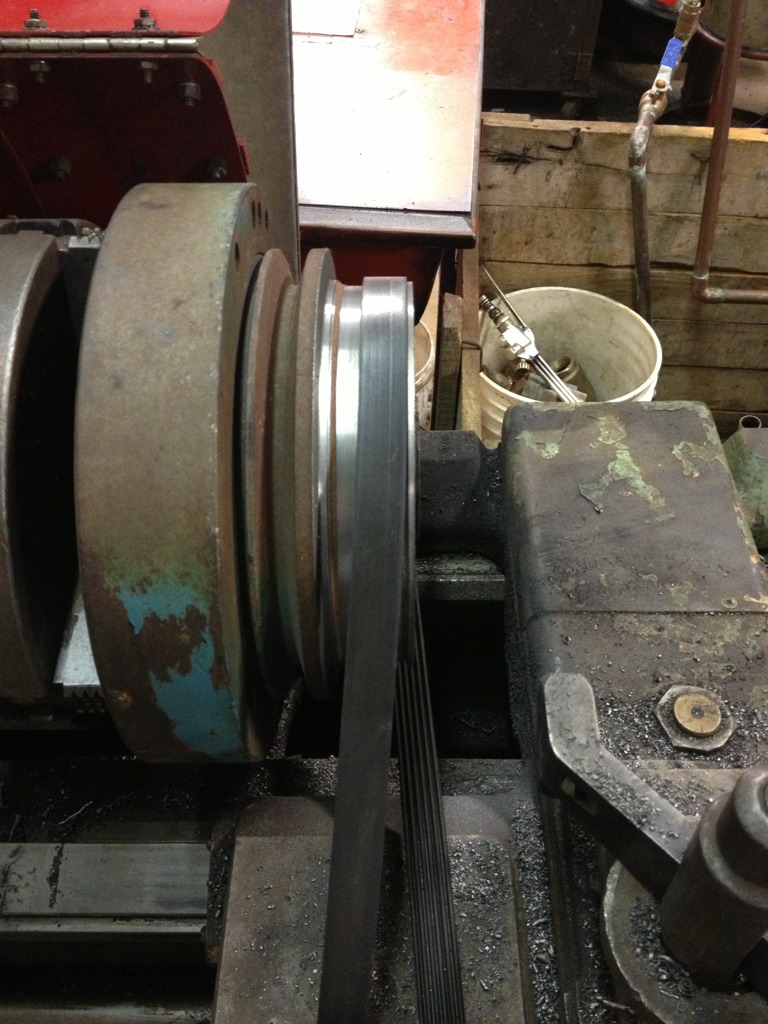

Balancer is done and turned out well! This is set up for a 6 rib belt, but can do it or any number ribbed belt! Not bad for free handing/eyeballing the whole thing!






mandkole

Active member
Joined
Jan 14, 2012
Messages
2,303
Reaction score
2
Location
Northwest

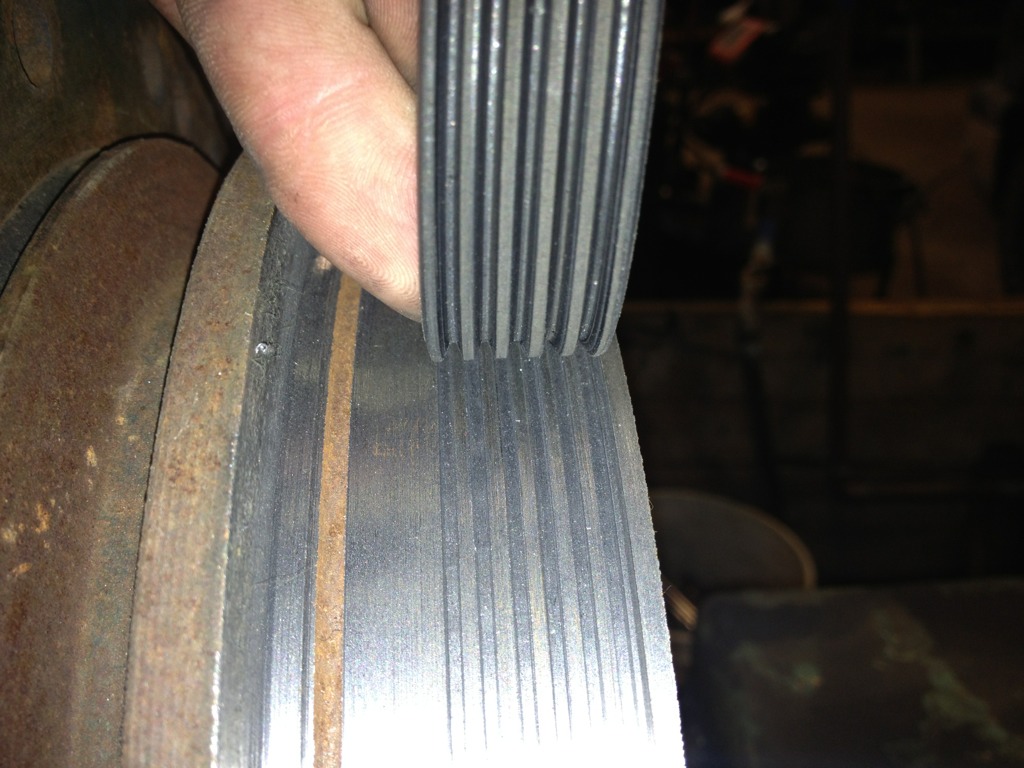

Good luck, but you can't eyeball pulley groove profiles. Just using a simple tracking groove that contacts the belt base of the rib, the belt will slip-- I guarantee it. To carry load, Micro V belts need an optimized groove contact surface area or tons of tension. Ive learned from my 25 years in this business, there is a lot of science in the belt/pulley interface. (this is our accessory drive on the MX 13L in the avatar picture.)

My suggestion is to find a machine shop that has SAE specifications and can cut 'K' section belt grooves, or find a balancer that is already done.

I may be able to find some drawings in the next day or so if it would be helpful.
