4 link suspension

lusklxix · Jul 10, 2012

I've looked at quite a few of the 3 and 4 link kits that are available(OUO,PMF,RCD,and Top Gun Customs). I personally like the look of the Top Gun Customs arms the best http://www.topguncustomz.com/p-8803-05-10-ford-super-duty-f250f350-4x4-4-6-4-link-upgrade-black.aspx but has anybody tried them before? I'm also open to hearing from people with any of the other kits I've mentioned. Thanks -Kevin

White_monster · Jul 10, 2012

I'm loving my RCD kit. The ride is way better and zero bump steer due to caster staying the same through the suspension travel.

O2ShootTheJ · Jul 10, 2012

top gun customz has top quality stuff, and those do look sweet! No personal experience w/ it though

bigrpowr · Jul 10, 2012

I just got my second set of ouo Ala's , goddamn they are sweet. Ride is so nice and no hop no matter what I do. Steering seems a lot tighter as well.

nickg3130 · Jul 10, 2012

I know on their website it says 4" to 6" but do you guys think that top gun customs kit will fit a truck with 2.5" leveling kit?

MINK · Jul 11, 2012

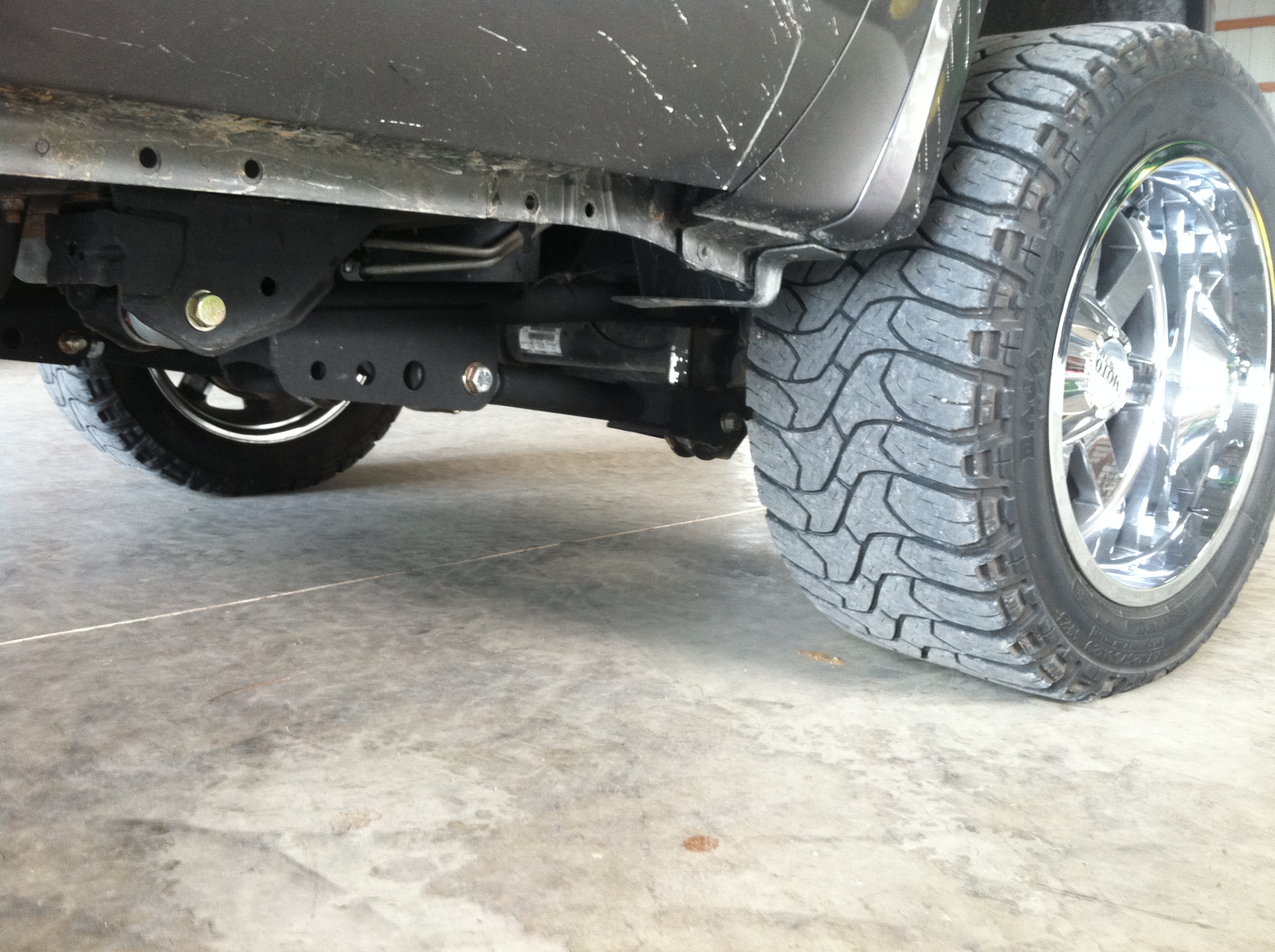

I run a PMF 3-link, so far so good but I havnt had it on the pulling track yet.

nickg3130 · Jul 11, 2012

MINK said:
I run a PMF 3-link, so far so good but I havnt had it on the pulling track yet.

That looks good mink. How's it ride compared to stock?

MINK · Jul 11, 2012

nickg3130 said:
That looks good mink. How's it ride compared to stock?

Better forsure, bumpsteer was always an issue but not anymore - took allot of the "bounce" out of the ride. I am running a 2" leveling kit and stock shocks right now. I'm pleased with them for there street manners alone although I bought them in hopes of not having a issue when I go to sled pull it.

Smokyred · Jul 11, 2012

I bought the RCD 4 link kit. Now if I had some time to put it on I could tell you how I like it. It does look pretty good sitting on my shelf though!

Dave

CAT35niner · Jul 11, 2012

I have a RCD 4 link. I love the looks and ride. No more bump steer which was said by shane. No complaints so far.

gman1 · Jul 11, 2012

Im thinking about giving these a try:
http://www.8lugtruckgear.com/Ford-Suspension/4-Link-Upgrades/Pure-Performance-Ford-4-Link-Upgrade-2-4-Inch-p656.html

Pizza pig · Jul 11, 2012

are there any pros and cons vs 3 link and a 4 link setup?

Layson · Jul 11, 2012

pizza pig said:
are there any pros and cons vs 3 link and a 4 link setup?

Your steering on your front axle was designed around a radius arm setup. So that is the way I would go. I would stick with One Up Offroad ALA's. No bumpsteer...

Also, OUO are offset so you actually will get a tighter turning radius over stock.

TXGLASSMAN · Jul 11, 2012

I'm running the icon 4 link set up with my 4.5" lift and love it. It drives and turns way better over stock

Crack85 · Jul 11, 2012

gman1 said:
Im thinking about giving these a try:
http://www.8lugtruckgear.com/Ford-Suspension/4-Link-Upgrades/Pure-Performance-Ford-4-Link-Upgrade-2-4-Inch-p656.html

Buddy of mine runs these...top notch.

Pizza pig · Jul 11, 2012

Layson said:
Your steering on your front axle was designed around a radius arm setup. So that is the way I would go. I would stick with One Up Offroad ALA's. No bumpsteer...

Also, OUO are offset so you actually will get a tighter turning radius over stock.

im not exactly following, are you saying the 3 link is better off tha n a 4 link setup? Im asking what the difference is between 3 link and 4 link. I know how it works, but which works better than the other, if at all.

Thanks :fordoval:

lusklxix · Jul 11, 2012

I too am wondering what the benefits might be over a 3 or 4 link setup. I know when it comes to offroading a 4 link is preferred. I dont plan on doing anything other than driving my truck as a daily driver and the possibility of a trip down the track.

Layson · Jul 12, 2012

pizza pig said:
im not exactly following, are you saying the 3 link is better off tha n a 4 link setup? Im asking what the difference is between 3 link and 4 link. I know how it works, but which works better than the other, if at all.

Thanks :fordoval:

Not trying to start a battle here but here are my thoughts. Some don't agree but here you go.

1) The OEM steering is matched to a 3-link not a 4-link. If you put a 4-link on your truck you will probably get bump steer and you will feel it it in the steering wheel. It will also add additional stress on your steering box, drag link, and track rod as well as your ball joints. It does the same thing as changing a pitman arm and not changing the track rod bracket.

2) The rubber bushings in the axle are not designed to twist like the 4-link needs them to, so the bolts are going to work loose or it will tear up the bushings. Those big rubber bushings don't magically turn into uni-balls. They were not built to be used like that.

3) The 3-link is part of a sway bar system and putting a 4-link on a truck that came with a 3-link will require a bigger sway bar because there will be more body roll.

4) An item that may not be a large factor but still should be considered is at full suspension droop. The U-joint is at more of an angle on a 4-link and could bind up and cause a drive shaft or t-case failure.
