I just got an egr delete kit and before I go ahead and install I had questions about a thread I saw somewhere about a tube or sensor holding water and freezing in cold weather. Once frozen it caused the turbos to over boost. Sounded like this occurs only after the delete is installed. If this is true is there any preventative measures I can take while I am doing the install?
6.4 egr delete - tube freezing?
- Thread starter TjMiller
- Start date
RedRice589
New member
That would be the EBP (exhaust back pressure sensor and tube. Totally different thing. Don't worry that's a simple fix if/when it does happen. I am lucky enough to not have to deal with it being in Florida others will chime in and explain better.
Powerstroke_fan
Member
Hey see you got the kit. Hope it treats you well. Good luck with the install.
Powerstroke Man 6.4
Active member
- Joined
- Jan 10, 2012
- Messages
- 4,037
- Reaction score
- 3
I think the tube their talking about is the EBP (exhaust back pressure) tube
Edit
they beat me to it LOL
Fordtrucks
New member
- Joined
- Mar 9, 2013
- Messages
- 503
- Reaction score
- 0
If its such a simple fix then please tell me what that is? This supposed simple little problem blew the head gaskets right out of my truck.
Thanks- I got lucky that was a good deal.- ready to get this thing on so I can sleep at night again:lame: Just want to do it once the right way.
Powerstroke_fan
Member
glad your happy with it
AKpowerstroke
New member
- Joined
- Sep 8, 2011
- Messages
- 8
- Reaction score
- 0
Yes if you live in a cold are your EBP tube will freeze up and you will overboost if your not careful. A temporary fix if it does happen is to unplug the sensor which is located on the driver side near the HP turbo. The solution to the problem is to remove the old EGR pipe all the way to the up-pipes and install the EGR blocker plate right on the up-pipe behind the turbos. You will need to drill and tap the blocker plate and relocate the EBP tube and sensor onto the blocker plate. This was a PITA to do but I haven't had a problem since.
AKpowerstroke
New member
- Joined
- Sep 8, 2011
- Messages
- 8
- Reaction score
- 0
Also when I did this fix, I found an inch of water had built up in my EGR piping that had been blocked off, which will freeze.

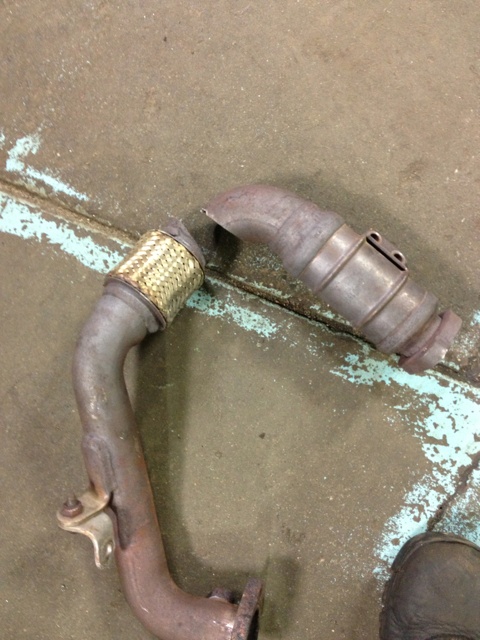

if you dont need the egr catalyst pipe on the truck for any emissions related reasons, delete the pipe, relocate the egr block off plate up top and mod it to accept the ebp sensor fitting and your golden. my ebp sensor used to freeze up, now since i relocated it up top life is good.... no freezing when your 6" from the hotside of the turbos lol
RedRice589
New member
I hadn't realized it caused the head gaskets to blow.... Jesus.... As far as I was concerned you could always tell because it would run like absolute crap. I overspend my turbos several times with no issues to heads. No reason to get wound up about it. We don't have the same climates so "freezing" isn't a factor.
imp:
HD-tech-NH
Member
I hadn't realized it caused the head gaskets to blow.... Jesus.... As far as I was concerned you could always tell because it would run like absolute crap. I overspend my turbos several times with no issues to heads. No reason to get wound up about it. We don't have the same climates so "freezing" isn't a factor.
He said in another thread that he had head problems before this EBP sensor issue. If you monitor gauges you would catch this in no time.
RedRice589
New member
THANK YOU!!!! :toast:
powerstroked08
Active member
forcefed6.4ford
New member
Easiest fix is buy a winter front.
BFT
Moderator
How?
forcefed6.4ford
New member
I cut two holes in the front to allow some air flow. I can tow up to 30F without getting things too warm and it blocks enough air to prevent freezing when it gets cold.
