build your own modified intake manifold

[Redneck6.0L]

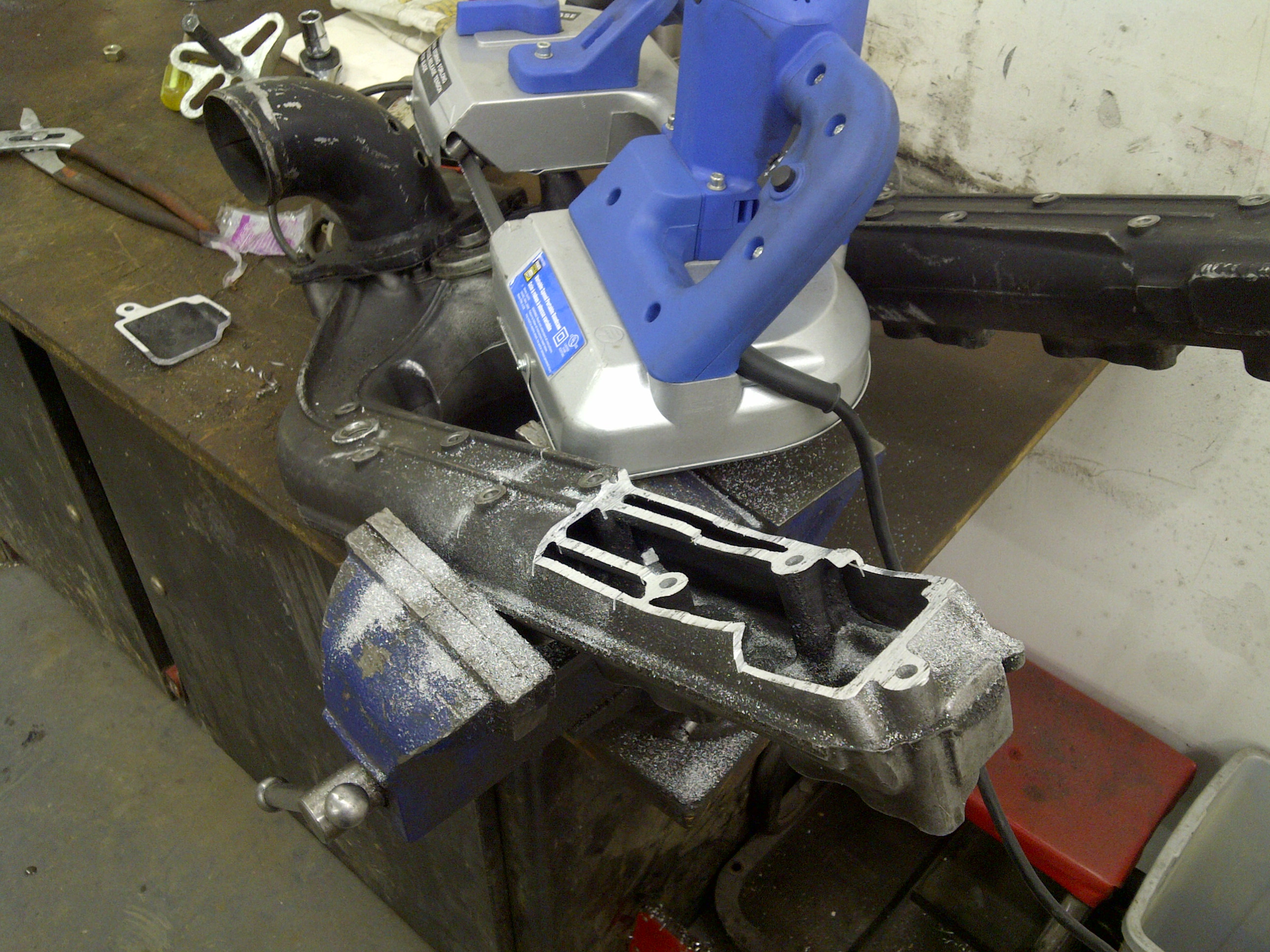

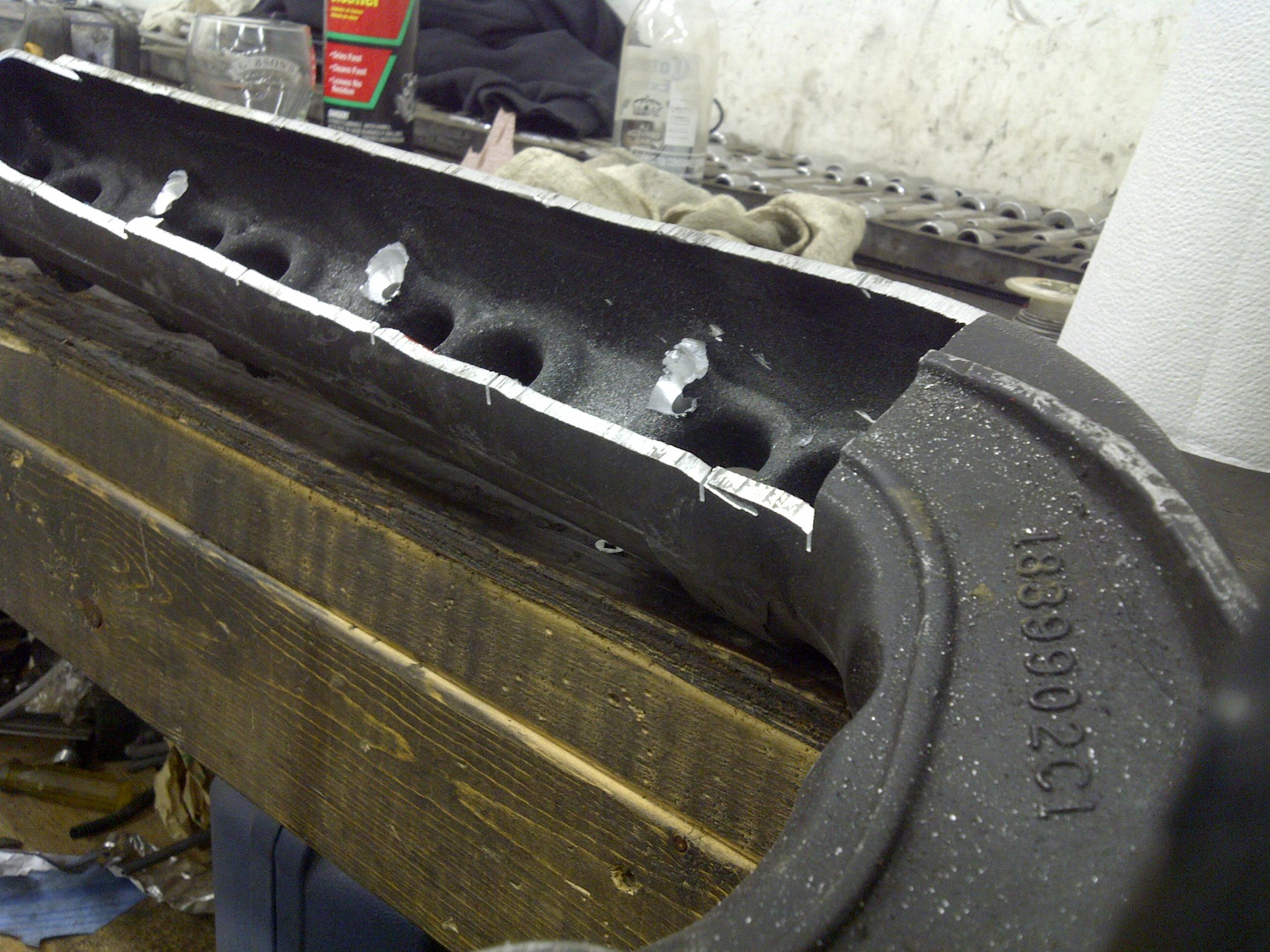

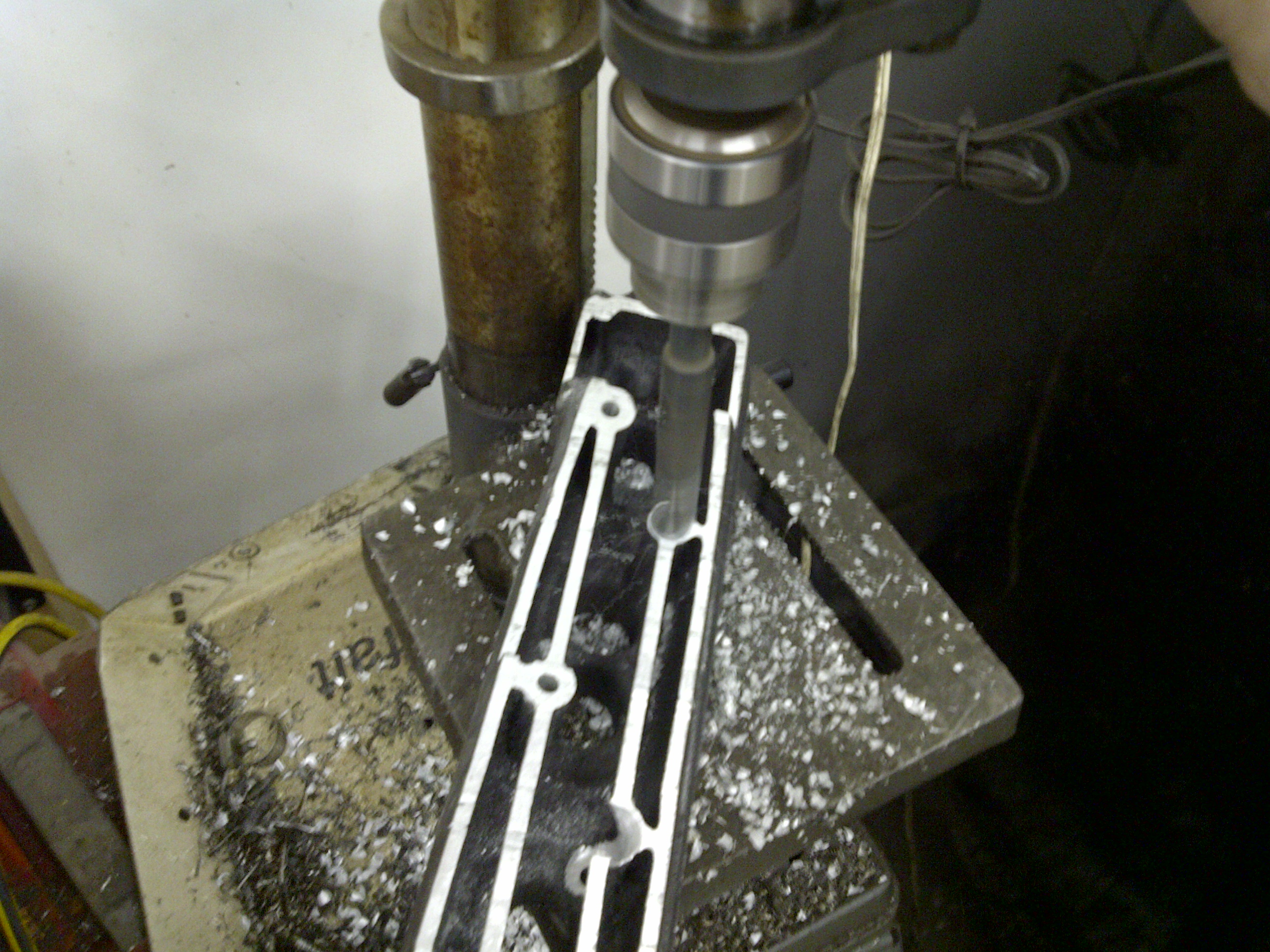

If there were companies doing this, I wouldn't post this thread but seeing how no company besides gogo has stepped up(and who can afford over $1000 for a intake) I cut into one this morning. My total time into this intake so far is 30mins. All I used was a $69.95 noname portable band saw to cut the top off, then a drill press to drill out the dowls. Then a grinder to clean up the shape edges inside.

Now I need to go buy some 1/4 aluminum plate, cut to size and have tyler weld the tops on. I don't see were or why a person needs a expensive milling machine, of expensive bits.



[kevin]

Are you ditching the steel one you made?



[PTSUPERD]

Looks like fun Shawn. To clarify Steve @ Absolute is offering one too now. He should have my core via UPS today.



[Redneck6.0L]

Did not know that. You guys need to advertise that stuff.

7am after a 14hr night shift, several beer and its amazing what dumb crap you talk yourself into. Glad I didLOL

Tyler already placed his order for two to be cut, and the deal is he welds them. More beer, playing with power tools, 8am God life is good



[smokinstroker]

Shawn how are you dealing the bolts on the alluminum plate? Rtv, crush washer?



[windrunner408]

Looks good man.



[PTSUPERD]

Did not know that. You guys need to advertise that stuff.

7am after a 14hr night shift, several beer and its amazing what dumb crap you talk yourself into. Glad I didLOL

Tyler already placed his order for two to be cut, and the deal is he welds them. More beer, playing with power tools, 8am God life is good

LOL. Good times bro. Good luck with it. You have bigger kajones than me....



[faster6.0]

ellerton you wild but I like it



[Redneck6.0L]

Ur local NAPA store will carry copper washers the right size, may have to trim the bolts depending on how much you cut off the top, but that's easy enough



[smokinstroker]

Sounds just like what I came up with, the rtv did not like to hold.

Looks great like usual, thanks for the help shawn



[Hotrodtractor]

Glad to see someone writing this up a DIY. I've never done one, but I didn't imagine that it was all that difficult. I do have a mill though so it would be slightly easier.



[fordboy11]

Nice little write up. Looks good hope she works out like a champ.



[AZ Blacksmoke]

The only way to work on things is with a little beer! Looks good



[wetnsloppy4x]

Great post Shawn. Your pics show just how restrictive these intakes really are. That's an excellent visual for anyone who might of been on doubt about them.

Keep up the good work!



[Derek@Vision Diesel]

want to start doing a few of these? Ill send you mine haha



[Powerstroked162]

Did not know that. You guys need to advertise that stuff.

Yeah, I've been on the fence about posting up. I wanted to have my ducks all in a row before I went public. If all goes well, my machinist will have one done for me in a week or so. I like the DIY project Shawn, but for those guys who are looking to maximize air flow, with minimal runner restriction, I feel that some other steps should be taken with a CNC inorder for that to happen. Very cool of you to help these guys out with a budget in mind though.



[PTSUPERD]

Thanks again Steve. Im sure it's gonna be a quality piece.



[MUDSTROKIN']

Corona? Come on man...

Jk nice work, a friend and I will be trying this soon



[Goose]

Looks good Shawn. I was going to try that same concept if I could find a manifold cheaply.



[windrunner408]

Great post Shawn. Your pics show just how restrictive these intakes really are. That's an excellent visual for anyone who might of been on doubt about them.

Yea the flow paths definitley dont promote easy flow of the air.
