Something I've never seen before 06 6.0

[webb06]

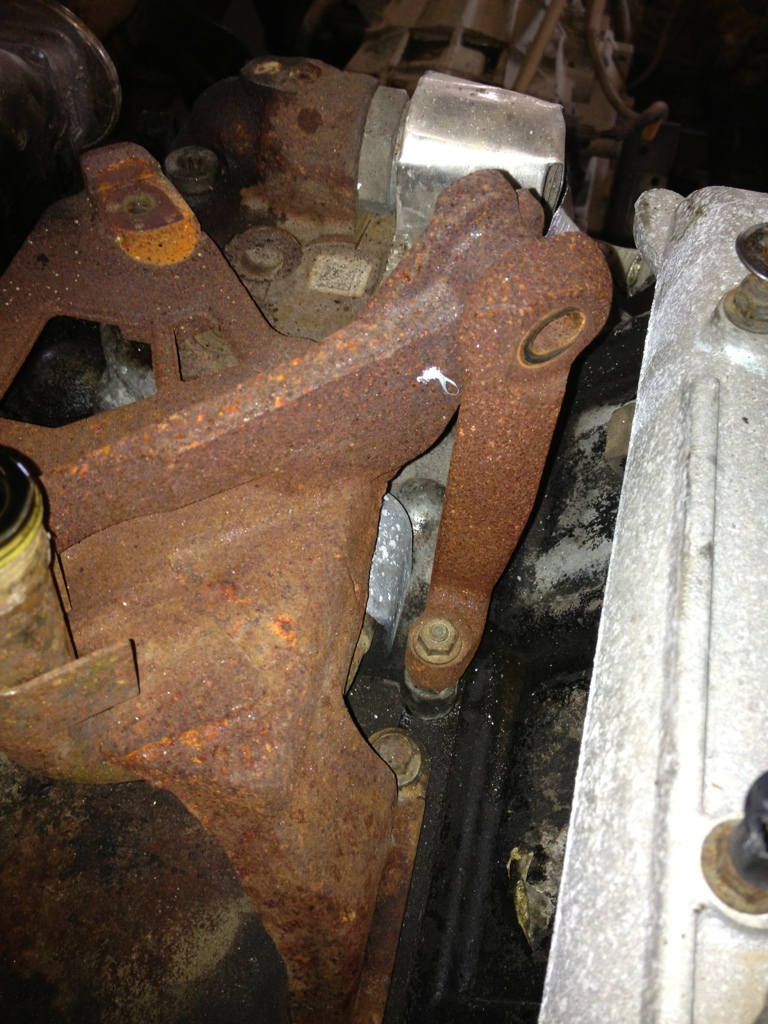

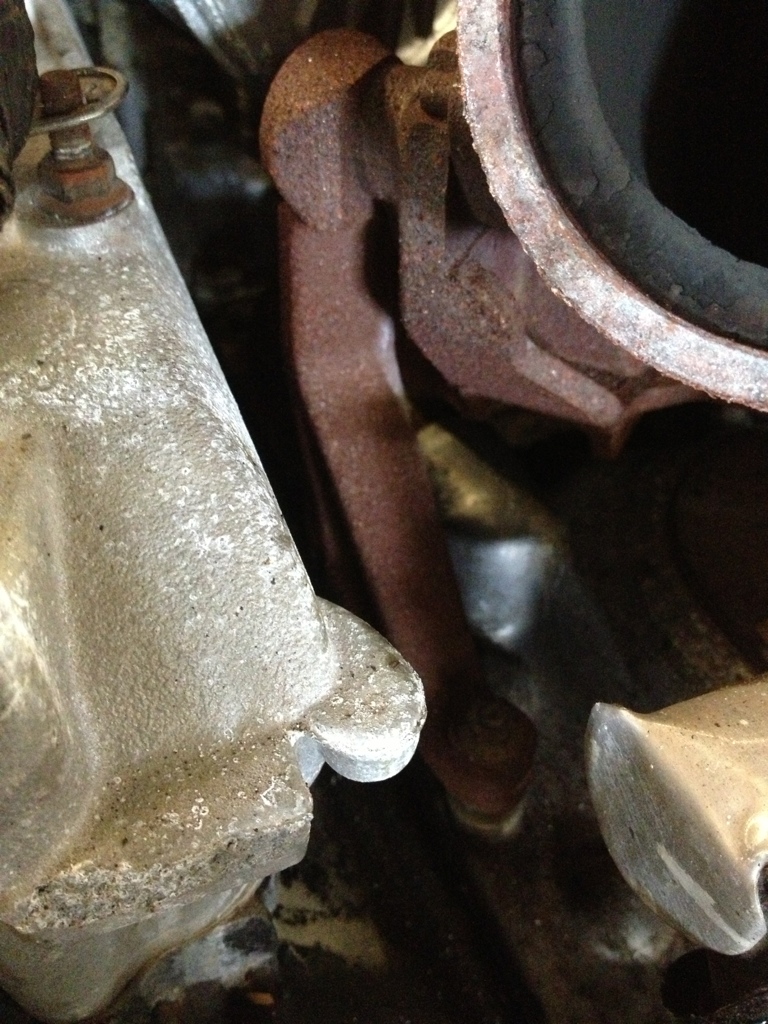

Extra little bracket on the turbo pedistal. Bolts to the HPOP cover bolts and to the drivers side turbo mounting bolt






Anybody else seen this?



[dzldoctor]

Was some silly tsb a long while back for a resonance from the turbo area. I would just leave it off.



[Meniacal_Mark]

I like how they slapped that sticker over top of the original lol



[webb06]

Was some silly tsb a long while back for a resonance from the turbo area. I would just leave it off.

Planned on it. Just curious what it was. Worked on MANY 6.0's and never ever seen one

I like how they slapped that sticker over top of the original lol

Ya I'm not sure what's up with that business



[HeavyAssault]

That's pretty rare for sure. I'm with the above posts....something fishy for sure.



[scparrish]

That's real strange, never seen that before.



[GFDtech]

Yes it was a TSB for a resonance that later switch to replacing the whole pedestal because they would get weak and allow the turbo to vibrate causing a resonance in the exhaust. I'd put it back on ! Because a come back for a resonance after the repair doesn't look good, but that's up to you bro.


Sent from my iPhone using Tapatalk



[Trqmnstr]

So thats what is the cause of the annoying vibration noise i hear at 1500 rpm. I thoght maybe the down pipe was rubbing slightly on something.

Is it anything to worry about or no big deal?



[GFDtech]

Maybe ! What year is your truck ? I would check for loose or missing turbo bolts. 04.5-05 6.0s have more of a problem with it because of the pedestal design. When Ford switch the location of the rear bolt from horizontal to vertical it weakened to pedestal design. Here is a pic of an 04.5 on the left and a 06 on the right.

05.5-07 where still covered in the TSB I believe, just bc resonance could still happen even in the later pedestal. Ford sales a updated pedestal. Noise is the only thing to worry about on this.


Sent from my iPhone using Tapatalk



[Trqmnstr]

Its an 06, ill stop at a dealer and ask about the tsb when i get a chance.
Thx man!



[GFDtech]

Its TSB# 05-19-12


Sent from my iPhone using Tapatalk



[Mdub707]

Its an 06, ill stop at a dealer and ask about the tsb when i get a chance.
Thx man!

LOL good luck, I'd be shocked if anyone at the dealership had a clue what you were talking about.
