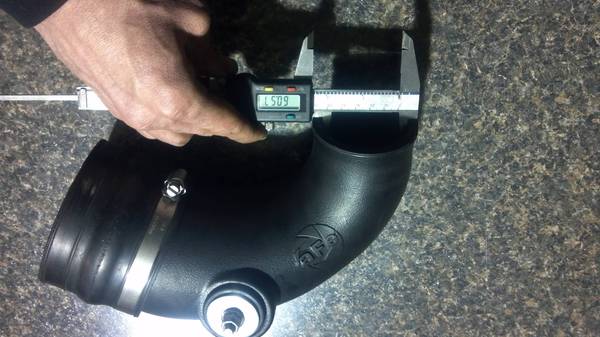

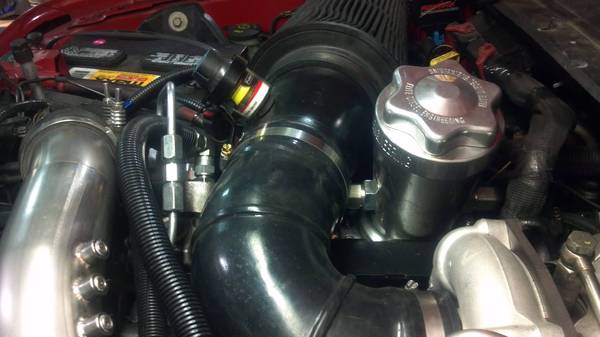

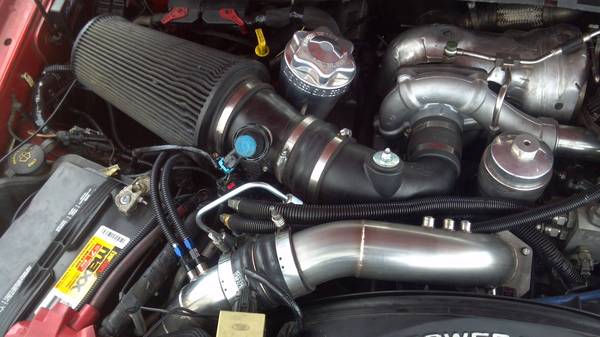

Below is a pic of the intake I've been running for all my turbo tests up until tonight
I should have thought of it before, but I never bothered to measure the ID of this elbow off the original AFE stage II intake since it was already "upgraded". This little guy is a restriction on a stock turbo, let alone, the 72.4 I'm running now. It was probably 63ish to begin with, but over time, with a tight hose clamp, I'm sure it shrunk a bit. I couldn't have changed it half way through the atmospheric turbo testing, or it would have skewed the data, but either way, I wish I figured it out sooner.
I had to go back to the dyno tonight for new VGT baseline runs that included the new elbow I'll be running from here on out. The filter minder has never even moved on me until tonight once the big elbow was installed. Now it's nearing the red zone.

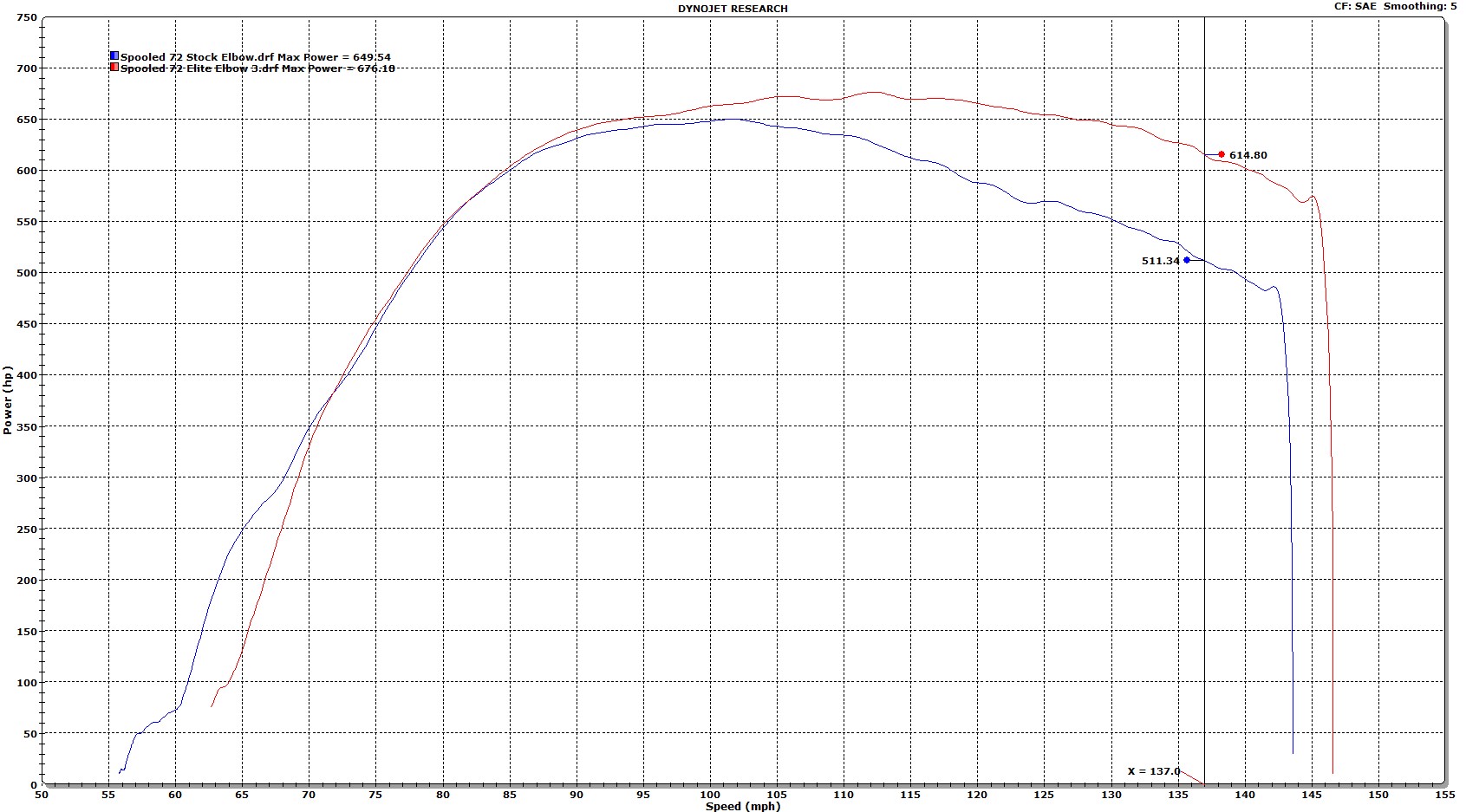

I also picked up roughly 30 horsepower, and 4-5 psi of boost on the atmospheric turbo alone, just by eliminating this restriction. Moral of the story: Just because your filter minder hasn't moved, doesn't mean you don't have an intake restriction worth worrying about. Mike can correct me if I'm wrong, but I believe the No Limit intake is offered with the elbow option. It has a reducer to fit the turbo. I suspect my results are atypically high, as I'm running with more fuel and air than the average guy, but still, to immediately pick up that kind of power validates the importance of having all the little things looked over.
I would encourage anyone running a larger than stock atmospheric turbo to get at least as good as the No Limit intake with the upgraded elbow, or an equivalent. While mine is technically not the No Limit brand, it is what the no limit is based off of, and functionally the same, just less pretty.
I should have thought of it before, but I never bothered to measure the ID of this elbow off the original AFE stage II intake since it was already "upgraded". This little guy is a restriction on a stock turbo, let alone, the 72.4 I'm running now. It was probably 63ish to begin with, but over time, with a tight hose clamp, I'm sure it shrunk a bit. I couldn't have changed it half way through the atmospheric turbo testing, or it would have skewed the data, but either way, I wish I figured it out sooner.
I had to go back to the dyno tonight for new VGT baseline runs that included the new elbow I'll be running from here on out. The filter minder has never even moved on me until tonight once the big elbow was installed. Now it's nearing the red zone.
I also picked up roughly 30 horsepower, and 4-5 psi of boost on the atmospheric turbo alone, just by eliminating this restriction. Moral of the story: Just because your filter minder hasn't moved, doesn't mean you don't have an intake restriction worth worrying about. Mike can correct me if I'm wrong, but I believe the No Limit intake is offered with the elbow option. It has a reducer to fit the turbo. I suspect my results are atypically high, as I'm running with more fuel and air than the average guy, but still, to immediately pick up that kind of power validates the importance of having all the little things looked over.
I would encourage anyone running a larger than stock atmospheric turbo to get at least as good as the No Limit intake with the upgraded elbow, or an equivalent. While mine is technically not the No Limit brand, it is what the no limit is based off of, and functionally the same, just less pretty.
