Time for a little update. Finally got a Friday open enough to where I could get this in at about 4 in the afternoon. Worked on it until 830 or so and got the wrecked stripped down to the frame and everything that won't be needed was unbolted and thrown in a pile.

Then pushed the frame outside and power washed all the mud and grime off of it.

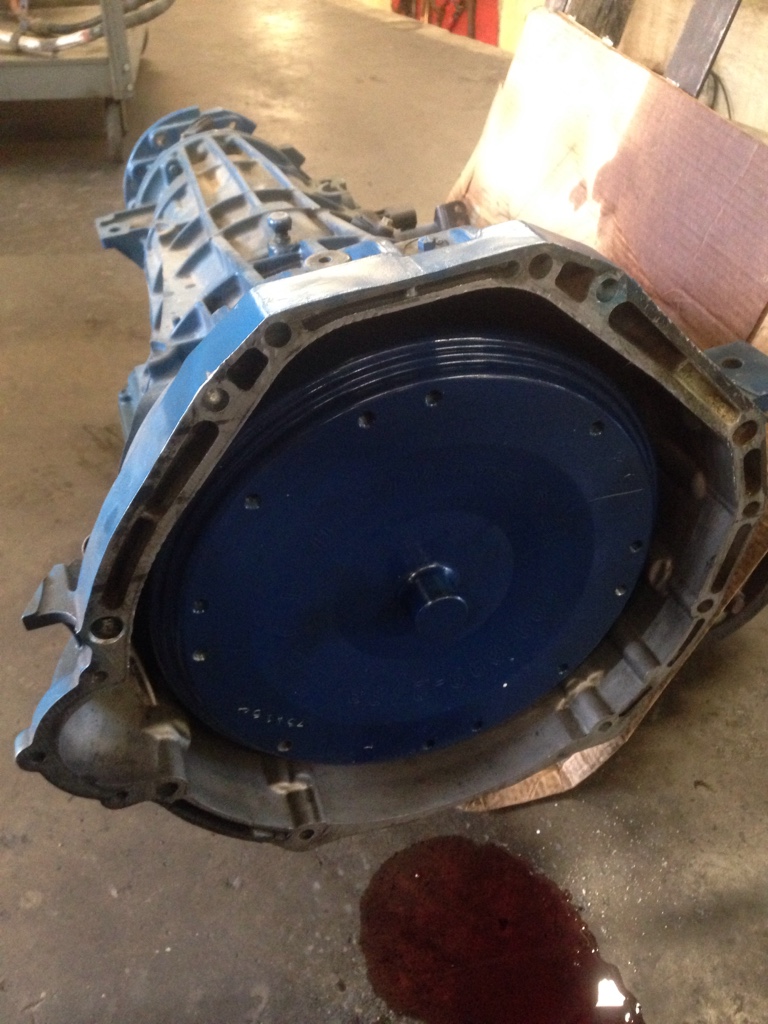

Got the engine out of the corner and put the converter in the trans and got them bolted together.

Then got it all sat in the frame. Went in much easier than I expected it would.

The easy part has been done. Now onto building a fuel system and getting everything bolted on and into place.

Sent from my iPhone using Tapatalk

powerstroked08 · May 8, 2015

Chop chop!

opcorn:

HOOV3R · May 8, 2015

webb06 said:
not much has happened with this project lately. dropped the cab on it and shoved it in the corner because we needed the lift to work on a customers truck.

had someone local interested in the built engine but I guess he's no longer interested. hopefully i can have it running by the end of the month if all goes smoothly.

I sold the airdog and bowl delete. going to use an a1000 pump. where can i get the filter heads for the fuel filters?

Just in case you are still looking for bases.

-10 orb inlet and outlet. I have the filter numbers around here somewhere.

webb06 · May 8, 2015

HOOV3R said:
Just in case you are still looking for bases.

-10 orb inlet and outlet. I have the filter numbers around here somewhere.

Awesome. How much are the bases?

Sent from my iPhone using Tapatalk

HOOV3R · May 8, 2015

webb06 said:
Awesome. How much are the bases?

Sent from my iPhone using Tapatalk

$40 each I think.

175-2949 primary
1R-0750 secondary

Pictures were on my old phone, had to steal one off of my IG.

Fast-6.0 · May 9, 2015

What is the micron rating on the primary filter?

HOOV3R · May 9, 2015

Fast-6.0 said:
What is the micron rating on the primary filter?

Edit, was thinking secondary.

I'll check real quick.

3 micron.

BeauxPete · May 10, 2015

Still looks dirty. Pull the motor out and wash it one more time. Lol. Glad to see you making head way with this. Can't wait to see what it does when you finish.

Sent from my iPhone using Tapatalk

CT9AIX · May 10, 2015

Looking good bud! Glad to see you got some time to start into this bad boy

webb06 · May 10, 2015

Question of the day.....I'll be putting my 4 link back on this truck. Is there any adjustment on them that I need to worry about? When I put them on the other truck I just bolted everything on and went with it.

Sent from my iPhone using Tapatalk

webb06 · May 11, 2015

I'm going to attempt using the electronic transfer case off the wrecked truck, who knows the best way to wire it in. Does it just require a power and ground and use a toggle switch?

Sent from my iPhone using Tapatalk

Morgan@Midwest Diesel & Auto · May 11, 2015

Weld a shifter to it.... The gem senses t-case lever position and turns the motor on and off to select the right position. Toggle switches will not work.

Sent from my iPhone using Tapatalk

powerstroked08 · May 11, 2015

I would think it would be a little more in depth. Just because it has 4 positions. 2hi 4hi N 4low. I would think that a straight toggle switch would make the motor just keep turning until it couldn't turn anymore.

webb06 · May 11, 2015

Morgan@Midwest Diesel & Auto said:
Weld a shifter to it.... The gem senses t-case lever position and turns the motor on and off to select the right position. Toggle switches will not work.

Sent from my iPhone using Tapatalk

So I'll have to use a manual case?

powerstroked08 said:
I would think it would be a little more in depth. Just because it has 4 positions. 2hi 4hi N 4low. I would think that a straight toggle switch would make the motor just keep turning until it couldn't turn anymore.

I'm afraid of that....

Sent from my iPhone using Tapatalk

powerstroked08 · May 11, 2015

I would just rig up a shift lever, and either weld it like morgan said or find a way to drill and tap the little stub and bolt a lever to it. But the stub isn't very big so it would be a small bolt.

webb06 · May 11, 2015

powerstroked08 said:
I would just rig up a shift lever, and either weld it like morgan said or find a way to drill and tap the little stub and bolt a lever to it. But the stub isn't very big so it would be a small bolt.

So you're saying take the motor off of the electric shift tcase and I can weld something to the lever that changes from 2wd to 4wd?

Sent from my iPhone using Tapatalk

powerstroked08 · May 11, 2015

webb06 said:
So you're saying take the motor off of the electric shift tcase and I can weld something to the lever that changes from 2wd to 4wd?

Sent from my iPhone using Tapatalk

Yeah if you take the motor off, there is a little rectangular(rounded on the 2 ends) that sticks out and the gear inside the motor assembly slides over. Just use a crescent wrench to turn it or weld a lever on it.

powerstroked08 · May 11, 2015

Mine broke on my 06 and I had to take the motor off and switch it from 2hi to 4h with a small crescent wrench.

swinky · May 11, 2015

There's two relays under the hood that run it as well. I thought my motor was bad till I replaced the bad relay. I'd go manual for sure.

webb06 · May 11, 2015

powerstroked08 said:
Yeah if you take the motor off, there is a little rectangular(rounded on the 2 ends) that sticks out and the gear inside the motor assembly slides over. Just use a crescent wrench to turn it or weld a lever on it.

I'll have to check that out then.

Will the handle and lever assembly on a regular manual t case work on it?

Sent from my iPhone using Tapatalk
