What BOV you runnin?

phooker · Apr 2, 2013

Kind said:
I wouldn't say it's just a cool thing. It releases pressure backed up from chopping the throttle after being under high boost. That turbo bark is not good on the turbo.

I've seen an s475 run treated like a red headed stepchild for a whole drag season. Pulled it to build to motor and it was perfect shaft play wise. This truck had a TurboSmart BOV installed on it.

pog · Apr 2, 2013

White_monster said:
My bd bov has worked flawlessly since day one.

some of us arent as lucky! LOL

Fast-6.0 · Apr 2, 2013

The new BD units have a redesigned Tial Blow off valve.

madman1234509 · Apr 2, 2013

How recent? Tial does make quality stuff. But I've never personally looked closely at one of their kits and don't know what the main part that is failing is, whether it's the valve itself or the electronics.

I'm not saying the jgs valve will be perfect. Obv you'll have to clean the particulate filter on the drive pressure side once in a while, and there is always the possibility for leaks in the lines, but it may be a good option. I may try it after I build my truck.... but I'm hoping I can hear good reviews about it before then because it may be a while after picking up this Harley truck

Josh@DirtyDiesels · Apr 2, 2013

has anyone here actually ran this? I am really considering this soon. My 472 barks pretty bad

Fordtrucks · Apr 2, 2013

I see some replies where guys are talking about a blow off valve and a waste gate like there the same thing...? Elite told me to be very carefull when I let off the throttle under full boost with my 72mm if I don't have a BOV. Said the VGT won't bleed all that boost off fast enough and that's hard on the turbo wheels.

Pizza pig · Apr 2, 2013

Im doing a custom tal mechanical BOV on my 6.0 shortly, just need the time to get it done. Its been done plenty of times before, its nothing new. Ill be using the JGS filter as well.

B585Ford · Apr 2, 2013

Erikclaw said:
If a full mechanical works I would go that way. Had my own issues with the BD unit, I just made it inoperable. The solenoid can get moisture in it and or dirt and makes it blow off at any boost level.

It seems like most of the people who ran the BD said the same thing...it caused more problems than it was worth.

Edit: I didn't see WhiteMonster's response the first time. That is the only exception I know of.

blk350on20s · Apr 2, 2013

I've ran my bad BOV for over 6 years. Last week is the first time I have had an issue. Take the solenoid apart if it sticks open. 3 screws on top and 2 on the back. Its just a plunger that comes apart. I'll take mine back apart and take pics

blk350on20s · Apr 2, 2013

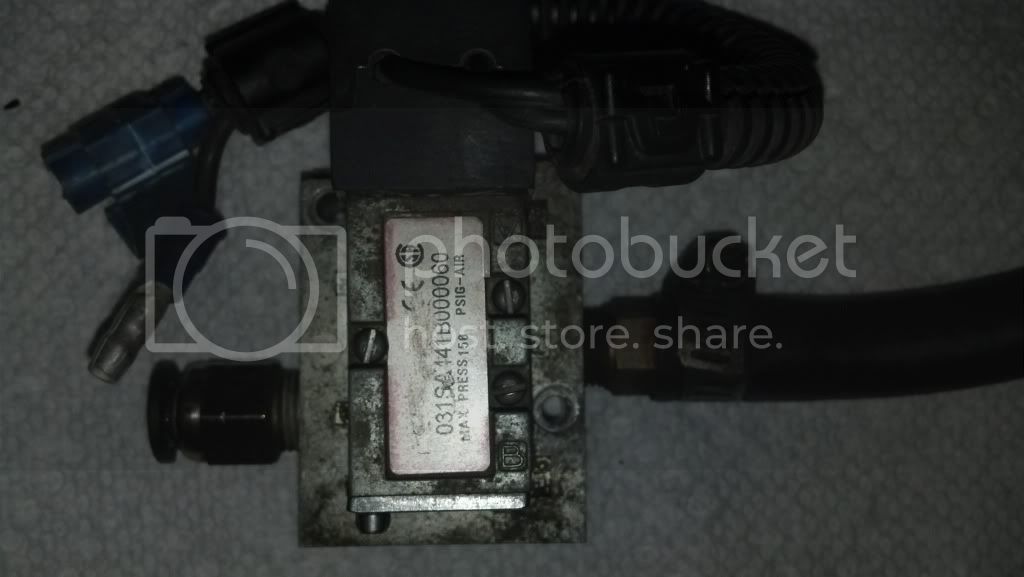

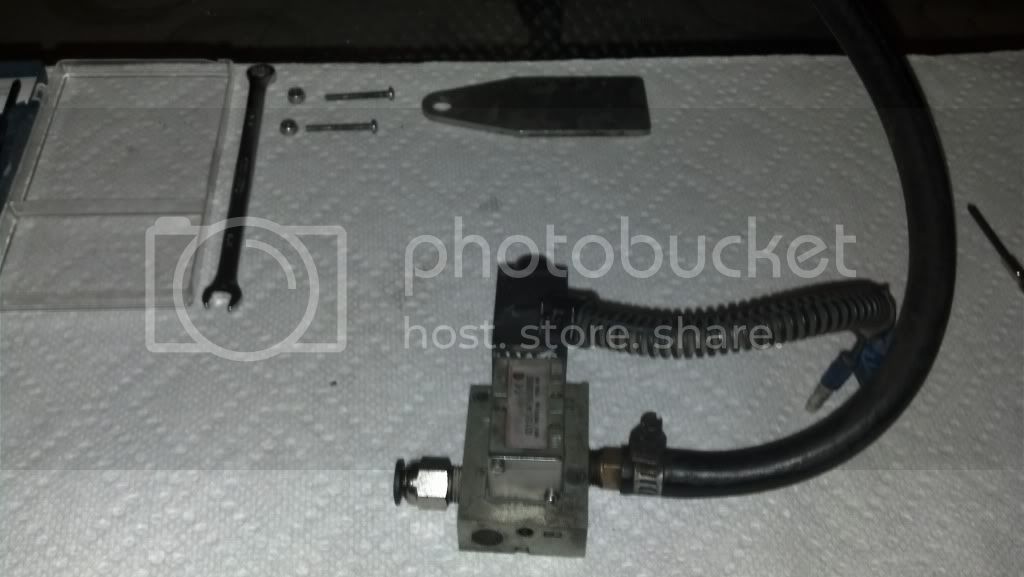

OK. Pull the solenoid off the truck and remove its mounting plate via the 2 bolts and nuts.

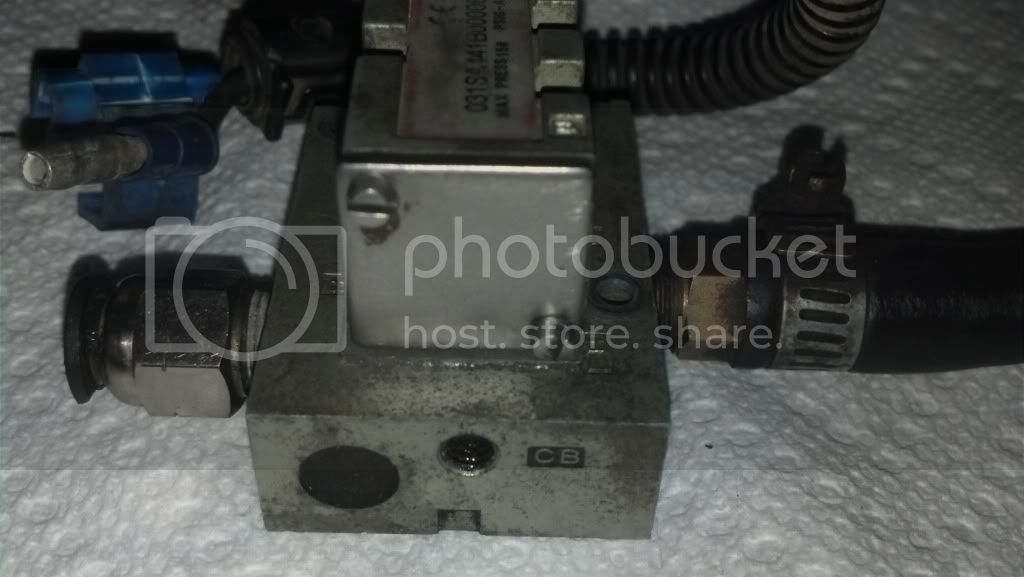

Now remove the 3 screws at the top. Can only be put on 1 way so don't worry about orientation.

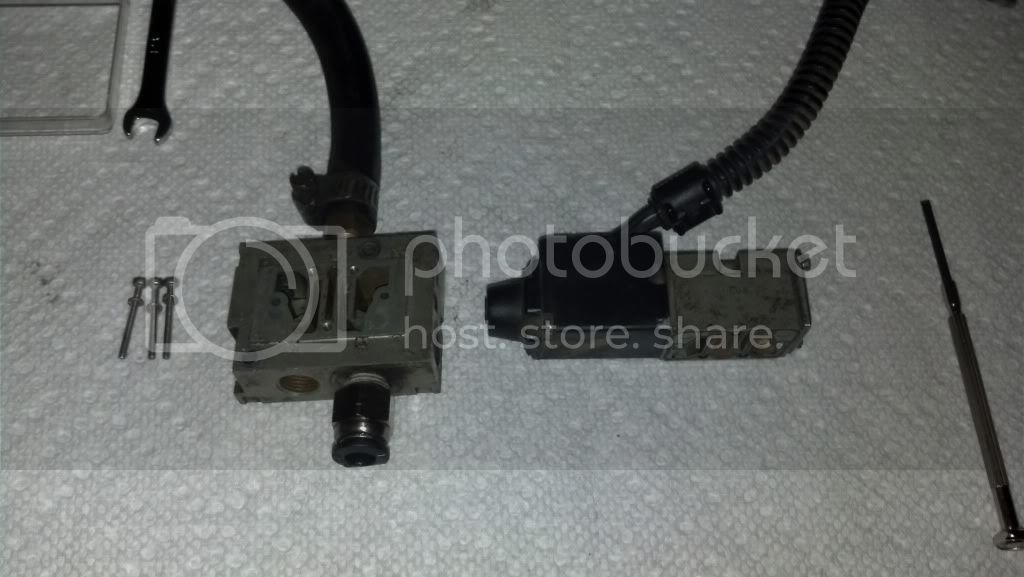

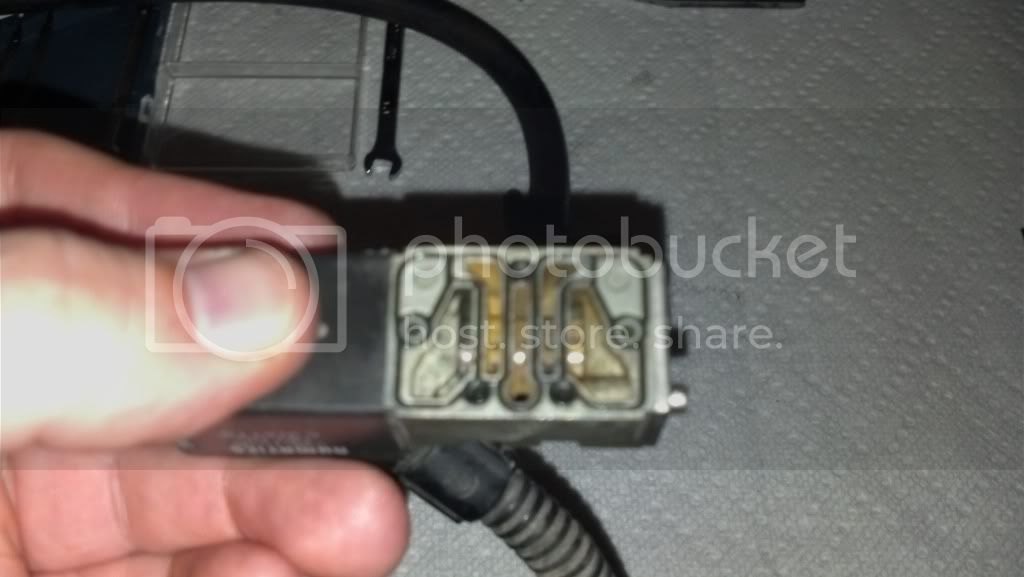

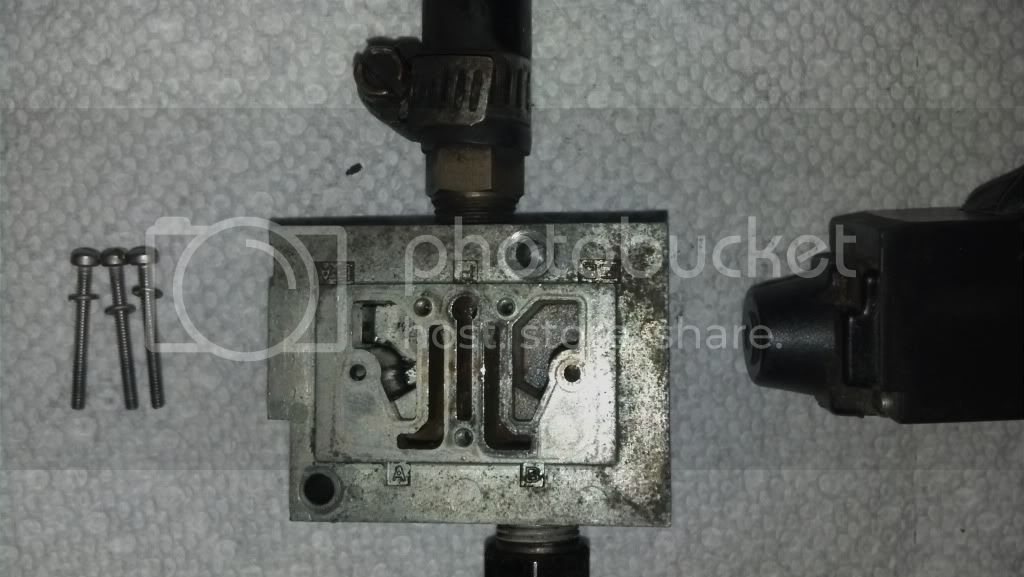

And apart

Now remove the 2 screws on the silver back plate. Careful there is a small spring behind the plate.

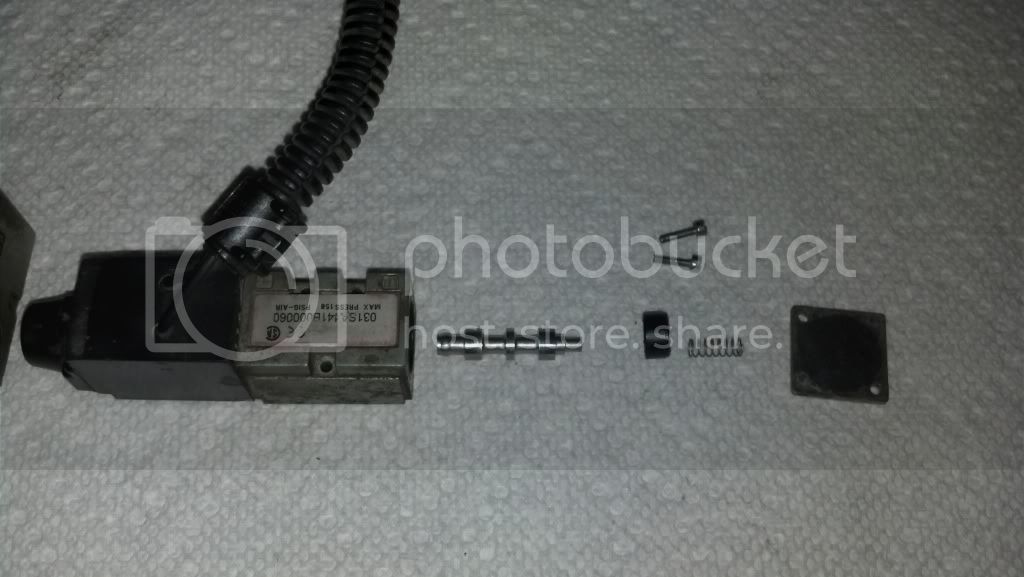

All apart in order.

Now just clean the plunger and its base. Basically boost is always flowing to the top of the gate. When you let off the plunger is slid over releasing the air to the bottom plate and away from the BOV allowing the boost to push up on the valve

Fordtrucks · Apr 2, 2013

Interesting. Kind of sucks to hear the bad report about the unit I was excited about and have on back order lol.

blk350on20s · Apr 2, 2013

Its due to condensation and CCV gunk. It has nothing to do electronically. Mine was from rust forming. Simple clean 6 years later and its like new

Fordtrucks · Apr 3, 2013

This is good to hear. If mine ever shows up I'll give it a try.

Fordtrucks · Apr 3, 2013

Well Elite just called again and told me BD has to find a new supplier for some of the parts they use to make there BOV and they have no idea when they will have some made and ready to ship. Soooo my order has been canceled and I'm back to needing to find a different valve. Please help

VanoFord · Apr 3, 2013

If the new BD's are using an updated Tial design, why not just go straight to a Tial? I was going to put one on my 4.6L when I had plans to turbo it, but just decided to get a truck w/ turbo's already on. buddy has ran Tial on his track cars for a long time and never an issue.
