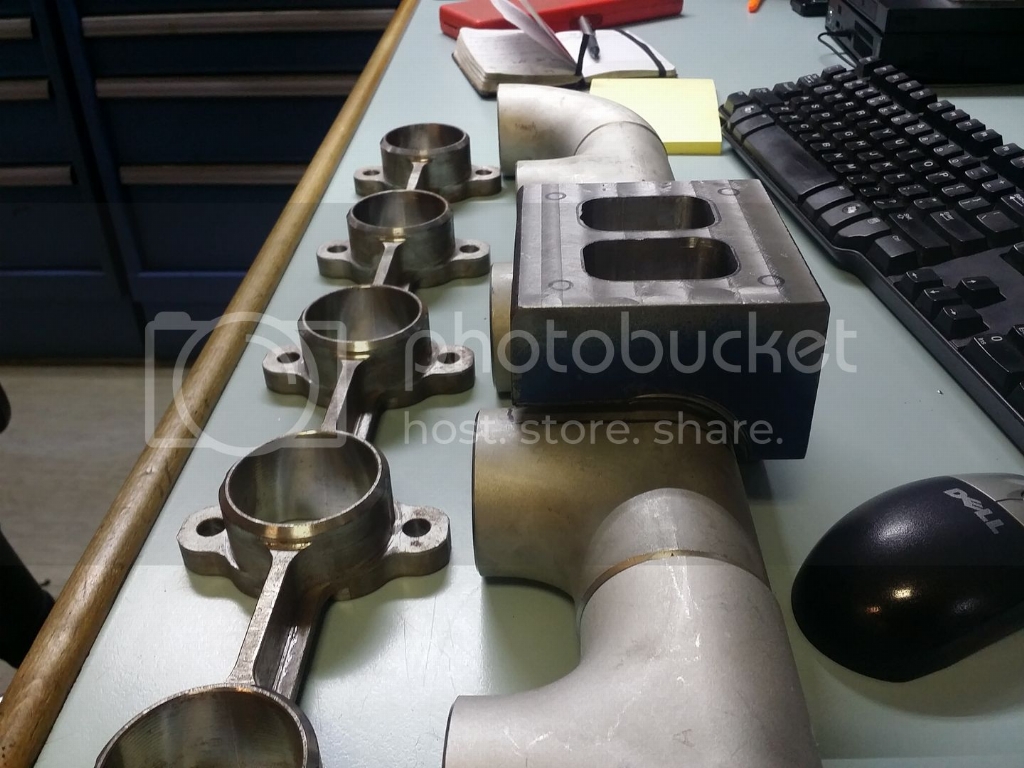

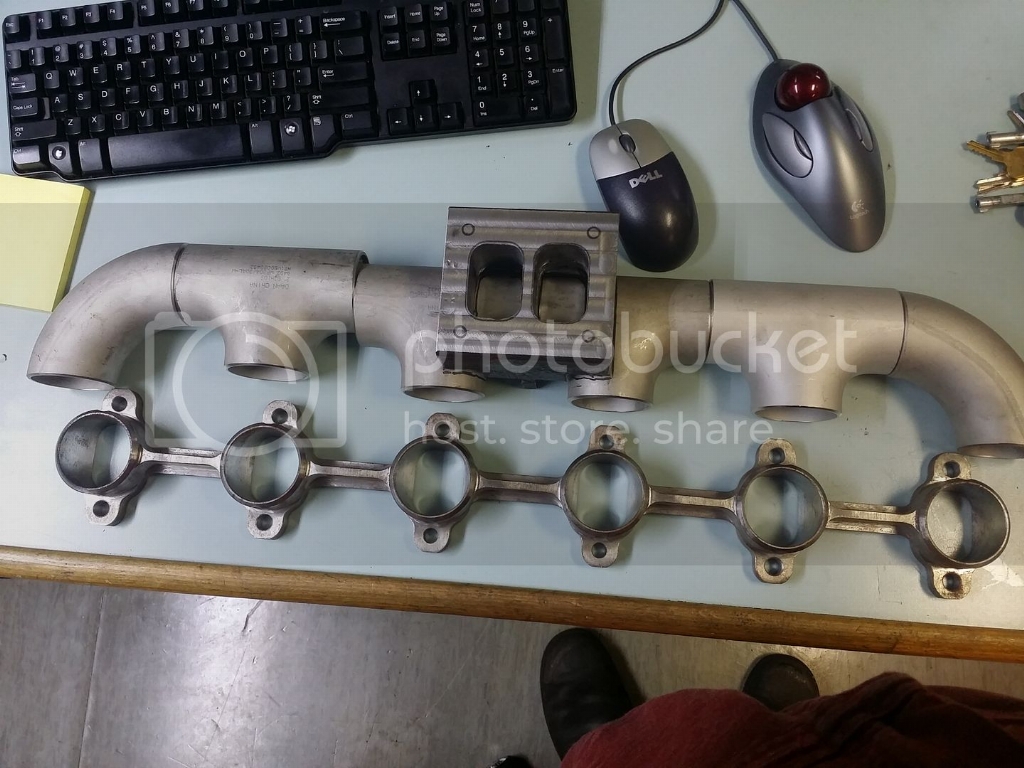

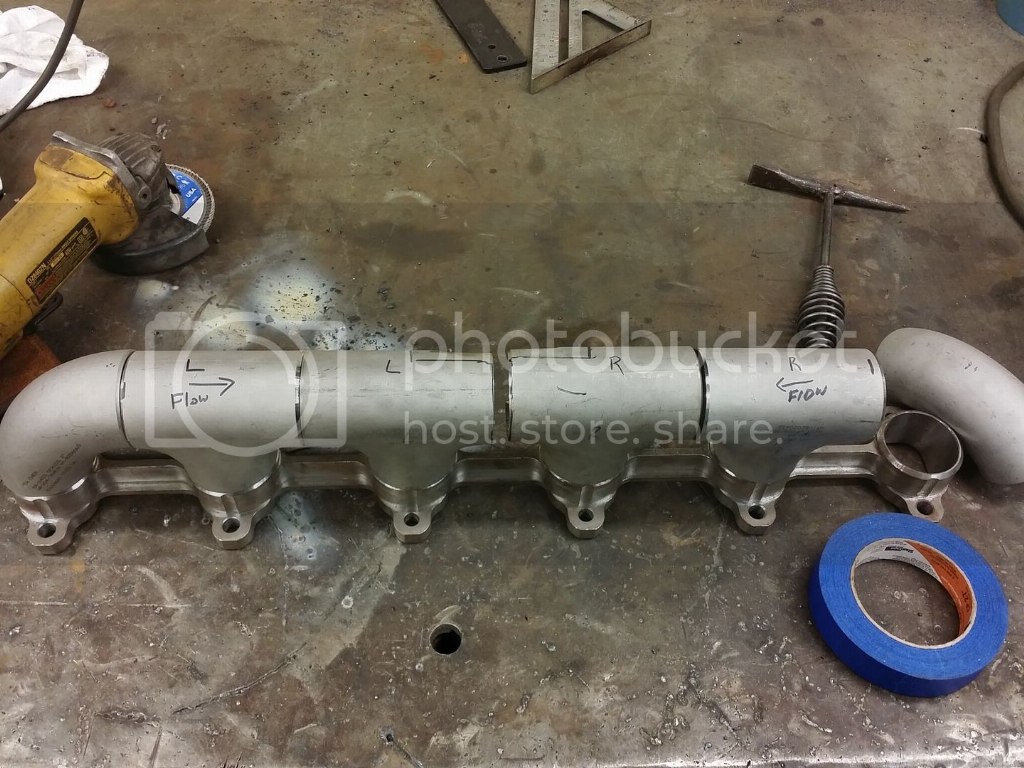

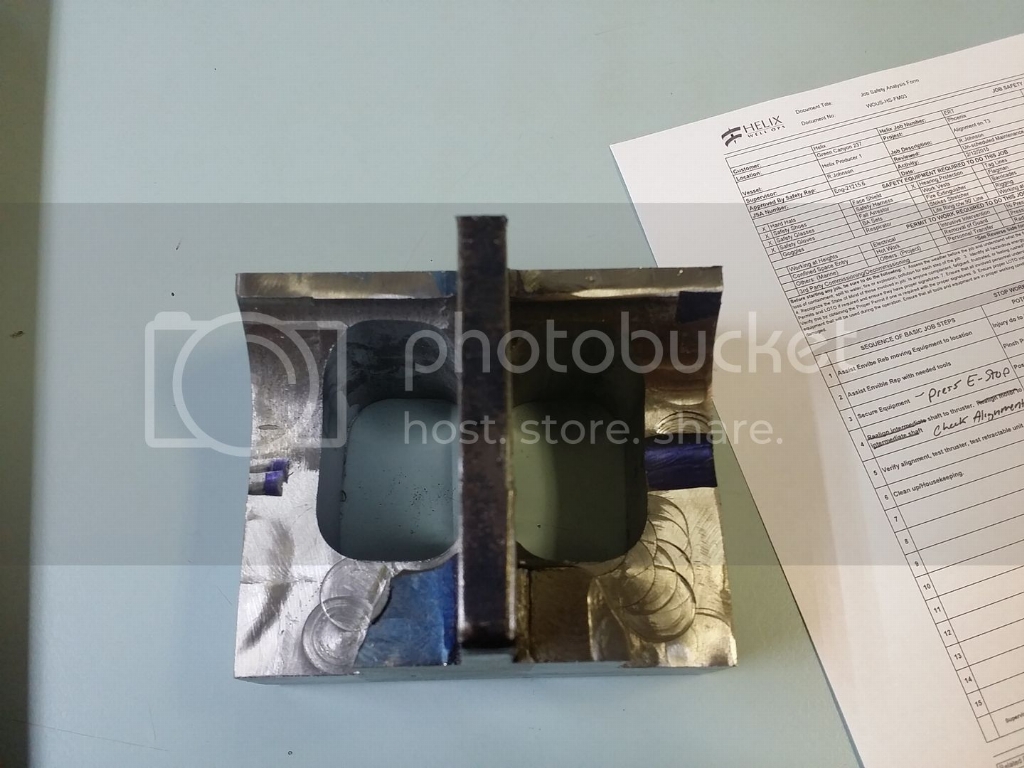

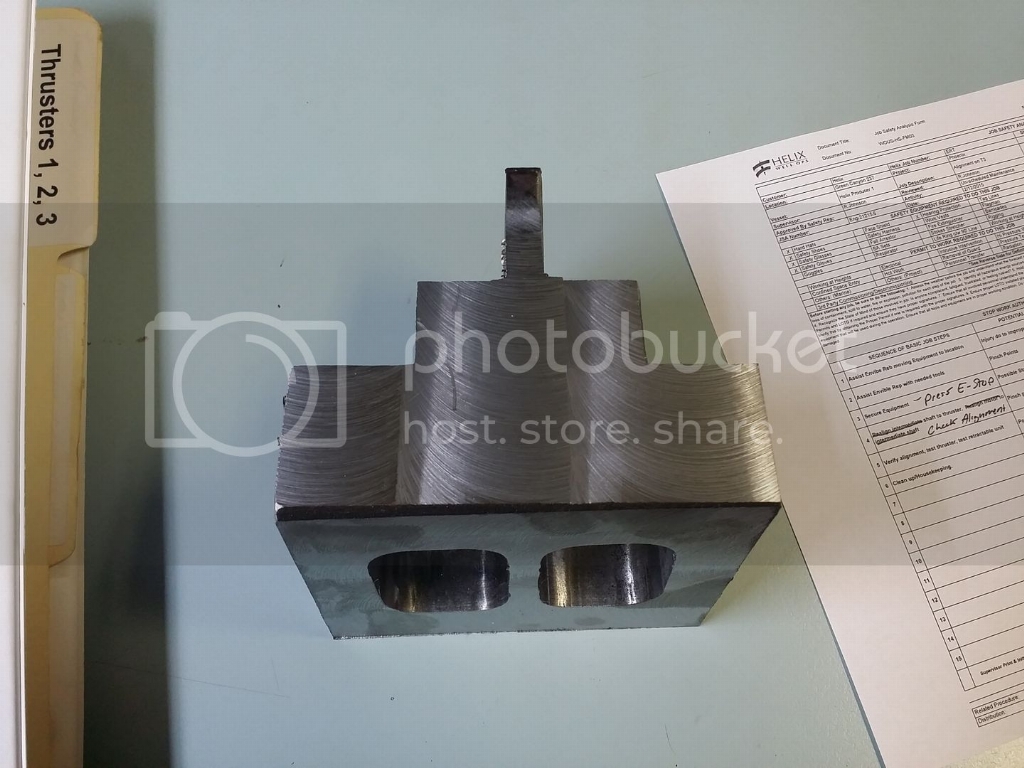

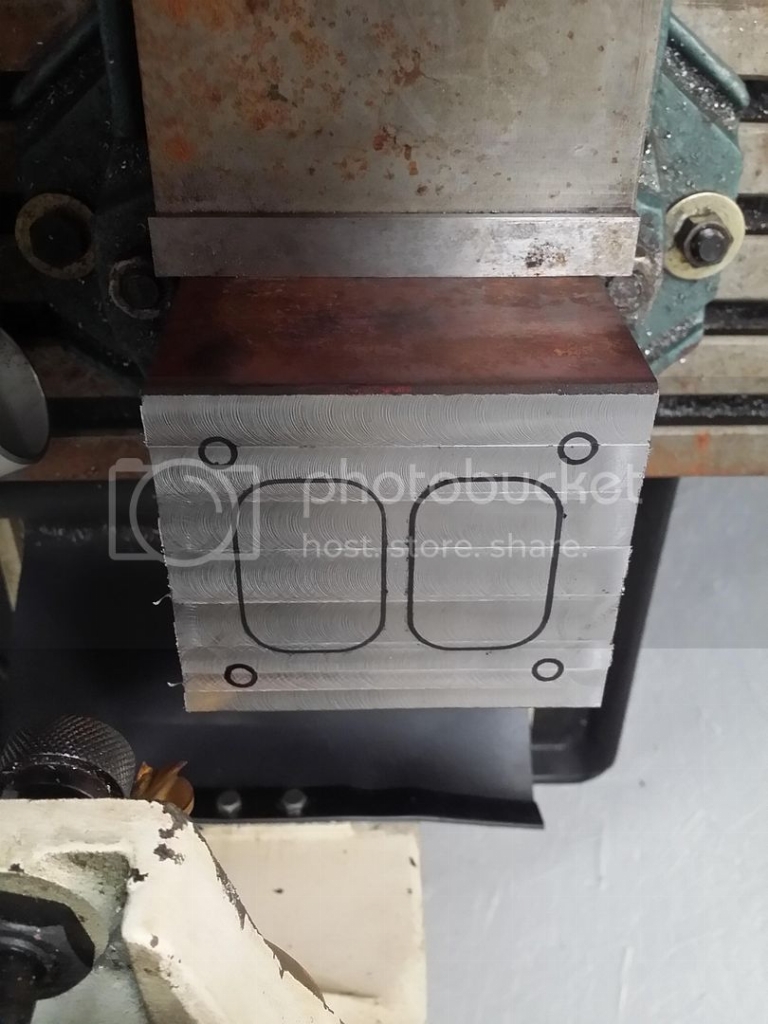

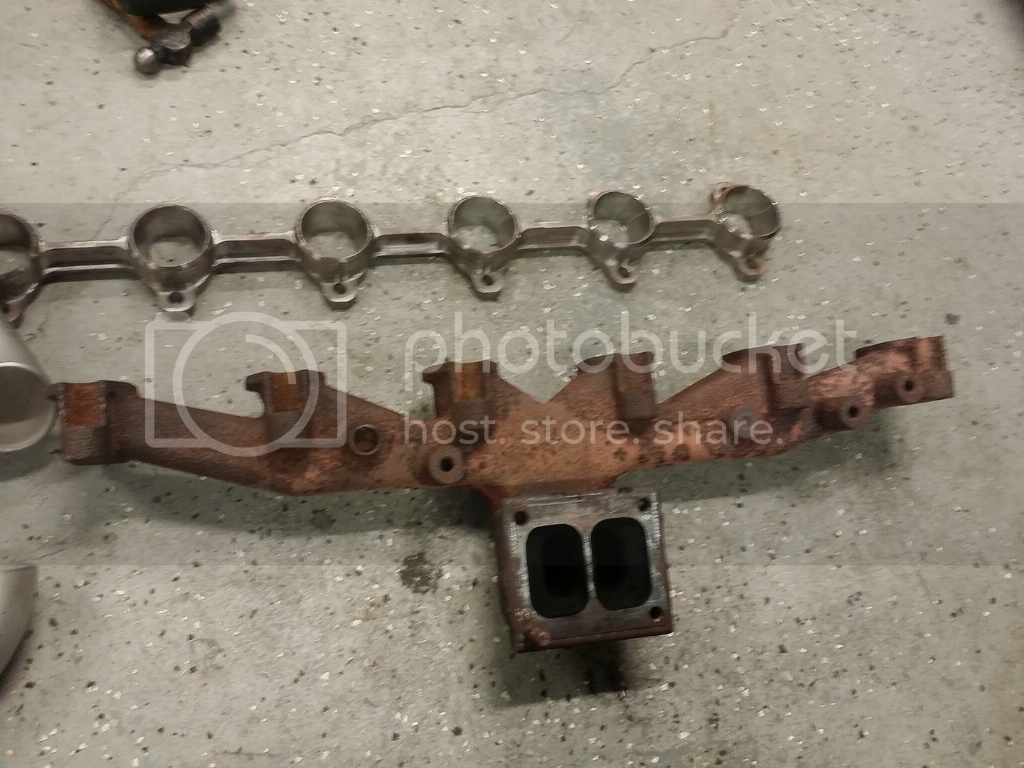

my manifold build for it

[



[not enoughsmoke]

[



[not enoughsmoke]

[



[gwunter]

I'm liking the custom work here!! Looks like you really need some roughing mills and a rotary table.



[not enoughsmoke]

I'm liking the custom work here!! Looks like you really need some roughing mills and a rotary table.

thanks

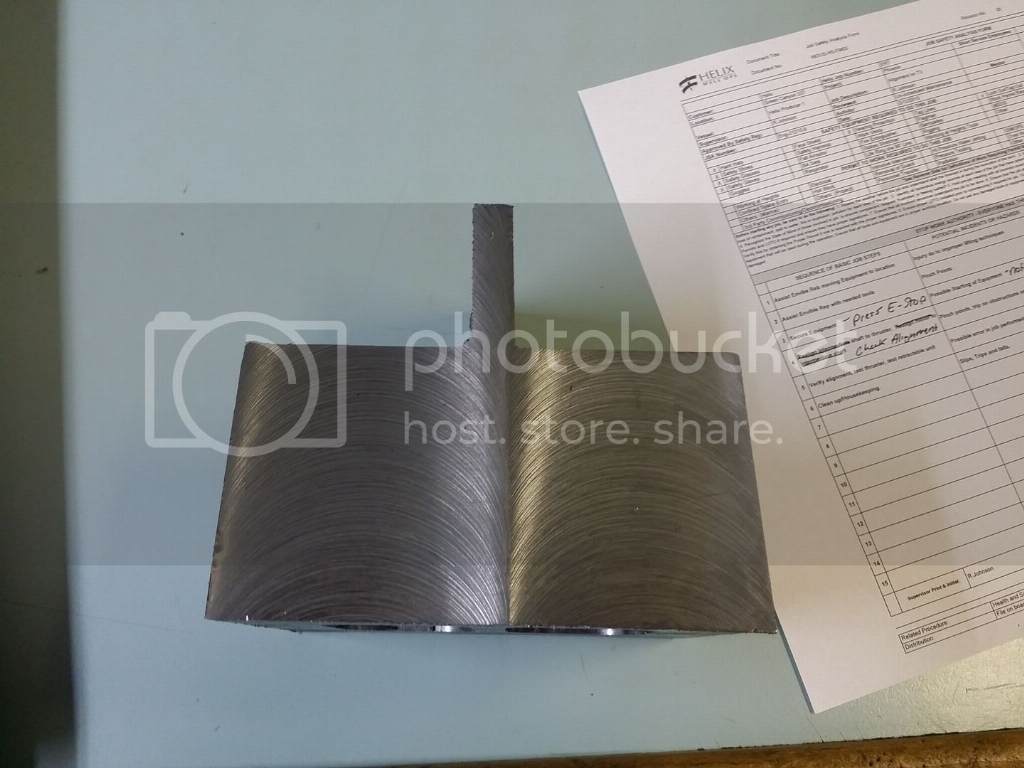

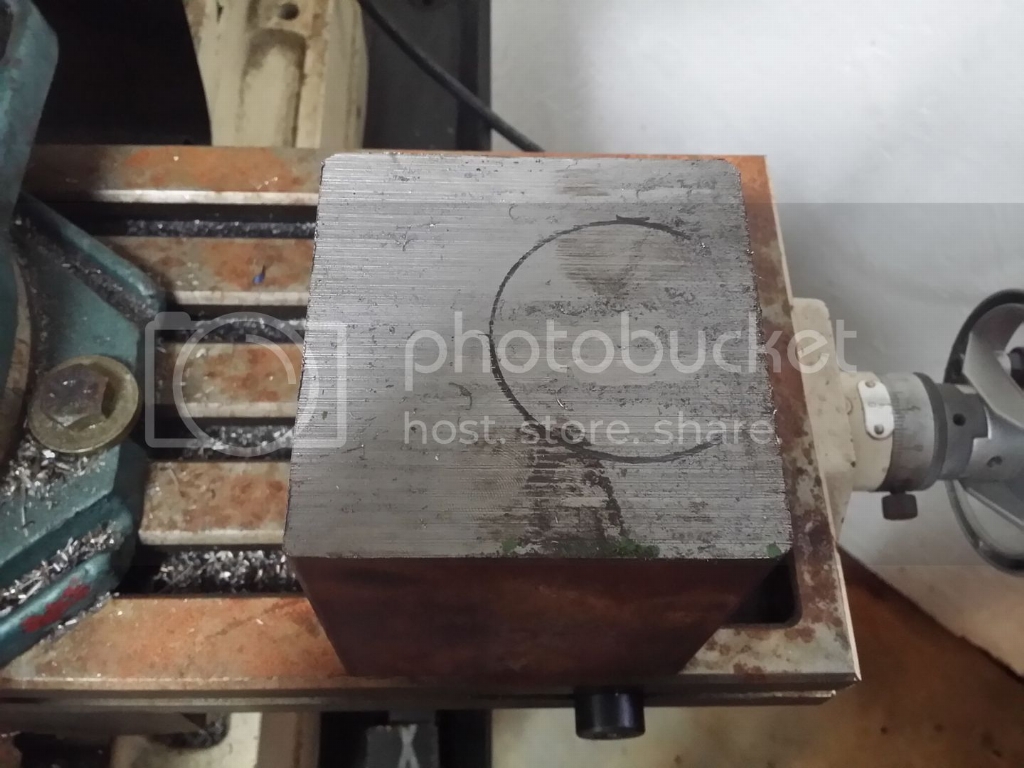

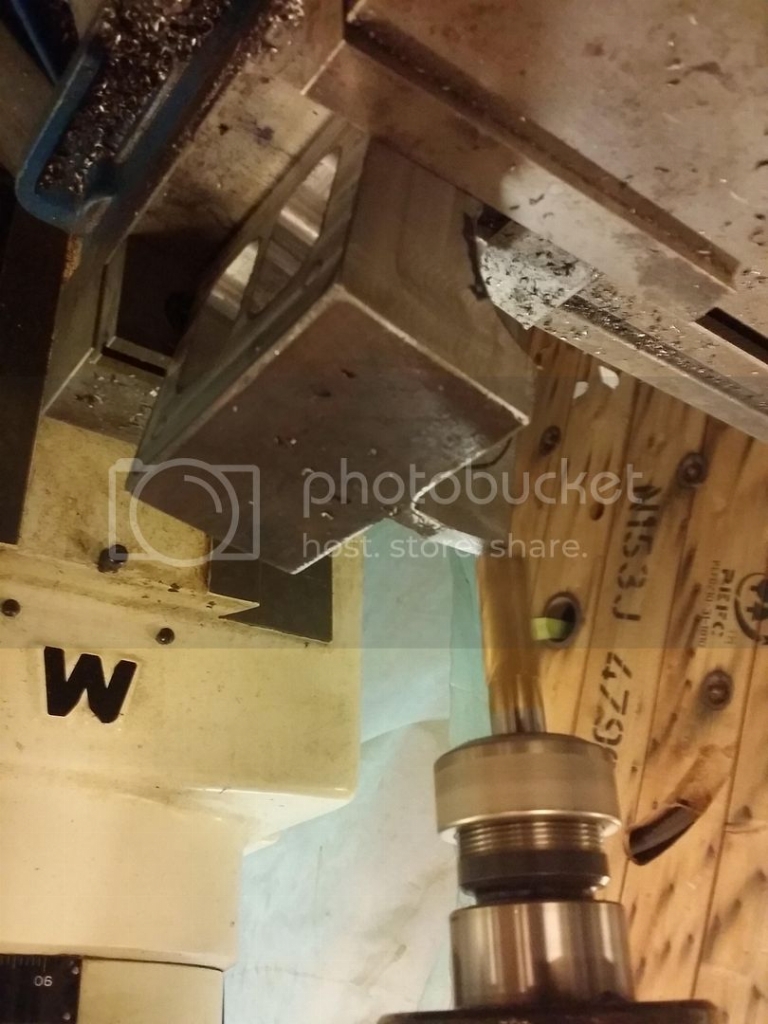

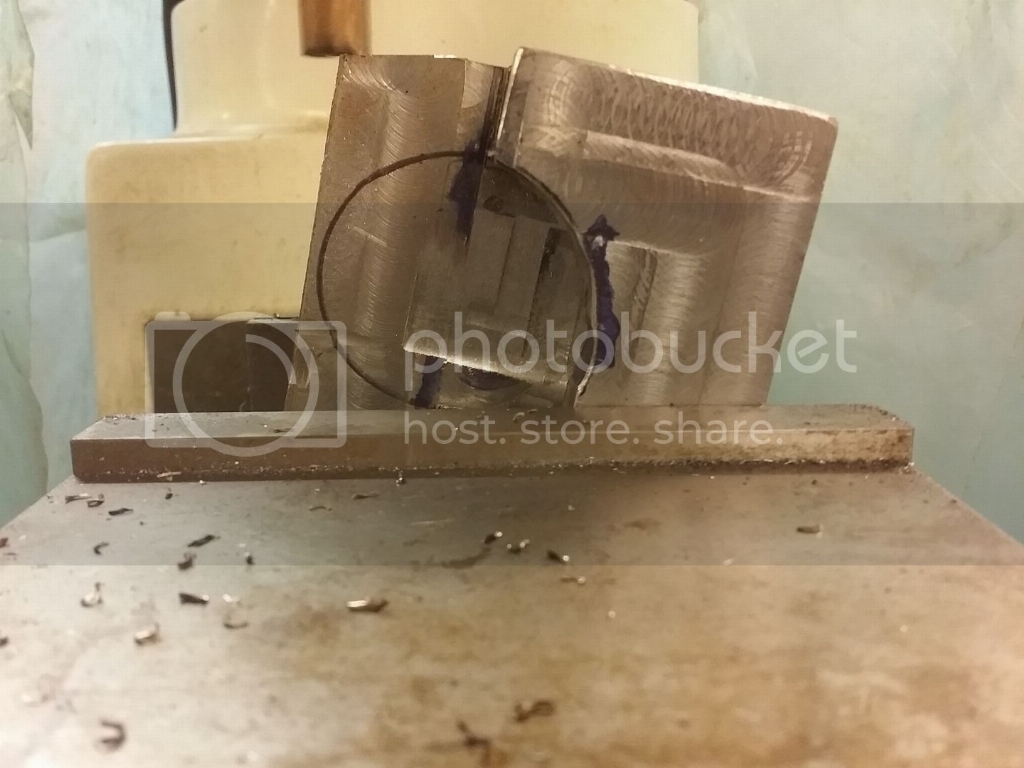

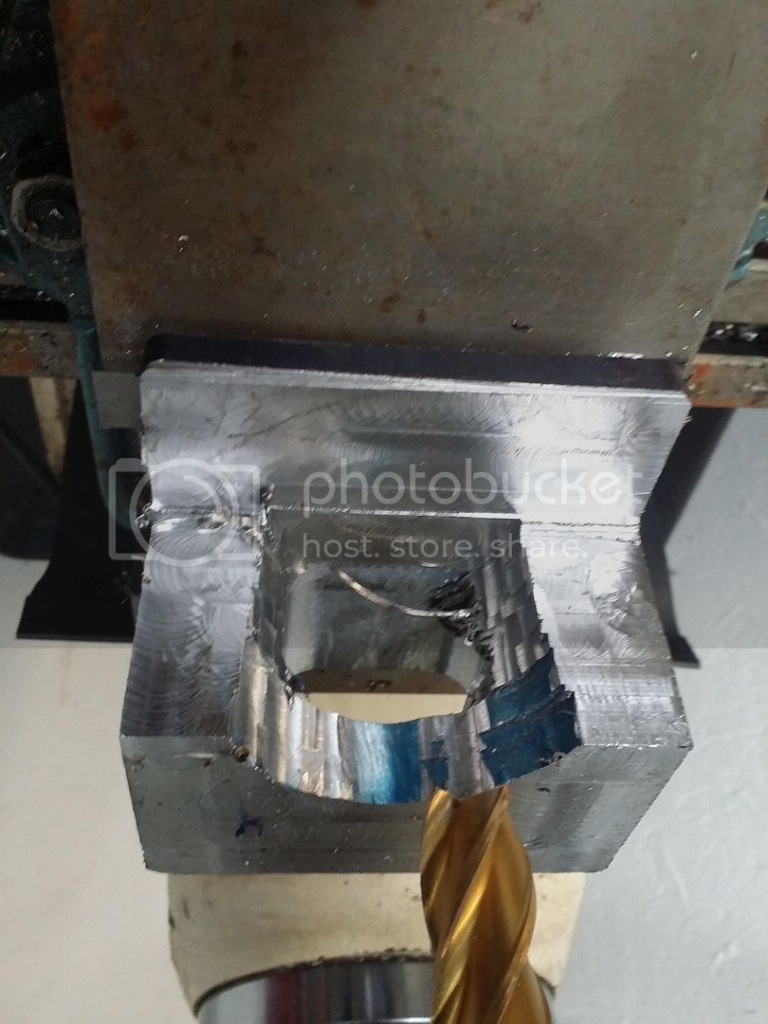

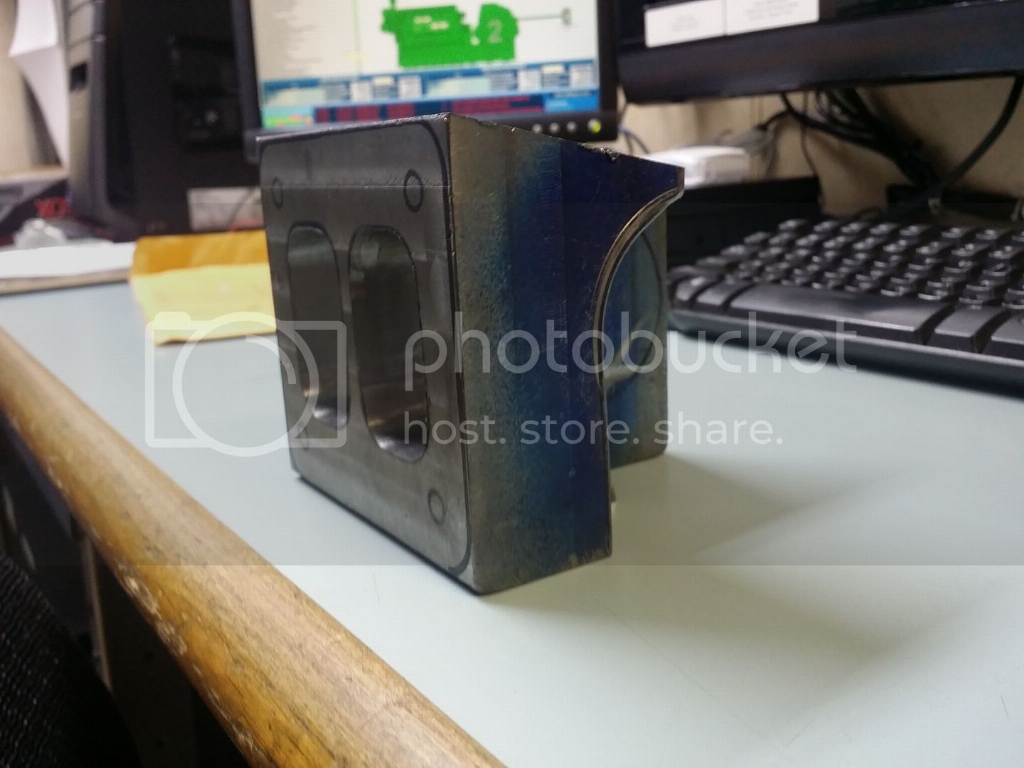

I found one roughing mill bit but it was to small. Tried the rotary table as well the piece kept moving. I did tun it in the lathe some.



[ja_cain]

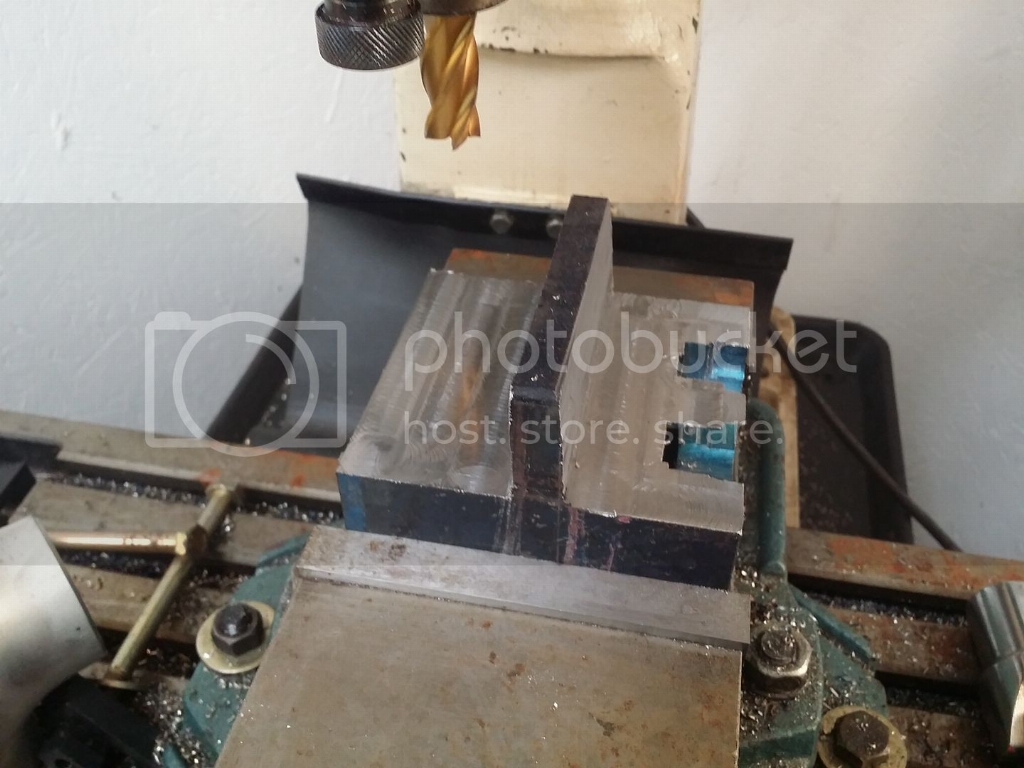

Fixturing/work holding is always the thing that can put the breaks on real quick when trying to machine stuff. Order of operations is very important too. Any drilling/boring on square parts is best done on the lathe with the 4 jaw chuck. If done in the beginning should be easy to hold/secure. I just got a tilt table for my mill. It looks like it's going to come in real handy.

Can't wait to see the finished product!



[not enoughsmoke]

Fixturing/work holding is always the thing that can put the breaks on real quick when trying to machine stuff. Order of operations is very important too. Any drilling/boring on square parts is best done on the lathe with the 4 jaw chuck. If done in the beginning should be easy to hold/secure. I just got a tilt table for my mill. It looks like it's going to come in real handy.

Can't wait to see the finished product!

I did turn it some in the 4 jaw chuck on the lathe to clean up some edges.
But yes your correct, I have to think a bit about the order of steps I take as not to hinder myself later down the road.



[not enoughsmoke]

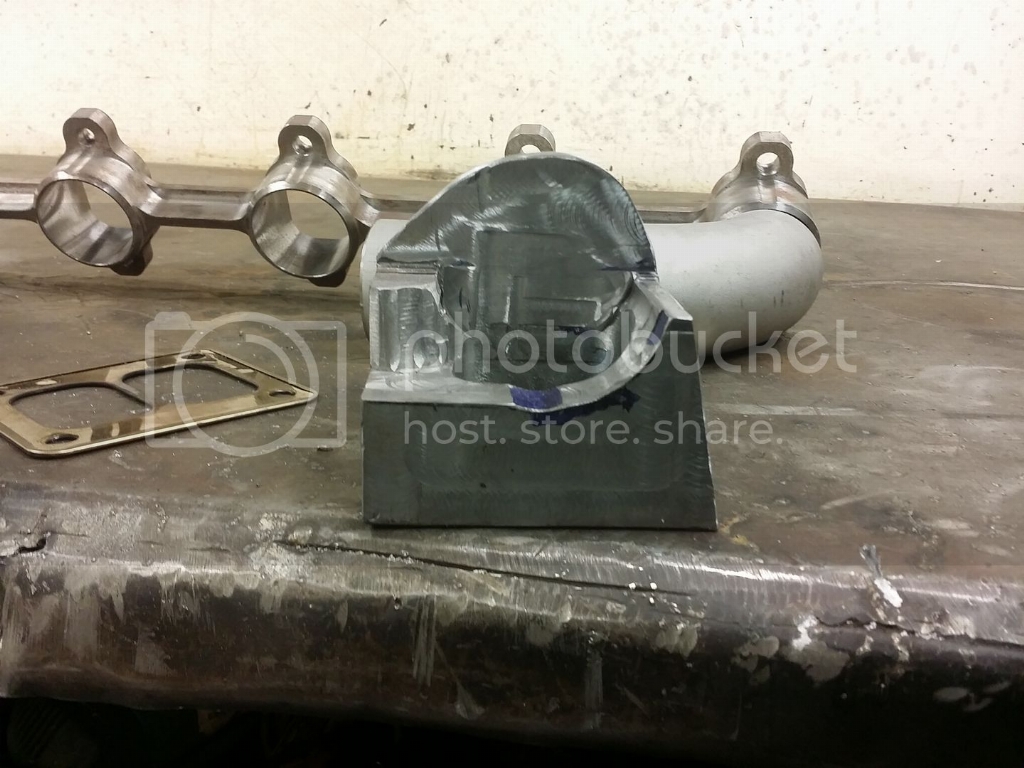

I used the flyfutter to make a better seal on my turbo mounting

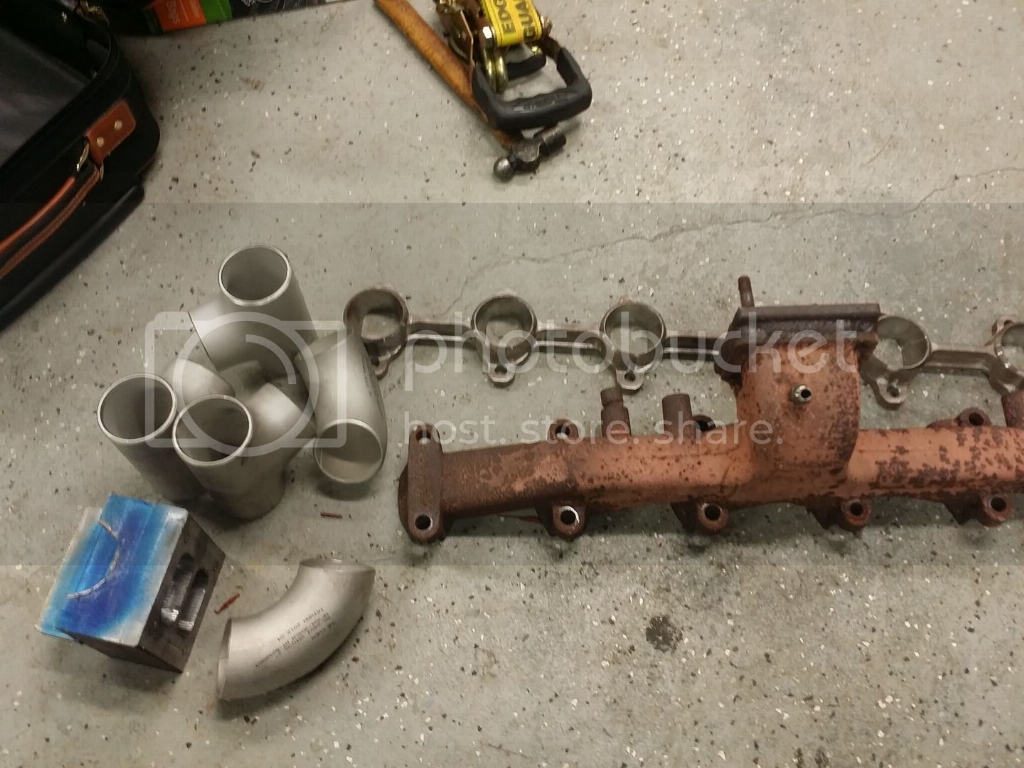

Also got some of the (T)'s and elbows fitted better still alot ahead.



[ja_cain]

Looking awesome! Can't wait to see some welds.



[not enoughsmoke]

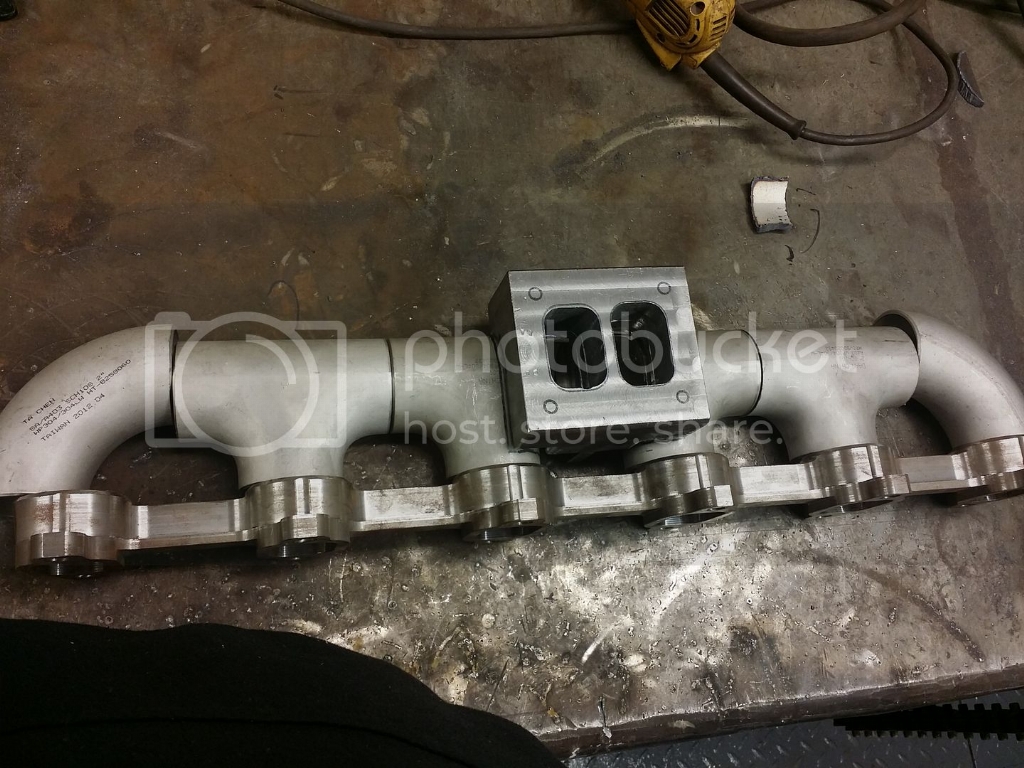

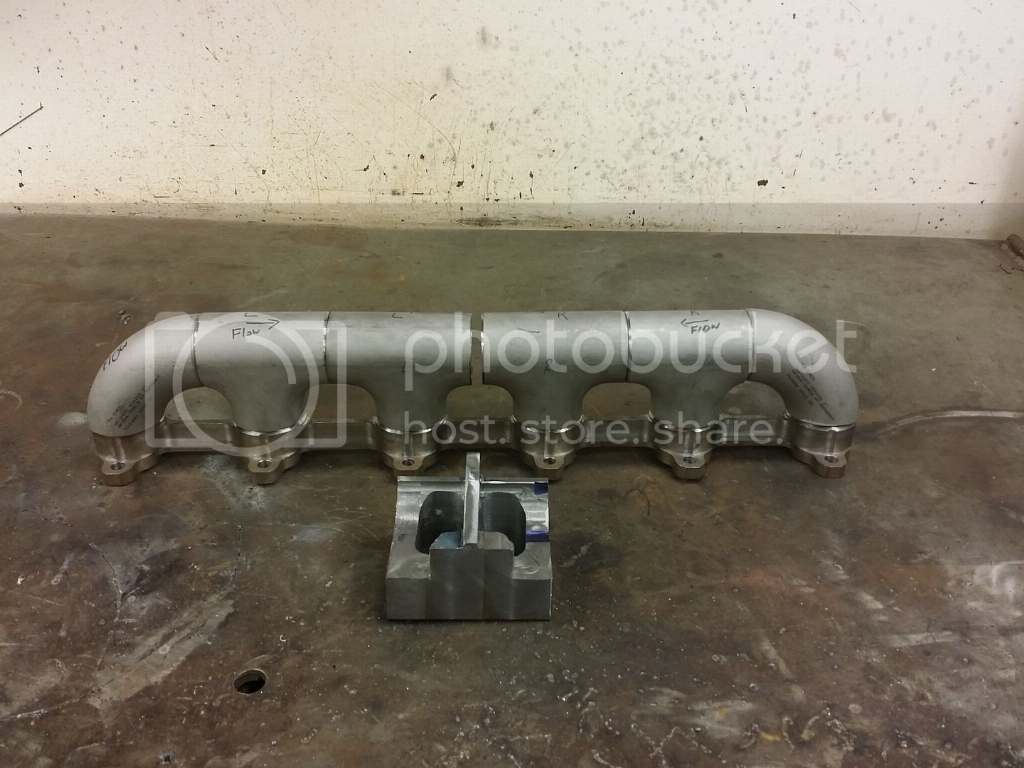

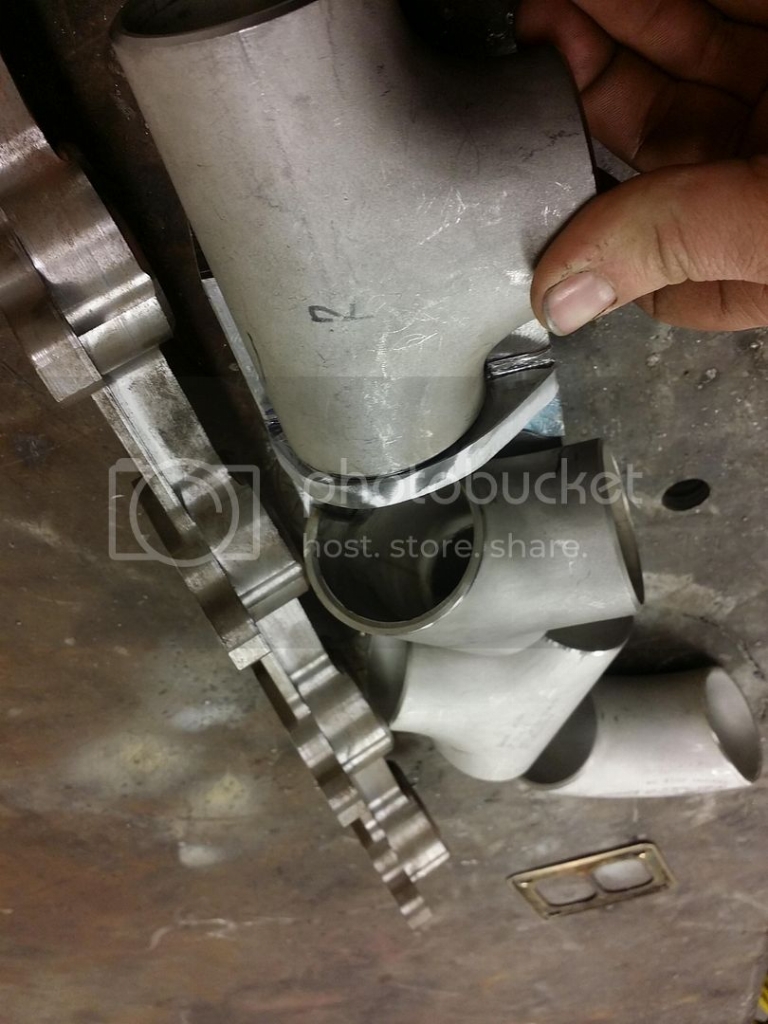

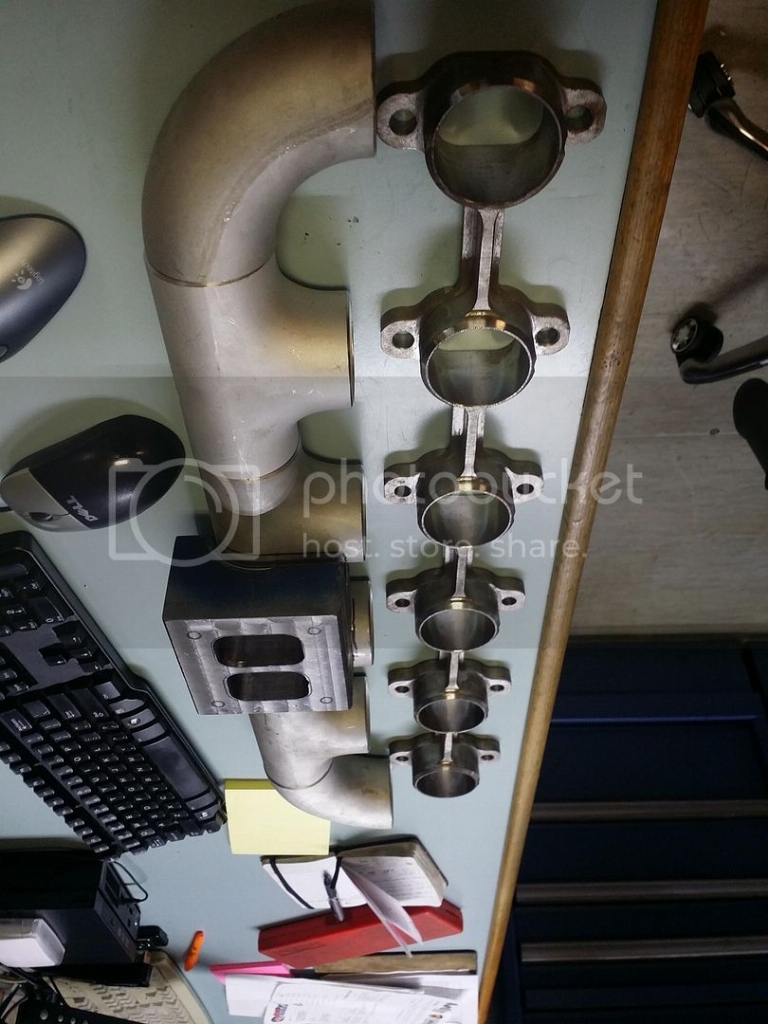

got the other (T)'s trimmed and the last elbow trimmed

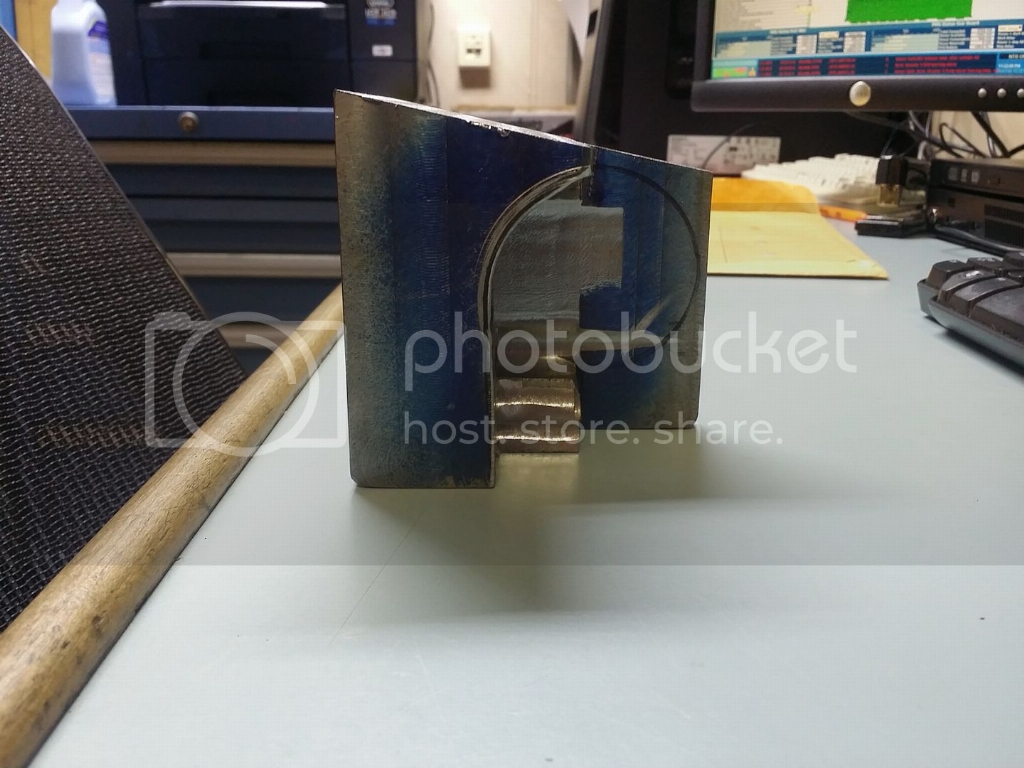

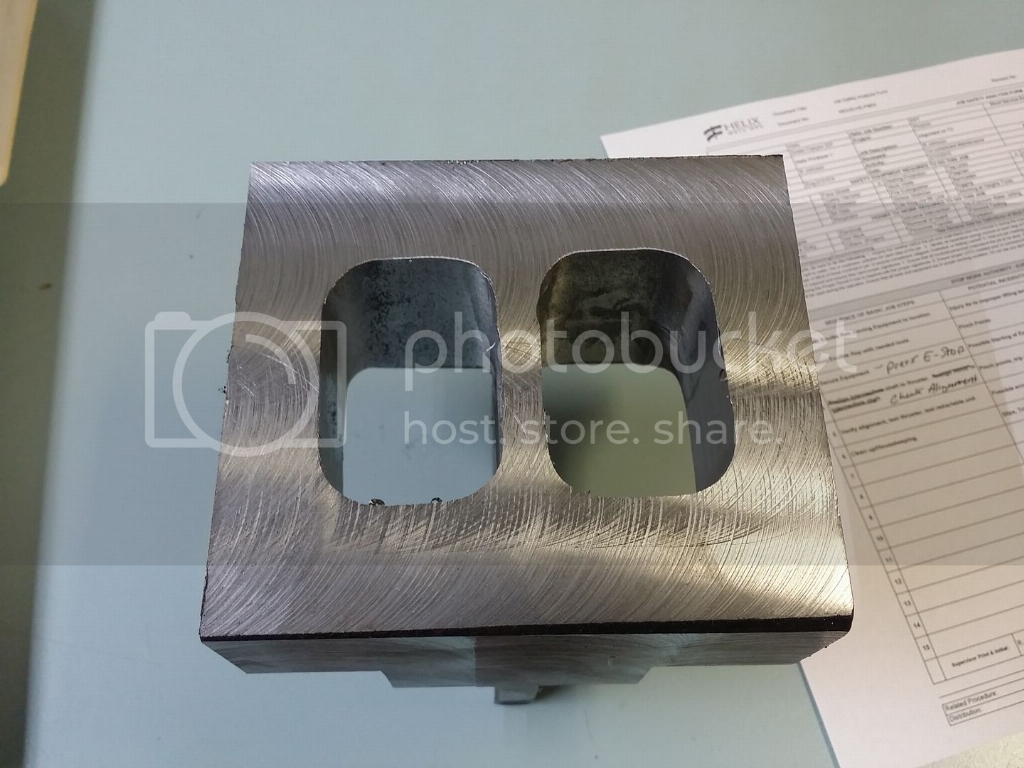

cleaner up the t4 piece divider and tommorrow starting some welds



[bluedge8]

very nice build!, what were those amp steps orignally for? I want to put some on mine eventually, thanks



[not enoughsmoke]

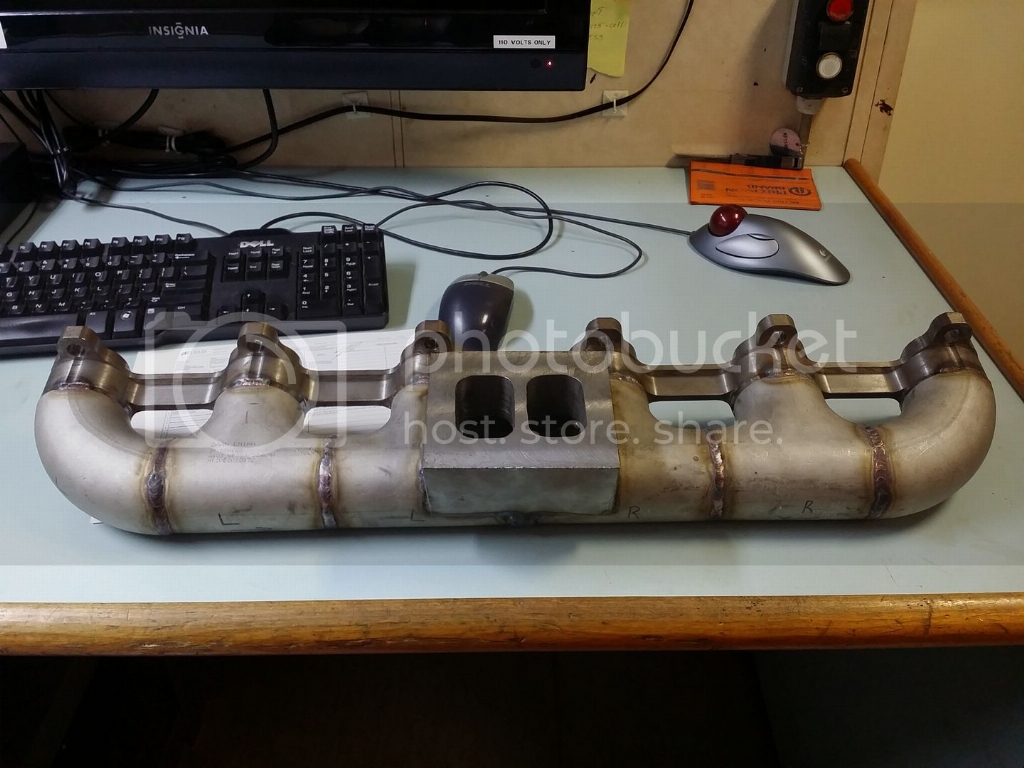

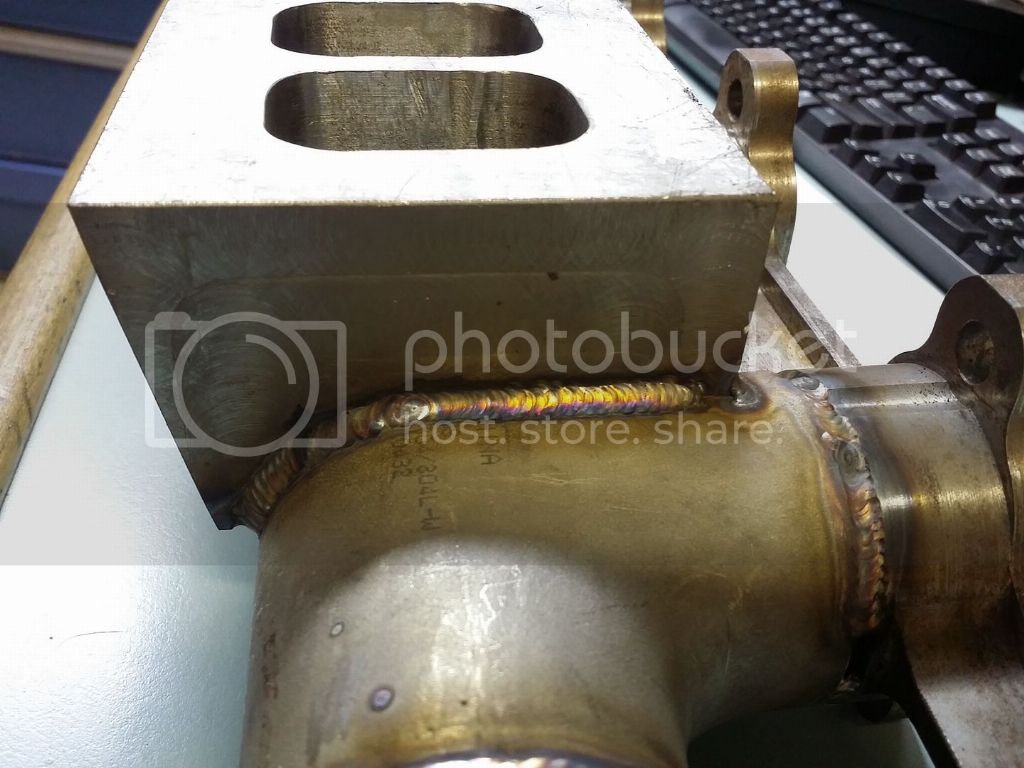

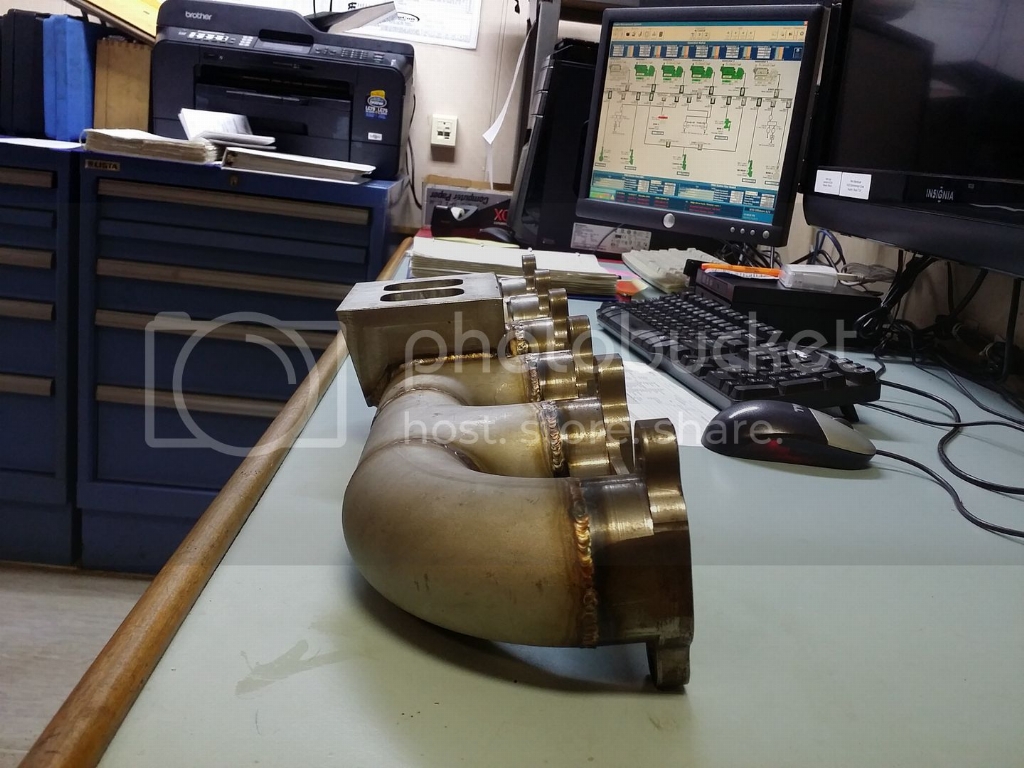

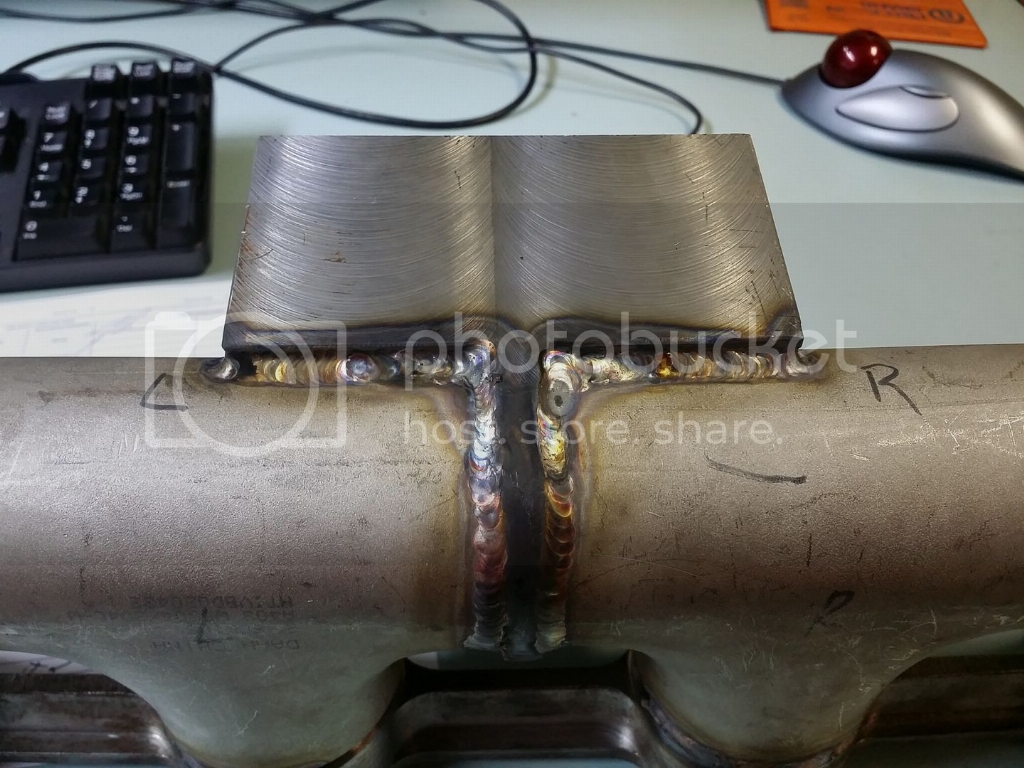

got it almost welded today still like a few welds left



[not enoughsmoke]

very nice build!, what were those amp steps orignally for? I want to put some on mine eventually, thanks

Thanks the steps are for a 90 model Chevrolet extended cab truck
best money ever spent
I have them on both of my crew cab trucks



[ja_cain]

Looks great so far. Where did you source the flange from? Also what torch setup and machine you using? I like doing thicker ss stuff because my welds always turn out nice relative to thinner material.



[mandkole]

Well done. Do you have to resurface/square the flanges after the welding?



[78f100]

Looks awesome man, I would love to get a mill and learn how to use it properly. It would be cool to me to say I built that. Not to derail but is this at your work or you own the mill? And what kind of mill you using? I don't know anything about it but want to learn.



[ja_cain]

Looks like a JET knee mill. Could be wrong though. I'm sure they are very similar to a Bridgeport (clone).



[ja_cain]

Well done. Do you have to resurface/square the flanges after the welding?

I was thinking the same thing. Be interesting to see how flat it stays when he is done.



[ja_cain]

Please post up cost of materials when you are done with the manifold. Would love to know what you have in it.
