Ill check when I get home.
Ill charge them up then test again.
I know these errors can be caused by low batts.
Just weird how intermittent it is.
Now it will start right up immediately then stumble and die.



[KBMKVIII]

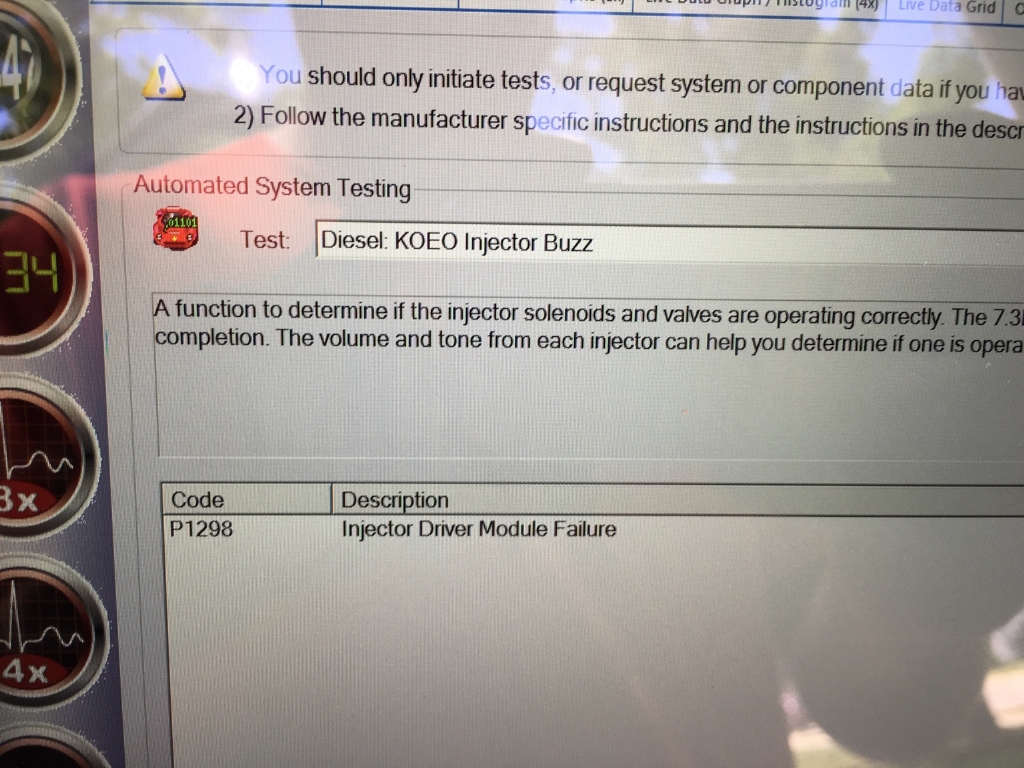

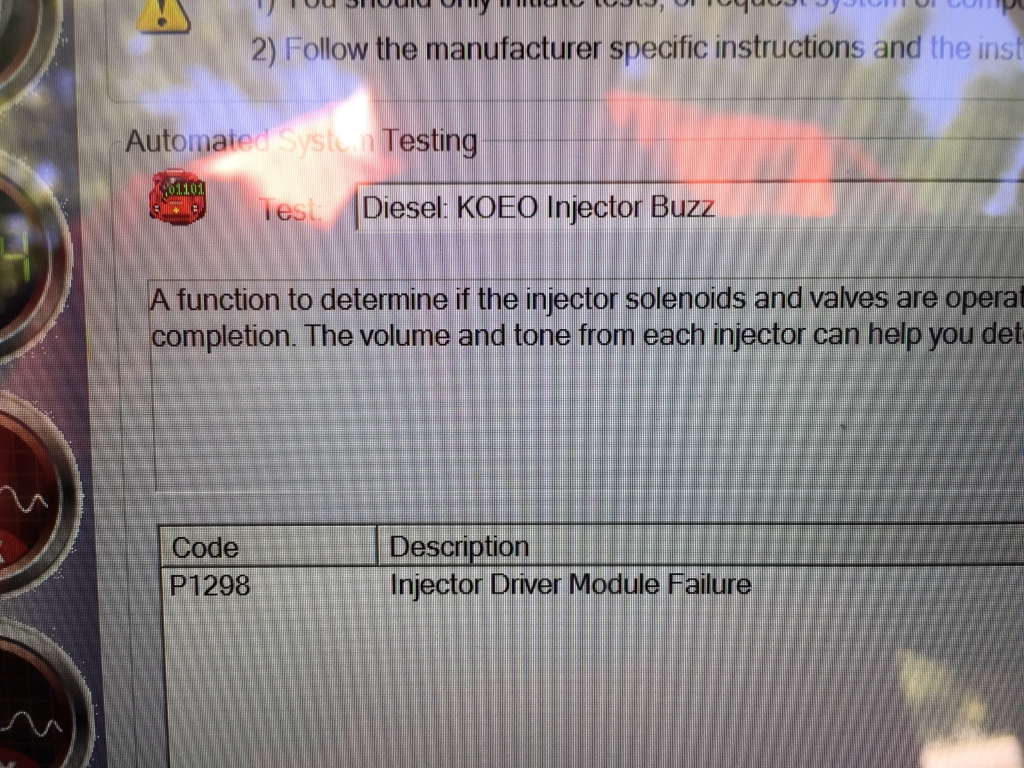

Charged the batteries and still getting these codes.

Tapatalking from a wind turbine



[KBMKVIII]

I pulled the chip out and re ran the tests.

I do have a modified IDM but have never got these codes.



Tapatalking from a wind turbine



[mandkole]

Check IDM power supply relay also to make sure its getting consistent power. Are you hearing a clicking under the hood when it acts up?



[KBMKVIII]

I can not hear anything over the motor.
I hear lots of relays clicking when I run the KOEO test.
I'll look into the power relay.

Tapatalking from a wind turbine



[heavydoc]

I've got a spare stock Idm if you would like to use it as a tester

Sent from my SM-N920V using Tapatalk



[weekendwarriorfsw32]

Sounds really dumb but I have to ask cause it has happened before. The IPR plug and another plug that is the exact same plug end can get mixed around and It does exactly what yours sounds like, will idea and start for a few second then die and won't restart for a little. Cant remember if its the fuel bowl heater or something along those lines.



[KBMKVIII]

Checked voltages at the relays.
Next I'm going to check at the IDM connector.
Ill have to dig up the pin out diagram and see what I find.

Here are the pics of testing the relay power supply pins at the distribution box.
All other pins had no power.

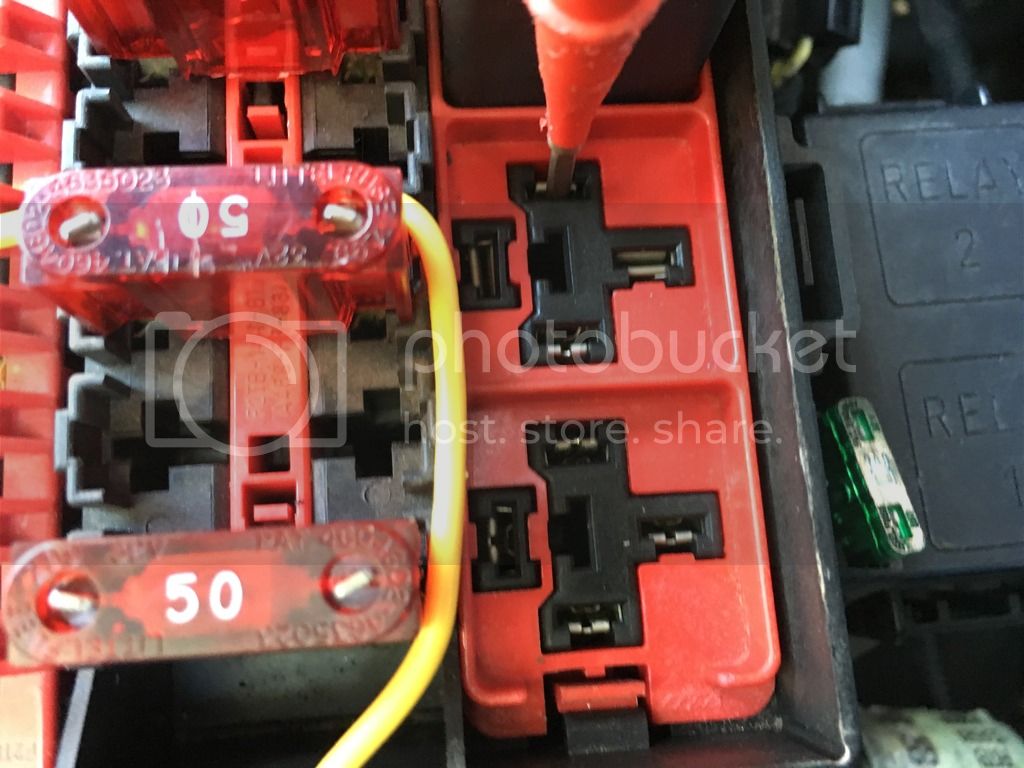

First the PCM relay.

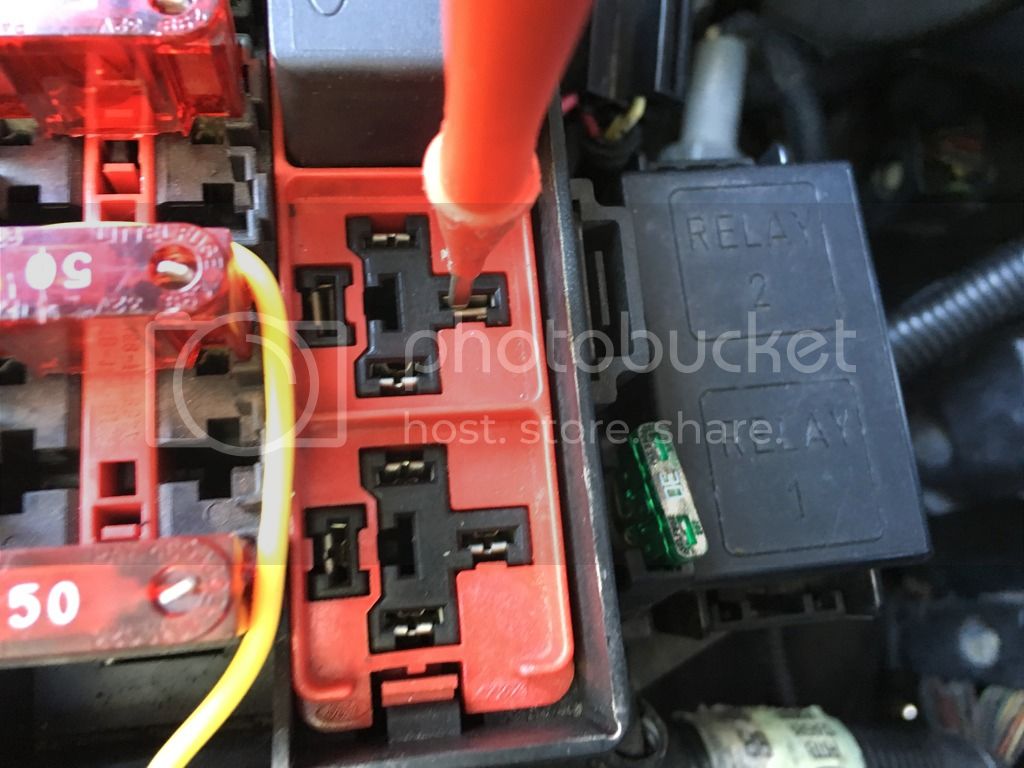

12v here,

6v here,

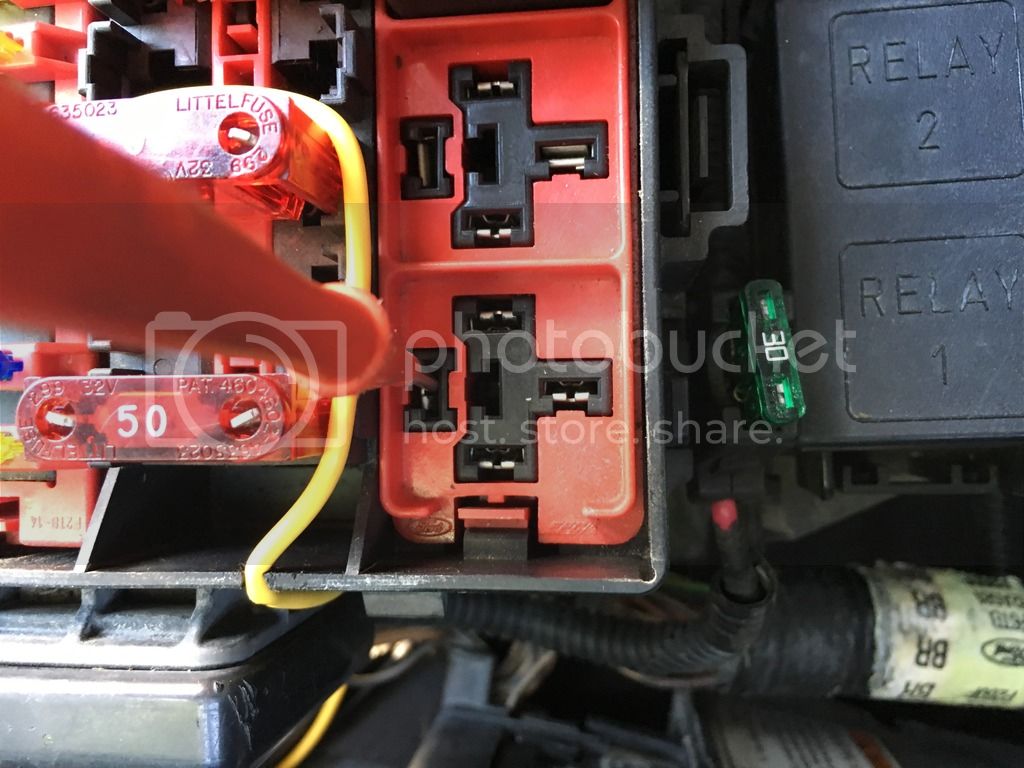

Now the IDM relay pins.

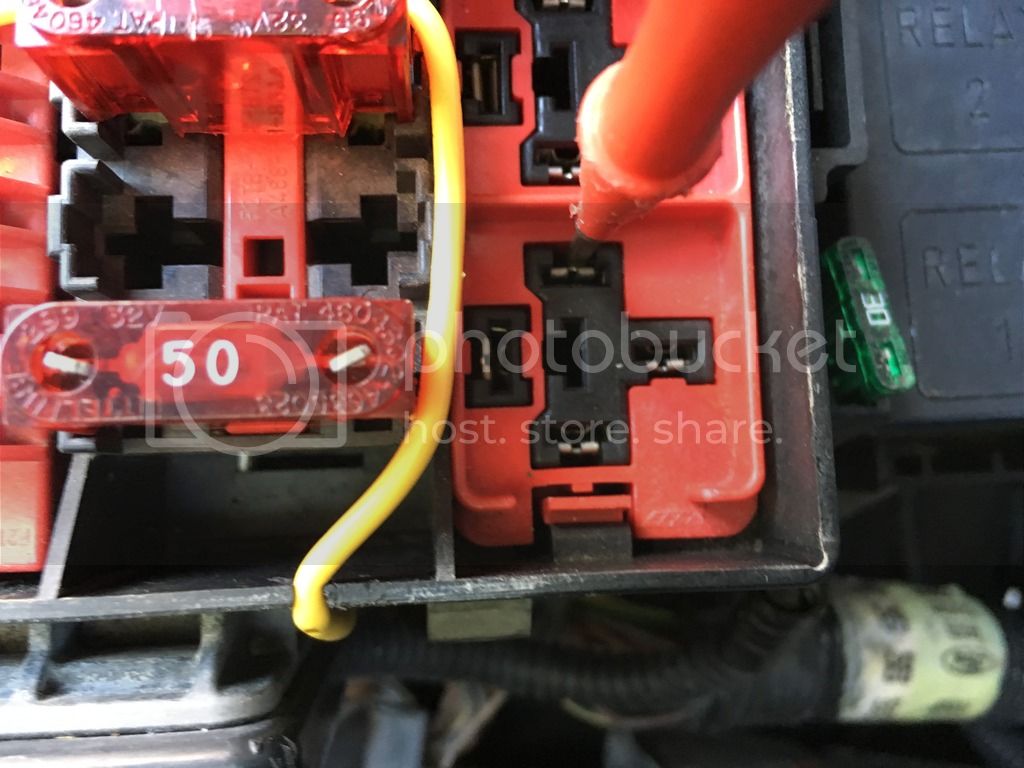

12v here,

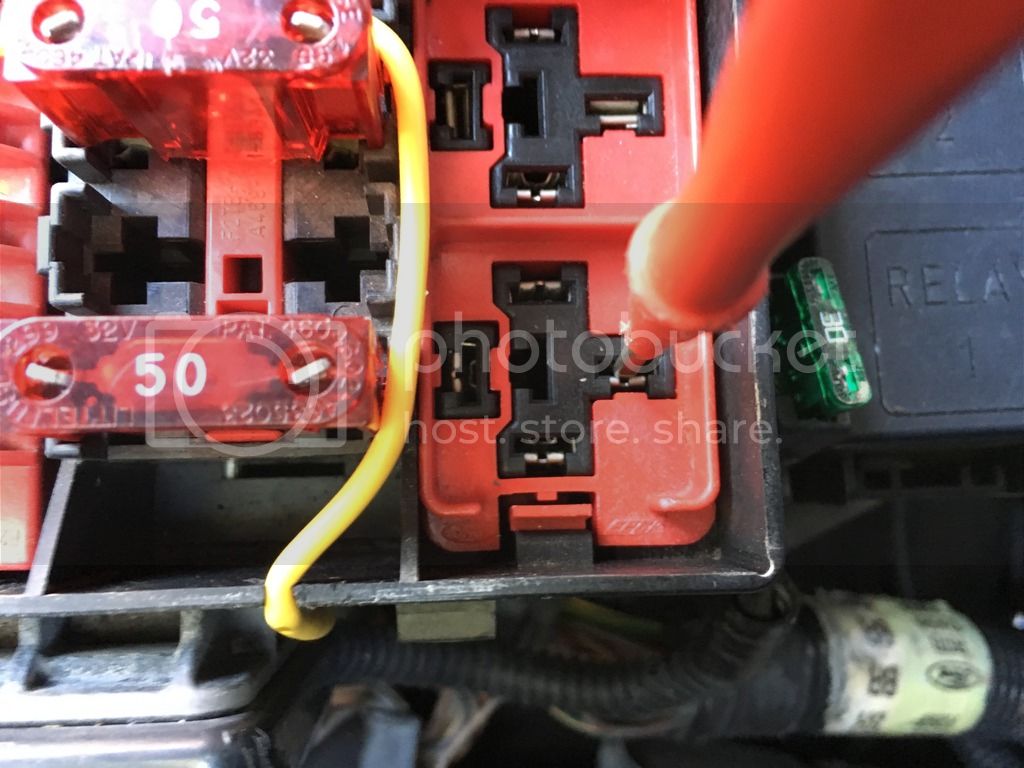

12v here,

6v here,

Good? Bad?



[KBMKVIII]

I've got a spare stock Idm if you would like to use it as a tester

Sent from my SM-N920V using Tapatalk

Thank you very much!
I want to do a little more testing first, then Ill pm you if I still need to borrow it!
Much appreciated.



[KBMKVIII]

Sounds really dumb but I have to ask cause it has happened before. The IPR plug and another plug that is the exact same plug end can get mixed around and It does exactly what yours sounds like, will idea and start for a few second then die and won't restart for a little. Cant remember if its the fuel bowl heater or something along those lines.

I think its the butterfly valve one.
Made sure already, but thank you.



[KBMKVIII]

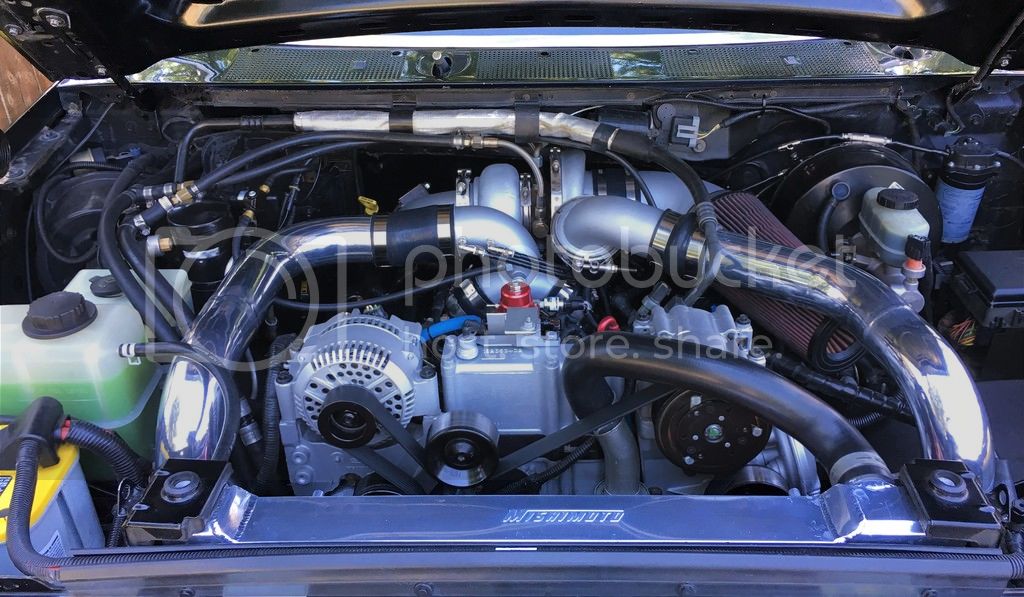

And a picture because, race truck.



[heavydoc]

I believe the 6 volt terminal should be zero looks like you are backfeeding

Sent from my SM-N920V using Tapatalk



[KBMKVIII]

IDM has constant 12v at the IDM connector.


Tapatalking from a wind turbine



[KBMKVIII]

I believe the 6 volt terminal should be zero looks like you are backfeeding

Sent from my SM-N920V using Tapatalk

You wouldn't happen to have a diagram of this box would you?


Tapatalking from a wind turbine



[heavydoc]

I probably do what is it on

Sent from my SM-N920V using Tapatalk



[KBMKVIII]

1996 F250


Tapatalking from a wind turbine



[heavydoc]

Give me a little bit and I will get the books out

Sent from my SM-N920V using Tapatalk



[KBMKVIII]

Never mind, found this.

Tapatalking from a wind turbine



[KBMKVIII]

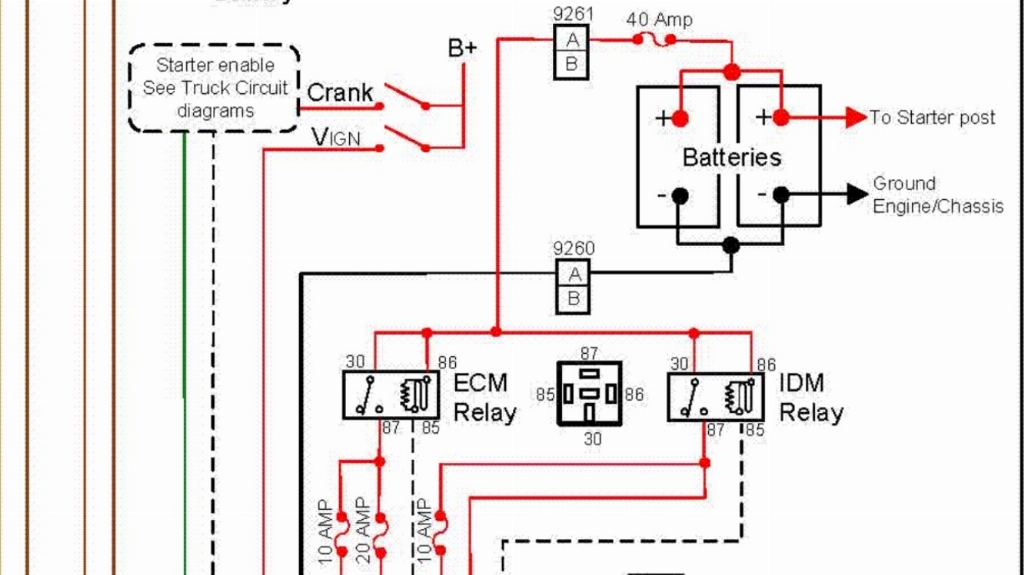

Per the pic above,

Wires 30 & 86 should have 12v at both locations.
30 is the horizontal pin at the relays.
86 is the top pin at the relays as shown in my testing pics from above.

PCM-
30- 12v
86- 6v

IDM-
30- 12v
86- 12v
87- 6v

So somehow I have half the voltage I need to pin 86 on the PCM.
And 6v on wire 87 where there should be no voltage.
Going to try these tests with the IDM disconnected just to see if my readings change.



[heavydoc]

87 should only have power after the coil in the relay is energized. In some cases 87 will show ground when the relay is deenergized. 30 and 86 should have 12 VDC.
