My build-Going to try an s400...

Kind · Jan 20, 2016

Crazy. I couldn't imagine pushing my turbos back any further. It's tight as it is lol.

Matt · Feb 9, 2016

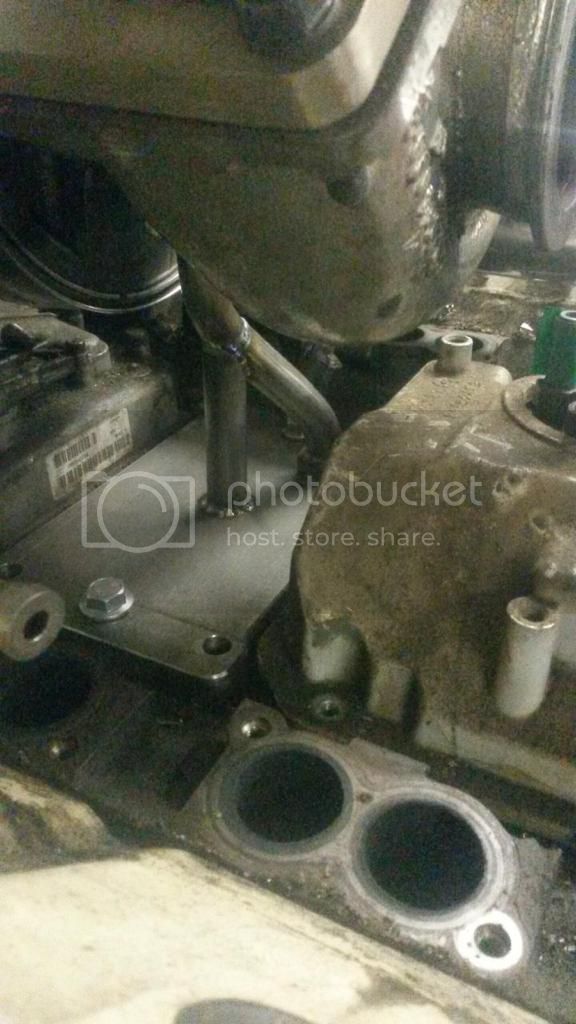

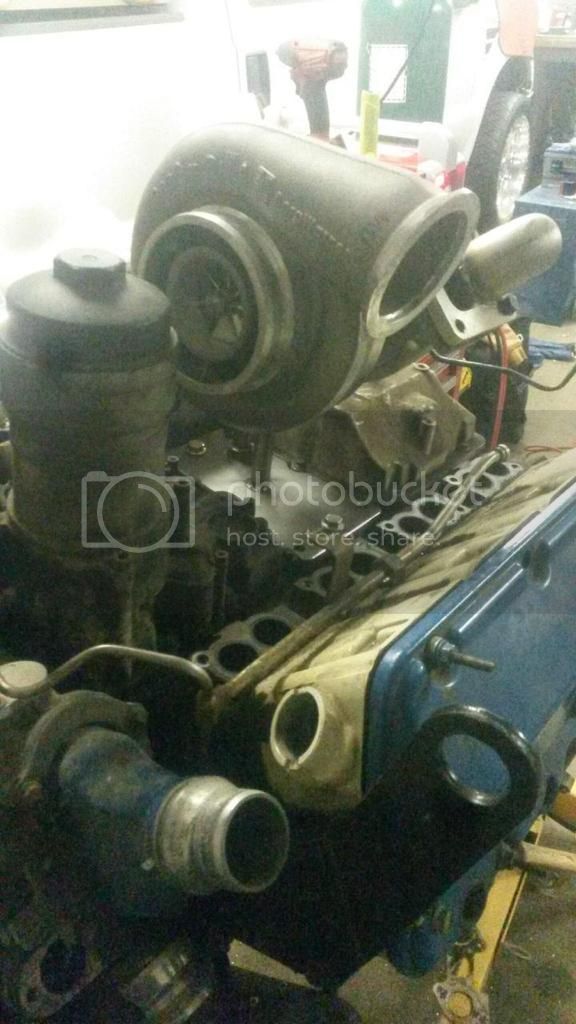

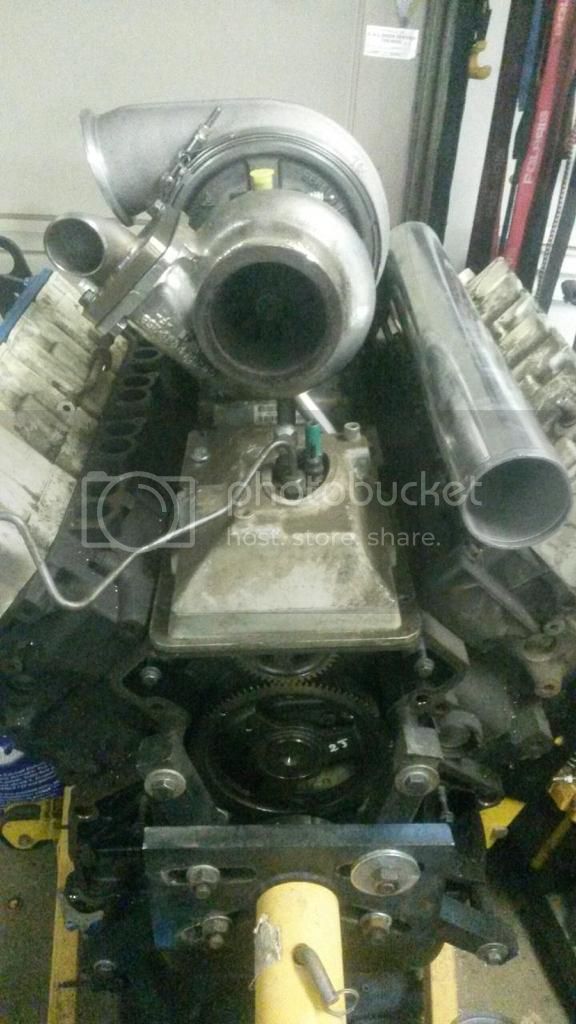

Well I haven't made much progress with the atmos other than getting the top of the two remounted to improve clearance. However Shane aka Whitemonster is doing me a favor and doing some killer fab work on the high pressure turbo mount. He is fabbing new up pipes as well as at least the beginning of the intermediate pipe to tie the gate into. I have always wanted the high pressure mounted in the center of the valley, instead of slightly offset. Shane knew it would be a bit of a pain, but is totally nailing it.

sootie · Feb 9, 2016

looks killer. do you have an oil filter relocate kit?

Matt · Feb 9, 2016

sootie said:
looks killer. do you have an oil filter relocate kit?

Thanks! Oil cooler relocation kit is already installed.

White_monster · Feb 9, 2016

Passenger side up pipe should be tacked tonight.

B585Ford · Feb 9, 2016

Looking forward to seeing how this all comes together

forcefed6.4ford · Feb 10, 2016

Aaaaaand now I subscribe.

Matt · Feb 10, 2016

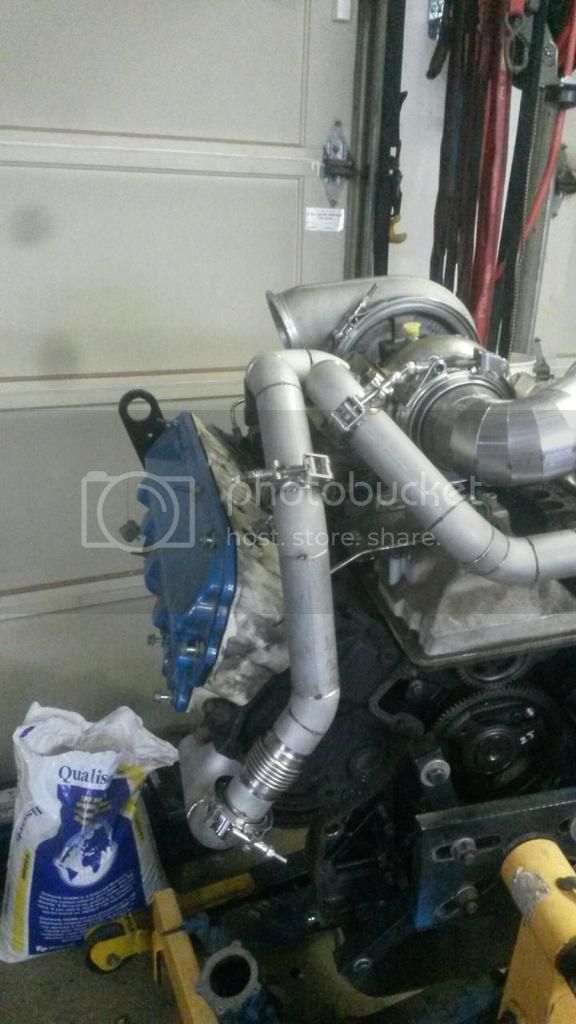

Shane's killing it on the passenger side up pipe. I know it looks uber long in the picture, but it shouldn't be much if any longer than my previous up pipes. I know shorter is better, but because of the custom intake manifolds and me wanting the turbo in the center, there just isn't much else that could be done.

ncollins64 · Feb 10, 2016

Nice work. Shane's a monster at fab work.

Matt · Feb 10, 2016

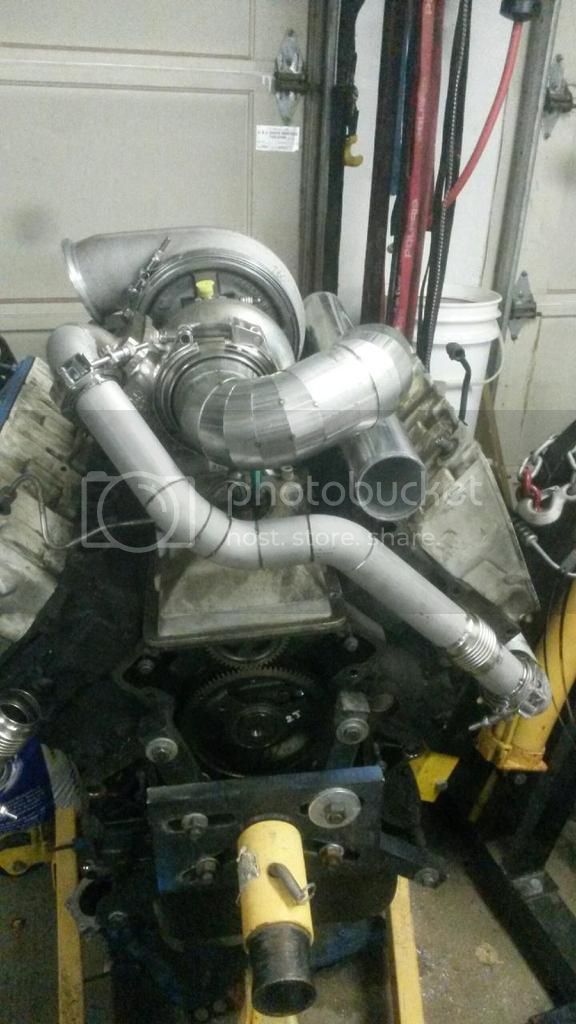

Both up pipes tacked up. Can't say enough good about Shane's work.

CAT35niner · Feb 10, 2016

Looks killer buddy!!

Jgon08 · Feb 10, 2016

Awesome Man, Shane is the man that's forsure.

Powerstroke Man 6.4 · Feb 10, 2016

WUnderwood · Feb 11, 2016

Beautiful work!

Sent from my iPhone using Tapatalk

White_monster · Feb 11, 2016

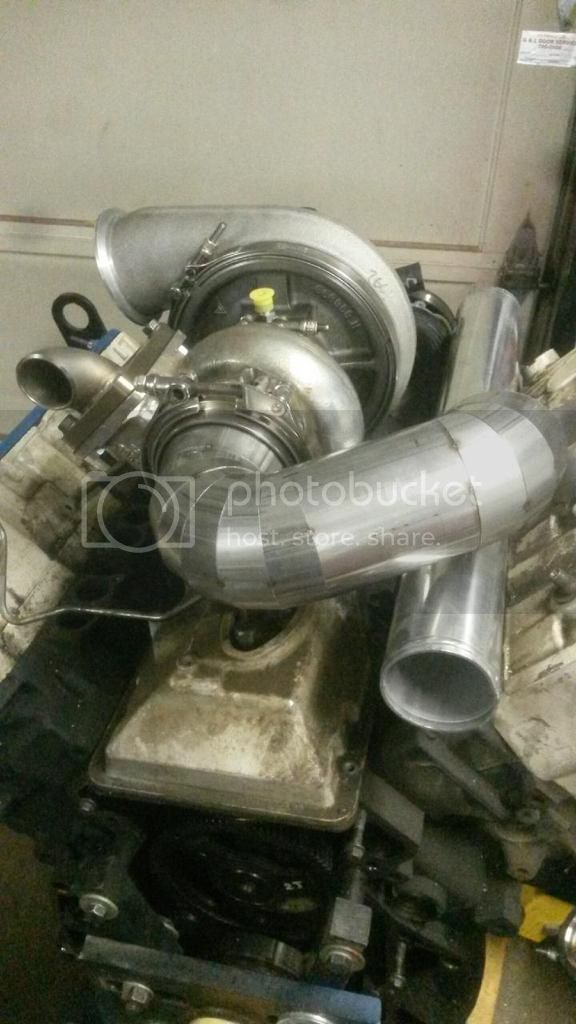

After looking at the pipes and getting some tips from a few fab pros I'm going to move the bellows up higher to take some heat away from them. Otherwise the layout is set. Now to figure out the wastegate piping. Thanks for letting me build your kit Matt, it means a lot to be asked with so many people to choose from.

08SUPERKING · Feb 11, 2016

Great fab work.

Black AOD · Feb 15, 2016

Killing it Shane.

Matt · Feb 15, 2016

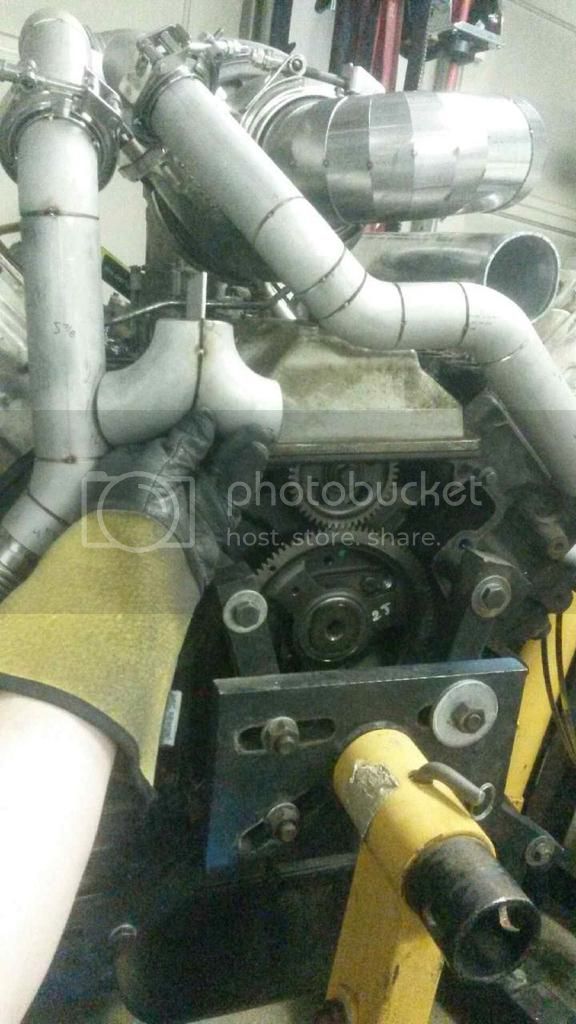

Inside view of the intermediate pipe. Shane extended the pipe a little past the vband so it sits inside the exhaust housing and makes a better fit on the flange. It's the little things this guy does.

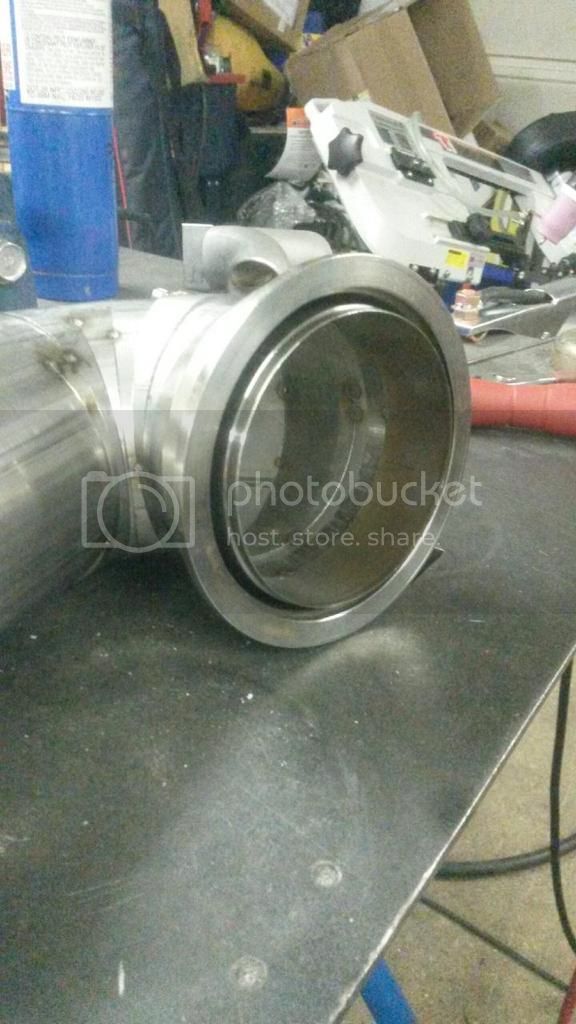

Getting ideas for gate placement. I wanted to be able to gate both banks of the engine, but love the simplicity of one gate. Not wanting to lose the benefits of having divided up pipes, Shane made this merge so the up pipes remain divided all the way up to the gate. A 50mm JGS will be reused from my previous set up.
