Did a tranny flush today just to get a visual of how things are looking inside the pan, so far it looks okay. While it was up I modified the exhaust to tuck up under the truck a little better:



[907DAVE]

Things are about to get interesting...



[907DAVE]

Looks like he fun is going to have to wait, lifted and intake...lol.



[northpolerex]

Soooo when is my ride gonna be???



[907DAVE]

Soon!

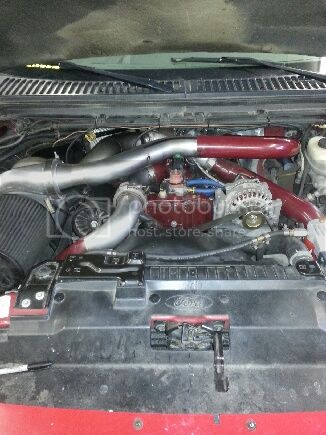

Was able to get the massive boost leak is fixed and waste gates hooked up. Now it looks like I need to switch out the spring in the secondary gate. Once that stuff i working well I will be hooking up the naaawzz.

Everyone pray for my tranny!



[njjeep]

Is that a glow plug with a icp sensor brazed to it?

Things are about to get interesting...



[907DAVE]

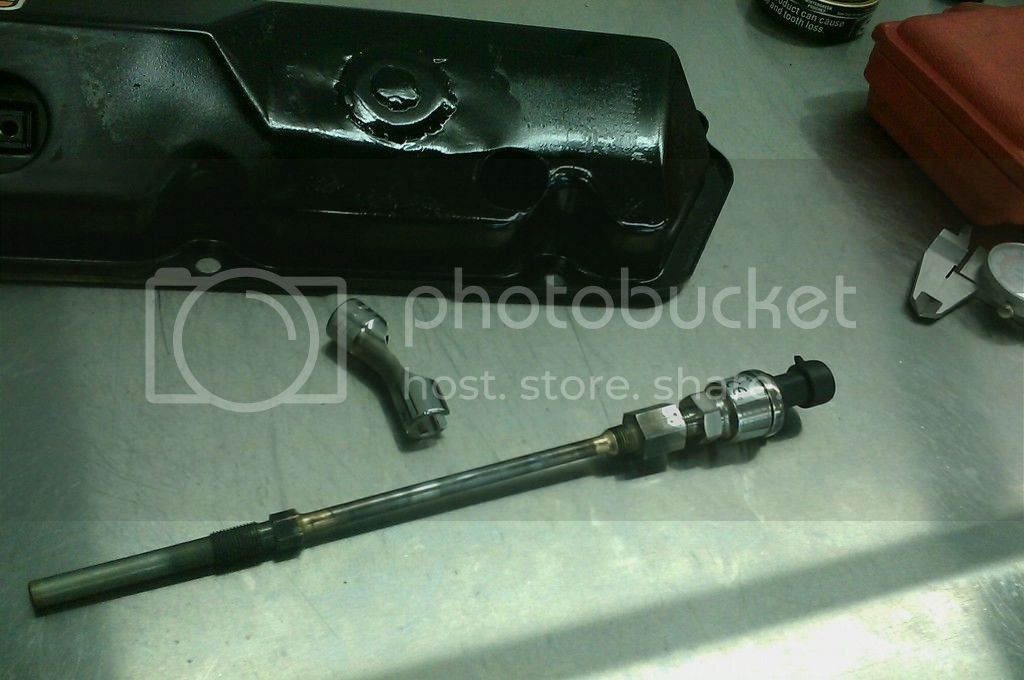

Yup, but not an ICP sensor. Its a 5K pressure transducer that will be used for cylinder pressure testing. Need to get the nitrous on before I will be needing that though.



[jwlandry]

That's one he'll of a transformation. Very cool truck.



[907DAVE]

Bringing this one back up for a little update.

Made the decision to upgrade the primary charger to something a little larger.

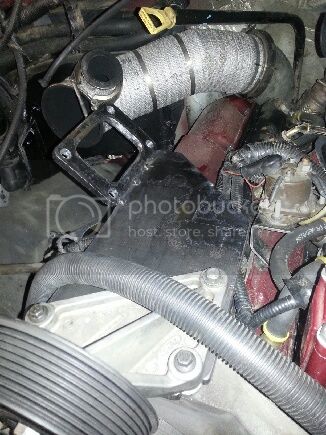

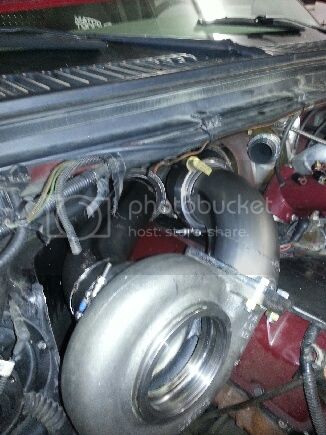

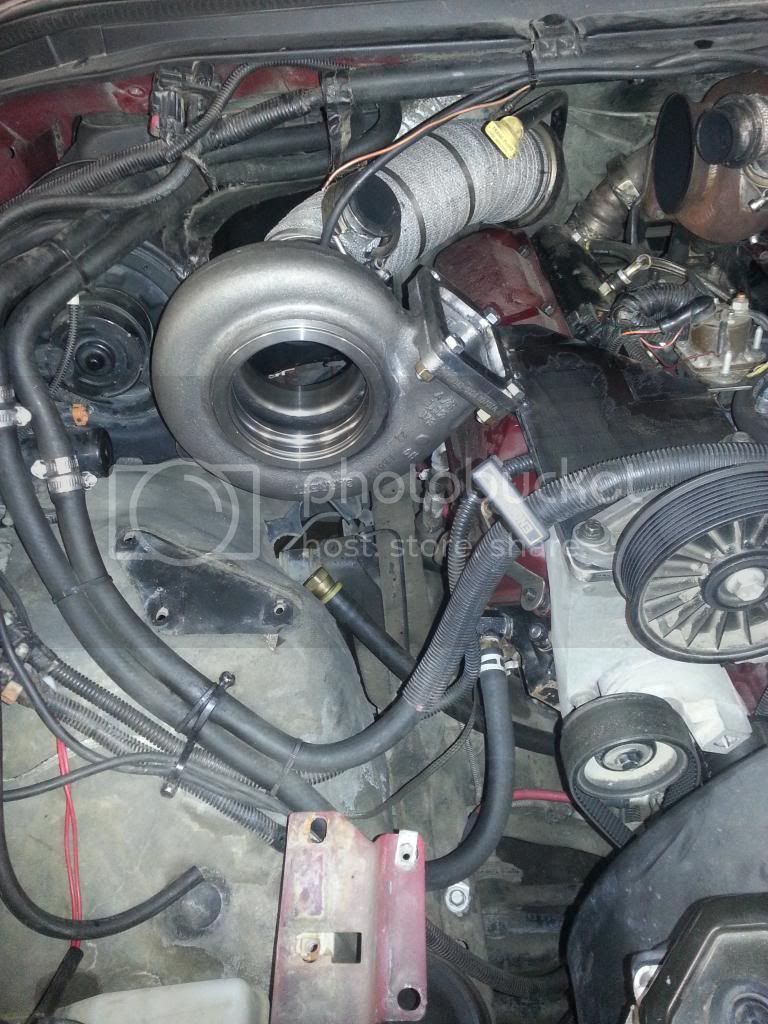

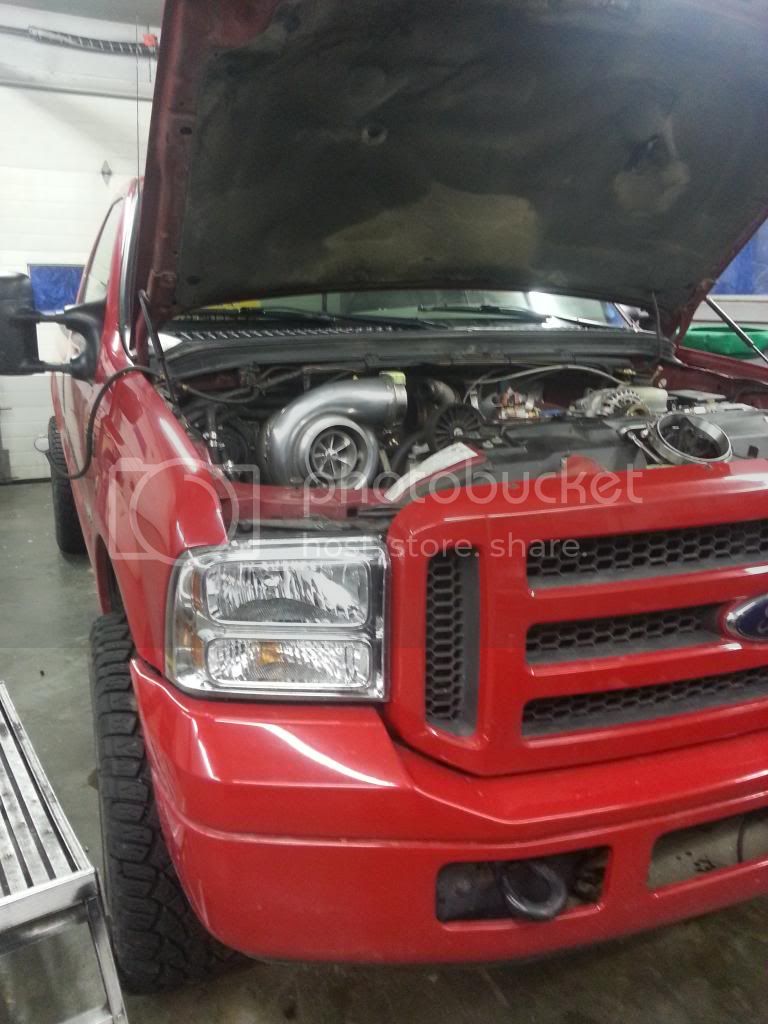

Here's a few pic's of the initial mock up. I plan on getting the rest of the supplies ordered up in the next week or so.



[V-Ref]

Looking good Dave! Like all your work, look forward to seeing the clean/professional install once your done. Thanks for sharing and updating the thread!



[907DAVE]

Thanks Tim, I am really excited to see how that charger is work out. Things are pretty tight under the hood, but I hope to get everything arranged so the engine is easy to work on if needed.

I hope to get Code Red down to the dyno/ track this summer too.



[907DAVE]

Couple thoughts on the plan for the new setup.

The old primary mounted to the a/c compressor bracket with the center intake pipe routed over top of the bracket. This made removing that primary a bit if a pain because the intake had to be removed every time. Not too big of a deal, but add on water injection and all the reference lines and it got aggravating.

Secondly, the intermediate exhaust pipe was welded directly to the mount, so if I needed to remove the secondary the entire turbo setup had to be removed.

Lastly, getting the spring out of the secondary gate was annoying, the way I had it positioned made the screws a real pain to get in and out with the intermediate pipe in place.

The plan this time is to route the center intake away from the primary mount and use a v-band connection in the intermediate pipe so the turbo's can be removed separately if needed. Then hopefully there will be enough space to re-position the secondary gate.

I should have parts to finish the plumbing up by the middle of next week.



[Lil' Pete]

Thanks Tim, I am really excited to see how that charger is work out. Things are pretty tight under the hood, but I hope to get everything arranged so the engine is easy to work on if needed.

I hope to get Code Red down to the dyno/ track this summer too.

You should have gone with 221 for the name, because that's all the HP it will make. oke:



[907DAVE]

Probably.



[907DAVE]

Had some spare time at work today, little progress...

Still need to hang the gates, then everything is coming back off to get welded - then installed to check final fitment - then stripped and sandblasted and off to get powder coated.
